BD9328EFJ-LBE2

Description
INDUSTRIALINTEGRATED FETBUCKSYNC
CategoryPower/power management    The power supply circuit
File Size1MB,21 Pages
ManufacturerROHM Semiconductor
Websitehttps://www.rohm.com/
Environmental Compliance
Download Datasheet Parametric View All

BD9328EFJ-LBE2 Online Shopping

Suppliers Part Number Price MOQ In stock
BD9328EFJ-LBE2 - - View Buy Now

BD9328EFJ-LBE2 Overview

INDUSTRIALINTEGRATED FETBUCKSYNC

BD9328EFJ-LBE2 Parametric

Parameter NameAttribute value
Is it Rohs certified?conform to
package instruction4.90 X 6 MM, 1 MM HEIGHT, HTSOP-8
Reach Compliance Codecompliant
ECCN codeEAR99
Other featuresOUTPUT VOLTAGE RANGE FROM 0.9 V TO 12.6 V
Analog Integrated Circuits - Other TypesSWITCHING REGULATOR
control modeCURRENT-MODE
Control TechnologyPULSE WIDTH MODULATION
Maximum input voltage18 V
Minimum input voltage4.2 V
Nominal input voltage12 V
JESD-30 codeR-PDSO-G8
length4.9 mm
Number of functions1
Number of terminals8
Maximum operating temperature85 °C
Minimum operating temperature-40 °C
Package body materialPLASTIC/EPOXY
encapsulated codeVSOP
Package shapeRECTANGULAR
Package formSMALL OUTLINE, VERY THIN PROFILE
Peak Reflow Temperature (Celsius)NOT SPECIFIED
Maximum seat height1 mm
surface mountYES
Switch configurationBUCK
Maximum switching frequency380 kHz
Temperature levelINDUSTRIAL
Terminal formGULL WING
Terminal pitch1.27 mm
Terminal locationDUAL
Maximum time at peak reflow temperatureNOT SPECIFIED
width3.9 mm
Base Number Matches1
Datasheet
4.2V to 18V, 2A 1ch
Synchronous Buck Converter Integrated FET
BD9328EFJ-LB
General Description
This is the product guarantees long time support in
Industrial market.
The BD9328EFJ-LB is a synchronous step-down
switching regulator with built-in two low-resistance
N-Channel MOSFETs. This IC can supply continuous
output current of 2A over a wide input range, and
provides not only fast transient response, but also
easy phase compensation because of current mode
control.
Key Specifications
Input Voltage Range:
4.2V to 18V
Output Voltage Range:
0.9V to (V
IN
x 0.7)V
Output Current:
2A (Max)
Switching Frequency:
380kHz(Typ)
Hi-Side FET ON-Resistance:
0.15Ω(Typ)
Lo-Side FET ON-Resistance:
0.13Ω(Typ)
Standby Current:
15μA (Typ)
Operating Temperature Range:
-40°C to +85°C
W (Typ) D (Typ) H (Max)
4.90mm x 6.00mm x 1.00mm
Package
Features
Long Time Support Product for Industrial
Applications.
Uses Low ESR Output Ceramic Capacitors
Low Standby Current
380 kHz Fixed Operating Frequency
Feedback Voltage
0.9V ± 1.5%(Ta=25°C)
0.9V ± 2.0%(Ta=-25°C to +85°C)
Protection Circuits
Under Voltage Lockout Protection
Thermal Shutdown
Over Current Protection
HTSOP-J8
Applications
Industrial Equipment.
Distributed Power Systems
Pre-Regulator for Linear Regulators
HTSOP-J8

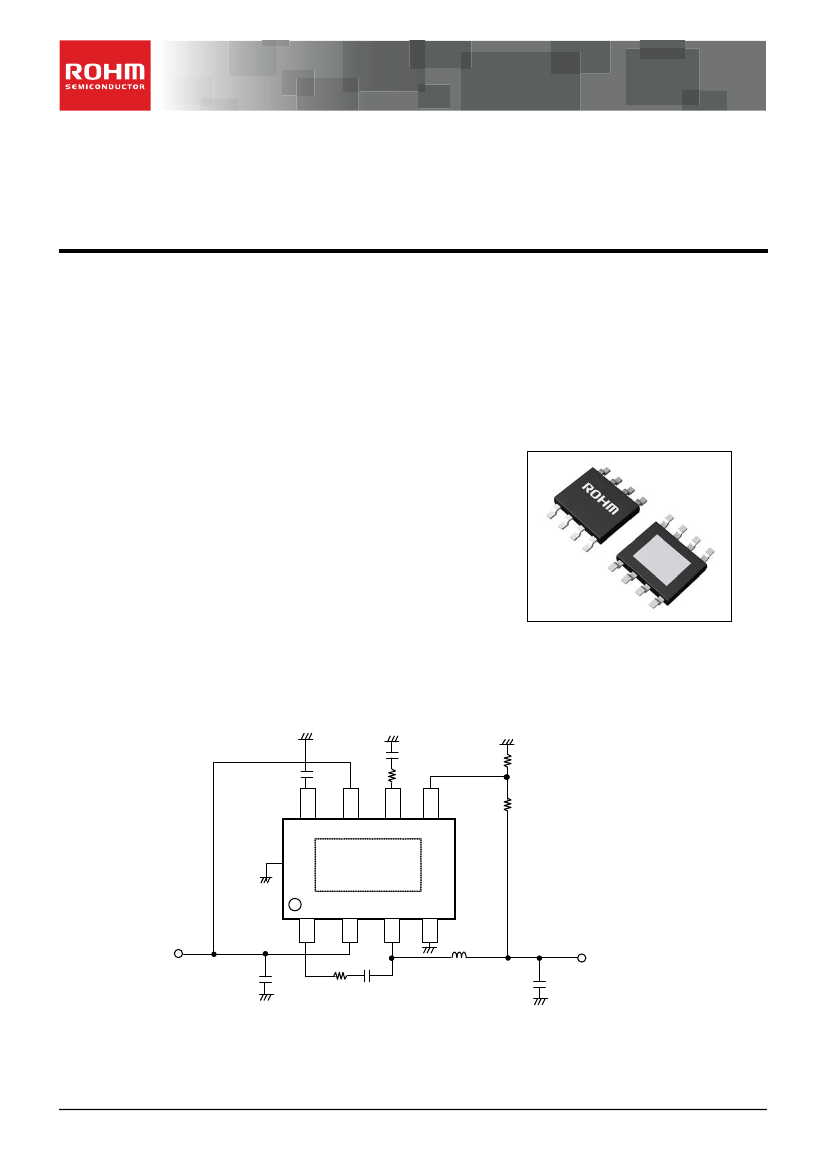

Typical Application Circuit
C_PC
3300pF
C_SS
0.1μF
SS
EN
R_PC
7.5kΩ
R_UP
27kΩ
COMP
R_DW
10kΩ
Thermal Pad
(to be shorted to GND)
GND
BST
VIN
SW
FB
VIN 12V
C_VC1
10μF
L
10µH
V
OUT
3.3V
C_CO1
20μF
R_BS
22Ω
C_BS
0.1μF
R_BS protect from VIN-BST short destruction.

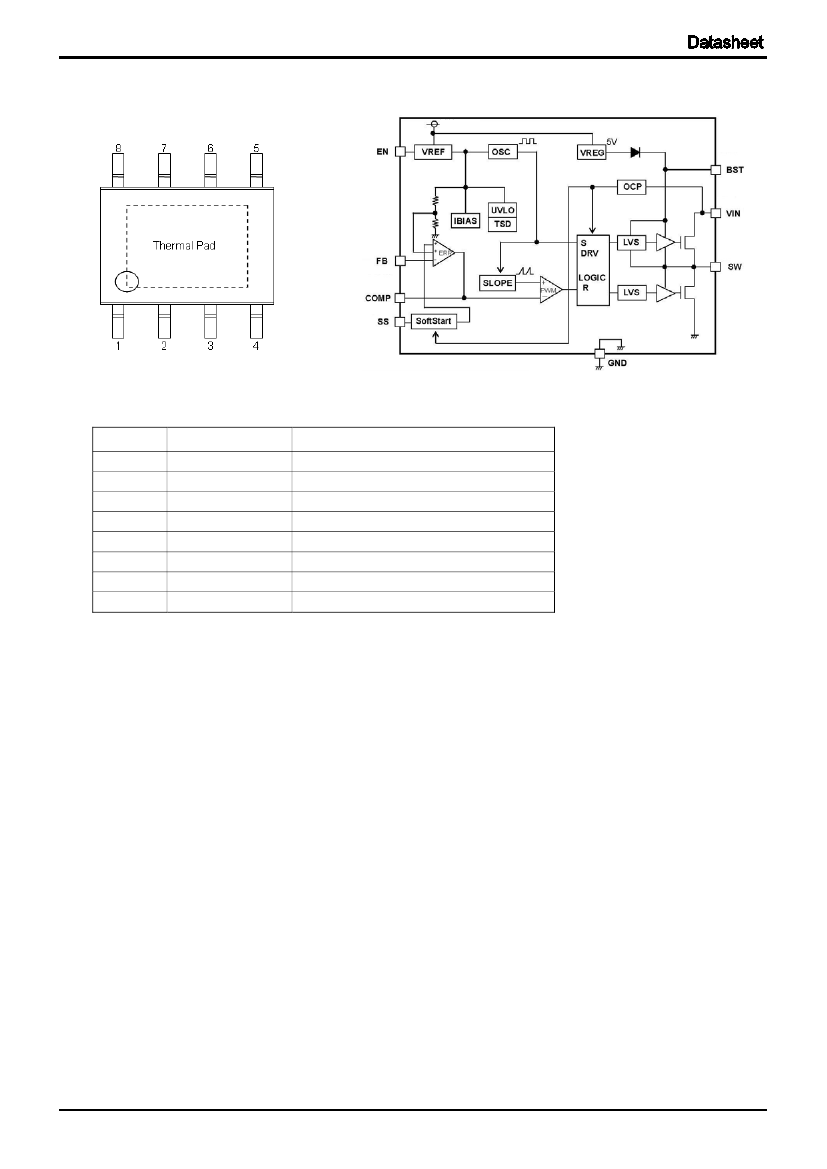

Figure 1. Typical Application Circuit
