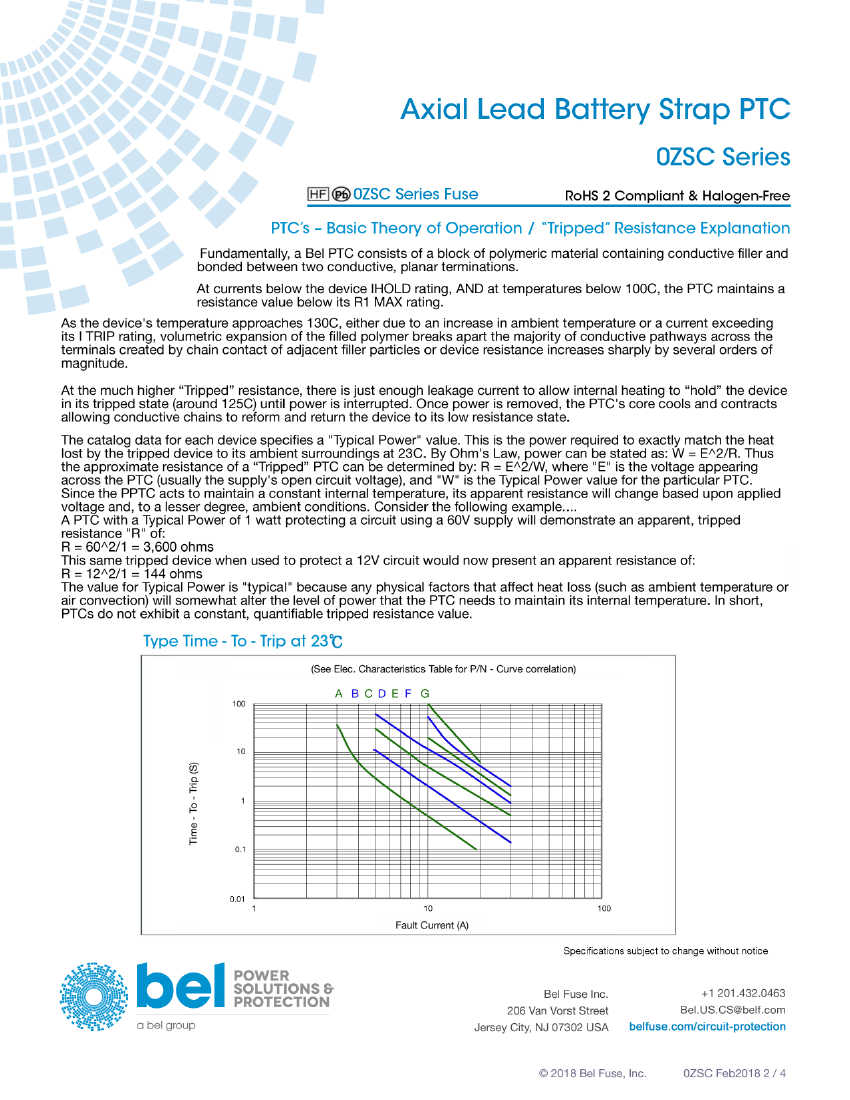

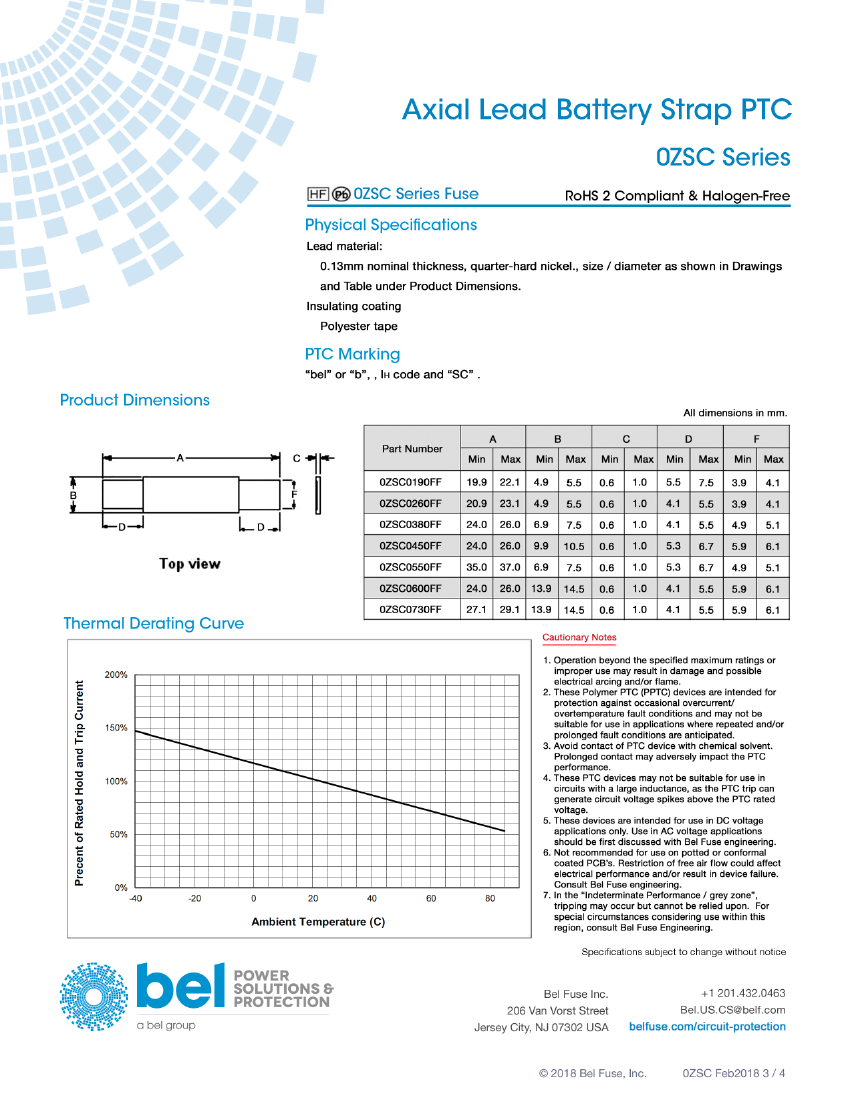

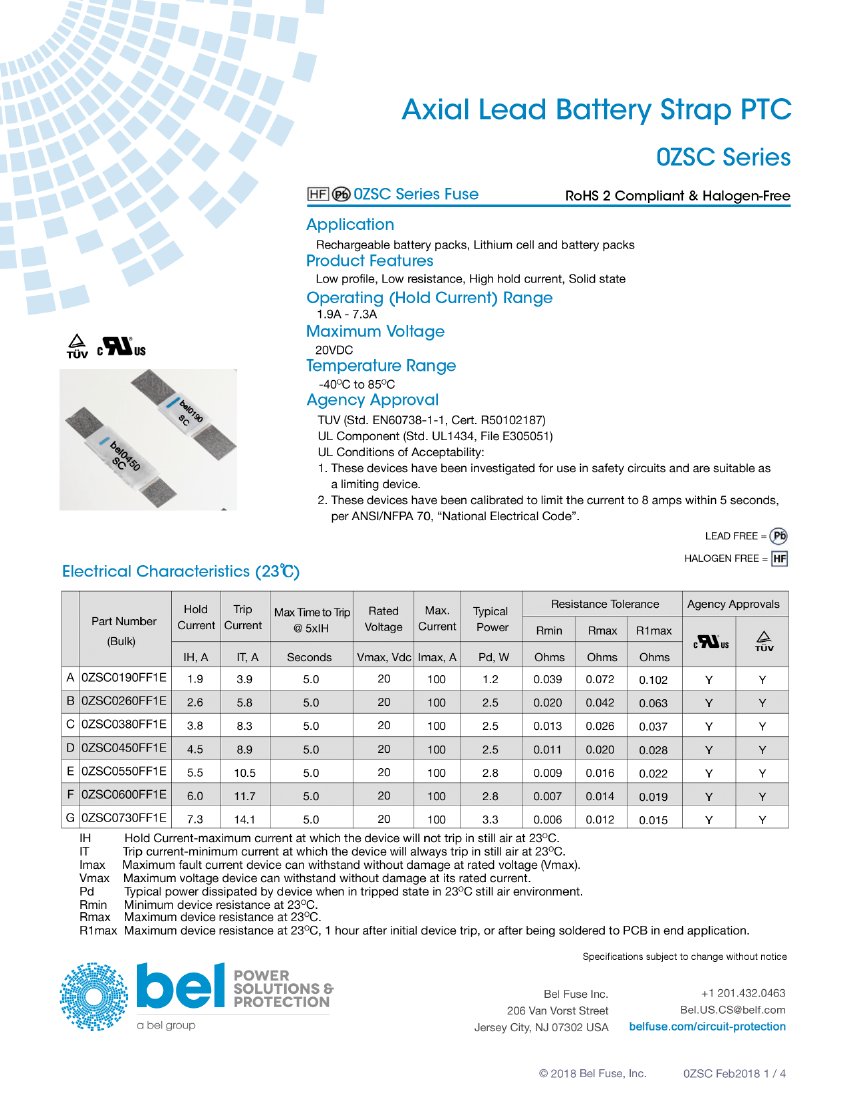

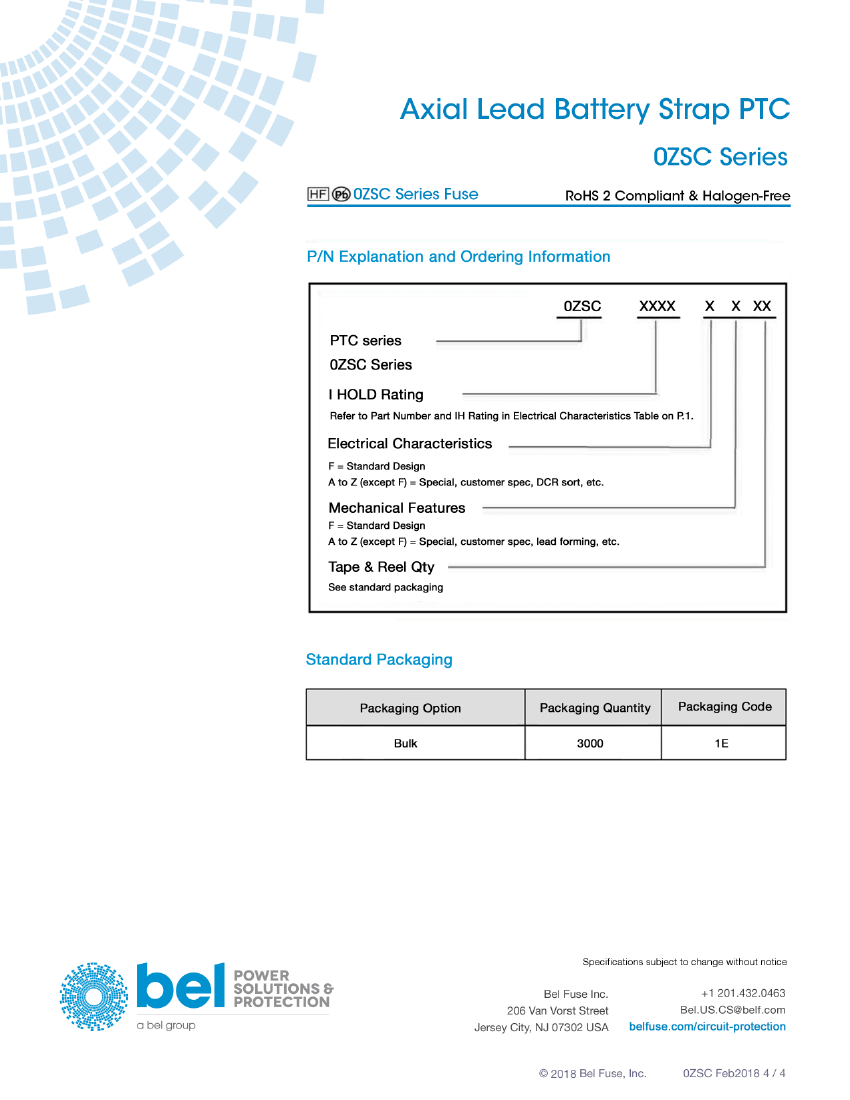

Preview

0ZSC0600FF1E: DescriptionPTC RESET FUSE 20V 6.0A STRAP; CategoryCircuit protection; File Size1MB，4 Pages; ManufacturerBel Fuse; Environmental Compliance

Download Datasheet Parametric Compare View All

0ZSC0600FF1E Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	0ZSC0600FF1E	-	-	View	Buy Now

0ZSC0600FF1E Overview

PTC RESET FUSE 20V 6.0A STRAP

0ZSC0600FF1E Parametric

Parameter Name	Attribute value
type	polymer
Voltage - maximum	20V
Current - maximum	100A
Current - Hold (Ih) (maximum)	6A
Current - Trip (It)	11.7A
Trip time	5s
Resistance - Initial (Ri) (minimum value)	7 mOhms
Resistor - after trip (R1) (maximum value)	19 mOhms
Operating temperature	-40°C ~ 85°C
grade	-
Installation type	Custom
Package/casing	bring
size/dimensions	0.984" long x 0.559" wide (25.00mm x 14.20mm)
Height - Installation (maximum)	-
Thickness (maximum)	0.039"（1.00mm）
lead spacing	-
Approval	cURus，TUV

Preview

Download Datasheet

View All

0ZSC0600FF1E Related Products

	0ZSC0600FF1E	0ZSC0190FF1E	0ZSC0260FF1E	0ZSC0380FF1E	0ZSC0450FF1E	0ZSC0550FF1E	0ZSC0730FF1E
Description	PTC RESET FUSE 20V 6.0A STRAP	PTC RESET FUSE 20V 1.9A STRAP	PTC RESET FUSE 20V 2.6A STRAP	PTC RESET FUSE 20V 3.8A STRAP	PTC RESET FUSE 20V 4.5A STRAP	PTC RESET FUSE 20V 5.5A STRAP	PTC RESET FUSE 20V 7.3A STRAP
type	polymer	polymer	polymer	polymer	polymer	polymer	polymer
Voltage - maximum	20V	20V	20V	20V	20V	20V	20V
Current - maximum	100A	100A	100A	100A	100A	100A	100A
Current - Hold (Ih) (maximum)	6A	1.9A	2.6A	3.8A	4.5A	5.5A	7.3A
Current - Trip (It)	11.7A	3.9A	5.8A	8.3A	8.9A	10.5A	14.1A
Trip time	5s	5s	5s	5s	5s	5s	5s
Resistance - Initial (Ri) (minimum value)	7 mOhms	39 mOhms	20 mOhms	13 mOhms	11 mOhms	9 mOhms	6 mOhms
Resistor - after trip (R1) (maximum value)	19 mOhms	102 mOhms	63 mOhms	37 mOhms	28 mOhms	22 mOhms	15 mOhms
Operating temperature	-40°C ~ 85°C	-40°C ~ 85°C	-40°C ~ 85°C	-40°C ~ 85°C	-40°C ~ 85°C	-40°C ~ 85°C	-40°C ~ 85°C
Installation type	Custom	Custom	Custom	Custom	Custom	Custom	Custom
Package/casing	bring	bring	bring	bring	bring	bring	bring
size/dimensions	0.984" long x 0.559" wide (25.00mm x 14.20mm)	0.827" long x 0.205" wide (21.00mm x 5.20mm)	0.866" long x 0.205" wide (22.00mm x 5.20mm)	0.984" long x 0.283" wide (25.00mm x 7.20mm)	0.984" long x 0.402" wide (25.00mm x 10.20mm)	1.417" long x 0.283" wide (36.00mm x 7.20mm)	1.106" long x 0.559" wide (28.10mm x 14.20mm)
Thickness (maximum)	0.039"（1.00mm）	0.039"（1.00mm）	0.039"（1.00mm）	0.039"（1.00mm）	0.039"（1.00mm）	0.039"（1.00mm）	0.039"（1.00mm）
Approval	cURus，TUV	cURus，TUV	cURus，TUV	cURus，TUV	cURus，TUV	cURus，TUV	cURus，TUV
