CRYSTAL CLOCK OSCILLATORS
HCSL COMPATIBLE HF/UHF CLOCK (XO)
Data Sheet 0631D
Rev.
A
AA-XEXX Series
Description
The
AA-XEXX Series
of quartz crystal oscillators provide ultra high frequency with HCSL compatible
complementary outputs. The device is based on low noise analog harmonic multiplication, and packaged in
a miniature, low profile leadless FR-4 based package with gold plated pads, which enhances compatibility
with PCB material.
Applications and Features
• Ultra High Frequency – up to 240.000MHz
• Fiber Channel; 10 GbE; Infiniband; Network Processors; SONET/SDH
• High Reliability - NEL HALT/HASS qualified for crystal oscillator start-up conditions
• Low Phase Noise, Low Jitter
• Fast Rise and Fall times
• Tight frequency stability - ±20ppm overall available
• RoHS Compliant, Lead Free Construction
• Low cost
Creating a Part Number
AA - X E X X - FREQ
Package Code
Overall Frequency Stability, ppm
AA 6 pad 7.5x5.2 SMD
E ±20
F ±25
Input Voltage
G ±50
A
3.3V±5%
H ±100
B
2.5V±5%
9 Customer specific
Temperature Range, °C
A 0 to 50
B 0 to 70
C -20 to 70
D -40 to 85
9
Customer specific
357 Beloit Street, P.O. Box 457, Burlington, WI 53105-0457 U.S.A. Phone 262/763-3591 FAX 262/763-2881
Email:
nelsales@nelfc.com
www.nelfc.com
CRYSTAL CLOCK OSCILLATORS
AA-XEXX Series
Continued
HCSL Compatible HF/UHF Clock (XO)
Data Sheet 0631D
Rev.
A
Absolute Maximum Ratings
Parameter
Operating Temperature Range
Storage Temperature Range
Supply Voltage
Enable/Disable Voltage
Parameter
Nominal Frequency
Supply Voltage
Supply current
Logic Type
Load
Output Levels
Duty Cycle (Symmetry)
Rise/Fall Time
Jitter
Integrated
Wavecrest
characterized
Symb
Fo
Vcc
Icc
Symbol
To
Tst
Vcc
Ven/dis
Conditions, Note
Code A
Code B
At receiving end each
output, Rs=0 Ohm
Output High 1,2
Output Low 1,2
Crossing Point
At outputs crossing, room
temperature
From 0.175 to 0.525V
Integrated from Phase
Noise, 12 KHz to 20 MHz,
RMS
Random
period,
Accumul.,
pk-to-pk
Deterministic
@ 10 Hz
@100 Hz
@1 KHz
@10KHz
@100KHz
@>1MHz
Overall, including initial
calibration, temperature,
aging 10 years, shock and
vibration @ Vc=Vcc/2;
APR 50ppm, or less
Value
-40 to +85
-50 to +90
-0.5 to 4.5
0 to Vcc
MAX
240
3.135
3.3
3.465
2.375
2.5
2.625
80
100
HCSL Compatible
50
660
250
45/55
700
0
350
50/50
0.35
0.2
2.5
2.5
25
3
6
-45
-35
-65
-95
-125
-140
-145
-148
See “Creating a Part Number”
Not all combinations
available, consult factory
850
550
55/45
0.5
MIN
TYP
Unit
ºC
ºC
V
V
Unit
MHz
V
mA
Ohm
mV
V
mV
%
ns
ps
ps
ps
ps
dBc
dBc/Hz
Electrical Parameters
Voh
Vol
Vcr
Tr/Tf
J
Sub-harmonics
Phase Noise
£(∆f)
Frequency Stability,
usually not specified -
unless necessary, APR
is specified to
incorporate stability
∆F/F
ppm
357 Beloit Street, P.O. Box 457, Burlington, WI 53105-0457 U.S.A. Phone 262/763-3591 FAX 262/763-2881
Email:
nelsales@nelfc.com
www.nelfc.com
CRYSTAL CLOCK OSCILLATORS
AA-XEXX Series
Continued
HCSL Compatible HF/UHF Clock (XO)
7.5
Rev. A

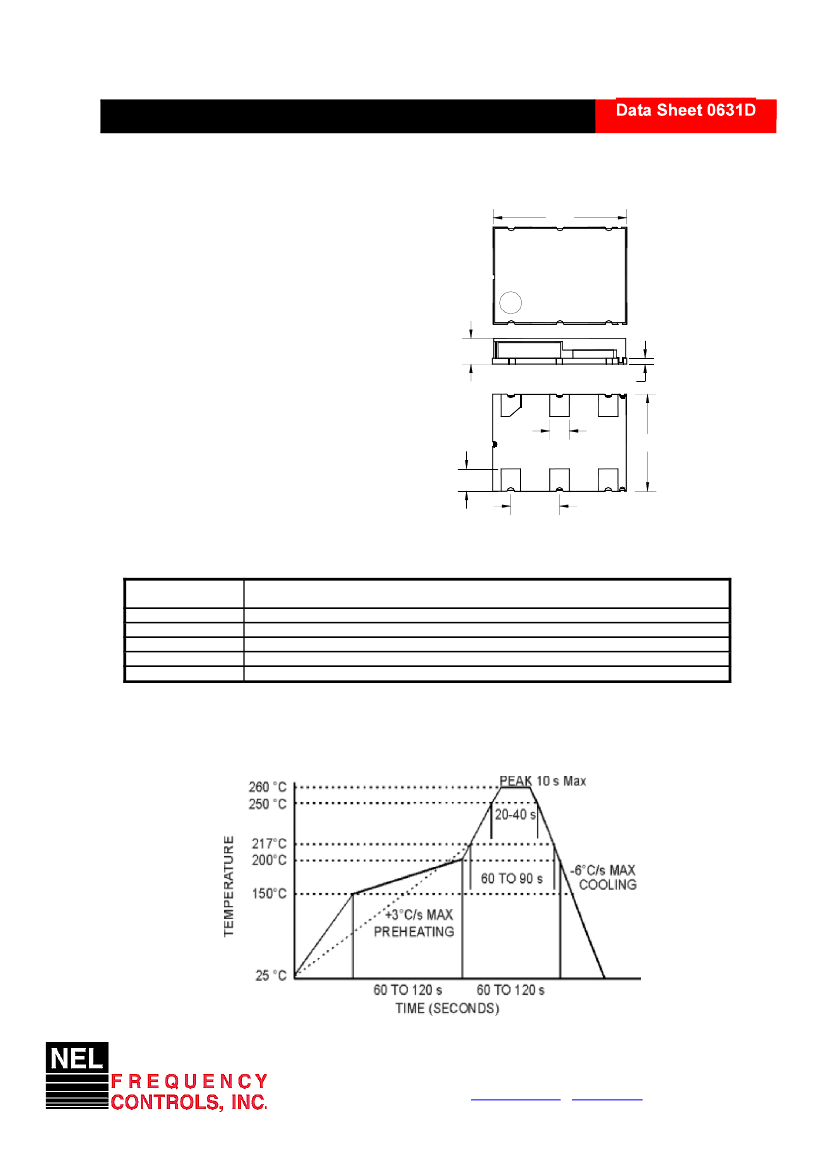

Electrical Connection
Pin
Connection
1
Enable/Disable or No Connect
2
N/C
3
Gnd
4
Output
5
/Output
6
V
CC
Dimensions are typical in mm
NEL
2.0
0.5
1
2
3
1.37
5.20
1.37
6
2.540
5
4
Environmental and Mechanical Characteristics
Operating temp.
range
Mechanical Shock
Thermal Shock
Vibration
Hermetic Seal
Soldering conditions
see part # table
Per MIL-STD-202, Method 213, Cond. E
Per MIL-STD-883, Method 1011, Cond. A
Per MIL-STD-883, Method 2007, Cond. A
Leak rate less than 1x10-8 atm.cc/s of helium
See MAX reflow profile below
Maximum Reflow Profile
357 Beloit Street, P.O. Box 457, Burlington, WI 53105-0457 U.S.A. Phone 262/763-3591 FAX 262/763-2881
Email:
nelsales@nelfc.com www.nelfc.com
