TX16/9.6/6.3-3E65: DescriptionFERRITE CORES ROUND; CategoryPassive components; File Size55KB，1 Pages; ManufacturerFerroxcube; Websitehttp://www.ferroxcube.com/

Download Datasheet Parametric Compare View All

TX16/9.6/6.3-3E65 Overview

FERRITE CORES ROUND

TX16/9.6/6.3-3E65 Parametric

Parameter Name	Attribute value
Kernel type	Magnetic ring
Tolerance	±30%
gap	No notch
Initial magnetic permeability (µi)	10000
Magnetic core factor (ΣI/A) mm-1	1.95
Effective length (e) mm	38.5
Effective area (Ae) mm²	19.7
Effective magnet volume (Ve) mm³	760
surface	Epoxy
Supplier device packaging	TX 16 x 9.6 x 6.3
high	6.55mm
length	-
width	-
diameter	16.25mm

Preview

Download Datasheet

View All

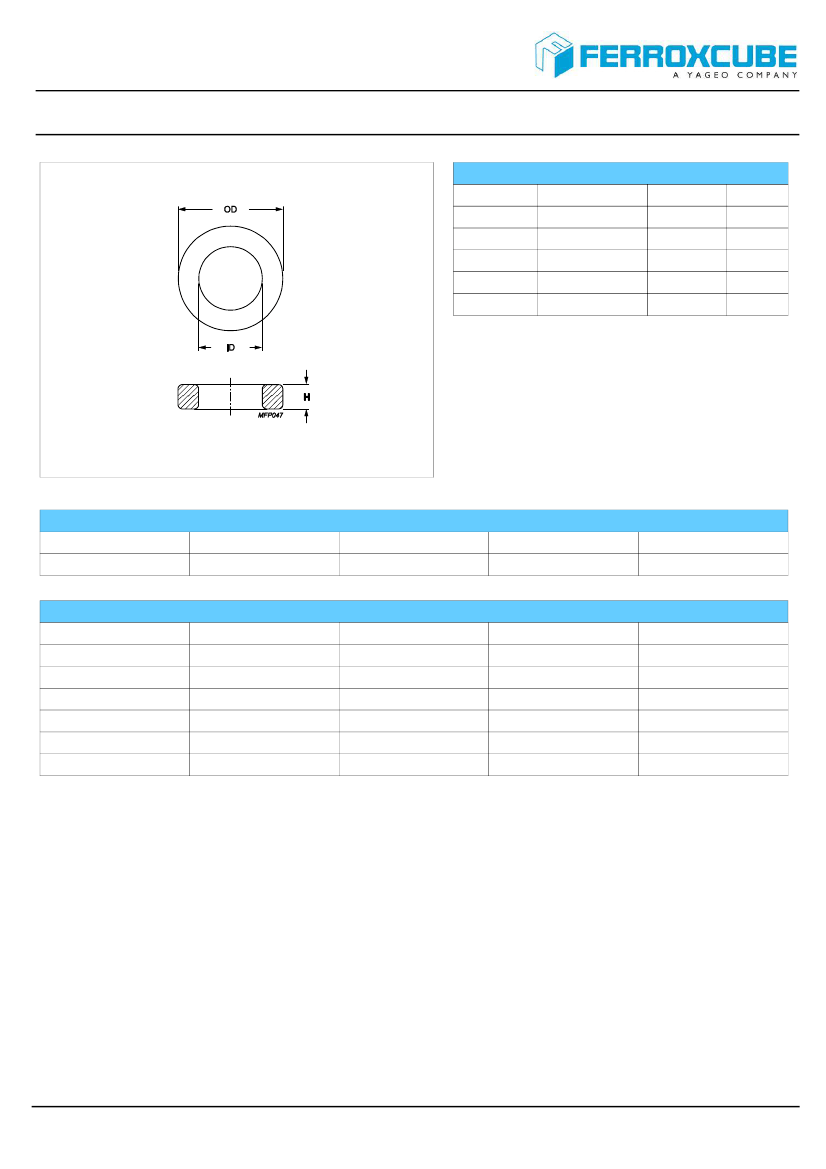

Product specifications

Core

Toroid 16/9.6/6.3

Effective parameters

Symbol

∑(I/A)

Ve

Le

Ae

m

Parameter

core factor (C1)

effective volume

effective length

effective area

mass of core

Value

1.95

760

38.5

19.7

≈ 3.8

Unit

mm⁻¹

mm³

mm

mm²

g/pcs

Epoxy coating DC isolation voltage 1500.

Maximum operating temperature of the coating is 200ºC.

Dimensions (mm)

Cores

TX16/9.6/6.3

OD

16.75 max

ID

8.95 min

H

6.95 max

Epoxy Coated

Core data

Cores

TX16/9.6/6.3

Material

3C94

3E10

3E12

3E27

3E6 (3E10-M)

3E65

Al (nH/turns²)

1480

6440

7730

3540

6440

3350

Al tolerance

± 25%

± 20%

± 30%

± 25%

± 30%

± 25%

µe

≈ 2300

≈ 10000

≈ 12000

≈ 5500

≈ 10000

≈ 5200

2016
