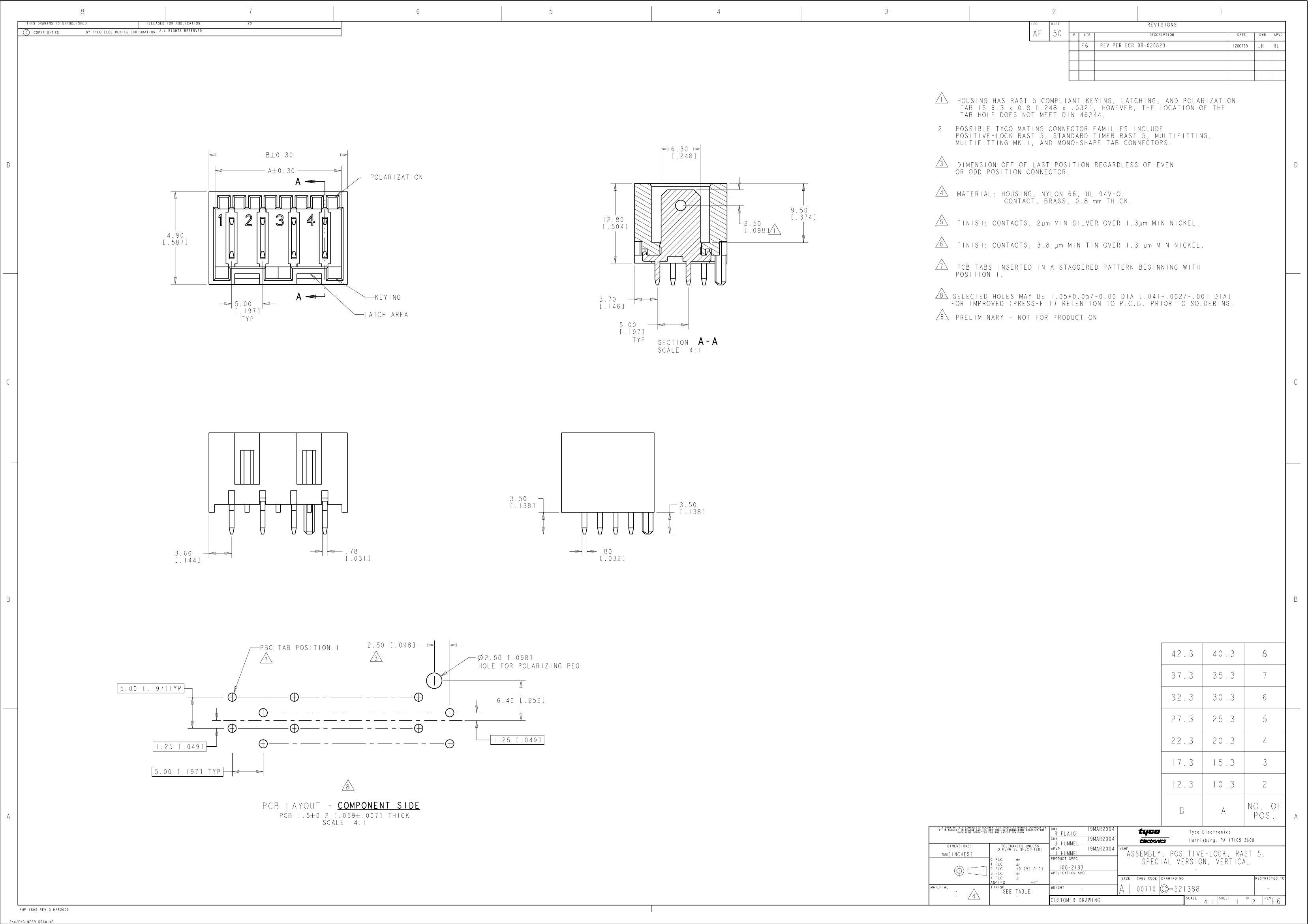

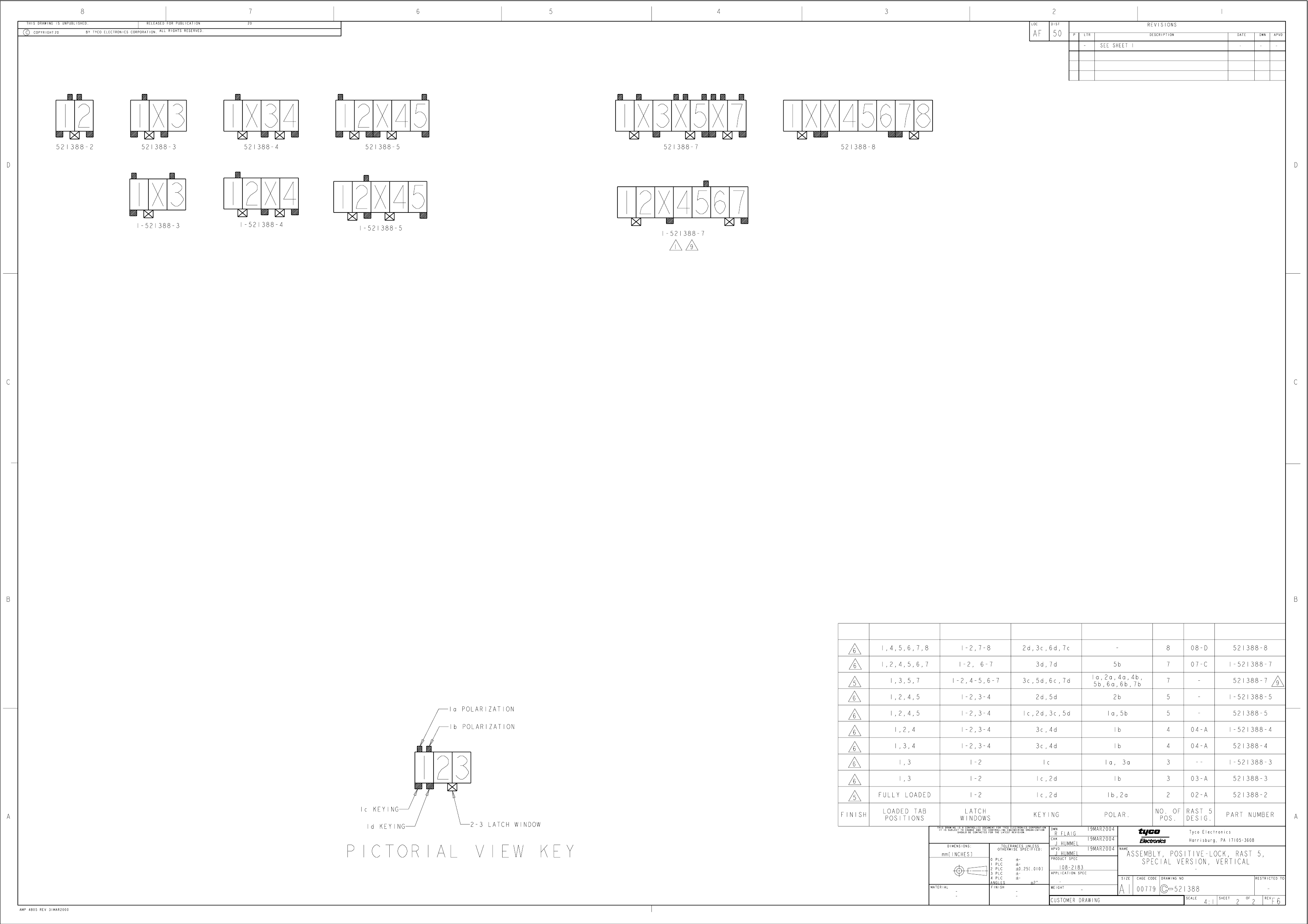

PDF
Preview

1-521388-4

Description
3 CONTACT(S), MALE, STRAIGHT TWO PART BOARD CONNECTOR, SOLDER
CategoryThe connector    The connector
File Size191KB，2 Pages
ManufacturerTE Connectivity
Websitehttp://www.te.com
Environmental Compliance
Download Datasheet Parametric Compare View All

1-521388-4 Online Shopping

Suppliers Part Number Price MOQ In stock
1-521388-4 - - View Buy Now

1-521388-4 Overview

3 CONTACT(S), MALE, STRAIGHT TWO PART BOARD CONNECTOR, SOLDER

1-521388-4 Parametric

Parameter NameAttribute value
Is it Rohs certified?conform to
Reach Compliance Codecompli
Other featuresLATCHED, POLARIZED
Connector typeBOARD CONNECTOR
Contact to complete cooperationNOT SPECIFIED
Contact point genderMALE
Contact materialNOT SPECIFIED
DIN complianceNO
Filter functionNO
IEC complianceNO
MIL complianceNO
Mixed contactsNO
Installation methodSTRAIGHT
Installation typeBOARD
Number of rows loaded1
OptionsGENERAL PURPOSE
Terminal pitch5 mm
Termination typeSOLDER
Total number of contacts3
UL Flammability Code94V-0
Base Number Matches1

Preview

Download Datasheet

1-521388-4 Related Products

1-521388-4 1-521388-7 521388-2 1-521388-5 521388-5 521388-7 521388-8
Description 3 CONTACT(S), MALE, STRAIGHT TWO PART BOARD CONNECTOR, SOLDER 6 CONTACT(S), MALE, STRAIGHT TWO PART BOARD CONNECTOR, SOLDER 2 CONTACT(S), MALE, STRAIGHT TWO PART BOARD CONNECTOR, SOLDER 5 CONTACT(S), MALE, STRAIGHT TWO PART BOARD CONNECTOR, SOLDER 4 CONTACT(S), MALE, STRAIGHT TWO PART BOARD CONNECTOR, SOLDER 4 CONTACT(S), MALE, STRAIGHT TWO PART BOARD CONNECTOR, SOLDER 6 CONTACT(S), MALE, STRAIGHT TWO PART BOARD CONNECTOR, SOLDER
Reach Compliance Code compli unknow unknown compliant compliant compliant unknown
Other features LATCHED, POLARIZED LATCHED, POLARIZED LATCHED, POLARIZED LATCHED, POLARIZED LATCHED, POLARIZED LATCHED, POLARIZED LATCHED, POLARIZED
Connector type BOARD CONNECTOR BOARD CONNECTOR BOARD CONNECTOR BOARD CONNECTOR BOARD CONNECTOR BOARD CONNECTOR BOARD CONNECTOR
Contact to complete cooperation NOT SPECIFIED TIN (150) OVER NICKEL (51) SILVER (79) OVER NICKEL (51) TIN OVER NICKEL NOT SPECIFIED NOT SPECIFIED TIN (150) OVER NICKEL (51)
Contact point gender MALE MALE MALE MALE MALE MALE MALE
DIN compliance NO NO NO NO NO NO NO
Filter function NO NO NO NO NO NO NO
IEC compliance NO NO NO NO NO NO NO
MIL compliance NO NO NO NO NO NO NO
Mixed contacts NO NO NO NO NO NO NO
Installation method STRAIGHT STRAIGHT STRAIGHT STRAIGHT STRAIGHT STRAIGHT STRAIGHT
Installation type BOARD BOARD BOARD BOARD BOARD BOARD BOARD
Number of rows loaded 1 1 1 1 1 1 1
Options GENERAL PURPOSE GENERAL PURPOSE GENERAL PURPOSE GENERAL PURPOSE GENERAL PURPOSE GENERAL PURPOSE GENERAL PURPOSE
Terminal pitch 5 mm 5 mm 5 mm 5 mm 5 mm 5 mm 5 mm
Termination type SOLDER SOLDER SOLDER SOLDER SOLDER SOLDER SOLDER
Total number of contacts 3 6 2 5 4 4 6
UL Flammability Code 94V-0 94V-0 94V-0 94V-0 94V-0 94V-0 94V-0
Is it Rohs certified? conform to - - conform to conform to conform to -
Contact material NOT SPECIFIED - NOT SPECIFIED BRASS NOT SPECIFIED NOT SPECIFIED -
Contact completed and terminated - TIN (150) OVER NICKEL (51) SILVER (79) OVER NICKEL (51) Tin (Sn) - with Nickel (Ni) barrier - - TIN (150) OVER NICKEL (51)
JESD-609 code - e3 e4 e3 - - e3
