CZTA64 TR datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > semiconductor> Discrete semiconductor> CZTA64 TR

CZTA64 TR: DescriptionTRANS PNP DARL 30V 0.5A SOT223; Categorysemiconductor Discrete semiconductor; File Size353KB，3 Pages; ManufacturerCentral Semiconductor

Download Datasheet Parametric View All

CZTA64 TR Overview

TRANS PNP DARL 30V 0.5A SOT223

CZTA64 TR Parametric

Parameter Name	Attribute value
Transistor type	PNP - Darlington
Current - Collector (Ic) (Maximum)	500mA
Voltage - collector-emitter breakdown (maximum)	30V
Vce saturation value (maximum value) when different Ib,Ic	1.5V @ 100µA，100mA
Current - collector cutoff (maximum)	100nA（ICBO）
DC current gain (hFE) at different Ic, Vce (minimum value)	20000 @ 100mA，5V
Power - Max	2W
Frequency - Transition	125MHz
Operating temperature	-65°C ~ 150°C（TJ）
Installation type	surface mount
Package/casing	TO-261-4，TO-261AA
Supplier device packaging	SOT-223

Preview

Download Datasheet

View All

CZTA14 NPN

CZTA64 PNP

SURFACE MOUNT SILICON

COMPLEMENTARY

DARLINGTON TRANSISTORS

w w w. c e n t r a l s e m i . c o m

DESCRIPTION:

The CENTRAL SEMICONDUCTOR CZTA14 and CZTA64

are complementary silicon Darlington transistors

manufactured by the epitaxial planar process, epoxy

molded in a surface mount package, designed for

applications requiring extremely high gain.

MARKING: FULL PART NUMBER

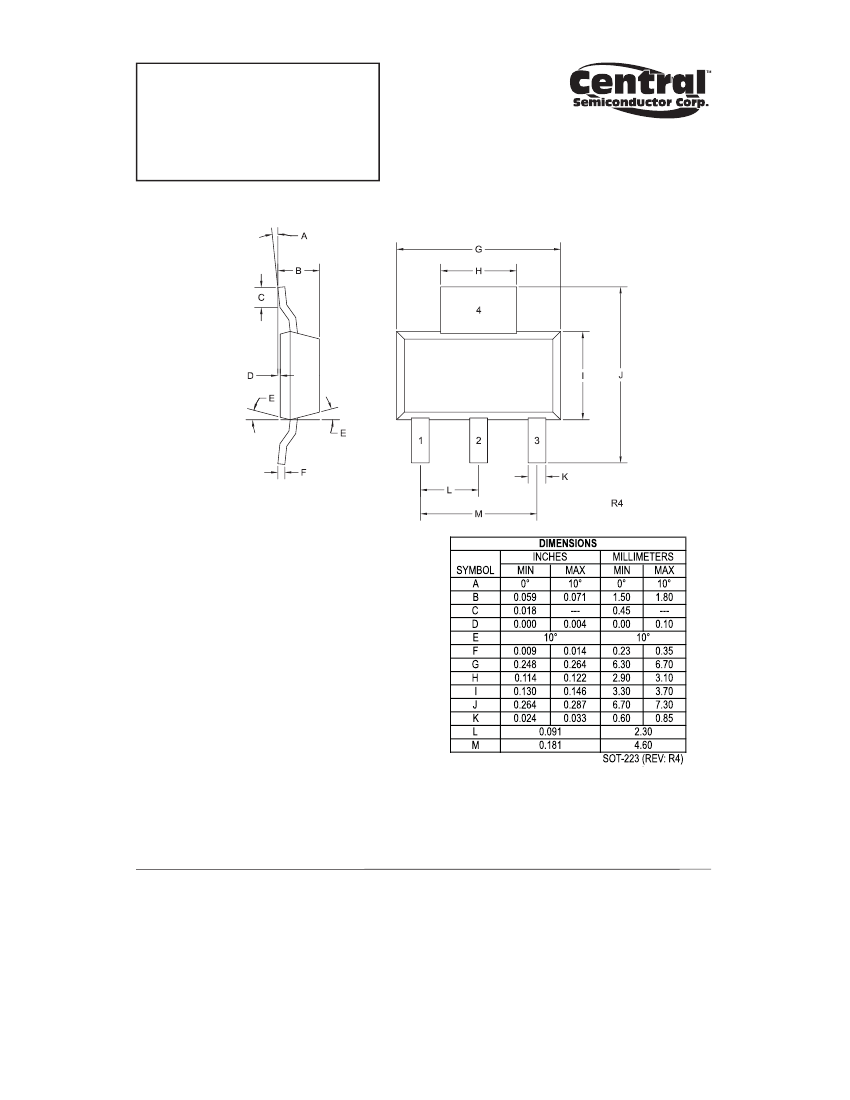

SOT-223 CASE

MAXIMUM RATINGS:

(TA=25°C)

Collector-Base Voltage

Collector-Emitter Voltage

Emitter-Base Voltage

Continuous Collector Current

Power Dissipation

Operating and Storage Junction Temperature

Thermal Resistance

ELECTRICAL

SYMBOL

ICBO

IEBO

BVCES

VCE(SAT)

VBE(ON)

hFE

SYMBOL

VCBO

VCEO

VEBO

TJ, Tstg

500

2.0

-65 to +150

62.5

MAX

100

1.5

2.0

UNITS

°C

°C/W

UNITS

CHARACTERISTICS:

(TA=25°C unless otherwise noted)

TEST CONDITIONS

MIN

VCB=30V

VEB=10V

IC=100µA

IC=100mA, IB=0.1mA

VCE=5.0V, IC=100mA

VCE=5.0V, IC=10mA

VCE=5.0V, IC=100mA

VCE=5.0V, IC=10mA, f=100MHz

10,000

20,000

125

MHz

R5 (22-August 2017)
