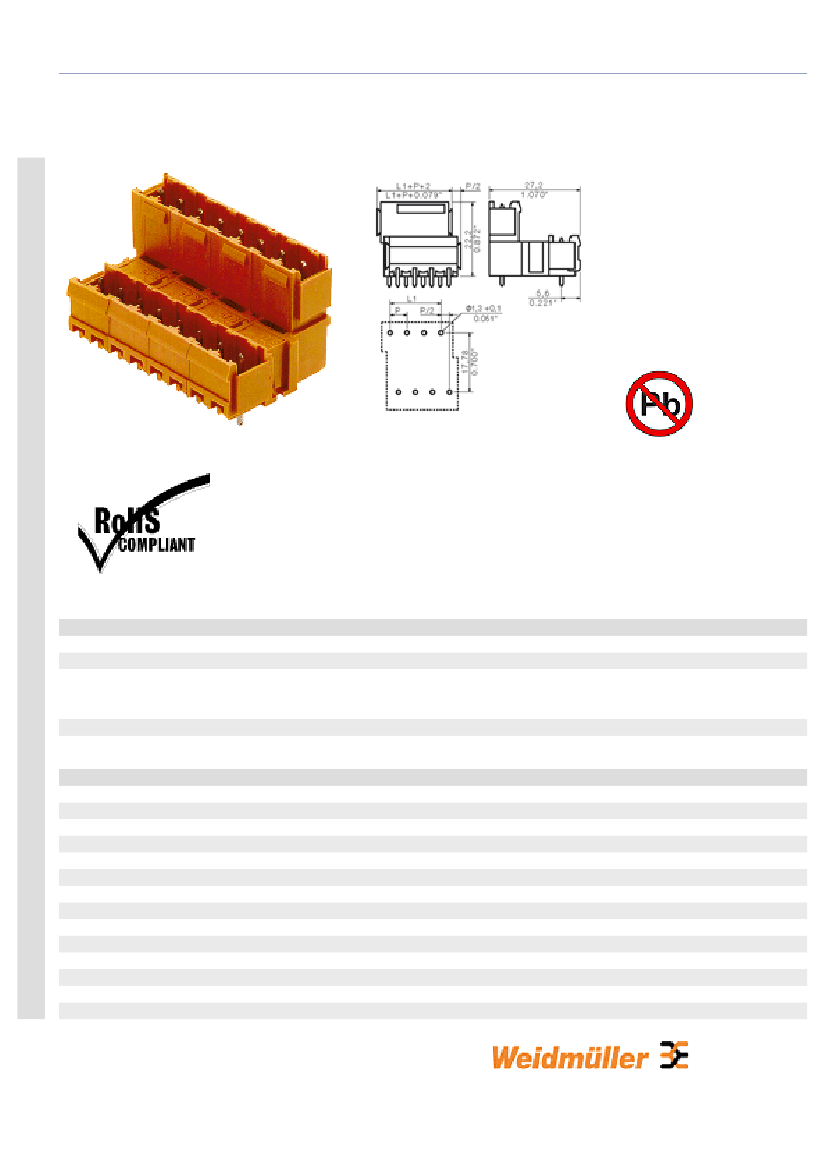

Product catalogue | PCB connection systems | PCB plug-in connectors | Pitch 5.08 mm (0.200 inch) - SLA/BLA | Plug
connectors, solder connection pitch 5.08 | SLAD 180 | SLAD 180B
General ordering data
Order No.
Part designation
Version
EAN
Qty.
System parameters
Fitted to PCB
Outgoing elbow
Pitch
Pitch in inch
No. of poles
Solder pin length
Can be coded
No. of rows
No. of solder pins per pole
Dia. of fitting hole
Fitting hole tolerance
L1 in mm
L1 in inch
Insulation resistance
1392960000
SLAD 12/6/180B 3.2SN OR
PCB plug-in connector, Male connectors, Soldered
connection, Pitch: 5.08 mm, No. of poles: 12,
180°, Box
4008190032630
50 pc(s).
Soldered connection
180°
5.08 mm
0.2 inch
12
3.2 mm
Yes
2
1
1.3 mm
+ 0.1 mm
25.4 mm
1 inch
1 MΩ
-1-
Product catalogue | PCB connection systems | PCB plug-in connectors | Pitch 5.08 mm (0.200 inch) - SLA/BLA | Plug
connectors, solder connection pitch 5.08 | SLAD 180 | SLAD 180B
System parameters
Electric shock protection to DIN VDE 0470
Material data
Insulating material
Colour
colour chart
Insulating material group
Flammability class UL 94
CTI
Contact base material
Contact surface
Constant operating temp., min.
Constant operating temp., max.
Storage temperature, min.
Storage temperature, max.
Max. relative humidity during storage
DIN IEC rating data
Rated current, min. No. pins (Tu=20°C)
Rated current, max. No. pins (Tu=20°C)
Rated current, min. No. pins(Tu=40°C)
Rated current, max. No. pins (Tu=40°C)
Rated voltage for overvoltage class/pollution
severity III/3
Rated impulse withstand voltage for overvoltage
class/pollution severity III/3
Rated voltage for overvoltage class/pollution
severity III/2
Rated impulse withstand voltage for overvoltage
class/pollution severity III/2
Rated voltage for overvoltage class/pollution
severity II/2
Rated impulse withstand voltage for overvoltage
class/pollution severity II/2
Short-time withstand current resistance
CSA rating data
Rated voltage (Use group D)
Rated current (Use group D)
UL 1059 rating data
Rated voltage (Use group D)
Rated current (Use group D)
Safe from back-of-hand touch, plugged
PBT GF
orange
Similar to RAL 2000
IIIa
V-0
>= 200
CuSn
tinned
-25 °C
120 °C
-25 °C
55 °C
80 %
10 A
7A
8.5 A
6A
250 V
4 kV
320 V
4 kV
400 V
4 kV
3 x 1s with 70 A
300 V
7A
300 V
10 A
-2-
Product catalogue | PCB connection systems | PCB plug-in connectors | Pitch 5.08 mm (0.200 inch) - SLA/BLA | Plug
connectors, solder connection pitch 5.08 | SLAD 180 | SLAD 180B
Approvals
Approvals institutes
Downloads
CAD Library (P-CAD Format - Standard)
Classifications
ETIM 2.0
ETIM 3.0
eClass 4.1
eClass 5.0
eClass 5.1
SLAD.LIB
NK
EC001284
27-26-07-01
27-26-07-01
27-26-07-04
Similar products
Order No.
1321460000
1321560000
1392760000
1392860000
1393060000
1393160000
1393260000
1393360000
1393460000
1393560000
Part designation
SLAD 4/180B 3.2SN OR
SLAD 6/180B 3.2SN OR
SLAD 8/180B 3.2SN OR
SLAD 10/180B 3.2SN OR
SLAD 14/180B 3.2SN OR
SLAD 16/180B 3.2SN OR
SLAD 18/180B 3.2SN OR
SLAD 20/180B 3.2SN OR
SLAD 22/180B 3.2SN OR
SLAD 24/6/180B 3.2SN OR
Version
PCB plug-in connector, Male connectors, Soldered connection,
Pitch: 5.08 mm, No. of poles: 4, 180°, Box
PCB plug-in connector, Male connectors, Soldered connection,
Pitch: 5.08 mm, No. of poles: 6, 180°, Box
PCB plug-in connector, Male connectors, Soldered connection,
Pitch: 5.08 mm, No. of poles: 8, 180°, Box
PCB plug-in connector, Male connectors, Soldered connection,
Pitch: 5.08 mm, No. of poles: 10, 180°, Box
PCB plug-in connector, Male connectors, Soldered connection,
Pitch: 5.08 mm, No. of poles: 14, 180°, Box
PCB plug-in connector, Male connectors, Soldered connection,
Pitch: 5.08 mm, No. of poles: 16, 180°, Box
PCB plug-in connector, Male connectors, Soldered connection,
Pitch: 5.08 mm, No. of poles: 18, 180°, Box
PCB plug-in connector, Male connectors, Soldered connection,
Pitch: 5.08 mm, No. of poles: 20, 180°, Box
PCB plug-in connector, Male connectors, Soldered connection,
Pitch: 5.08 mm, No. of poles: 22, 180°, Box
PCB plug-in connector, Male connectors, Soldered connection,
Pitch: 5.08 mm, No. of poles: 24, 180°, Box
-3-
Product catalogue | PCB connection systems | PCB plug-in connectors | Pitch 5.08 mm (0.200 inch) - SLA/BLA | Plug
connectors, solder connection pitch 5.08 | SLAD 180 | SLAD 180B
1394860000
1394960000
1395060000
1395160000
1395260000
1395360000
1395460000
1395560000
1395660000
1395760000
1395860000
1395960000
SLAD 26/180B 3.2SN OR
SLAD 28/180B 3.2SN OR
SLAD 30/180B 3.2SN OR
SLAD 32/180B 3.2SN OR
SLAD 34/180B 3.2SN OR
SLAD 36/6/180B 3.2SN OR
SLAD 38/180B 3.2SN OR
SLAD 40/180B 3.2SN OR
SLAD 42/180B 3.2SN OR
SLAD 44/180B 3.2SN OR
SLAD 46/180B 3.2SN OR
SLAD 48/6/180B 3.2SN OR
PCB plug-in connector, Male connectors, Soldered connection,
Pitch: 5.08 mm, No. of poles: 26, 180°, Box
PCB plug-in connector, Male connectors, Soldered connection,
Pitch: 5.08 mm, No. of poles: 28, 180°, Box
PCB plug-in connector, Male connectors, Soldered connection,
Pitch: 5.08 mm, No. of poles: 30, 180°, Box
PCB plug-in connector, Male connectors, Soldered connection,
Pitch: 5.08 mm, No. of poles: 32, 180°, Box
PCB plug-in connector, Male connectors, Soldered connection,
Pitch: 5.08 mm, No. of poles: 34, 180°, Box
PCB plug-in connector, Male connectors, Soldered connection,
Pitch: 5.08 mm, No. of poles: 36, 180°, Box
PCB plug-in connector, Male connectors, Soldered connection,
Pitch: 5.08 mm, No. of poles: 38, 180°, Box
PCB plug-in connector, Male connectors, Soldered connection,
Pitch: 5.08 mm, No. of poles: 40, 180°, Box
PCB plug-in connector, Male connectors, Soldered connection,
Pitch: 5.08 mm, No. of poles: 42, 180°, Box
PCB plug-in connector, Male connectors, Soldered connection,
Pitch: 5.08 mm, No. of poles: 44, 180°, Box
PCB plug-in connector, Male connectors, Soldered connection,
Pitch: 5.08 mm, No. of poles: 46, 180°, Box
PCB plug-in connector, Male connectors, Soldered connection,
Pitch: 5.08 mm, No. of poles: 48, 180°, Box
-4-
