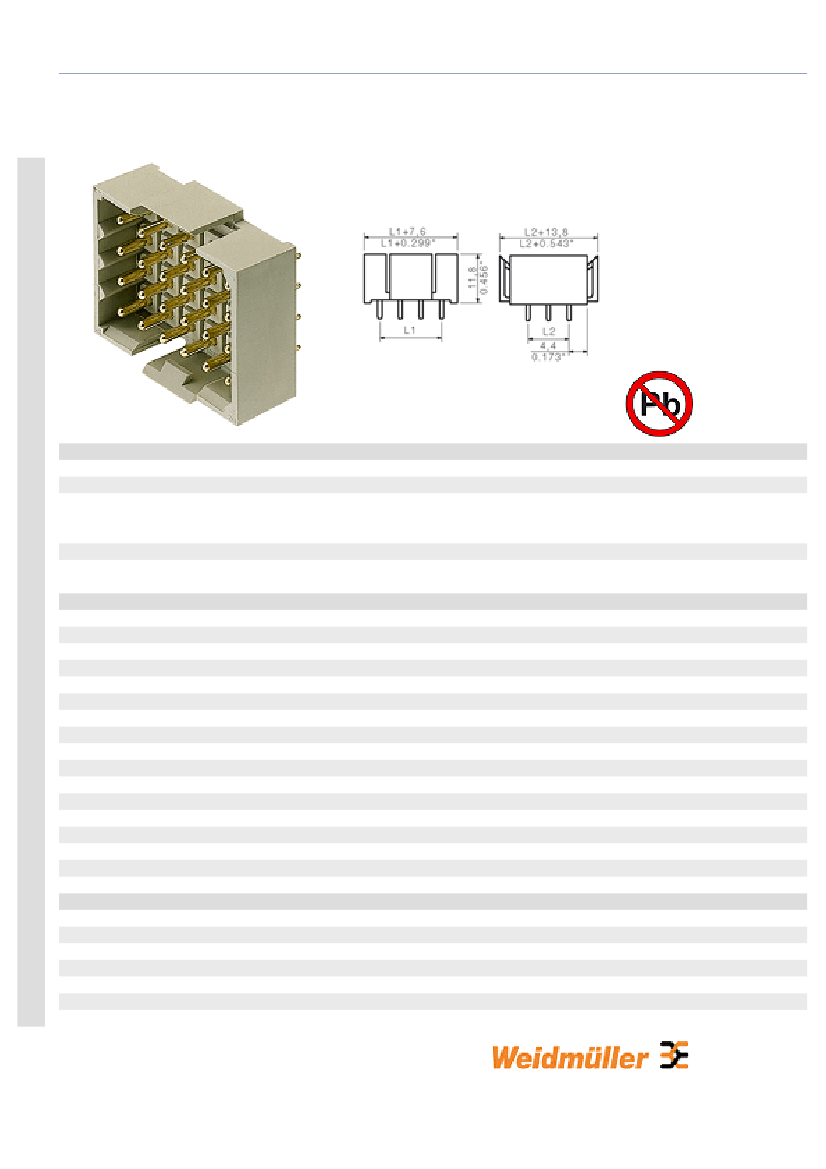

Product catalogue | PCB connection systems | PCB plug-in connectors | CrimpMate | Plug/Socket connectors, solder
connection pitch 5.00 | RSV 1.6 L | RSV1.6 LS AU
General ordering data
Order No.
Part designation
Version
EAN
Qty.
System parameters
Fitted to PCB
Outgoing elbow
Pitch
Pitch in inch
No. of poles
Solder pin length
Can be coded
No. of rows
No. of solder pins per pole
Dia. of fitting hole
Fitting hole tolerance
L1 in mm
L1 in inch
Insulation resistance
Electric shock protection to DIN VDE 0470
Electric shock protection to DIN VDE 0470
Material data
Insulating material
Colour
colour chart
Insulating material group
Flammability class UL 94
CTI
Contact base material
1414400000
RSV1,6 LS6 GR 4,5 AU
PCB plug-in connector, Male connectors, Soldered
connection, Pitch: 5.00 mm, No. of poles: 6, 180°,
Box
4008190156190
50 pc(s).
Soldered connection
180°
5 mm
0.197 inch
6
4.5 mm
Yes
2...4
1
1.3 mm
+ 0.1 mm
10 mm
0.394 inch
1,000 MΩ
IP20 plugged
Safe from finger touch, plugged
Wemid (PA)
pebble grey
Similar to RAL 7032
I
V-0
>= 600
Copper alloy
-1-
Product catalogue | PCB connection systems | PCB plug-in connectors | CrimpMate | Plug/Socket connectors, solder
connection pitch 5.00 | RSV 1.6 L | RSV1.6 LS AU
Material data
Contact surface
Constant operating temp., min.
Constant operating temp., max.
Storage temperature, min.
Storage temperature, max.
Max. relative humidity during storage
DIN IEC rating data
Rated current, min. No. pins (Tu=20°C)
Rated current, max. No. pins (Tu=20°C)
Rated current, min. No. pins(Tu=40°C)
Rated current, max. No. pins (Tu=40°C)
Rated voltage for overvoltage class/pollution
severity III/3
Rated impulse withstand voltage for overvoltage
class/pollution severity III/3
Rated voltage for overvoltage class/pollution
severity III/2
Rated impulse withstand voltage for overvoltage
class/pollution severity III/2
Rated voltage for overvoltage class/pollution
severity II/2
Rated impulse withstand voltage for overvoltage
class/pollution severity II/2
Short-time withstand current resistance
CSA rating data
Rated voltage (Use group C)
Rated current (Use group C)
UL 1977 rating data
Rated voltage (UL 1977)
Rated current (UL 1977)
Approvals
Approvals institutes
gold-plated
-25 °C
100 °C
-25 °C
55 °C
75 %
14 A
10 A
12 A
8.5 A
250 V
4 kV
320 V
2.5 kV
500 V
2.5 kV
3 x 1s with 120 A
300 V
13 A
300 V
10 A
-2-
Product catalogue | PCB connection systems | PCB plug-in connectors | CrimpMate | Plug/Socket connectors, solder
connection pitch 5.00 | RSV 1.6 L | RSV1.6 LS AU
Downloads
CAD Library (P-CAD Format - Standard)
Classifications
ETIM 2.0
ETIM 3.0
eClass 4.1
eClass 5.0
eClass 5.1
RSV1.6.LIB
NK
EC001284
27-26-07-01
27-26-07-01
27-26-07-01
Similar products
Order No.
1440400000
1413400000
1441400000
1442400000
1415400000
1443400000
1416400000
1444400000
1417400000
1445400000
1418400000
1446400000
1419400000
Part designation
RSV1,6 LS4 GR 3,2 AU
RSV1,6 LS4 GR 4,5 AU
RSV1,6 LS6 GR 3,2 AU
RSV1,6 LS9 GR 3,2 AU
RSV1,6 LS9 GR 4,5 AU
RSV1,6 LS12 GR 3,2 AU
RSV1,6 LS12 GR 4,5 AU
RSV1,6 LS18 GR 3,2 AU
RSV1,6 LS18 GR 4,5 AU
RSV1,6 LS24 GR 3,2 AU
RSV1,6 LS24 GR 4,5 AU
RSV1,6 LS36 GR 3,2 AU
RSV1,6 LS36 GR 4,5 AU
Version
PCB plug-in connector, Male connectors, Soldered connection,
Pitch: 5.00 mm, No. of poles: 4, 180°, Box
PCB plug-in connector, Male connectors, Soldered connection,
Pitch: 5.00 mm, No. of poles: 4, 180°, Box
PCB plug-in connector, Male connectors, Soldered connection,
Pitch: 5.00 mm, No. of poles: 6, 180°, Box
PCB plug-in connector, Male connectors, Soldered connection,
Pitch: 5.00 mm, No. of poles: 9, 180°, Box
PCB plug-in connector, Male connectors, Soldered connection,
Pitch: 5.00 mm, No. of poles: 9, 180°, Box
PCB plug-in connector, Male connectors, Soldered connection,
Pitch: 5.00 mm, No. of poles: 12, 180°, Box
PCB plug-in connector, Male connectors, Soldered connection,
Pitch: 5.00 mm, No. of poles: 12, 180°, Box
PCB plug-in connector, Male connectors, Soldered connection,
Pitch: 5.00 mm, No. of poles: 18, 180°, Box
PCB plug-in connector, Male connectors, Soldered connection,
Pitch: 5.00 mm, No. of poles: 18, 180°, Box
PCB plug-in connector, Male connectors, Soldered connection,
Pitch: 5.00 mm, No. of poles: 24, 180°, Box
PCB plug-in connector, Male connectors, Soldered connection,
Pitch: 5.00 mm, No. of poles: 24, 180°, Box
PCB plug-in connector, Male connectors, Soldered connection,
Pitch: 5.00 mm, No. of poles: 36, 180°, Box
PCB plug-in connector, Male connectors, Soldered connection,
Pitch: 5.00 mm, No. of poles: 36, 180°, Box
