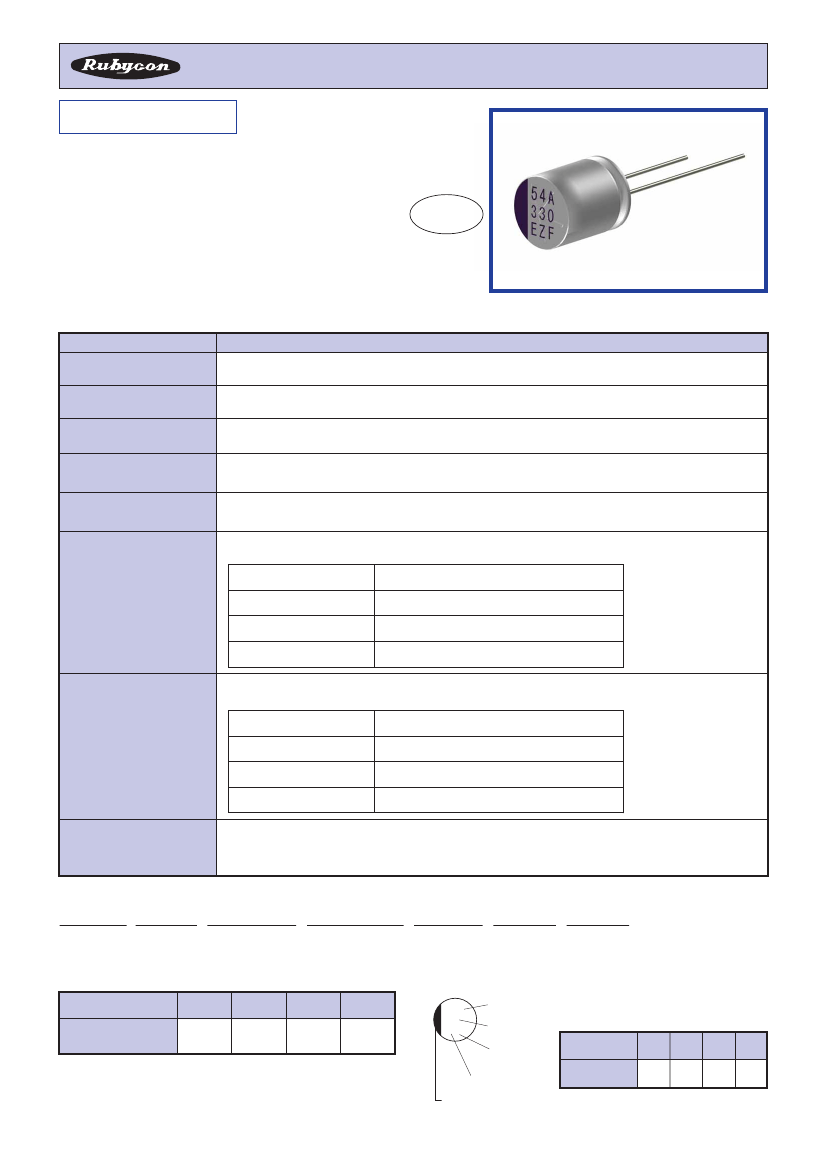

CONDUCTIVE POLYMER ALUMINUM SOLID ELECTROLYTIC CAPACITORS (HYBRID TYPE)
PZF
PZF
SERIES
Load Life : 125℃ 4000 hours (Hybrid Type), Radial Lead Type
・
High Voltage ∼63Vdc), Ultra Low ESR, High Ripple Current, Miniaturized.
（
・
AEC-Q200.
RoHS
compliance
◆SPECIFICATIONS
Items
Category Temperature Range
Rated Voltage Range
Capacitance Tolerance
Characteristics
−55∼＋125℃
25∼63Vdc
±20％
（20℃，
120Hz）
The value is shown in
“STANDARD SIZE”
table (After 2 minutes)
The value is shown in "STANDARD SIZE" table (20℃, 120Hz)
After applying rated voltage with rated ripple current for 4000 hours at 125℃,
the capacitors shall meet the following requirements.
Capacitance Change
Within ±30% of the initial value.
Not more than 200% of the initial specified value.
Not more than 200% of the initial specified value.
Not more than the initial specified value.
Leakage Current(MAX)
Dissipation Factor(MAX)
(tanδ)
Endurance
Dissipation Factor
E.S.R.
Leakage Current
After applying rated voltage for 2000 hours at 85℃ and humidity of 85%,
the capacitors shall meet the following requirements.
Capacitance Change
Biased Humidity
Dissipation Factor
E.S.R.
Leakage Current
Within ±30% of the initial value.
Not more than 200% of the initial specified value.
Not more than 200% of the initial specified value.
Not more than the initial specified value.
Low Temperature Characteristics
Impedance Ratio MAX）
（
Z
（−55℃） （＋20℃）
/Z
≦2.0
Z
（−25℃） （＋20℃）
/Z
≦1.5
（100kHz）
◆PART NUMBER
□□□
Rated Voltage
PZF
Series
□□□□□
Capacitance
Ｍ
Capacitance Tolerance
□□□
Option
□□
Lead Forming
D×L
Case Size
◆MULTIPLIER FOR RIPPLE CURRENT
Frequency
（Hz）
Coefficient
◆MARKING
100k≦
1.00
51A
68
H ZF
120
0.05
1k
0.30
10k
0.70
Lot No.
Capacitance
Series
※
Rated voltage code
※Voltage code
Rated Voltage
(Vdc)
Voltage code
25
E
35
V
50
H
63
J
Negative
