MQF21.4-0750-16: DescriptionMonolithic crystal filter; File Size49KB，1 Pages; ManufacturerVectron International, Inc.; Websitehttp://www.vectron.com/

Download Datasheet Compare View All

MQF21.4-0750-16 Overview

Monolithic crystal filter

Preview

Download Datasheet

View All

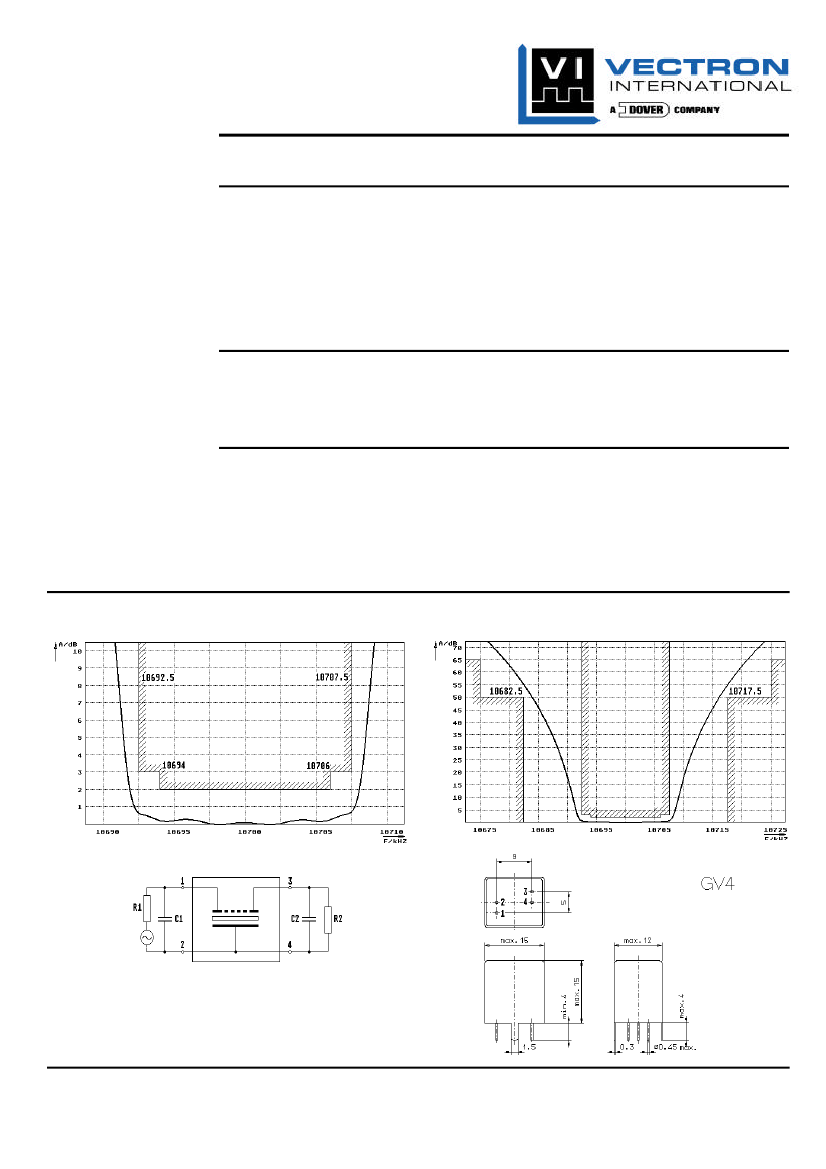

Monolithic crystal filter

MQF10.7-1500/22

Application

•

6 pol filter

•

i.f.- filter

•

use in mobile and

stationary transceivers

Limiting values

Unit

Value

Center frequency

Insertion loss

Pass band at 3.0 dB

Ripple in pass band

Stop band attenuation

Alternate attenuation

fo

±

6.00 kHz

±

17.5 kHz

± 25 kHz

± 50...500 kHz

fo

MHz

dB

kHz

dB

10.7

≤

3.0

±

7.50

≤

2.0

≥

50

> 65

< 80 except spurious

Terminating impedance Z

R1 || C1

R2 || C2

Ohm/pF

3300 || 0.50

Operating temp. range

°C

-40... +80

Characterstics

Pass band

MQF10.7-1500/22

Stop band

Pin connections: 1

2

3

4

Input

Input-E

Output

Output-E

08.02.99

TELE FILTER

Zweigniederlassung der DOVER EUROPE GMBH

Potsdamer Str. 18 D- 14513 Teltow

!

(+49)03328-4784-10 ; Fax (+49)03328-4784-30 http:\\www.telefilter.com
