Part Number

Search

3003-1551-702

Description
Blindmate Connector, Male, Panel Mount, Cable Mount, Clamp Terminal, Jack
CategoryThe connector    The connector
File Size95KB,1 Pages
ManufacturerRadiall
Websitehttps://www.radiall.com/
Download Datasheet Parametric View All

3003-1551-702 Overview

Blindmate Connector, Male, Panel Mount, Cable Mount, Clamp Terminal, Jack

3003-1551-702 Parametric

Parameter NameAttribute value
Reach Compliance Codeunknow
Other featuresSTANDARD: MIL-PRF-39012, APPLICABLE CABLES: RG 178; RG 196, CAPTIVE CONTACT
Body/casing typeJACK
Characteristic impedance50 Ω
Connector typeBLINDMATE CONNECTOR
Contact completed and terminatedGOLD
Contact point genderMALE
Coupling typeSNAP
DIN complianceNO
Filter functionNO
IEC complianceNO
Insertion loss0.3 dB
insulator materialPOLYTETRAFLUORO ETHYLENE
JESD-609 codee4
MIL complianceYES
Manufacturer's serial numberSLB
Installation methodSTRAIGHT
Installation typeCABLE
Maximum operating frequency4 GHz
OptionsGENERAL PURPOSE
Panel mountingYES
Termination typeCLAMP
voltage standing wave ratio1.46
Base Number Matches1

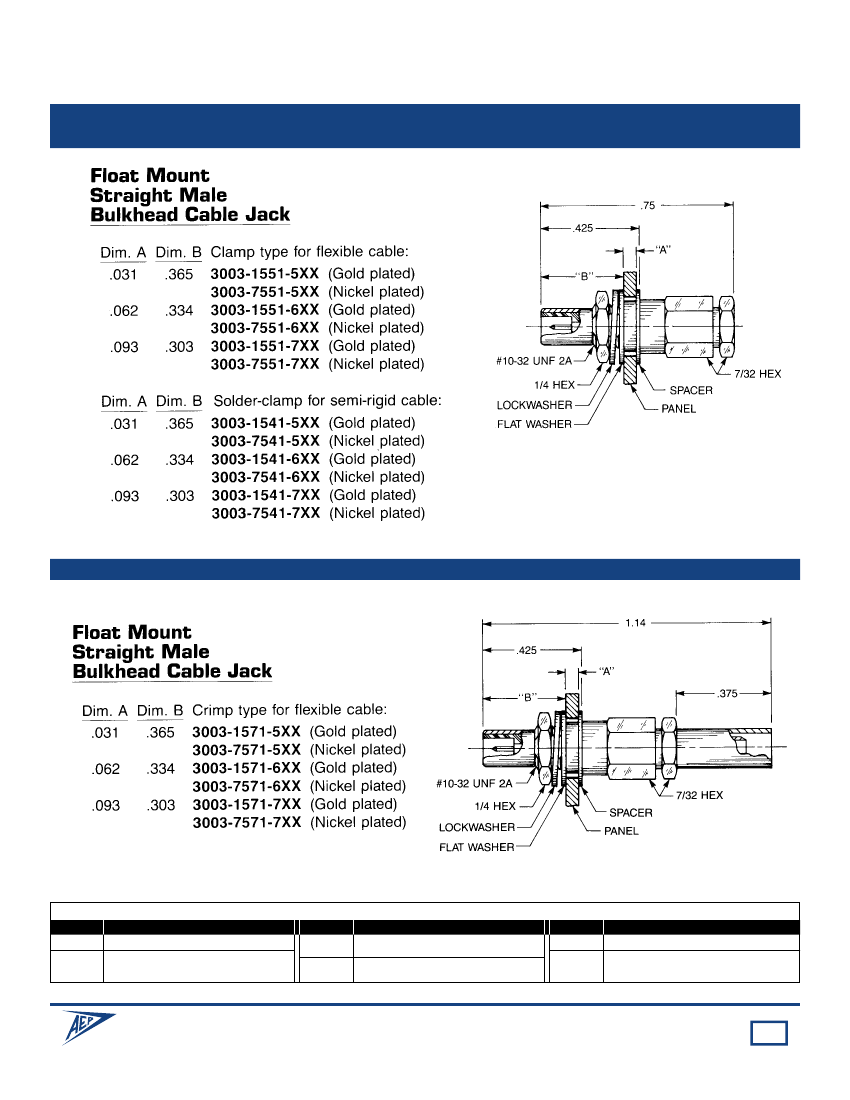

SLB Float Mounted Bulkhead Jacks
Click on part number to go directly to cable assembly instructions
Clamp Type for Flexible Cable
or Solder-Clamp for Semi-Rigid Cable
Crimp Type for Flexible Cable
Substitute the appropriate cable group number for “XX” when ordering:
GROUP
02
03
CABLE TYPES
RG178, RG196, M17/93, M17/169
RG174, RG179, RG316, M17/113,
M17/119, M17/172, M17/189
GROUP
05
09
CABLE TYPES
RG178DS, RG196DS
.141" semi-rigid, RG 402M17/130
GROUP
10
19
CABLE TYPES
.085" semi-rigid, RG405, M17/133
RG174DS, RG316DS, M17/151,
M17/152, Times RD-316
APPLIED ENGINEERING PRODUCTS
(203) 776-2813 • FAX (203) 776-8294
www.aepconnectors.com • aepsales@aepconnectors.com
3
