MEC6-140-02-L-DV-A datasheet, PDF

Datasheet> All Categories > The connector> The connector> MEC6-140-02-L-DV-A

MEC6-140-02-L-DV-A: Description.635MM RIGHT ANGLE EDGE CARD ASS; CategoryThe connector The connector; File Size875KB，2 Pages; ManufacturerSAMTEC; Websitehttp://www.samtec.com/; Environmental Compliance

Download Datasheet Parametric View All

MEC6-140-02-L-DV-A Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	MEC6-140-02-L-DV-A	-	-	View	Buy Now

MEC6-140-02-L-DV-A Overview

.635MM RIGHT ANGLE EDGE CARD ASS

MEC6-140-02-L-DV-A Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	SAMTEC
package instruction	ROHS COMPLIANT
Reach Compliance Code	compliant
ECCN code	EAR99
Factory Lead Time	2 weeks
Samacsys Description	Standard Card Edge Connectors 0.635 mm Mini Edge Card Connector, Vertical
Board mount options	LOCATING POSTS
body width	0.276 inch
subject depth	0.341 inch
body length	1.188 inch
Body/casing type	SOCKET
Connector type	CARD EDGE CONNECTOR
Contact to complete cooperation	GOLD (10) OVER NICKEL (50)
Contact completed and terminated	Matte Tin (Sn) - with Nickel (Ni) barrier
Contact point gender	FEMALE
Contact material	PHOSPHOR BRONZE
contact mode	RECTANGULAR
Contact resistance	15 mΩ
Contact style	BELLOWED TYPE
DIN compliance	NO
Dielectric withstand voltage	630VAC V
Durability	100 Cycles
Filter function	NO
IEC compliance	NO
maximum insertion force	66.72 N
Insulation resistance	5000000000 Ω
Insulator color	BLACK
insulator material	LIQUID CRYSTAL POLYMER (LCP)
JESD-609 code	e3
MIL compliance	NO
Plug contact pitch	0.025 inch
Mixed contacts	NO
Installation option 1	LOCKING
Installation method	STRAIGHT
Installation type	BOARD
Number of connectors	ONE
PCB row number	2
Number of rows loaded	2
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
Options	GENERAL PURPOSE
PCB contact pattern	RECTANGULAR
PCB contact row spacing	7.62 mm
Plating thickness	10u inch
Rated current (signal)	1.7 A
Guideline	UL
reliability	COMMERCIAL
Terminal pitch	0.635 mm
Termination type	SURFACE MOUNT
Total number of contacts	80

Preview

Download Datasheet

View All

REVISION F

DO NOT

SCALE FROM

THIS PRINT

DESIGNED & DIMENSIONED

IN MILLIMETERS

(INCHES FOR REFERENCE ONLY)

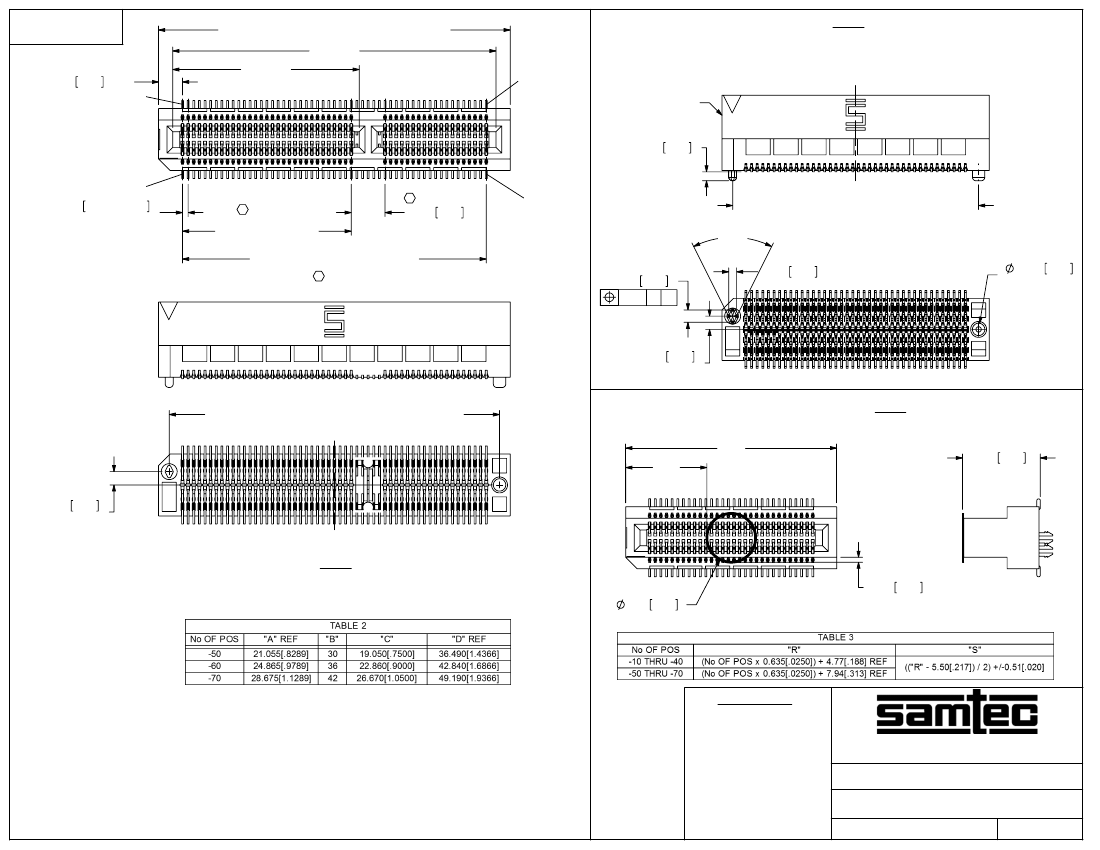

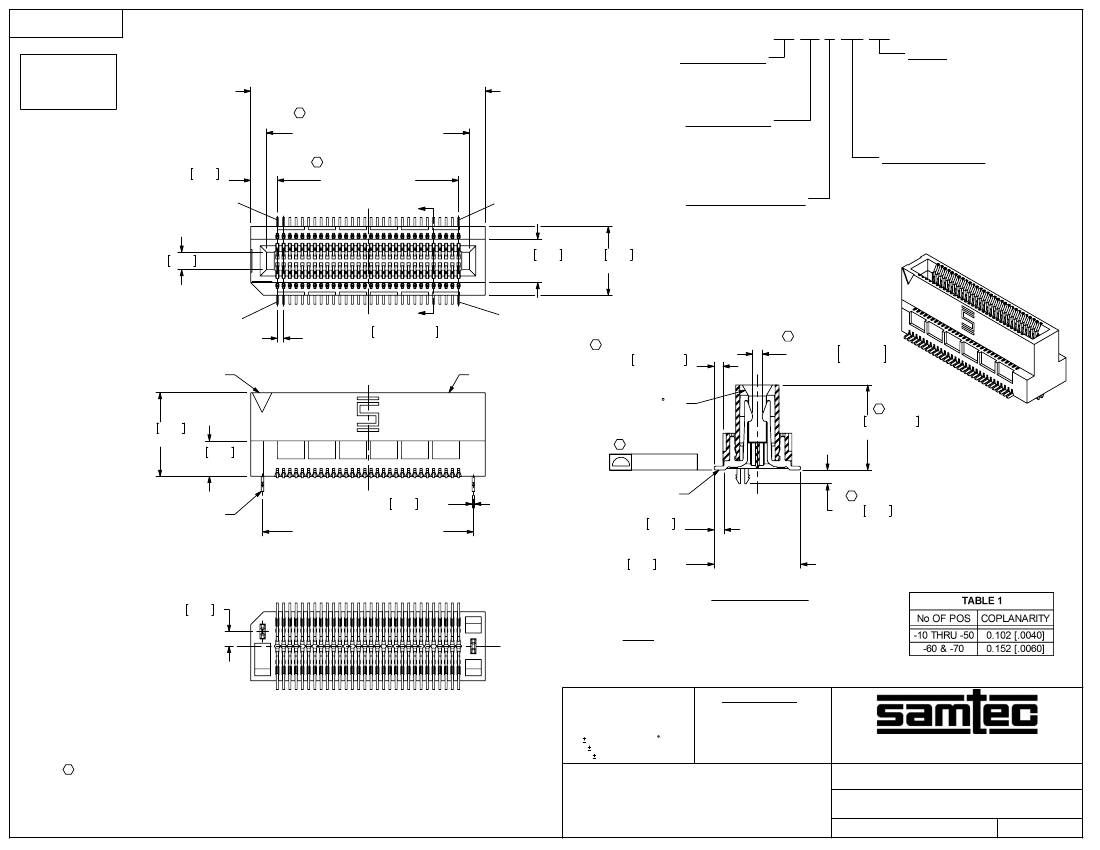

(No OF POS x 0.635[.0250]) + 4.77[.188] REF

MEC6-1XX-XX-X-DV-XX

No OF POSITIONS

-10, -20, -30, -40,

-50, -60, -70

CARD THICKNESS

-02: 1.57mm [.062]

THICK CARD

OPTION

-A: ALIGNMENT PINS (SEE FIG. 3)

(USE MEC6-XX-XX-DV-A)

-LC: LOCKING CLIP

(USE LC-05-TM)

-K: POLYIMIDE FILM PAD

(USE K-DOT-.217-.313-.005)(SEE FIG. 4)

-TR: TAPE & REEL

ROW SPECIFICATION

-DV: DUAL VERTICAL

(USE MEC6-XX-XX-DV)

(No OF POS x 0.635[.0250])

+ 1.565[.062] REF

2.70 .106

REF

(No OF POS -1 )

x 0.635[.0250]

"A"

PLATING SPECIFICATION

-L: LIGHT SELECTIVE GOLD/MATTE TIN (USE C-182-02-L)

-S: SELECTIVE GOLD/MATTE TIN (USE C-182-02-S)

4.40 .173

REF

7.00 .276

REF

1.78 .070 REF

"A"

0.635±0.050 .0250±.0020

(TOL NON ACCUM)

POSITION #1

INDICATOR

MEC6-XX-02-DV

0.90±0.15 .035±.006

(TYP)

1.13 x 60 REF

1.00

- 0.20

.039

- .008

+0.10

+.004

8.50 .335

REF

3.60 .142

REF

0.25 .010 REF

(No OF POS x 0.635[.0250])

+ 2.370[.0933]

8.65±0.15 .341±.006

(TYP)

SEE TABLE 1

C-182-02-X

1.05 .041

REF (TYP)

8.80 .346 REF

LC-05-TM

1.40 .055

SECTION "A"-"A"

1.50 .059

-LC OPTION SHOWN

MEC6-130-02-X-DV-LC SHOWN

(FOR POSITIONS -10, -20, -30 & -40)

UNLESS OTHERWISE SPECIFIED,

DIMENSIONS ARE IN MILLIMETERS.

TOLERANCES ARE:

DECIMALS

FIG 1

PROPRIETARY NOTE

THIS DOCUMENT CONTAINS INFORMATION

CONFIDENTIAL AND PROPRIETARY TO

SAMTEC, INC. AND SHALL NOT BE REPRODUCED

OR TRANSFERRED TO OTHER DOCUMENTS OR

DISCLOSED TO OTHERS OR USED FOR ANY

PURPOSE OTHER THAN THAT WHICH IT WAS

OBTAINED WITHOUT THE EXPRESSED WRITTEN

CONSENT OF SAMTEC, INC.

NOTES:

REPRESENTS A CRITICAL DIMENSION.

2. MAXIMUM BURR ALLOWANCE: 0.038[.0015].

3. MINIMUM PUSHOUT FORCE: 2.22 N [.5 LB].

4. PARTS TO BE PACKAGED IN TRAYS, UNLESS

-TR OPTION IS SPECIFIED.

.X: 0.3 [.01]

.XX: 0.13 [.005]

.XXX: 0.051 [.0020]

ANGLES

MATERIAL:

DO NOT SCALE DRAWING

SHEET SCALE: 1:0.4

520 PARK EAST BLVD, NEW ALBANY, IN 47150

PHONE: 812-944-6733

FAX: 812-948-5047

e-Mail: info@SAMTEC.com

code: 55322

DESCRIPTION:

INSULATOR: LCP, COLOR: BLACK

CONTACT: PHOS BRONZE

.635mm VERTICAL MOUNT MINI-EDGE CARD ASSEMBLY

DWG. NO.

F:\DWG\MISC\MKTG\MEC6-1XX-XX-X-DV-XX-MKT.SLDDRW

BY:

DEAN P

MEC6-1XX-XX-X-DV-XX

05/17/2005

SHEET
