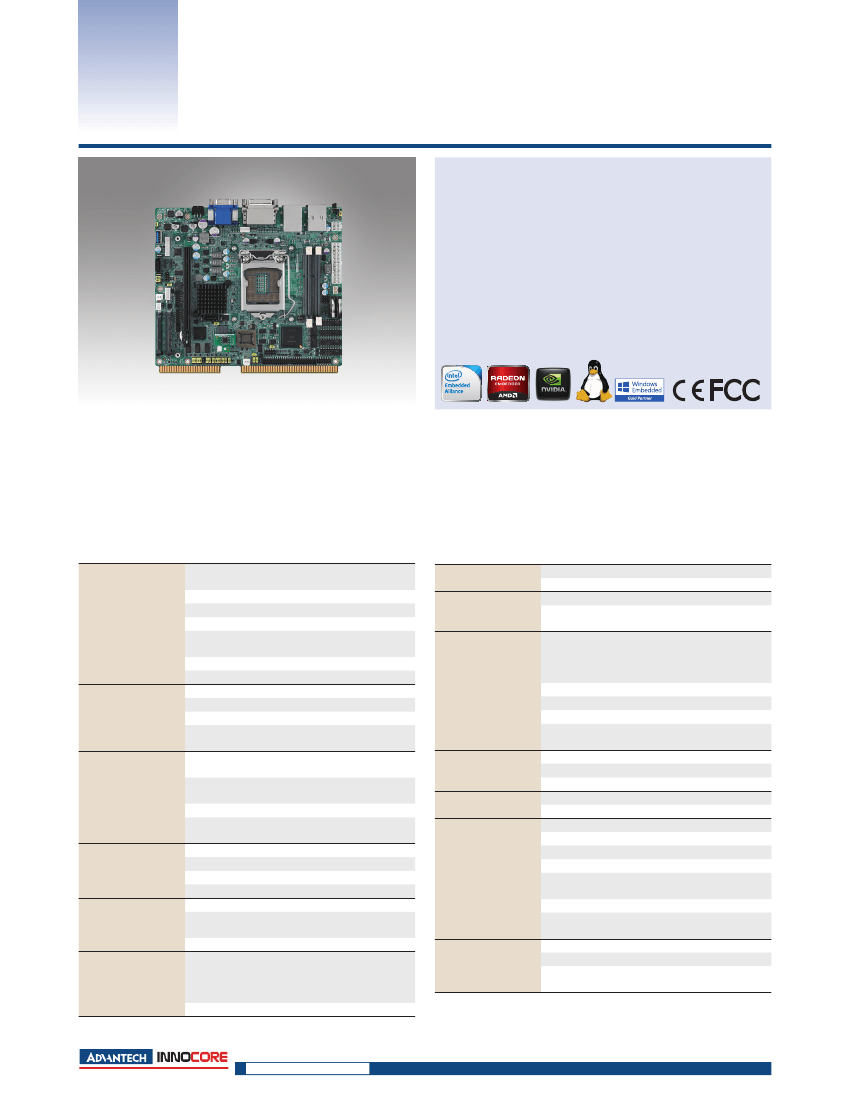

DPX -S435
®
4
th
Generation Intel
®
Core™ Gaming platform
Features
Very high performance Intel platform
Dual and Quad Core CPUs from Celeron to Xeon
®
Comprehensive gaming features
High performance integrated and PCI-Express graphics
Easy integration for gaming applications
Full featured Driver API for IO and security
Introduction
The DPX
®
-S435 is the latest single board computer in the proven DPX-S series of integrated gaming platforms. Intel’s latest embedded chipset provides an unrivalled range of price
and performance choices from dual core Celeron up to Quad Core Xeon and Core i7 CPUs. The DPX-S435 is the highest performance gaming platform available and suitable for
the most demanding applications. The integrated graphics core (Intel HD4600) represents a significant step up in chipset graphics performance and the standard PCI-Express x16
graphics card slot allows the S435 to support todays latest discrete graphics cards for stunning gaming graphics. A full feature set of I/O and COMs designed specifically for gaming
devices is also included making the DPX
®
-S435 an ideal integrated platform for many high end gaming, amusement and kiosk applications.
Specifications
4th Generation Intel
®
Core™ Low Power Dual and Quad
Core CPUs
High performance chipset graphics system (HD4600)
DDR3-1600, 2 SODIMMs up to 16GB total RAM
2 x Gigabit Ethernet LAN
2 x CFast™ sockets (CFast 1.0 and 2.0 support),
3 x SATA DOM sockets (SATA 3.0, 6Gbps)
Audio (on-board 3 channel amp)
8192 kB SRAM (NVRAM), 1MB ROM, EEPROM
10 x Serial Ports (RS232/TTL/CCTalk/RS485 )
3 x USB 3.0/2.0, 8 x USB 2.0
2 x GPIO/iButton
32 inputs and 32 outputs
(6 Meter outputs with disconnect detect)
Integrated – Intel next generation HD4600 Direct X 11.1
Graphics core
Dual, triple monitor support from integrated CPU
graphics
Full speed PCI-Express X16 v3.0 slot
Simultaneous operation of integrated and PCI-E card
graphics
TPM security device on board
Intrusion switch inputs (8 dedicated)
BIOS customization
1 x Security ROM socket
Edge-to-edge drivers and API/SDK
Code portability through consistent API with other
Advantech-Innocore boards.
Range of Innocore software products for Gaming
Intel Q87 PCH for 4th Generation Core Dual and Quad
Core CPUs:
Core i5, i7 up to 2.7 (3.3) GHz
Xeon, Core i3, Pentium and Celeron options
Intel PCH
Memory
BIOS
2 x SODIMM sockets
Up to 16GB DDR3 -1600 MT/s SDRAM
AMI APTIO UEFI BIOS
BIOS can be write protected, support for legacy ROM
extensions
Integrated – Intel next generation HD4600 Direct X 11,
Open GL 3.2, OCL 1.2 Graphics core
1 GB VRAM maximum shared memory
(with 2 GB or more system memory installed)
Video Ports:
2 x DVI-D (MicroCross™)
1 x Analog VGA (15 pin D-Sub)
1 x DisplayPort v1.2 with 5.4Gb/s link speed and daisy
chaining
2 x Ethernet Gigabit LAN
Full duplex operation
Wake-On-LAN capability
2 x C-Fast™ socket
2 x SATA 3.0 for HDD, SSD or SATA DOM
5 x RS232 Serial, 16550 compatible
2 x CCTalk/RS232
2 x RS232/TTL
1 x RS232/485
11 x USB (2 x USB 3.0, 2 x USB 2.0 on front panel,
6 x USB 2.0, 1 x USB 3.0 on board headers)
2 x I2C on board header
Audio out - SPKR (left, right and LF), SPDIF, line out
5.1 channels
32 ESD protected inputs
32 OC Outputs (500mA, 50V)
(of which 6 I/O ports can be configured as meter outputs
with disconnect detect)
System
Video
I/O
LAN
Storage
Video
Security
Ports
Software
Discrete I/O
CPU/Chipset
Innovations in Gaming Computing
www.advantech-innocore.com
See overleaf for continued specification
Last updated : 3-Feb-2017
DPX
®
-S435

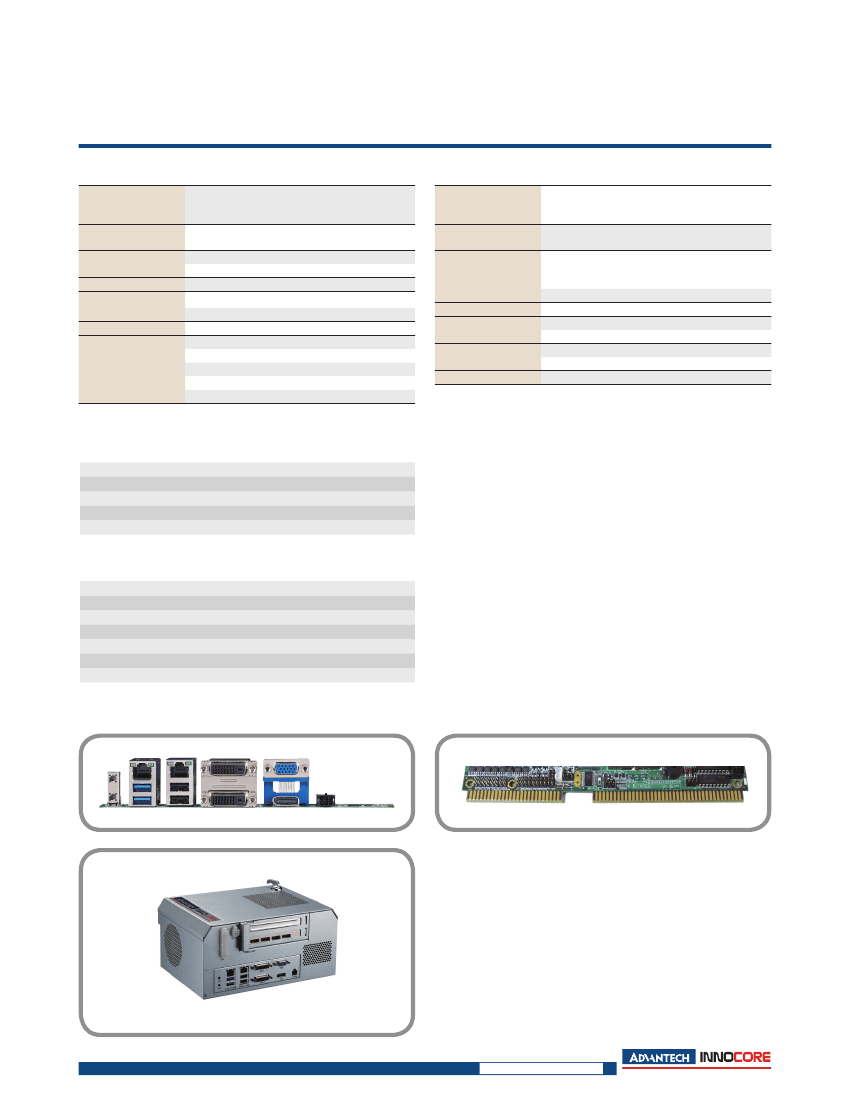

Specifications Cont.
Sound
Security ROM
SRAM
TPM
Watchdog Timer
EEPROM
HD Audio
On board 13W + 13W + 13W Class D audio amps with
FL, FR, LF speaker connections
1 x Socket for 1MB EPROM/OTPROM PLCC32
(PCI, Bootable)
8192 KB fast SRAM (2 banks) on PCI bus
Battery state software readable
TCPA/TPM 1.2 compliant security device on board.
Programmable time-out
"Always on" design (default 700 seconds)
32kB user EEPROM (option for larger)
Eight Intrusion detection input lines
Operates with and without mains power
Logs date/time of last 254 events
Logs system resets/brownouts as events
EEPROM backup for 10 years retention
System Health
Monitoring
Power Fail Detect
Expansion
Power
Environment
Approvals
Dimensions
Measurement of CPU core temp. with thermal trip.
Configurable smart fan control for CPU and 2x System
fans
External sensor input for advanced warning of AC power
fail
1) Up to 240 Bytes of PCI-based I/O expansion
available through DirectPCI + interface on board
header
2) PCI-Express x16 graphics card
ATX or AT mode
Operating Temperature: 0 ~ 50° C TBC
Storage Temperature: -20 ~ 85° C
EMC: CE, FCC Class A
RoHS, WEEE
170 x 200 mm (6.7" x 7.9")
Intrusion Detection
All product specifications are subject to change without notice .
Optional Accessories
Full system chassis
Range of PCI-E graphics cards
I/O connector breakout board
Edge card connector set
CFast cards, SATA DOM, SSD storage devices
OEM Customization and Product
Development
Advantech-Innocore is part or the Advantech Co., Ltd. Group of Companies.
Advantech-Innocore specializes in the fields of PC-based hardware design and
software development. Our in-depth knowledge and global resources make us your
ideal partner.
Specifications subject to change. E&OE.
Copyright © 2017 Advantech Co., Ltd.
All rights reserved. Advantech-Innocore, the Advantech-Innocore Logo, DPX,
ConnectBus are trademarks of Advantech Co., Ltd. in the UK, US and other
countries.
All other trademarks are acknowledged and respected.
Benefits
Best in class CPU performance
Single integrated solution
Designed for the Gaming Industry
Backwards compatible with DPX-S series boards
Small size
Low power
Long Lifecycle
Front I/O
Rear I/O
DPX-S1435 Integrated Gaming System
www.advantech-innocore.com
Innovations in Gaming Computing
