NC7SV04 — TinyLogic
®
ULP-A Inverter
November 2010
NC7SV04
TinyLogic
®
ULP-A Inverter
Features
0.9V to 3.6V V
CC
Supply Operation
3.6V Over-Voltage Tolerant I/Os at V
CC
from
0.9V to 3.6V
Extremely High Speed t
PD
- 1.5ns: Typical for 2.7V to 3.6V V
CC
- 1.8ns: Typical for 2.3V to 2.7V V
CC
- 2.0ns: Typical for 1.65V to 1.95V V
CC
- 3.2ns: Typical for 1.4V to 1.6V V
CC
- 6.0ns: Typical for 1.1V to 1.3V V
CC
- 12.0ns: Typical for 0.9V V
CC
Power-Off High-Impedance Inputs and Outputs
High Static Drive (I
OH
/I
OL
)
-
±24mA
at 3.00V V
CC
-
±18mA
at 2.30V V
CC
-
±6mA
at 1.65V V
CC
-
±4mA
at 1.4V V
CC
-
±2mA
at 1.1V V
CC
-
±0.1mA
at 0.9V V
CC
Uses Proprietary Quiet Series™ Noise/EMI
Reduction Circuitry
Ultra-Small MicroPak™ Packages
Ultra-Low Dynamic Power
Description

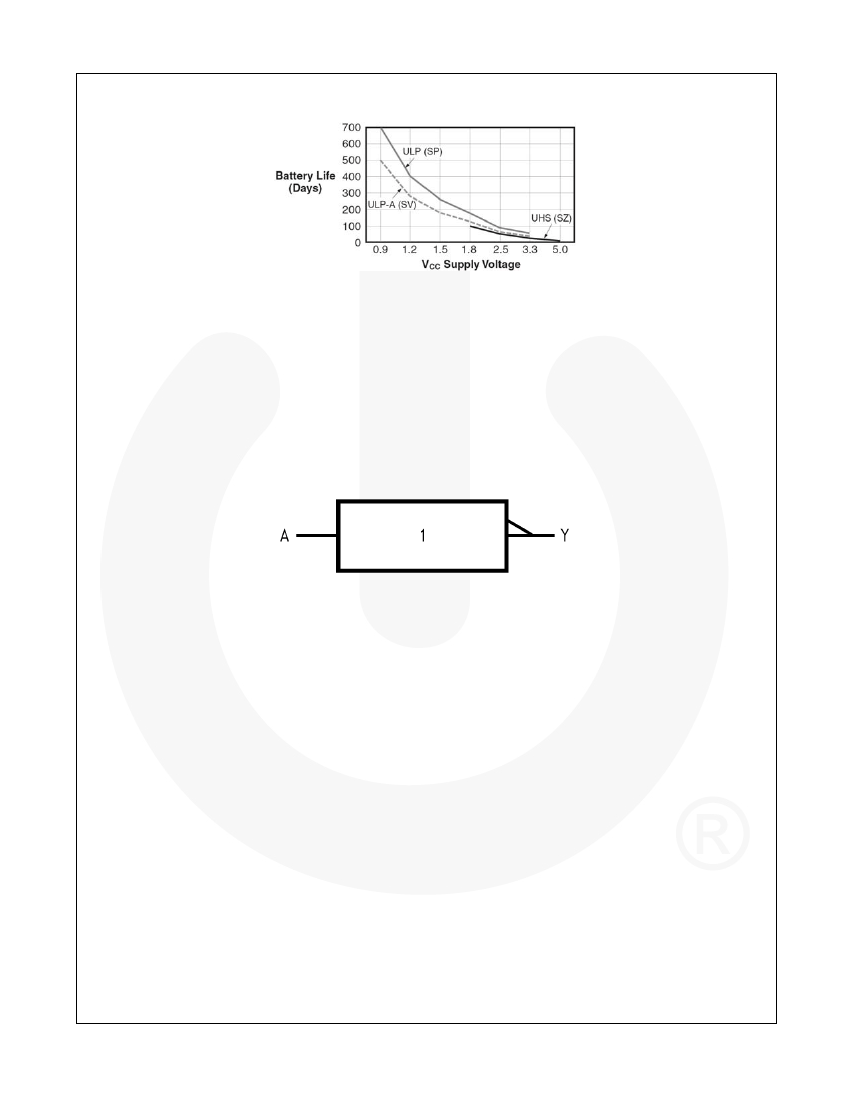

The NC7SV04 is a single inverter from Fairchild's Ultra-
®
Low Power (ULP-A) Series of TinyLogic . ULP-A is ideal
for applications that require extreme high speed, high
drive, and low power. This product is designed for a
wide low-voltage operating range (0.9V to 3.6V V
CC
)
and applications that require more drive and speed than
®
the TinyLogic ULP series, but still offer best-in-class,
low-power operation.
The NC7SV04 is uniquely designed for optimized power
and speed and is fabricated with an advanced CMOS
technology to achieve high-speed operation while
maintaining low CMOS power dissipation.
Ordering Information
Part Number
NC7SV04P5X
NC7SV04L6X
NC7SV04FHX
Top Mark
V04
F7
F7
Package
5-Lead SC70, EIAJ SC-88a, 1.25mm Wide
6-Lead MicroPak™, 1.00mm Wide
6-Lead, MicroPak2™, 1x1mm Body, .35mm Pitch
Packing Method
3000 Units on Tape & Reel
5000 Units on Tape & Reel
5000 Units on Tape & Reel
TinyLogic® is a registered trademark of Fairchild Semiconductor Corporation.
MicroPak™ and Quiet Series™ are trademarks of Fairchild Semiconductor Corporation.
