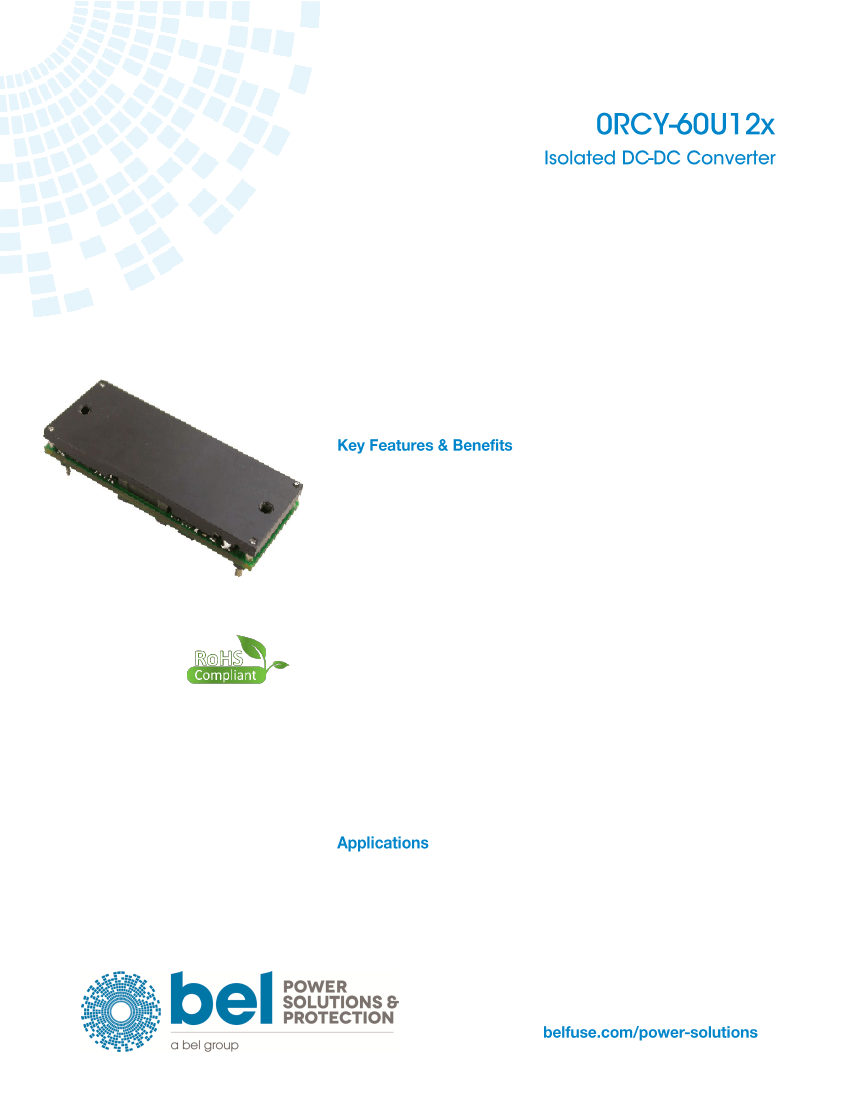

The 0RCY-60U12x is part of the isolated DC/DC converters that
operate from a wide input range (18 VDC - 75 VDC) and can cover
both 24 Vin and 48 Vin input range.
These units will provide up to 84 W of output power. They are
designed to be highly efficient and low cost. Features include
remote on/off, over current protection, over voltage shut down, over
temperature protection and under-voltage lockout.
These converters are provided in an industry standard 1/8 brick
package.
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
18-75 VDC Input / 12 VDC @ 7 A Output
1/8th Brick Converter
Isolated
Fixed Frequency (258 kHz)
High Efficiency
High Power Density
Input Under Voltage Lockout
OCP/SCP
Input Over-Voltage Lockout
Over Temperature Protection
Remote On/Off
Output Over-Voltage Shutdown
Positive/Negative Remote Sense
Output Voltage Trim
Basic Insulation
Ultra Wide Input Range: 18 VDC - 75 VDC
Low Cost
Approved to UL/CSA 60950-1, 2nd +A2 version
Class 2, Category 2, Isolated DC/DC Converter (refer to IPC-9592B)
•
•
•
Networking
Computers and Peripherals
Telecommunications
2
0RCY-60U12x
MAX. OUTPUT
CURRENT
MAX. OUTPUT
POWER
MODEL NUMBER
OUTPUT VOLTAGE
INPUT VOLTAGE
TYPICAL EFFICIENCY
0RCY-60U12L
0RCY-60U120
0RCY-60U12B
0RCY-60U12W
12VDC
12VDC
12VDC
12VDC
18 VDC
–
75 VDC
18 VDC
–
75 VDC
18 VDC
–
75 VDC
18 VDC
–
75 VDC
7A
7A
7A
7A
84 W
84 W
84 W
84 W
92%
92%
92%
92%
NOTE:
Add “G” suffix at the end of the model number
to indicate Tray Packaging.
0
Mounting Type
Through hole
mount
R
RoHS
Status
RoHS
CY
Series
Name
1/8th Brick
-
60
Output
Power
84 W
U
Input
Range
18
–
75V
12
Output
Voltage
12 V
x
Active Logic
L
–
active low,with HSK
B
–
active low, without HSK plate
0
–
active high, with HSK
W- active high, with HSK
G
Package
Type
G
–
Tray
package
PARAMETER
Input Voltage (Continuous)
Input Transient Voltage
Remote On/Off
I/O Isolation Voltage
Ambient Temperature
Altitude
Storage Temperature
DESCRIPTION
100 ms maximum
MIN
-0.3
-
-0.3
-
-40
-
-55
TYP
-
-
-
-
-
-
-
MAX
80
100
18
1500
85
2000
125
UNITS
V
V
V
V
C
m
C
NOTE:
Ratings used beyond the maximum ratings may cause a reliability degradation of the converter or may permanently damage the device.
PARAMETER
Operating Input Voltage
Input Current (full load) Vin=18 V
Vin=75 V
Input Current (no load)
Remote Off Input Current
Input Reflected Ripple Current (rms)
Input Reflected Ripple Current (pk-pk)
I
2
t Inrush Current Transient
Turn-on Voltage Threshold
Turn-off Voltage Threshold
Input Over Voltage Lockout
DESCRIPTION
MIN
18
-
-
-
-
-
-
-
16
15
76
TYP
24/48
6.7
1.6
100
20
7
15
0.05
17
16
78
MAX
75
-
-
180
30
10
30
0.1
17.5
16.5
80
UNIT
V
A
A
mA
mA
mA
mA
A
2
s
V
V
V
Tested with simulated source impedance of
10 µH, 5 Hz to 20 MHz; use a 1 µF/100 V
ceramic cap and a 100 µF/100 V electrolytic cap
with ESR = 1 ohm max. at 200 kHz at 25
C
CAUTION: This converter is not internally fused. An input line fuse must be used in application.
Recommend a fast-acting fuse with maximum rating of 8 A on system board. Refer to the fuse manufacture’s datasheet for further
information.
NOTES:
1. This converter has internal C-L-C (2.2uH-2*0.47uF+2.2uF) filter.
2. All specifications are typical at 25
C
unless otherwise stated.
tech.support@psbel.com
0RCY-60U12x
3
PARAMETER
Output Voltage Set Point
Load Regulation
Line Regulation
Regulation Over Temperature
(-40˚.C~ +85
˚C)
Ripple and Noise (pk-pk)
Ripple and Noise (rms)
Output Ripple and Noise (pk-pk)
under worst case
Output Current Range
Output DC Current Limit
Short Circuit Surge Transient
Rise time
DESCRIPTION
Vin=48V, Io=50% load.
MIN
11.76
-
-
-
TYP
12.0
±6
±10
±30
25
100
-
-
-
3
10
20
20
0
-
300
400
300
400
MAX
12.24
±12
±20
±50
50
150
150
7
11
5
15
25
25
3
1000
400
600
400
600
UNIT
V
mV
mV
mV
mV
mV
mV
A
A
A
2
s
ms
ms
ms
%
µF
mV
µs
mV
µs
Vin=54V, Io=100%load, 0-20MHz BW, with 3
* 22 µF ceramic capacitor at output.
0-20 MHz BW, with a 0.1 µF ceramic cap
and a 10 µF tantalum cap at the output.
-
-
-
0
Vin=48 V, in Hiccup Mode.
7.7
-
5
Ton(Enable from Vin)
Turn on Time
Ton(Enable from ON/OFF)
Overshoot at Turn on
Output Capacitance
TRANSIENT RESPONSE
△V
75%~50% of Max Load
Settling Time
△V
50%~75% of Max Load
Settling Time
di/dt=0.1 A/µs, Vin=24 VDC, Ta=25 °C, with
a 0.1 µF ceramic cap and a 10 µF tantalum
cap at output..
-
-
-
0
-
-
-
-
NOTE:
All specifications are typical at nominal input, full load at 25°C unless otherwise stated
PARAMETER
Efficiency
Vin=24 V
Vin=48 V
DESCRIPTION
Measured at normal Vin, full load
MIN
90
90.5
240
-
TYP
91.5
92
258
1500
-
-
125
-
31.2
1,867,232
MAX
-
280
-
10
110
-
13.8
-
-
UNIT
%
%
kHz
pF
%
%
℃
V
g
Mhrs
ich
mm
inch
mm
Switching Frequency
Isolation Capacitance
Remote Sense Compensation
Output Voltage Trim Range
Over Temperature Protection
Output Over Voltage Protection
Weight
MTBF
Dimensions (L × W × H)
Dimensions (L × W × H)
Calculated Per Bell Core SR-332 (Vo=12V,
Io=80%load, Ta = 25
℃)
0RCY-60U120 & 0RCY-60U12L&
0RCY-60U12W
0RCY-60U12B
Vin=48 V, full load, in Hiccup mode.
The total voltage increased by trim and
remote sense should not exceed 15%Vo
-
80
-
-
-
-
2.30 x 0.896 x 0.49
58.42 x 22.76 x 12.47
2.30 x 0.900 x 0.45
58.42 x 22.86 x 11.5
Asia-Pacific
+86 755 298 85888
Europe, Middle East
+353 61 225 977
North America
+1 408 785 5200
Rev. AC1
© 2017 Bel Power Solutions & Protection
4
0RCY-60U12x

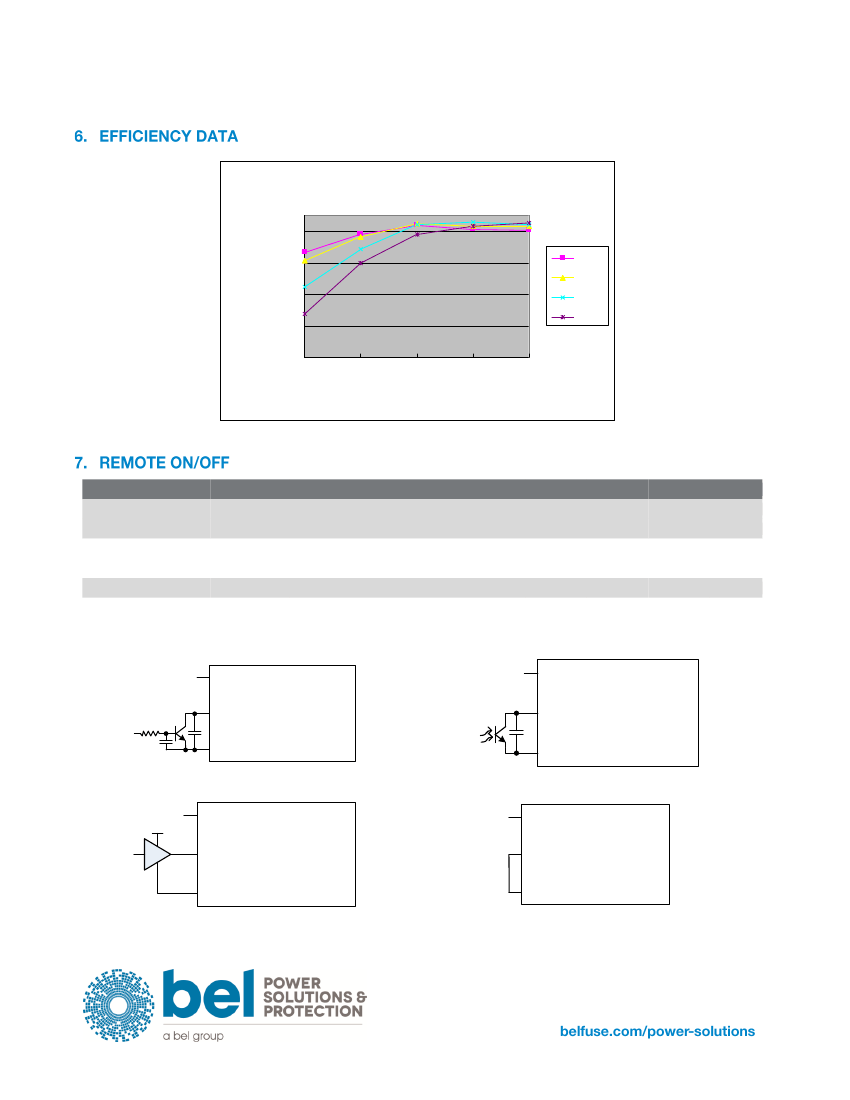

Efficiency Curve
90.00%
Efficiency
80.00%
70.00%
60.00%
50.00%
0.7A
1.75A
3.5A
5.25A
7A
Output Current (A)
18 V
24 V
48 V
75 V
PARAMETER
Signal Low (Unit On)
Active Low
Signal High (Unit Off)
Signal Low (Unit On)
Signal High (Unit Off)
Current Sink
Active High
DESCRIPTION
0RCY-60U12L & 0RCY-60U12B
The remote on/off pin open, Unit off.
0RCY-60U120 & 0RCY-60U12W
The remote on/off pin open, Unit on.
MIN
-0.3
2.4
-0.3
2.4
0
TYP
-
-
-
-
-
MAX
0.8
18
0.8
18
0.75
UNIT
V
V
V
V
mA
Recommended remote on/off circuit for active low
Vin+
Vin+
On/off
On/off
Vin-
Vin-
Control with open collector/drain circuit
Vin+
Vcc
Control with photocoupler circuit
Vin+
On/off
On/off
Vin-
Vin-
Control with logic circuit
Permanently on
tech.support@psbel.com
0RCY-60U12x

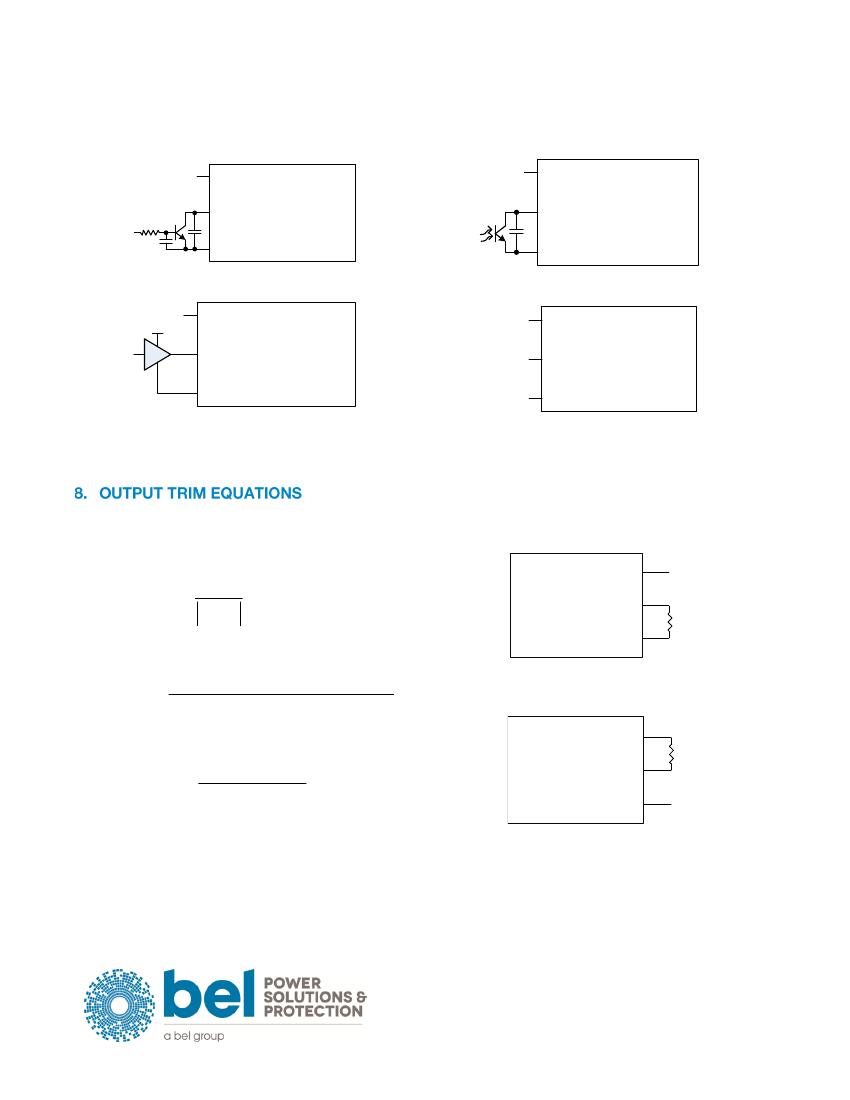

Recommended remote on/off circuit for active high
Vin+
5
Vin+
On/off
On/off
Vin-
Vin-
Control with open collector/drain circuit
Vin+
Vcc
Control with photocoupler circuit
Vin+
On/off
On/off
Vin-
Vin-
Control with logic circuit
Permanently on
Equations for calculating the trim resistor are shown below. The Trim Down resistor should be connected between the Trim pin and
GND pin. The Trim Up resistor should be connected between the Trim pin and the Vout pin. Only one of the resistors should be
used for any given application.
Rtrimdown
½
511
10.22
k
delta
Vout
Modu le
Trim
GND
Rtrim down
Rtrimup
½
(100
delta
)
Vo
5.11
626
10.22
k
1 .225
delta
Vout
NOTE:
delta
½
Vo
_
req
Vo
100
%
Vo
Module
Trim
GND
Rtrimup
