0150210215

Description
LVDS 0.5MM 51MM 15CKTS AU 502244
CategoryWire/cable
File Size163KB，1 Pages
ManufacturerMolex Premise Network
Environmental Compliance
Download Datasheet Parametric Compare View All

0150210215 Overview

LVDS 0.5MM 51MM 15CKTS AU 502244

0150210215 Parametric

Parameter NameAttribute value
Cable typeFFC，FPC
Number of conductors15
spacing0.020"（0.50mm）
length2.000"（50.80mm）
Length - bare end0.087"（2.20mm）
Terminal typeDouble-sided top, double-sided backing

Preview

Download Datasheet

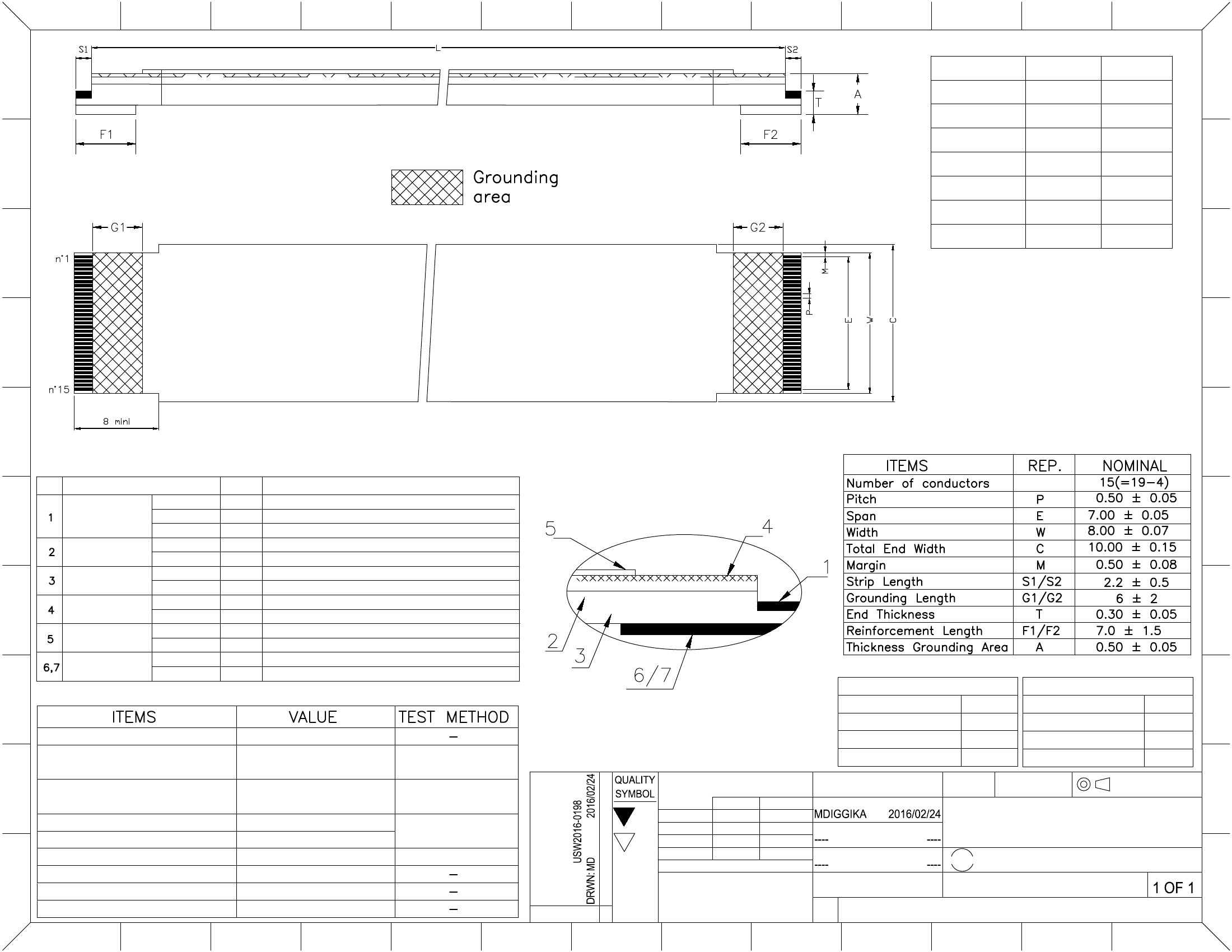

13
12
11
10
9
8
7
6
5
4
3
2
1
J
PART NO.
15021-0215
15021-0415
15021-0615
CKTS
15
15
15
15
15
15
15
LENGTH
2"
4"
6"
8"
10"
12"
24"
J
I
15021-0815
15021-1015
15021-1215
15021-2415
I
H
H
G
G
NOTE: JUMPER CABLES ARE SUITABLE FOR USE WITH MOLEX 502231 & 502244 SERIES CONNECTORS.
F
DIMENSIONS
COMPOSITION:
Item
COMPONENTS
Material
Width
Conductor
Thickness
Material
Insulation tape
Thickness
Material
Insulation tape
Thickness
Aluminum tape Material
Thickness
Material
Insulation tape
Thickness
Reinforcement Material
Tape
Thickness
UNITS
-
mm
mm
-
mm
-
mm
-
mm
-
mm
-
mm
SPECIFICATIONS
0.23 mm nominal
0.055 mm nominal
Polyester+flame retardant adhesive insulation
0.100 mm nominal
Polyester+flame retardant adhesive insulation
0.100 mm nominal
Polyester/Aluminium/Adhesive
0.119 mm nominal
Polyester + FR adhesive insulation
0.043 mm nominal
Blue Polyester
0.155 mm nominal
DIMENSIONAL TOLERANCES
40 mm TO 60 mm
61 mm TO 100 mm
DIMENSIONAL TOLERANCES
1.772 TO 2.400
2.401 TO 3.975
3.976 TO 7.912
7.913 TO 59.055
SCALE
DESIGN UNITS
F
E
E
D
D
C
CHARACTERISTICS
1950 Ohm/km maxi
Insulation resistance
(Conductor to conductor)
Dielectric test
(Conductor to conductor)
Temperature rating
Voltage rating
Flame resistance
Differential impedance
Speed L: 2"-10"
Speed L:12"-24"
13
12
11
C
101 mm TO 200 mm
10 MOhm.m mini
1 minute
30 V AC maxi
VW-1
5-10 Gigabits/sec
2-5 Gigabits/sec
10
200 V DC
200 V AC
DESCRIPTION
201 mm TO 1500 mm
GENERAL TOLERANCES
(UNLESS SPECIFIED)
DIMENSION STYLE
B
INCH [MM]
DRAWN BY
DATE
NONE
TITLE
METRIC
THIRD ANGLE
PROJECTION
B
INITIAL RELEASE
=
0
C
mm
4 PLACES
3 PLACES
2 PLACES
1 PLACE
---
---
---
---
1
INCH
---
--
--
---
UL2896
UL758
CHECKED BY
DATE
LVDS
CKTS 15
Molex
=
0
APPROVED BY
DATE
EC NO:
MOLEX INCORPORATED
SHEET NO.
A
A
9
8
REV
DRAFT WHERE
APPLICABLE
MUST REMAIN
WITHIN DIMENSIONS
7
6
5
MATERIAL NO.
DOCUMENT NO.
SEE CHART
SIZE
A
SD-15021-015
3
2
1
C
THIS DRAWING CONTAINS INFORMATION THAT IS PROPRIETARY TO MOLEX
INCORPORATED AND SHOULD NOT BE USED WITHOUT WRITTEN PERMISSION
4

0150210215 Related Products

0150210215 0150210415 0150210815 0150211015 0150210615 0150211215 0150212415
Description LVDS 0.5MM 51MM 15CKTS AU 502244 LVDS 0.5MM 102MM 15CKTS AU 50224 LVDS 0.5MM 203MM 15CKTS AU 50224 LVDS 0.5MM 254MM 15CKTS AU 50224 CABLE FFC 15POS 0.50MM 6" CABLE FFC 15POS 0.50MM 12" CABLE FFC 15POS 0.50MM 24"
Cable type FFC，FPC FFC，FPC FFC，FPC FFC，FPC FFC，FPC FFC，FPC FFC，FPC
Number of conductors 15 15 15 15 15 15 15
spacing 0.020"（0.50mm） 0.020"（0.50mm） 0.020"（0.50mm） 0.020"（0.50mm） 0.020"（0.50mm） 0.020"（0.50mm） 0.020"（0.50mm）
length 2.000"（50.80mm） 4.000"（101.60mm） 8.000"（203.20mm） 10.0"（254.0mm） 6.000"（152.40mm） 12.0"（304.8mm） 24.0"（609.6mm）
Length - bare end 0.087"（2.20mm） 0.087"（2.20mm） 0.087"（2.20mm） 0.087"（2.20mm） 0.087"（2.20mm） 0.087"（2.20mm） 0.087"（2.20mm）
Terminal type Double-sided top, double-sided backing Double-sided top, double-sided backing Double-sided top, double-sided backing Double-sided top, double-sided backing Double-sided top, double-sided backing Double-sided top, double-sided backing Double-sided top, double-sided backing
