Technical Data Sheet
BNC
75
Ω
Calibration Adaptor
Plug/Plug
71S121-S20S3
Dieses Dokument ist urheberrechtlich geschützt
●
This document is protected by copyright
●
Rosenberger Hochfrequenztechnik GmbH & Co. KG

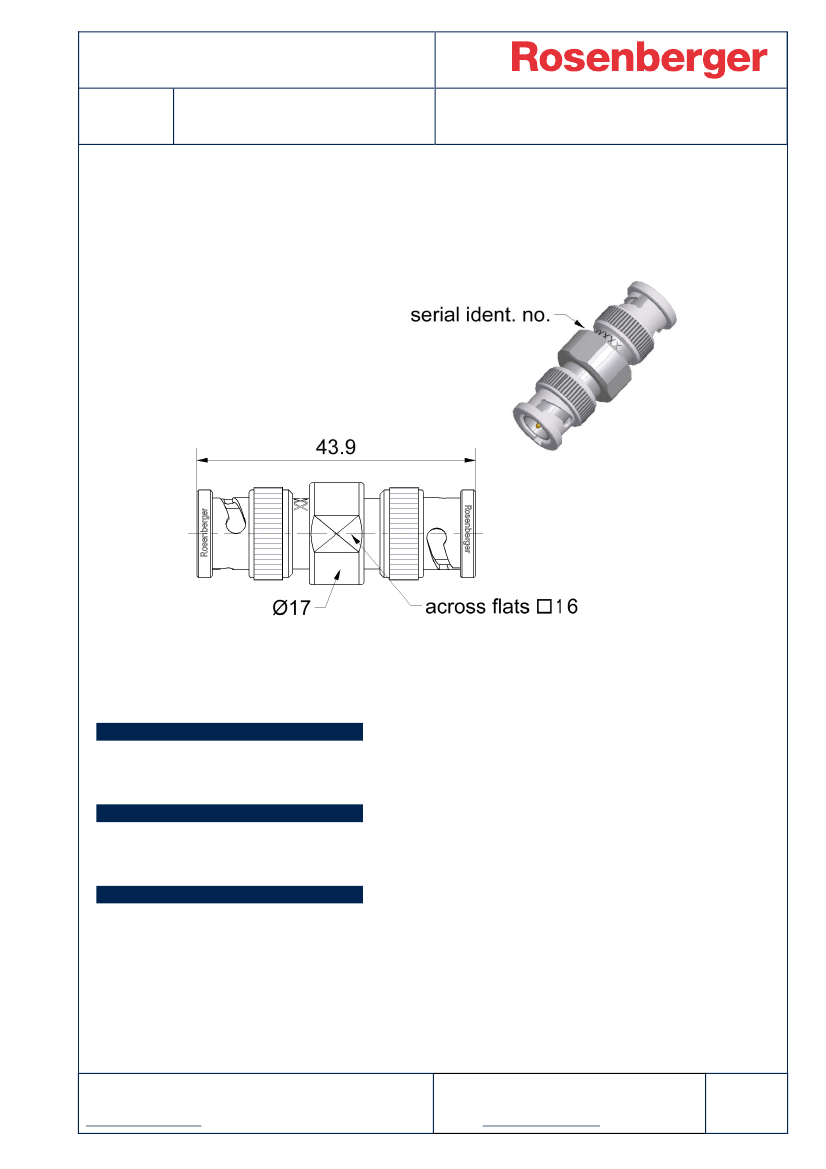

All dimensions are in mm; tolerances according to ISO 2768 m-H
Interface
According to
IEC 61169-8, MIL-PRF-39012, CECC 22120
Documents
Application note
AN001 “Calibration Services”
Material and plating
Connector parts
Center conductor
Outer conductor
Dielectric
Material
CuBe
Stainless steel
PS
Plating
Gold, min. 1.27 µm, over nickel
Passivated
RF_35/05.10/6.0
Rosenberger Hochfrequenztechnik GmbH & Co. KG
P.O.Box 1260
D-84526 Tittmoning
Germany
www.rosenberger.de
Tel. : +49 8684 18-0
Fax : +49 8684 18-1499
Email : info@rosenberger.de
Page
1/3
Technical Data Sheet
BNC
75
Ω
Calibration Adaptor
Plug/Plug
71S121-S20S3
Electrical data
Frequency range
Return loss
DC to 4 GHz
≥
34 dB, DC to 2 GHz
≥
30 dB, 2 GHz to 4 GHz
Dieses Dokument ist urheberrechtlich geschützt
●
This document is protected by copyright
●
Rosenberger Hochfrequenztechnik GmbH & Co. KG
Mechanical data
Mating cycles
Gauge
≥
500
5.31 mm to 5.38 mm
General standard definition
For proper operation the vector network analyzer (VNA) needs a model describing the electrical behaviour
of this calibration standard. The different models, units, and terms used will depend on the VNA type and they
will have to be entered into the VNA. All values are based on typical geometry and plating.
Offset Z
o
/ Impedance / Z
o
Offset Delay
Length (electrical) / Offset Length
Offset Loss
Loss
75
Ω
146.968 ps
44.06 mm
1.20 GΩ/s
0.0102 dB/
GHz
Environmental data
Operating temperature range
1
Rated temperature range of use
2
Storage temperature range
RoHS
1
2
+20 °C to +26 °C
0 °C to +50 °C
-40 °C to +85 °C
compliant
Temperature range over which these specifications are valid.
This range is underneath and above the operating temperature range, within the open circuit is fully functional
and could be used without damage.
RF_35/05.10/6.0
Rosenberger Hochfrequenztechnik GmbH & Co. KG
P.O.Box 1260
D-84526 Tittmoning
Germany
www.rosenberger.de
Tel. : +49 8684 18-0
Fax : +49 8684 18-1499
Email : info@rosenberger.de
Page
2/3
Technical Data Sheet
BNC
75
Ω
Calibration Adaptor
Plug/Plug
71S121-S20S3
Declaration of calibration options
Factory Calibration
Standard delivery for this calibration standard includes a Factory Calibration. The Calibration Certificate
issued reports individual calibration results,
traceable to Rosenberger standards,
national / international
standards are not available. Model based standard definitions are reported in an Agilent/Keysight, Rohde &
Schwarz and Anritsu compatible VNA format.
Accredited Calibration
Not available.
For further, more detailed information see application note AN001 on the Rosenberger homepage.
Dieses Dokument ist urheberrechtlich geschützt
●
This document is protected by copyright
●
Rosenberger Hochfrequenztechnik GmbH & Co. KG
Calibration interval
Recommendation
12 months
Packing
Standard
Weight
1 pce in box
30 g/pce
While the information has been carefully compiled to the best of our knowledge, nothing is intended as representation or warranty on
our part and no statement herein shall be construed as recommendation to infringe existing patents. In the effort to improve our
products, we reserve the right to make changes judged to be necessary.
Draft
Marcel Panicke
Date
18.08.14
Approved
Herbert Babinger
Date
16.09.15
Rev.
b00
Engineering change number
14-1492
Name
Maik Knoll
Date
16.09.15
RF_35/05.10/6.0
Rosenberger Hochfrequenztechnik GmbH & Co. KG
P.O.Box 1260
D-84526 Tittmoning
Germany
www.rosenberger.de
Tel. : +49 8684 18-0
Fax : +49 8684 18-1499
Email : info@rosenberger.de
Page
3/3
