BX1W-36BLK: DescriptionTEST LEAD BANANA TO GRABBER 36"; CategoryTopical application Test and measurement; File Size47KB，1 Pages; ManufacturerE-Z-HOOK; Environmental Compliance

Download Datasheet Parametric Compare View All

BX1W-36BLK Overview

TEST LEAD BANANA TO GRABBER 36"

BX1W-36BLK Parametric

Parameter Name	Attribute value
stacking method	Not stackable
Configuration	Banana plug to grabber, hook
first connector	Banana plug, single circuit
Second connector	mini hook
cable length	36.0"（914.40mm）
type	patch cord
content	1 lead, black
Material - Insulation	Polyvinyl chloride (PVC)
Wire gauge	22 AWG
Voltage - Rated	1000V（1kV）
grade	-
Rated current	2.5A

Preview

Download Datasheet

View All

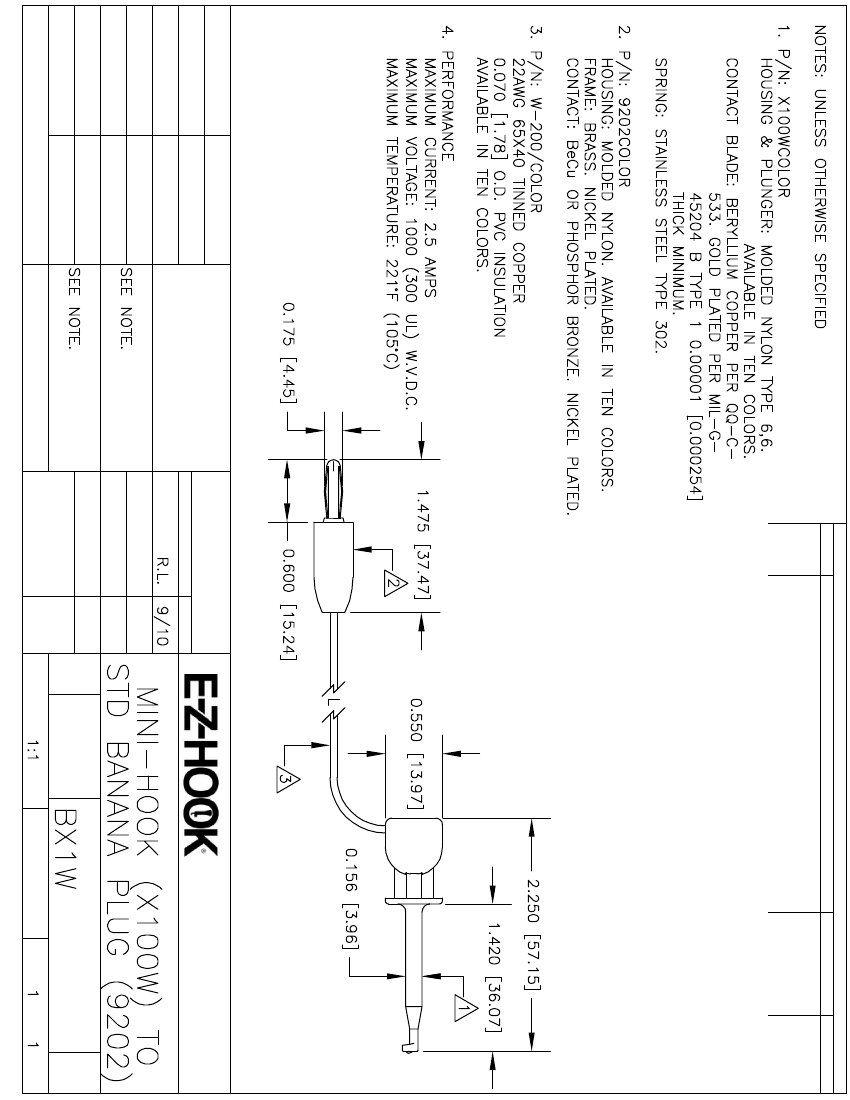

REVISIONS

LTR

DESCRIPTION

DATE

APPROVED

UNLESS OTHERWISE SPECIFIED

DIMENSIONS ARE IN INCHES

TOLERANCES ARE:

FRACTIONS DECIMALS ANGLES

±

.XX ±

.XXX ±

CONTRACT NO.

APPROVALS

DRAWN

MATERIAL

APPROVED BY

DATE

DESCRIPTION

DIVISION OF TEKTEST INC.

ARCADIA, CA 91006 U.S.A.

FINISH

NEXT ASSY

USED ON

APPLICATION

DO NOT SCALE DRAWING

SIZE

CODE IDENT NO. DRAWING NO.

DRAWING NO.

REV.

A 08505

SCALE

SHEET

OF

THE INFORMATION CONTAINED IN THIS DOCUMENT IS PROPRIETARY TO E-Z-HOOK. THE INFORMATION IS NOT TO BE REPRODUCED WITHOUT PRIOR WRITTEN PERMISSION OF E-Z-HOOK, DIV. OF TEKTEST INC.

MAXIMUM TESTED RATINGS IN A HANDS-FREE CONTROLLED ENVIRONMENT. MAXIMUM RATINGS ARE NOT TO BE USED CONCURRENTLY.

BX1W-36BLK Related Products

	BX1W-36BLK	BX1W-18 BLK	BX1W-18 RED	BX1W-36-S	BX1W-18-S	BX1W-36R/B
Description	TEST LEAD BANANA TO GRABBER 36"	TEST LEAD BANANA TO GRABBER 18"	TEST LEAD BANANA TO GRABBER 18"	TEST LEAD BANANA/GRAB 36" SET/10	TEST LEAD BANANA/GRAB 18" SET/10	TEST LEAD BANANA/GRABBER 36" 2PC
stacking method	Not stackable	Not stackable	Not stackable	Not stackable	Not stackable	Not stackable
Configuration	Banana plug to grabber, hook	Banana plug to grabber, hook	Banana plug to grabber, hook	Banana plug to grabber, hook	Banana plug to grabber, hook	Banana plug to grabber, hook
first connector	Banana plug, single circuit	Banana plug, single circuit	Banana plug, single circuit	Banana plug, single circuit	Banana plug, single circuit	Banana plug, single circuit
Second connector	mini hook	mini hook	mini hook	mini hook	mini hook	mini hook
cable length	36.0"（914.40mm）	18.0"（457.20mm）	18.0"（457.20mm）	36.0"（914.40mm）	18.0"（457.20mm）	36.0"（914.40mm）
type	patch cord	patch cord	patch cord	patch cord	patch cord	patch cord
content	1 lead, black	1 lead, black	1 lead, red	10 leads, multiple colors	10 leads, multiple colors	2 leads, black and red
Material - Insulation	Polyvinyl chloride (PVC)	Polyvinyl chloride (PVC)	Polyvinyl chloride (PVC)	Polyvinyl chloride (PVC)	Polyvinyl chloride (PVC)	Polyvinyl chloride (PVC)
Wire gauge	22 AWG	22 AWG	22 AWG	22 AWG	22 AWG	22 AWG
Voltage - Rated	1000V（1kV）	1000V（1kV）	1000V（1kV）	1000V（1kV）	1000V（1kV）	1000V（1kV）
Rated current	2.5A	2.5A	2.5A	2.5A	2.5A	2.5A
