General Purpose; wound type; boxed; MKT-Metallized polyester
Storage Conditions
Operating Temperature
W
5-35 °C, < 75% RH
-40 °C up to +85 °C
10
°C
Maxium Selfheating (Rated)
Test conditions of Electrical Properties: +20°C, 35% RH if not specified differently
FIT according to separate documentation
Component conform to REACh and RoHS requirements and standards

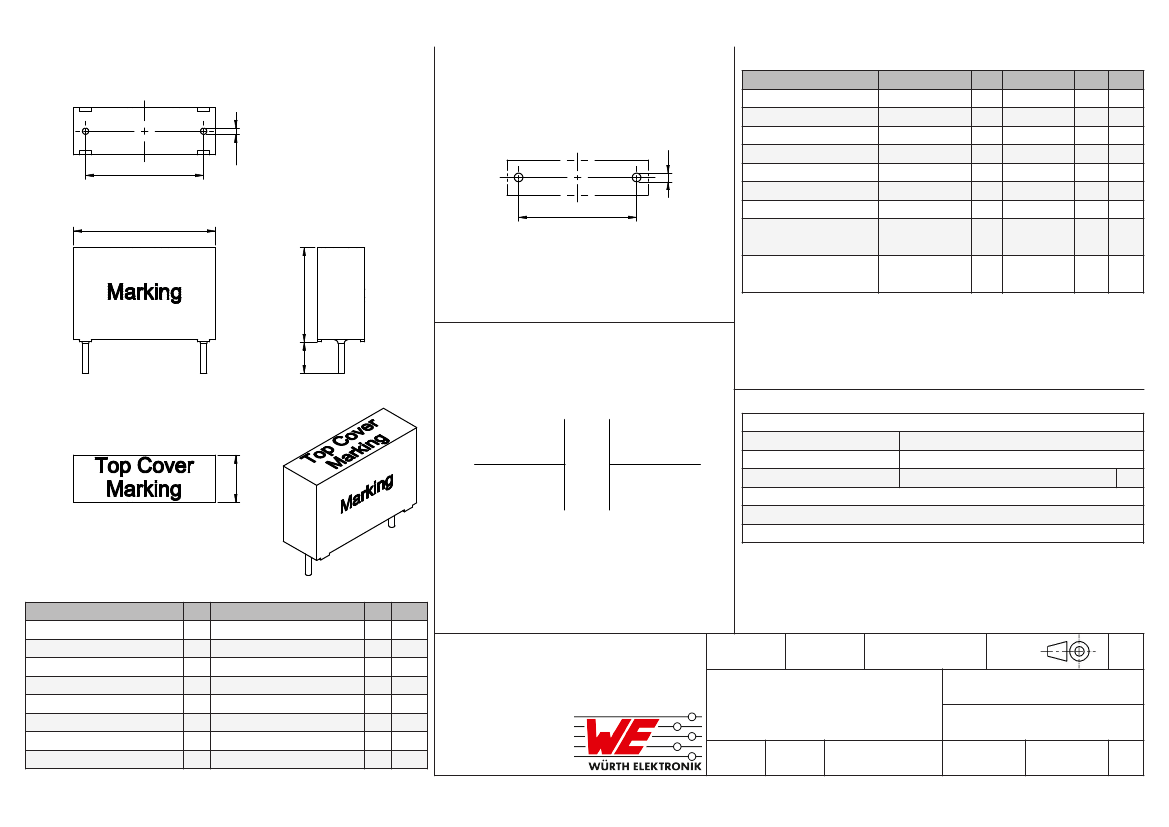

Properties
Pitch
Length
Height
Width
Pin Diameter
Pin length
Pitch
Pin Hole Diameter
P
L
H
W
ØF
G
p
Øf
Value
7.5
10.5
11
5
0.6
4
7.5
0.9
Unit
mm
mm
mm
mm
mm
mm
Tol.
±0.5
±1.5
±1
±1
±0.5
±0.5
Würth Elektronik eiSos GmbH & Co. KG
EMC & Inductive Solutions
Max-Eyth-Str. 1
74638 Waldenburg
Germany
Tel. +49 (0) 79 42 945 - 0
www.we-online.com
eiSos@we-online.com
SIZE
REVISION
STATUS
CREATED
CHECKED
GENERAL TOLERANCE
PROJECTION
METHOD
KaS
DESCRIPTION
PSL
DIN ISO 2768-1m
TECHNICAL REFERENCE
mm ±0.05
WCAP-FTBE Film Capacitors
MPSP075683K400DCPP45004
ORDER CODE
890283422001CS
DATE (YYYY-MM-DD)
BUSINESS UNIT
PAGE
mm ±0.05
Pitch 7.5
002.000
Valid
2017-12-20
eiCap
1/7
This electronic component has been designed and developed for usage in general electronic equipment only. This product is not authorized for use in equipment where a higher safety standard and reliability standard is especially required or where a failure of the product is reasonably expected to cause severe personal injury or death, unless the parties have executed an agreement specifically governing such use. Moreover Würth Elektronik eiSos GmbH
& Co KG products are neither designed nor intended for use in areas such as military, aerospace, aviation, nuclear control, submarine, transportation (automotive control, train control, ship control), transportation signal, disaster prevention, medical, public information network etc.. Würth Elektronik eiSos GmbH & Co KG must be informed about the intent of such usage before the design-in stage. In addition, sufficient reliability evaluation checks for safety
must be performed on every electronic component which is used in electrical circuits that require high safety and reliability functions or performance.
Product Marking:
1
st
Line right
2
nd
Line right
2
nd
Line left
Top Cover Marking P < 15
Top Cover Marking P ≥ 15
Matchcode: FTBE
Rated Voltage: 400 V
Capacitance & Tolerance Code: 683 K (Basis pF)
Date Code: YWW
Date Code & Capacitance & Tolerance Code
Capacitance Change vs. Temperature:
5.0%
Mechanical Properties
Properties
Termination Robustness
Test Conditions
File
Lead Diameter [mm] Force [N]
0.5 to ≤ 0.8
0.9 to ≤ 1.25
Bend Test
0.5 to ≤ 0.8
0.9 to ≤ 1.25
10
20
5
10
condition
min. 10 sec.
min. 10 sec.
min. 2 cycles
min. 2 cycles
IEC 600668 - 2 - 21 Pull Test
3.0%
Capacitance Change [%]
1.0%
Environmental Tests:
Properties
Vibration
Damp Heat
Temperature
Cycles
Standard
IEC 60068 - 2 - 6
IEC 60068 - 2 - 78
IEC 60068 - 2 - 14
all 3 directions, 2 hours each @ 15 - 55 - 15 Hz, amplitude 0.75 mm or
10 g
40°C, 95% RH, 56 days
5 cycles, upper and lower temperature 30 min. each, 30 sec. transfer
time
-1.0%
-3.0%
-5.0%
-40 -30 -20 -10
0
10
20
30
40
50
60
70
80
90 100 105
Temperature [°C]
Würth Elektronik eiSos GmbH & Co. KG
EMC & Inductive Solutions
Max-Eyth-Str. 1
74638 Waldenburg
Germany
Tel. +49 (0) 79 42 945 - 0
www.we-online.com
eiSos@we-online.com
CREATED
CHECKED
GENERAL TOLERANCE
PROJECTION
METHOD
KaS
DESCRIPTION
PSL
DIN ISO 2768-1m
TECHNICAL REFERENCE
WCAP-FTBE Film Capacitors
MPSP075683K400DCPP45004
ORDER CODE
890283422001CS
SIZE
REVISION
STATUS
DATE (YYYY-MM-DD)
BUSINESS UNIT
PAGE
Pitch 7.5
002.000
Valid
2017-12-20
eiCap
2/7
This electronic component has been designed and developed for usage in general electronic equipment only. This product is not authorized for use in equipment where a higher safety standard and reliability standard is especially required or where a failure of the product is reasonably expected to cause severe personal injury or death, unless the parties have executed an agreement specifically governing such use. Moreover Würth Elektronik eiSos GmbH
& Co KG products are neither designed nor intended for use in areas such as military, aerospace, aviation, nuclear control, submarine, transportation (automotive control, train control, ship control), transportation signal, disaster prevention, medical, public information network etc.. Würth Elektronik eiSos GmbH & Co KG must be informed about the intent of such usage before the design-in stage. In addition, sufficient reliability evaluation checks for safety
must be performed on every electronic component which is used in electrical circuits that require high safety and reliability functions or performance.
Dissipation Factor vs. Temperature:
1.2%
Rated Voltage vs. Temperature:
120.0%
1.0%
100.0%
0.8%
80.0%
Dissipation Factor [%]
0.6%
Rated Voltage / Max Voltage [%]
-40 -30 -20 -10
0
10
20
30
40
50
60
70
80
90 100 105
60.0%
0.4%
40.0%
0.2%
20.0%
0.0%
Temperature [°C]
0.0%
-40 -30 -20 -10 0
10 20 30 40 50 60 70 80 85 90 95 100 105
Temperature [°C]
Würth Elektronik eiSos GmbH & Co. KG
EMC & Inductive Solutions
Max-Eyth-Str. 1
74638 Waldenburg
Germany
Tel. +49 (0) 79 42 945 - 0
www.we-online.com
eiSos@we-online.com
CREATED
CHECKED
GENERAL TOLERANCE
PROJECTION
METHOD
KaS
DESCRIPTION
PSL
DIN ISO 2768-1m
TECHNICAL REFERENCE
WCAP-FTBE Film Capacitors
MPSP075683K400DCPP45004
ORDER CODE
890283422001CS
SIZE
REVISION
STATUS
DATE (YYYY-MM-DD)
BUSINESS UNIT
PAGE
Pitch 7.5
002.000
Valid
2017-12-20
eiCap
3/7
This electronic component has been designed and developed for usage in general electronic equipment only. This product is not authorized for use in equipment where a higher safety standard and reliability standard is especially required or where a failure of the product is reasonably expected to cause severe personal injury or death, unless the parties have executed an agreement specifically governing such use. Moreover Würth Elektronik eiSos GmbH
& Co KG products are neither designed nor intended for use in areas such as military, aerospace, aviation, nuclear control, submarine, transportation (automotive control, train control, ship control), transportation signal, disaster prevention, medical, public information network etc.. Würth Elektronik eiSos GmbH & Co KG must be informed about the intent of such usage before the design-in stage. In addition, sufficient reliability evaluation checks for safety
must be performed on every electronic component which is used in electrical circuits that require high safety and reliability functions or performance.
Packaging Specification - Carton: [mm]
Paperboard
IC
H
L
W
IC
IC
W
C
L
C
L
C
(mm)
L
IC
(mm)
typ.
275,00
W
IC
(mm)
typ.
160,00
H
IC
(mm)
typ.
95,00
No. of
Paperboard
pcs.
5
No. of
Layer
pcs.
4
Packaging
Unit
pcs.
3120
Material
Paper
typ.
500,00
W
C
(mm)
typ.
290,00
H
C
(mm)
typ.
240,00
No. of
inner Carton
pcs.
6
Packaging
Unit
pcs.
18720
Material
Paper
Würth Elektronik eiSos GmbH & Co. KG
EMC & Inductive Solutions
Max-Eyth-Str. 1
74638 Waldenburg
Germany
Tel. +49 (0) 79 42 945 - 0
www.we-online.com
eiSos@we-online.com
CREATED
CHECKED
GENERAL TOLERANCE
PROJECTION
METHOD
KaS
DESCRIPTION
PSL
DIN ISO 2768-1m
TECHNICAL REFERENCE
WCAP-FTBE Film Capacitors
MPSP075683K400DCPP45004
ORDER CODE
890283422001CS
SIZE
REVISION
STATUS
DATE (YYYY-MM-DD)
BUSINESS UNIT
PAGE
Pitch 7.5
002.000
Valid
2017-12-20
eiCap
H
4/7
This electronic component has been designed and developed for usage in general electronic equipment only. This product is not authorized for use in equipment where a higher safety standard and reliability standard is especially required or where a failure of the product is reasonably expected to cause severe personal injury or death, unless the parties have executed an agreement specifically governing such use. Moreover Würth Elektronik eiSos GmbH
& Co KG products are neither designed nor intended for use in areas such as military, aerospace, aviation, nuclear control, submarine, transportation (automotive control, train control, ship control), transportation signal, disaster prevention, medical, public information network etc.. Würth Elektronik eiSos GmbH & Co KG must be informed about the intent of such usage before the design-in stage. In addition, sufficient reliability evaluation checks for safety
must be performed on every electronic component which is used in electrical circuits that require high safety and reliability functions or performance.
C
Classification Wave Soldering Profile:
t
p
T
p
Classification Wave Soldering Profile:
Profile Feature
Preheat Temperature Min
Preheat Temperature Typical
T
s min
T
s max
t
s
ΔT
T
p
t
p
Pb-Free Assembly
100 °C
130 °C
70 seconds
150 °C max.
250 °C - 260 °C
max. 10 seconds
max. 5 seconds each wave
~ 2 K/ second
~ 3.5 K/ second
~ 5 K/ second
4 minutes
T
s typical
120 °C
Sn-Pb Assembly
100 °C
120 °C
130 °C
70 seconds
150 °C max.
235 °C - 260 °C
max. 10 seconds
max. 5 seconds each wave
~ 2 K/ second
~ 3.5 K/ second
~ 5 K/ second
4 minutes
First Wave
Second Wave
Preheat Temperature Max
Preheat Time t
s
from T
s min
to T
s max
Ramp-up Rate
Peak temperature
Temperature
Time of actual peak temperature
T
s max
T
s typical
T
s min
Ramp-down Rate, Min
Ramp-down Rate, Typical
Ramp-down Rate, Max
Time 25°C to 25°C
refer to EN61760-1:2006
Preheat area
Cool down area
Time
typical temperature procedure
min temperature procedure
max temperature procedure
Würth Elektronik eiSos GmbH & Co. KG
EMC & Inductive Solutions
Max-Eyth-Str. 1
74638 Waldenburg
Germany
Tel. +49 (0) 79 42 945 - 0
www.we-online.com
eiSos@we-online.com
CREATED
CHECKED
GENERAL TOLERANCE
PROJECTION
METHOD
KaS
DESCRIPTION
PSL
DIN ISO 2768-1m
TECHNICAL REFERENCE
WCAP-FTBE Film Capacitors
MPSP075683K400DCPP45004
ORDER CODE
890283422001CS
SIZE
REVISION
STATUS
DATE (YYYY-MM-DD)
BUSINESS UNIT
PAGE
Pitch 7.5
002.000
Valid
2017-12-20
eiCap
5/7
This electronic component has been designed and developed for usage in general electronic equipment only. This product is not authorized for use in equipment where a higher safety standard and reliability standard is especially required or where a failure of the product is reasonably expected to cause severe personal injury or death, unless the parties have executed an agreement specifically governing such use. Moreover Würth Elektronik eiSos GmbH
& Co KG products are neither designed nor intended for use in areas such as military, aerospace, aviation, nuclear control, submarine, transportation (automotive control, train control, ship control), transportation signal, disaster prevention, medical, public information network etc.. Würth Elektronik eiSos GmbH & Co KG must be informed about the intent of such usage before the design-in stage. In addition, sufficient reliability evaluation checks for safety
must be performed on every electronic component which is used in electrical circuits that require high safety and reliability functions or performance.
