8171820 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Circuit protection> 8171820

8171820: DescriptionSTAT SHLD BAG MTL IN 18X20 1=1EA; CategoryCircuit protection; File Size372KB，1 Pages; ManufacturerSCS

Download Datasheet Parametric View All

8171820 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	8171820	-	-	View	Buy Now

8171820 Overview

STAT SHLD BAG MTL IN 18X20 1=1EA

8171820 Parametric

Parameter Name	Attribute value
type	Static shielding bag
metal layer	enter
Electrostatic discharge shielding	<10nJ
closed system	User Defined - Clamp, Heat Seal, Tape
thickness	2.8 mil (71.12 micron)
Length - inside	20"（508mm）
Width - Inside	18"（457.2mm）
Tensile Strength	4600 psi
color	silver

Preview

Download Datasheet

View All

This product is on the Qualified Product Listing under

the Defense Standardization Program. Check our

listing

here.

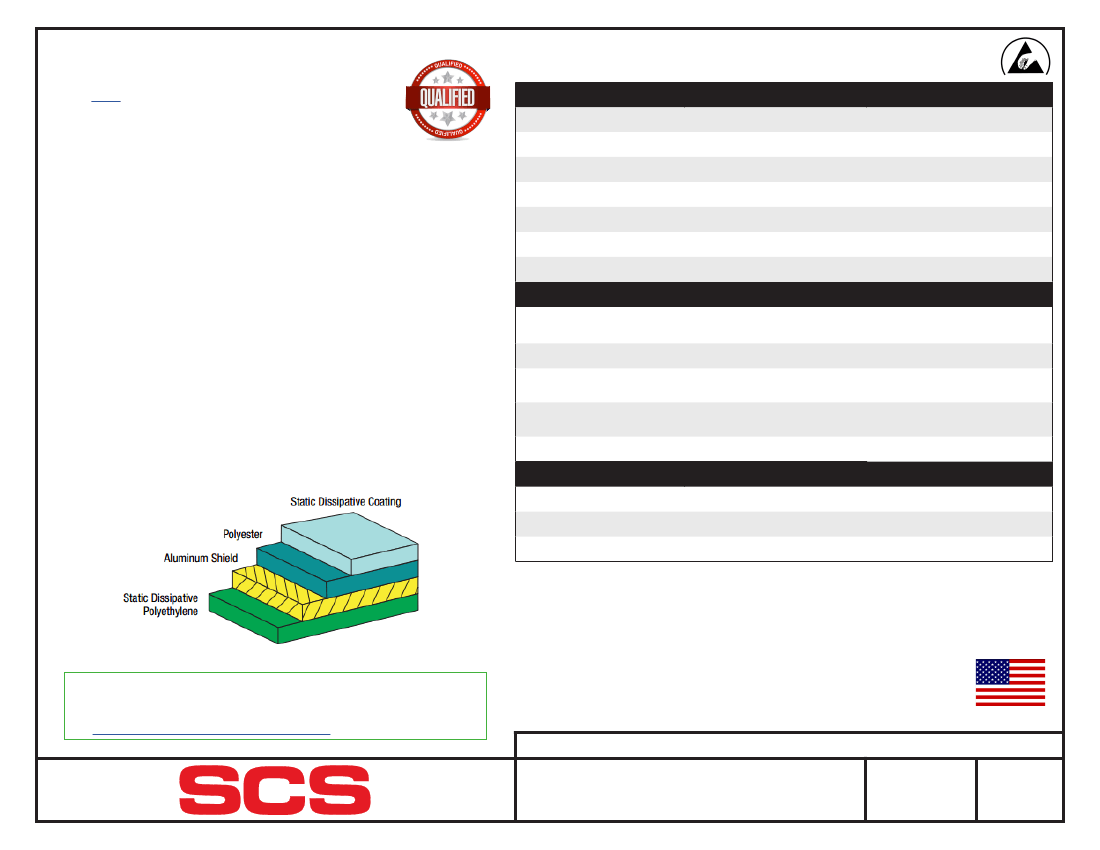

SCS Static Shield Bag 81705 Series are manufactured

from four layers - static dissipative coating, polyester,

metal and polyethylene laminate.

The polyester dielectric in concert

with the metal layer provides discharge shielding. The exterior is static

dissipative and allows electrostatic charges to be removed when

grounded. Film is qualified to MIL-PRF-81705E Type III, Class 2.

Standard stock bags are converted per MIL-DTL-117H unless otherwise

requested. As such, the bag markings will contain not only the required

MIL-PRF-81705E markings but also the stamp shown here:

Physical

Typical Value

4600 PSI, 32 MPa

12 lbs, 53 N

Pass

2.8 mils, 0.071 mm +/-10%

Testing Method

Tensile Strength

Puncture Resistance

Seam Strength

Thickness

ASTM D882

MIL-STD-3010 Method 2065

MIL-STD-3010 Method 2024

MIL-STD-3010 Method 1003

MIL-PRF-81705E Method 4.6.6

MIL-STD-3010 Method 3005*

MIL-STD-3010 Method 4034

Testing Method

MIL-PRF-81705E Method 4.6.7

MIL-PRF-81705E Method 4.6.9

Marking Abrasion Resistance

Pass

Contact Corrosivity

Transparency

Electrical

EMI Attenuation

ESD Shielding

Pass

40%

Typical Value

≥ 10 db

≤ 10 nJ

≥

1 x 10

to < 1 x 10

ohms/sq

SCS

MIL-DTL-117H

TYPE II CLASS H STYLE 2

STATIC SHIELD BAG, 81705 SERIES

LOT NO.

Note: Default color is red. Artwork not to scale.

Surface Resistivity -

Interior

Surface Resistivity -

Exterior

Static Decay

Heat Sealing Conditions

Temperature

MIL-PRF-81705E Method 4.6.8

MIL-STD-3010 Method 4046

< 1 x 10

ohms/sq

≤ 2 seconds

Typical Value

360°F, 182ºC

2 seconds

60 PSI, 414 KPa

If your packaging needs do not include meeting MIL-DTL-117H, bags

can be converted from qualified film per your packaging requirements.

Time

Pressure

*Passes on all surfaces noted in MIL-PRF-81705E Special Requirement 6/

Bag is free of silicones and heavy metals.

RoHS 3, REACH, and Conflict Minerals Statement

None of the RoHS 3 restricted materials or REACH substances of very high concern as

of 2017/07/07, or Conflict Minerals are intentionally added in manufacturing this product.

Ref: European Union Directive 2011/65/EU and Regulation (EC) No. 1907/2006/CE.

See

SCS Warranty, Limitation of Liability and Remedies

Specifications and procedures subject to change without notice.

Made in the

United States of America

STATIC SHIELD BAG, 81705 SERIES

926 JR Industrial Drive, Sanford, NC 27332

WEB SITE: StaticControl.com

PHONE (919) 718-0000

DRAWING

NUMBER

81705 Bags

DATE

October

2017

2017 DESCO INDUSTRIES INC.

Employee Owned
