B07B-XASK-1-A(LF)(SN)

Description
XA HEADER
CategoryThe connector    The connector
File Size312KB,6 Pages
ManufacturerJST
Environmental Compliance
Download Datasheet Parametric View All

B07B-XASK-1-A(LF)(SN) Overview

XA HEADER

B07B-XASK-1-A(LF)(SN) Parametric

Parameter NameAttribute value
Is it lead-free?Lead free
Is it Rohs certified?conform to
MakerJST
package instructionROHS COMPLIANT
Reach Compliance Codeunknown
Other featuresTOP ENTRY, SHROUDED
Connector typeBOARD CONNECTOR
Contact to complete cooperationTIN OVER COPPER
Contact completed and terminatedTIN OVER COPPER
Contact point genderMALE
Contact materialCOPPER ALLOY
DIN complianceNO
Filter functionNO
IEC complianceNO
JESD-609 codee3
MIL complianceNO
Manufacturer's serial numberXA
Mixed contactsNO
Installation methodSTRAIGHT
Installation typeBOARD
Number of rows loaded1
OptionsGENERAL PURPOSE
Terminal pitch2.5 mm
Termination typeSOLDER
Total number of contacts7
UL Flammability Code94V-0
Base Number Matches1
XA
CONNECTOR
Emboss Tape
Radial Tape

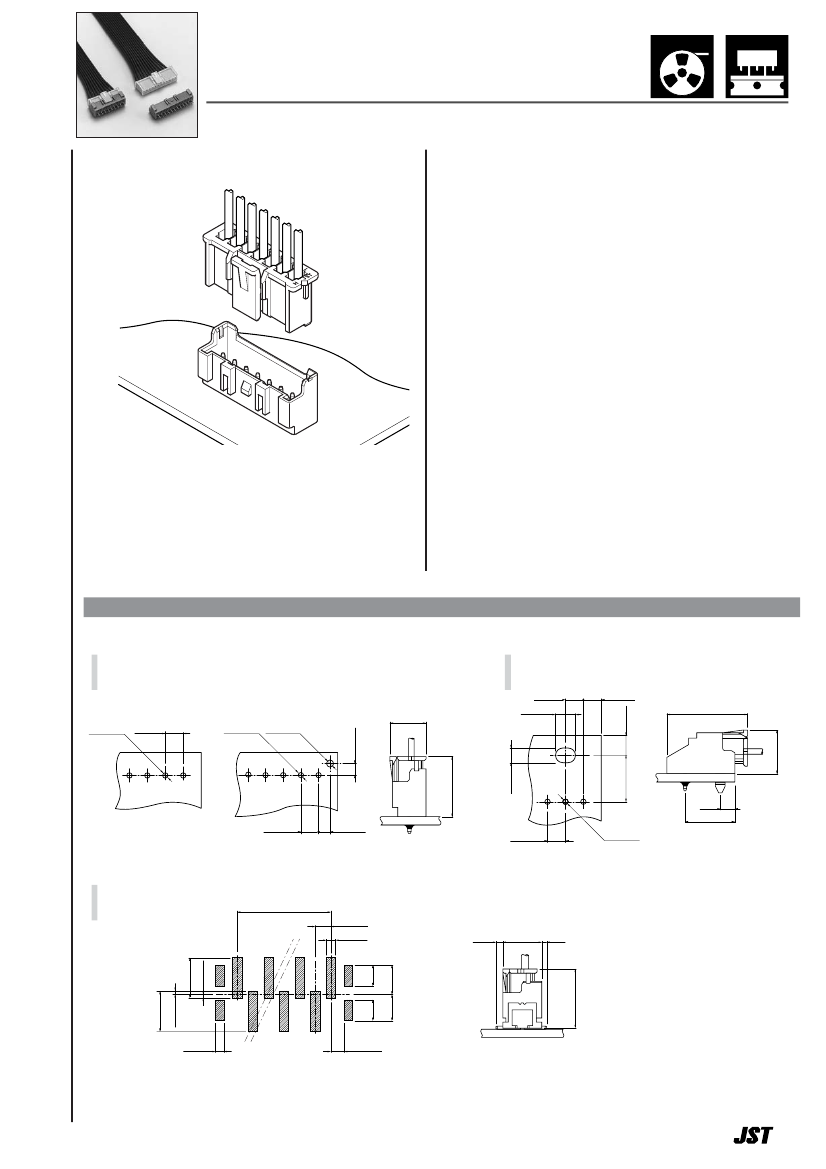

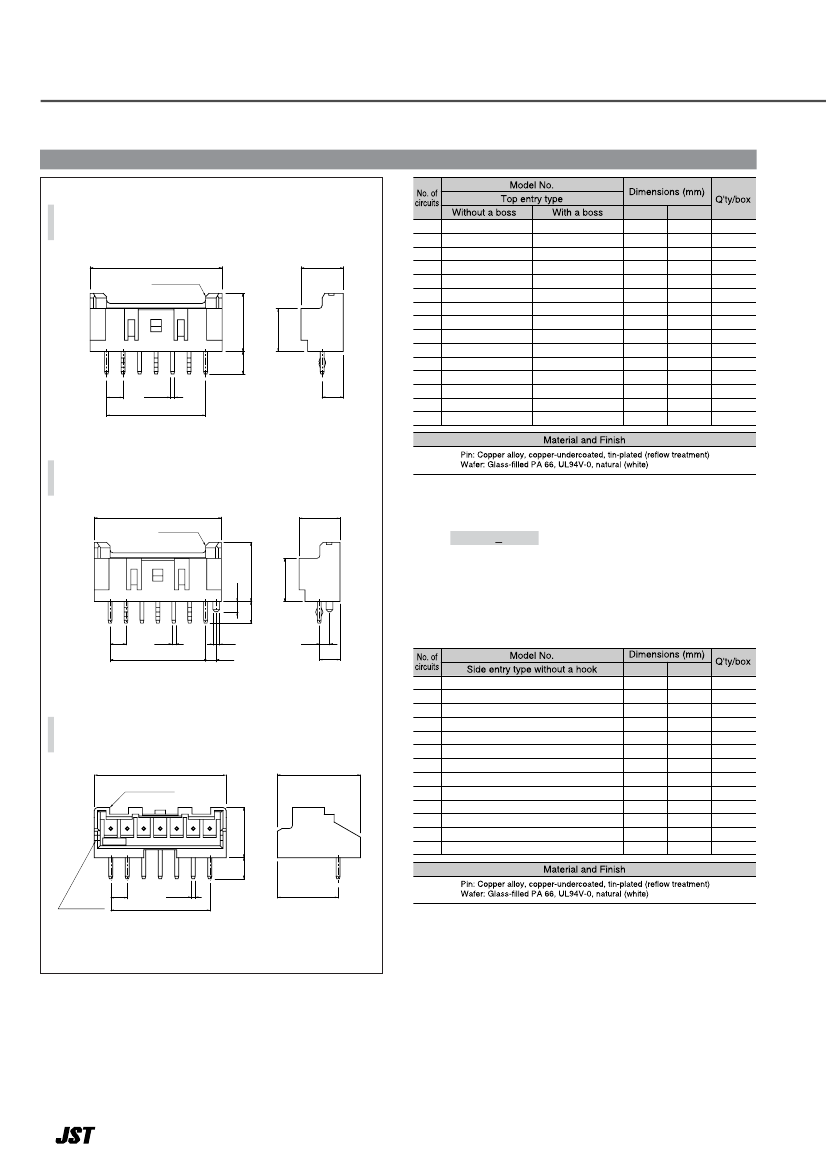

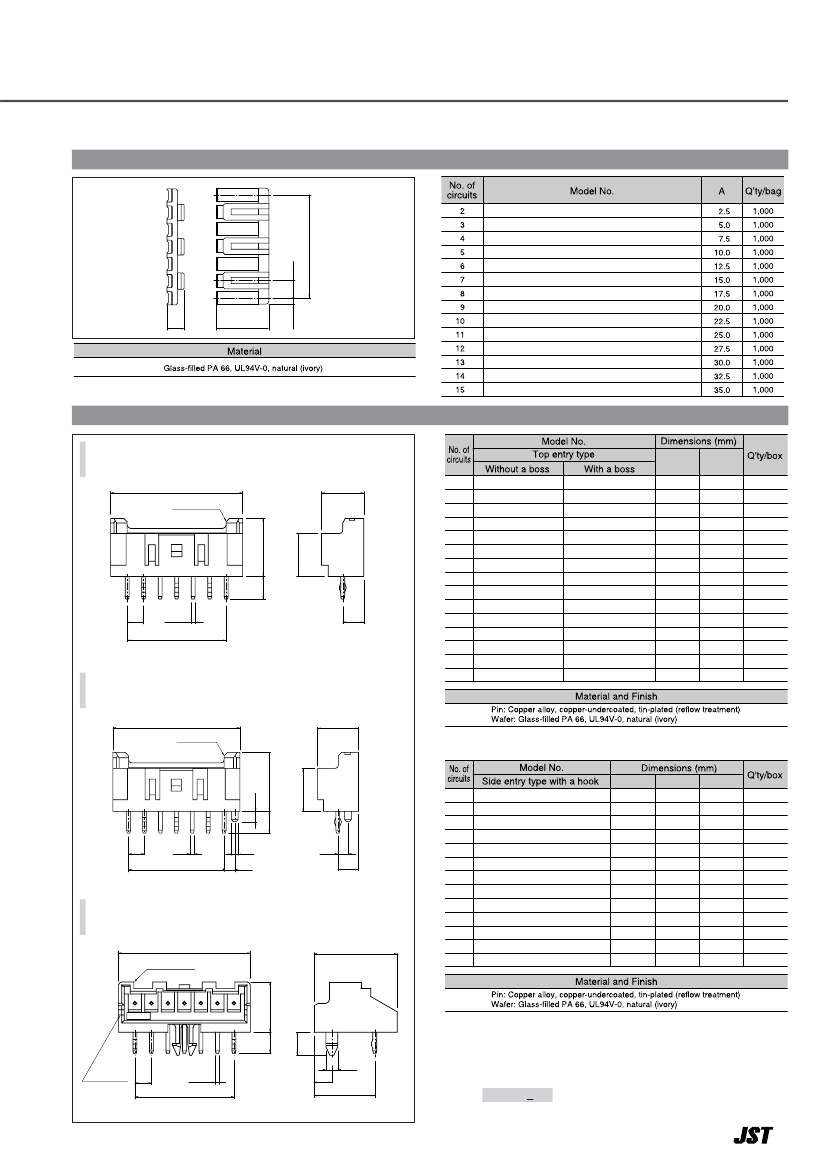

2.5mm pitch/Disconnectable Crimp style connectors
Specifications –––––––––––––––––––
• Current rating: 3 A AC DC (AWG #22, #20)
• Voltage rating: 250 V AC DC
• Temperature range:
-
25˚C to
+
85˚C
(including temperature rise in applying
electrical current)
• Contact resistance: Initial value/ 10 mΩ max.
After environmental tests/ 20 mΩ max.
• Insulation resistance: 1,000 MΩ min.
• Withstanding voltage: 1,000 VAC/minute
• Applicable wire: AWG #28 to #20
• Applicable PC board thickness: 1.6 mm
* Refer to "General Instruction and Notice when using
Terminals and Connectors" at the end of this catalog.
* Contact JST for details.
* Compliant with RoHS.
• Secure lock device
• Solder crack preventive material
• Low insertion force
• Insertion guide mechanism
• Applicable to automatic board mounting
machine
• Polarizing boss
Standards–––––––––––––––––––––––
1
Certified LR 20812
2
R9851220
0
Recognized E 60389
PC board layout and Assembly layout
〈Through-hole
type〉
Top entry type
without a boss
+0.1
φ0.9
 0
Side entry type
with a boss
2.8
1.6
±0.05
+0.1
φ0.9
 0
+0.1
φ1.2
 0
D
±0.05
±0.05
2.5
min
2.7
min
(15.1)
(6.9)
2.5
±0.05
(11.3)
2
±0.05
6.5
±0.05
2.7
9.2
2.5
±0.05
1.6
±0.05
2.5
±0.05
+0.1
φ0.9
 0

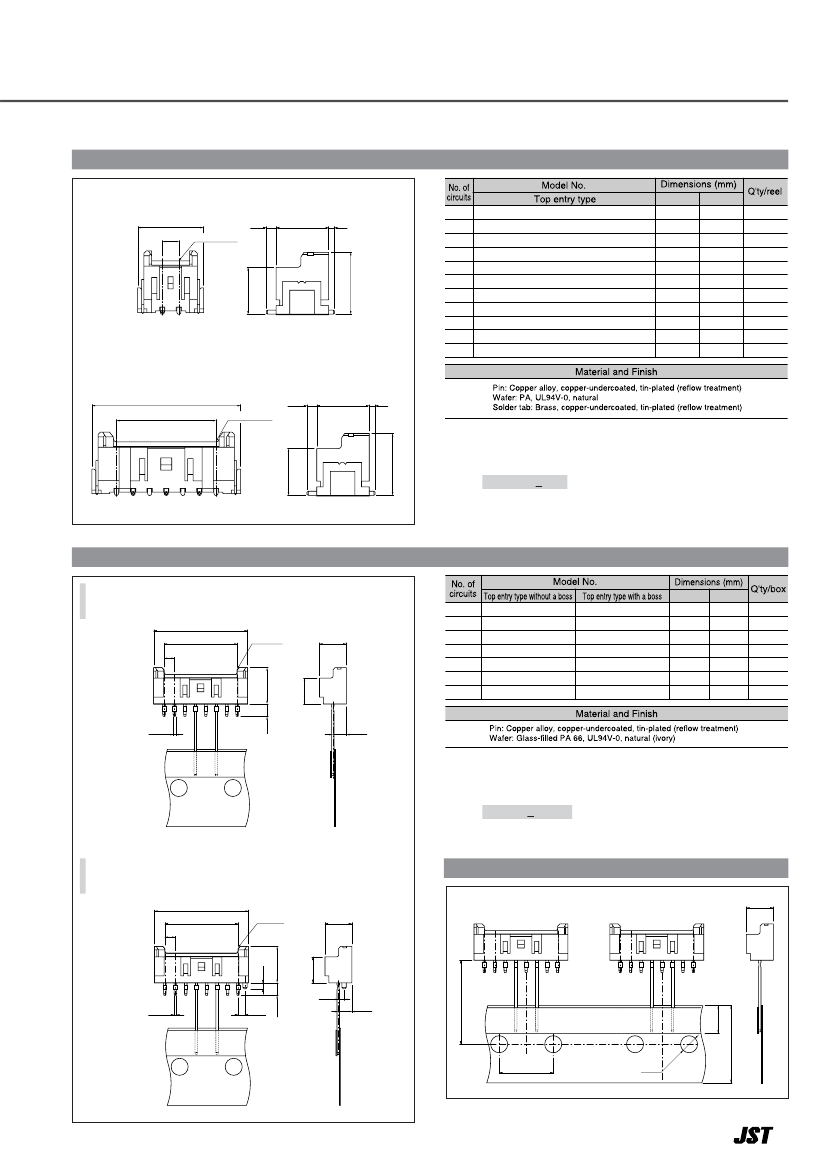

〈SMT
type〉
Top entry type
A
±0.05
2.5
±0.03
1.3
±0.1
Dimension D: Refer to the Model No. chart of header side entry type.
(1.4)
(8)
(1)
0.5
±0.03
6.2
±0.1
±0.1
3.3
4.65
±0.1
0.5
±0.03
6.2
±0.1
±0.1
1.2
±0.1
2.3
±0.05
Note: 1. The above figure is the figure viewed from the connector mounting side .
2. Tolerances are non-cumulative: ±0.05 mm for all centers.
3. Hole dimensions differ according to the type of PC board and piercing method.
The dimensions above should serve as a guideline. Contact JST for details.
3.3
4.25
(11.9)
±0.1
(8.1)
1
