EVERLIGHT ELECTRONICS CO., LTD.
DEVICE NUMBER :
ECN :
DTD-152-001
REV :
PAGE :
1.0
1/7
1206 Package Silicon PIN Photodiode
MODEL NO :
█
Features :
•Fast
response time
•High
photo sensitivity
•
Small junction capacitance
•
Package in 8mm tape on 7“ diameter reel.
PD15-22B/TR8
█
Description :
•PD15-22B/TR8
is a high speed and high sensitive PIN photodiode
in miniature flat top view lens SMD package and it is molded in a
black transparent plastic.The device is spectrally matched with
the infrared emitting diode.
█
Applications :
•High
speed photo detector
•
Copier
•
Optoelectronic switch
•
Game machine
PART NO.
PD
CHIP
MATERIAL
Silicon
LENS COLOR
Black
EVERLIGHT ELECTRONICS CO., LTD.
DEVICE NUMBER :
ECN :
DTD-152-001
REV :
PAGE :
1.0
2/7
1206 Package Silicon PIN Photodiode
MODEL NO :
PD15-22B/TR8
█
Package Dimensions :
█
Notes :
1.All dimensions are in millimeter.
2.General Tolerance:
±
0.1mm
3.Lens color：Black transparent.
4.Above specification may be changed without notice. EVERLIGHT will reserve authority
on material change for above specification.
5.These specification sheets include materials protected under copyright of EVERLIGHT
corporation . Please don’t reproduce or cause anyone to reproduce them without
EVERLIGHT’s consent.
6.When using this product , please observe the absolute maximum ratings and the
instructions for use outlined in these specification sheets. EVERLIGHT assumes no
responsibility for any damage resulting from use of the product which does not comply
with the absolute maximum ratings and the instructions included in these specification
sheets.
EVERLIGHT ELECTRONICS CO., LTD.
DEVICE NUMBER :
ECN :
DTD-152-001
REV :
PAGE :
1.0
3/7
1206 Package Silicon PIN Photodiode
MODEL NO :
PD15-22B/TR8
█
Absolute Maximum Ratings at T
A
= 25℃
℃
Parameter
Reversr Voltage
Operating Temperature
Storage Temperature
Lead Soldering Temperature
Power Dissipation at(or below)
25℃Free Air Temperature
℃
Symbol
V
R
Topr
Tstg
Tsol
Pc
Rating
32
-25 ~ +85
-40 ~ +85
260
150
Unit
V
℃
℃
℃
mW
Notice
█
Electronic Optical Characteristics :
Parameter
Rang of Spectral
Bandwidth
Wavelength of Peak
Sensitivity
Open-Circuit Voltage
Short-Circuit Current
Reverse Light Current
Dark Current
Reverse Breakdown
Voltage
Total Capacitance
Turn-on/Turn-off
Time
Symbol
λ
0.5
λ
p
V
OC
I
SC
I
L
I
D
B
VR
C
t
t
on
/t
off
Min.
----
----
----
----
----
----
32
----
----
Typ.
730-
1200
980
0.41
15
15
----
170
6
10/10
Max.
----
----
----
----
----
10
----
----
----
Unit
nm
nm
V
μA
μA
nA
V
pF
nS
Condition
-----
----
E
e
=5mW/c㎡
λp=940nm
E
e
=5mW/c㎡
λp=940nm
V
R
=5V
E
e
=0mW/c㎡
V
R
=10V
E
e
=0mW/c㎡
I
R
=100μA
E
e
=0mW/c㎡
f=1MHZ
V
R
=5V
R
L
=1000Ω
V
R
=10V
EVERLIGHT ELECTRONICS CO., LTD.
DEVICE NUMBER :
ECN :
DTD-152-001
REV :
PAGE :
1.0
4/7
1206 Package Silicon PIN Photodiode
MODEL NO :
PD15-22B/TR8
■

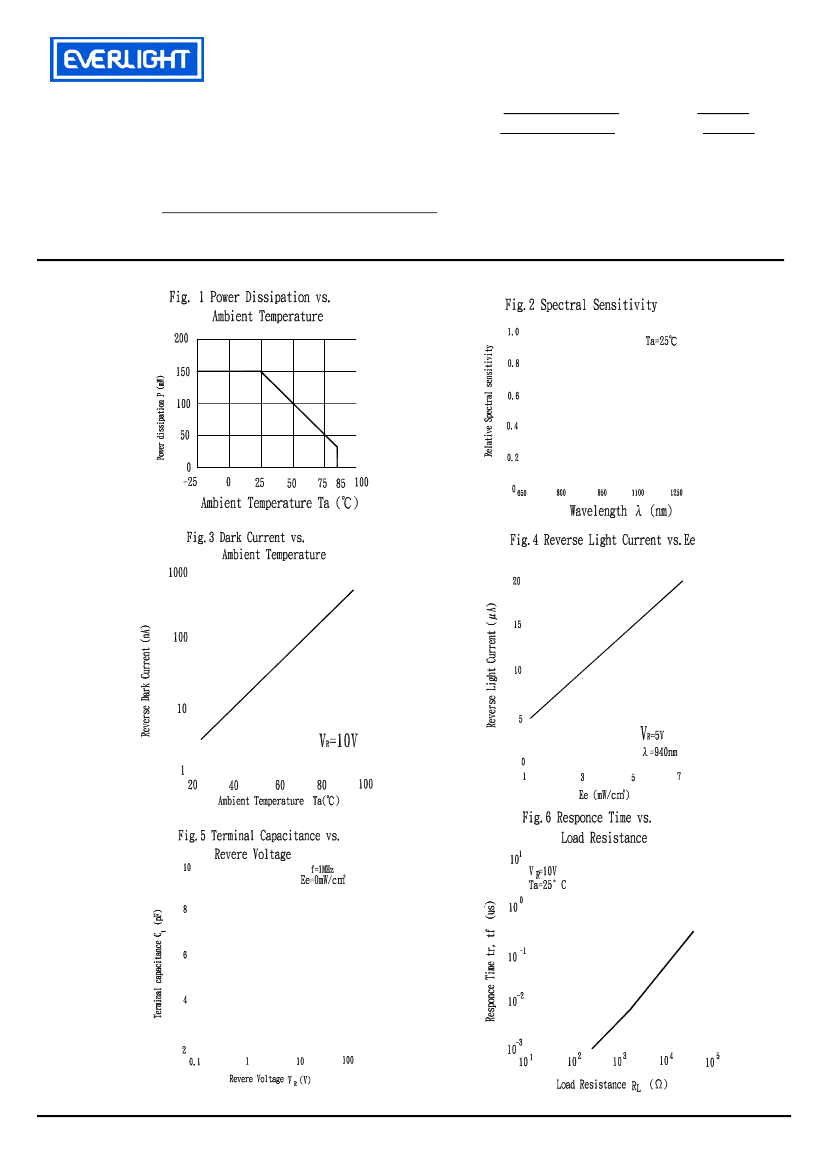

Typical Electrical/Optical/Characteristics Curves：
EVERLIGHT ELECTRONICS CO., LTD.
DEVICE NUMBER :
ECN :
DTD-152-001
REV :
PAGE :
1.0
5/7
1206 Package Silicon PIN Photodiode
MODEL NO :
PD15-22B/TR8
█
Reliability Test Item And Condition
The reliability of products shall be satisfied with items listed below.
Confidence level:90%
LTPD:10%
NO.
Item
Test Conditions
Test
Sample
Failure
Ac/Re
Hours/
Size
Judgement
Cycle
Criteria
1
REFLOW
TEMP : 240℃ ± 5
℃
5 sec
H : +85℃
30 min
6 Min
22 PCs
I
L
≦L×
0.8
0/1
2
Temperature Cycle
5 min
50 cycle
22 PCs
L:Lower
specification
limit
0/1
L : -55℃
30 min
H : +100℃
5 min
3
Thermal Shock
10 sec
L : -10℃
30 min
50 cycle
22 PCs
0/1
4
High Temperature
TEMP. : +100℃
Storage
Low Temperature
TEMP. : -55℃
Storage
DC Operating Life
V
R
=5V
High Temperature /
85℃ / 85% R.H.
High Humidity
1000 hrs
22 PCs
0/1
5
1000 hrs
22 PCs
0/1
6
7
1000 hrs
1000 hrs
22 PCs
22 PCs
0/1
0/1
