FQB9N15TM datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > semiconductor> Discrete semiconductor> FQB9N15TM

FQB9N15TM: DescriptionMOSFET N-CH 150V 9A D2PAK; Categorysemiconductor Discrete semiconductor; File Size739KB，9 Pages; ManufacturerON Semiconductor; Websitehttp://www.onsemi.cn; Environmental Compliance

Download Datasheet Parametric Compare View All

FQB9N15TM Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	FQB9N15TM	-	-	View	Buy Now

FQB9N15TM Overview

MOSFET N-CH 150V 9A D2PAK

FQB9N15TM Parametric

Parameter Name	Attribute value
FET type	N channel
technology	MOSFET (metal oxide)
Drain-source voltage (Vdss)	150V
Current - Continuous Drain (Id) at 25°C	9A（Tc）
Drive voltage (maximum Rds On, minimum Rds On)	10V
Rds On (maximum value) when different Id, Vgs	400 milliohms @ 4.5A, 10V
Vgs (th) (maximum value) when different Id	4V @ 250µA
Gate charge (Qg) at different Vgs (maximum value)	13nC @ 10V
Vgs (maximum value)	±25V
Input capacitance (Ciss) at different Vds (maximum value)	410pF @ 25V
FET function	-
Power dissipation (maximum)	3.75W（Ta），75W（Tc）
Operating temperature	-55°C ~ 175°C（TJ）
Installation type	surface mount
Supplier device packaging	D²PAK（TO-263AB）
Package/casing	TO-263-3, D²Pak (2-lead + tab), TO-263AB

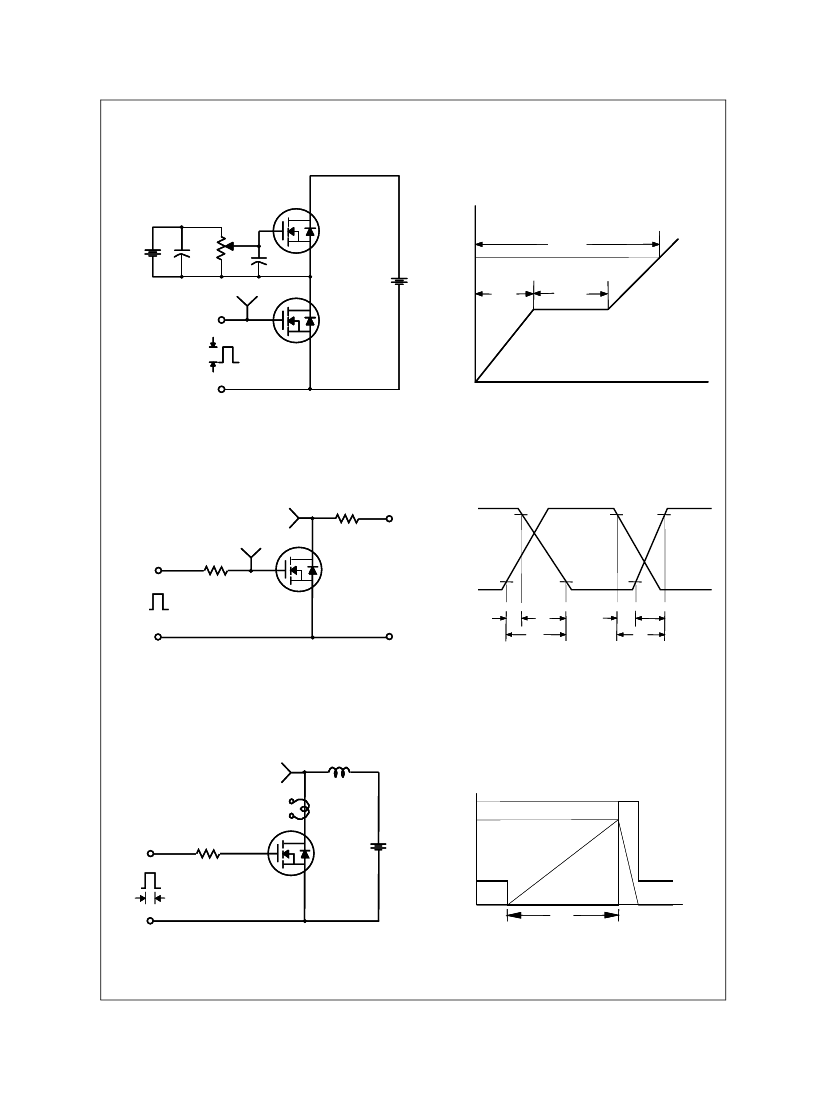

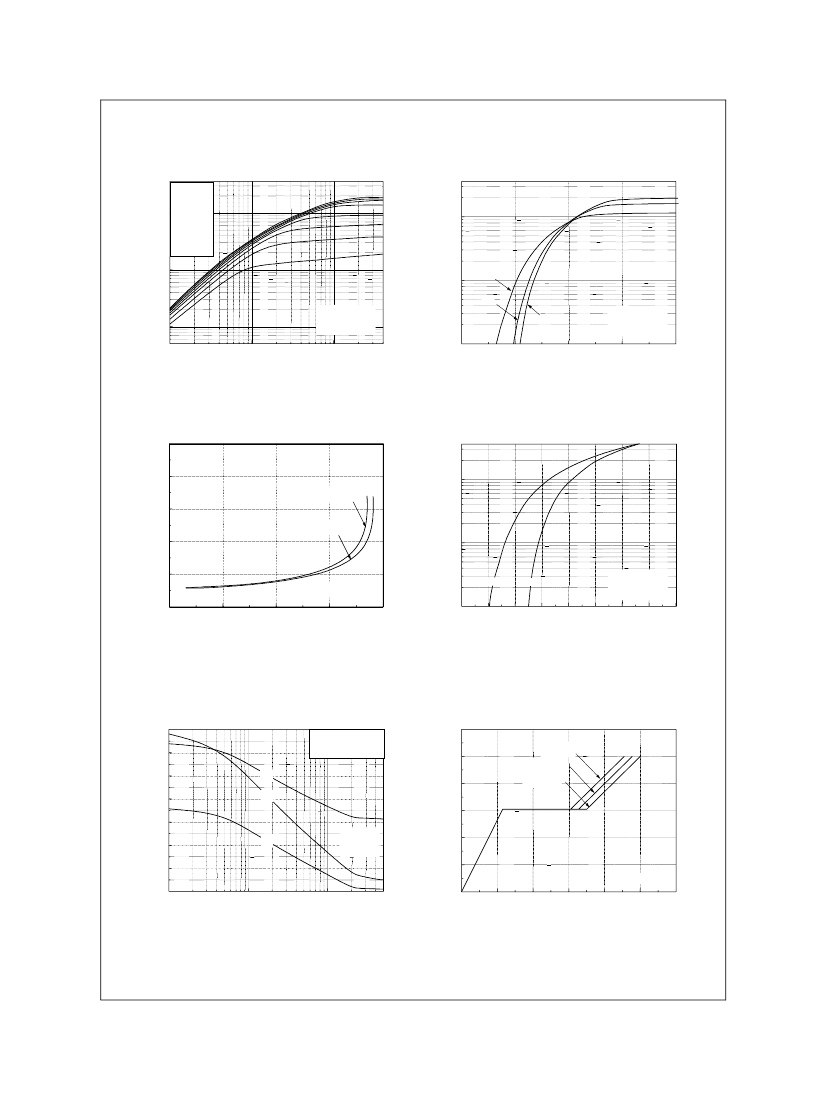

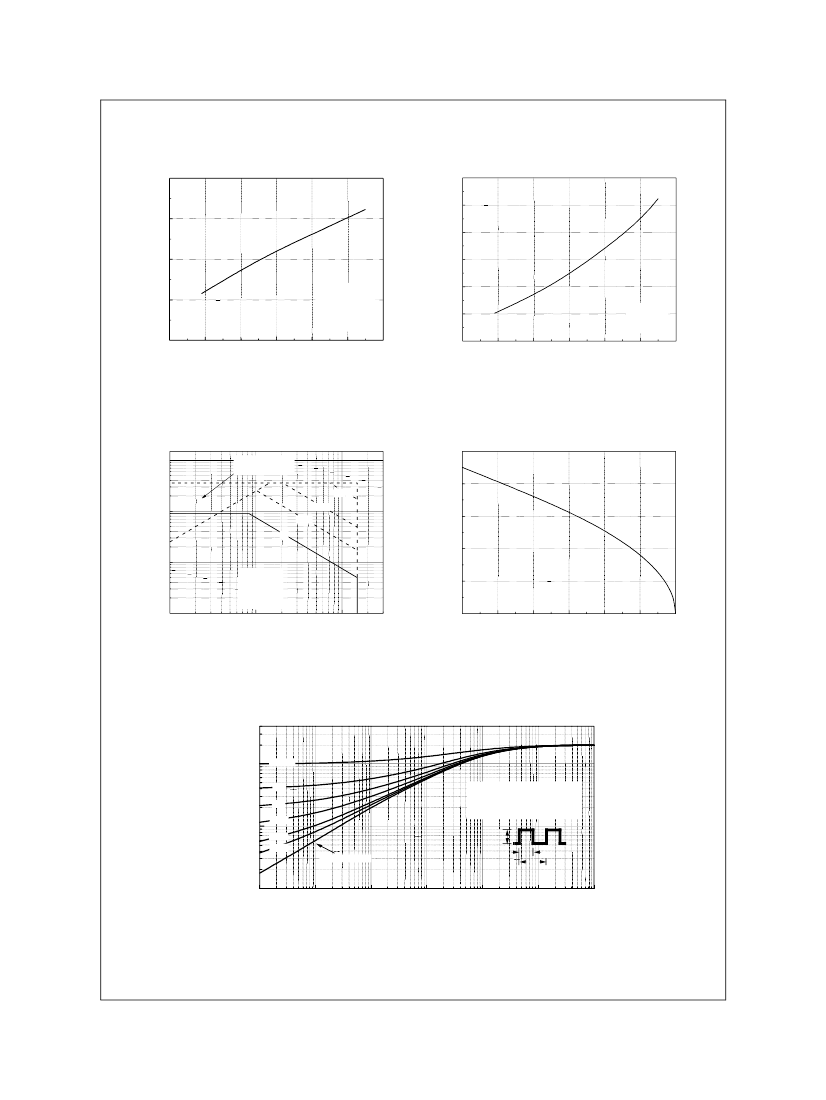

Preview

Download Datasheet

View All

QFET

& '()*'+,

-' .Ω/+

-)'+

)' 2

)32

)''4 !

5 !!$

)3*° 6 7

! "

;

-8*92

-)''92

;

)*'

±8*

(

C$9

;(!

,!(!

; A,

!!$

; 1

-8*92B

; 1

-8*92

"!8*9

)$?

< 3*

' *)

**D)3*

<''

( " B

( "

) &?

:8 *

FQB9N15TM Related Products

	FQB9N15TM	FQI9N15TU
Description	MOSFET N-CH 150V 9A D2PAK	MOSFET N-CH 150V 9A I2PAK
FET type	N channel	N channel
technology	MOSFET (metal oxide)	MOSFET (metal oxide)
Drain-source voltage (Vdss)	150V	150V
Current - Continuous Drain (Id) at 25°C	9A（Tc）	9A（Tc）
Drive voltage (maximum Rds On, minimum Rds On)	10V	10V
Rds On (maximum value) when different Id, Vgs	400 milliohms @ 4.5A, 10V	400 milliohms @ 4.5A, 10V
Vgs (th) (maximum value) when different Id	4V @ 250µA	4V @ 250µA
Gate charge (Qg) at different Vgs (maximum value)	13nC @ 10V	13nC @ 10V
Vgs (maximum value)	±25V	±25V
Input capacitance (Ciss) at different Vds (maximum value)	410pF @ 25V	410pF @ 25V
Power dissipation (maximum)	3.75W（Ta），75W（Tc）	3.75W（Ta），75W（Tc）
Operating temperature	-55°C ~ 175°C（TJ）	-55°C ~ 175°C（TJ）
Installation type	surface mount	Through hole
Supplier device packaging	D²PAK（TO-263AB）	I2PAK（TO-262）
Package/casing	TO-263-3, D²Pak (2-lead + tab), TO-263AB	TO-262-3, long lead, I²Pak, TO-262AA
