High Performance, Microminiature Circular Connectors
HR25 Series
Mated dimensions
43.8
Nov.1.2018 Copyright 2018 HIROSE ELECTRIC CO., LTD. All Rights Reserved.
35.8

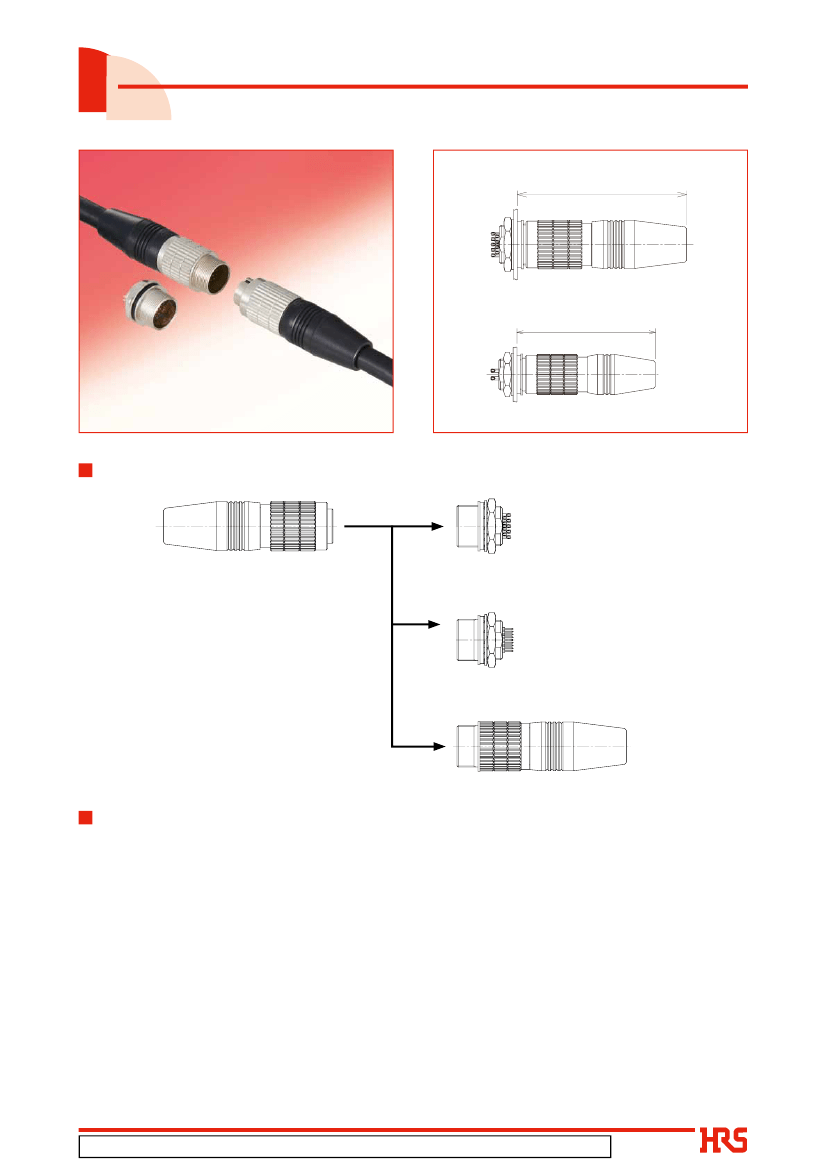

Diagrams of Connectors in Combination
Solder type plug (HR25-*TP-**)
Crimp type plug (HR25-9TP-**C)
Solder type receptacle (HR25-*TR-**)
Crimp type receptacle (HR25-9TR-**C)
Direct PCB mounting type receptacle (HR25-*TR-**A)
Solder type jack (HR25-*TJ-**)
Crimp type jack (HR25-9TJ-**C)
Features
1. Small, high density design
Maximum plug outer diameter : 4, 6, 8 contacts : Ø10.5
12, 16, 20 contacts : Ø12.5
Designed with Hirose technology to be small, compact connectors with a low profile.
2. Wide range of product variations
Number of contacts : 4, 6, 8, 12, 16, 20
Connector styles : Plug, jack, receptacle
Termination style : Solder, crimp (Additionally, a direct PCB mounting style is also available for receptacles.)
Contact gender
: Plug, receptacle, and jack connectors are available configured either way with male
or female contacts.
3. Shielded design
The connector’s metal shell design is an optimal choice for devices that require EMI shielding.
4. RoHS compliant
All materials and substances used to produce this product comply with RoHS standards.
In cases where the application will demand a high level of reliability, such as automotive,
please contact a company representative for further information.
2015.1w
1
HR25 Series●High Performance, Microminiature Circular Connectors
Product Specifications
Rated current
Ratings
Rated voltage
Items
1.Contact resistance
2.Insulation
resistance
3.Withstanding
Voltage
30 mø min.
1,000 Mø min.
No flashover or dielectric breakdown.
No electrical discontinuity for 10 µs or
greater.
No electrical discontinuity for 10 µs or
greater.
Contact resistance: 50 mø max.
Insulation resistance: 1,000 Mø min.
Insulation resistance:
5 Mø min. (at high humidity)
50 Mø min (when dry)
30V AC, 42V DC
Specifications
Measured at DC 1A
Measured at DC 100 V
AC 100 V for one minute
10 to 55 Hz/cycle, amplitude: 0.75 mm, 3 axis directions,
2 hours each direction
Acceleration: 490 ms
2
, duration: 11 ms, 3 axis directions,
3 cycles each direction.
1,000 times
-55ç: 30 minutes
➝
Normal temperature: 10 to 15 minutes
➝
85ç: 30 minutes
➝
Normal temperature: 10 to
15minutes, left for 5 cycles
Temperature: 40ç, relative humidity: 90 to 95%,
left for 96 hours
1A
Operating
temperature range
Storage temperature
range
-25ç to +85ç
-10ç to +60ç
Conditions
Nov.1.2018 Copyright 2018 HIROSE ELECTRIC CO., LTD. All Rights Reserved.
4.Vibration
resistance
5.Shock resistance
6.Mating Cycles
7.Temperature cycle
8.Moisture
resistance
Material
Item
Plated shell
Insulator
Plug/jack
Gasket, boot
Contact
Plated shell
Insulator
Receptacle
Contact
Gasket
Material
Zinc alloy
PPS resin
Ethylene-propylene
rubber
Phosphor bronze
Zinc ally
PPS resin
Phosphor bronze
Ethylene-propylene
rubber
Finish
Nickel plated
――――
――――
Gold plated
Nickel plated
――――
Gold plated
――――
Remarks
――――
UL94V-0
――――
――――
――――
UL94V-0
――――
――――
Product Number Structure
HR25 - 9 T P - 20 P C
(**)
❶
❷ ❸ ❹
❺
❻ ❼
½
❶Model
name
：
HR25 Series
❷Shell
size
：
The shell size is the outer diameter of the mating end of the plug.
❸Locking
mechanism
T
：
Screw-lock
❹Connector
type
P
：
Plug
R
：
Receptacle
J
：
Jack
❺Number
of contacts
❻Contact
type:
S
：
Female contact
P
：
Male contact
❼Contact
termination method:
None
：
Solder termination
C
：
Crimp termination
A
：
PCB dip termination
½Other
specifications: A two-digit number is added to indicate other specifications than
❶
to
❼
shown above.
2
HR25 Series●High Performance, Microminiature Circular Connectors
Plug
Ａ
2
Ø
Ｂ
Ø
Ｃ
●
Solder type
Nov.1.2018 Copyright 2018 HIROSE ELECTRIC CO., LTD. All Rights Reserved.
Part No.
HR25-7TP-4P(72)
HR25-7TP-4S(72)
HR25-7TP-6P(72)
HR25-7TP-6S(72)
HR25-7TP-8P(72)
HR25-7TP-8S(72)
HR25-9TP-12P(72)
HR25-9TP-12S(72)
HR25-9TP-16P(74)
HR25-9TP-16S(73)
HR25-9TP-20P(72)
HR25-9TP-20S(73)
HRS No.
125-0001-8 72
125-0002-0 72
125-0003-3 72
125-0004-6 72
125-0005-9 72
125-0006-1 72
125-0101-2 72
125-0102-5 72
125-0103-8 74
125-0104-0 73
125-0105-3 72
125-0106-6 73
No. of contacts
4
6
8
12
16
20
43
12.5
8.7
7
35
10.5
6.7
5
A
5 1
Ø
B
Ø
C
Ø
D
Ø
Ｄ
20
Unit: mm
Weight
8g
13g
●
Crimp type
Part No.
HR25-9TP-12PC(72)
HR25-9TP-12SC(72)
HR25-9TP-16PC(72)
HR25-9TP-16SC(72)
HR25-9TP-20PC(72)
HR25-9TP-20SC(72)
HRS No.
125-0401-6 72
125-0402-9 72
125-0403-1 72
125-0404-4 72
125-0405-7 72
125-0406-0 72
No. of contacts
12
16
20
43
12.5
8.7
7
A
Unit: mm
Ø
B
Ø
C
Ø
D
Weight
12g

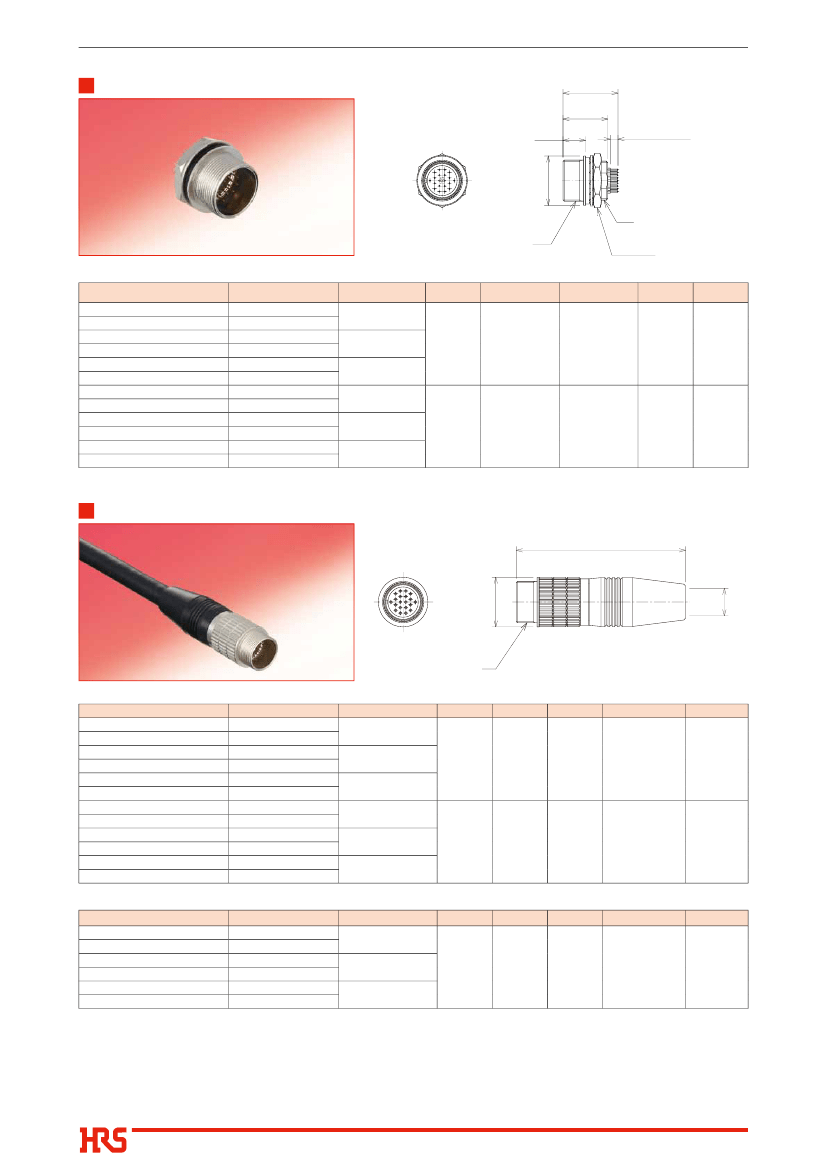

Receptacle
5.8
１ ５
13.5
11.5
２
ØA
２０
B
C
D(HEX)
●
Solder type
Part No.
HR25-7TR-4S(73)
HR25-7TR-4P(73)
HR25-7TR-6S(73)
HR25-7TR-6P(73)
HR25-7TR-8S(73)
HR25-7TR-8P(73)
HR25-9TR-12S(71)
HR25-9TR-12P(71)
HR25-9TR-16S(71)
HR25-9TR-16P(71)
HR25-9TR-20S(71)
HR25-9TR-20P(71)
HRS No.
125-0007-4 73
125-0008-7 73
125-0009-0 73
125-0010-9 73
125-0011-1 73
125-0012-4 73
125-0107-9 71
125-0108-1 71
125-0109-4 71
125-0110-3 71
125-0111-6 71
125-0112-9 71
No. of contacts
4
6
8
12
16
20
Unit: mm
HRS No.
125-0407-2 71
125-0408-5 71
125-0409-8 71
125-0410-7 71
125-0411-0 71
125-0412-2 71
No. of contacts
12
16
20
A
11.5
13
11.5
13
11.5
13
Weight
Ａ
Unit: mm
Ø
A
B
C
D
Weight
10.6
M8.5×0.5
M8×0.5
10
3g
12.6
M10.5×0.5
M10×0.75
12
4g
●
Crimp type
Part No.
HR25-9TR-12SC(71)
HR25-9TR-12PC(71)
HR25-9TR-16SC(71)
HR25-9TR-16PC(71)
HR25-9TR-20SC(71)
HR25-9TR-20PC(71)
5.8
φ
12.6
3g
M10
×
0.5
M10
×
0.75
12 HEX
）
（
3
HR25 Series●High Performance, Microminiature Circular Connectors
Receptacle
5.8
14.1
11.5
2 Dip length
）
（
５
Ø
Ａ
２
１
２０
Ｃ
Ｂ
Ｄ Ｅ
（Ｈ Ｘ）
●
Direct PCB mounting type
Nov.1.2018 Copyright 2018 HIROSE ELECTRIC CO., LTD. All Rights Reserved.
Part No.
HR25-7TR-4SA(73)
HR25-7TR-4PA(73)
HR25-7TR-6SA(73)
HR25-7TR-6PA(73)
HR25-7TR-8SA(73)
HR25-7TR-8PA(73)
HR25-9TR-12SA(71)
HR25-9TR-12PA(71)
HR25-9TR-16SA(71)
HR25-9TR-16PA(71)
HR25-9TR-20SA(71)
HR25-9TR-20PA(71)
HRS No.
125-0019-3 73
125-0020-2 73
125-0021-5 73
125-0022-8 73
125-0023-0 73
125-0024-3 73
125-0119-8 71
125-0120-7 71
125-0121-0 71
125-0122-2 71
125-0123-5 71
125-0124-8 71
No. of contacts
4
6
8
12
16
20
12.6
M10.5×0.5
M10×0.75
12
10.6
M8.5×0.5
M8×0.5
10
Unit: mm
Ø
A
B
C
D
Weight
3g
4g

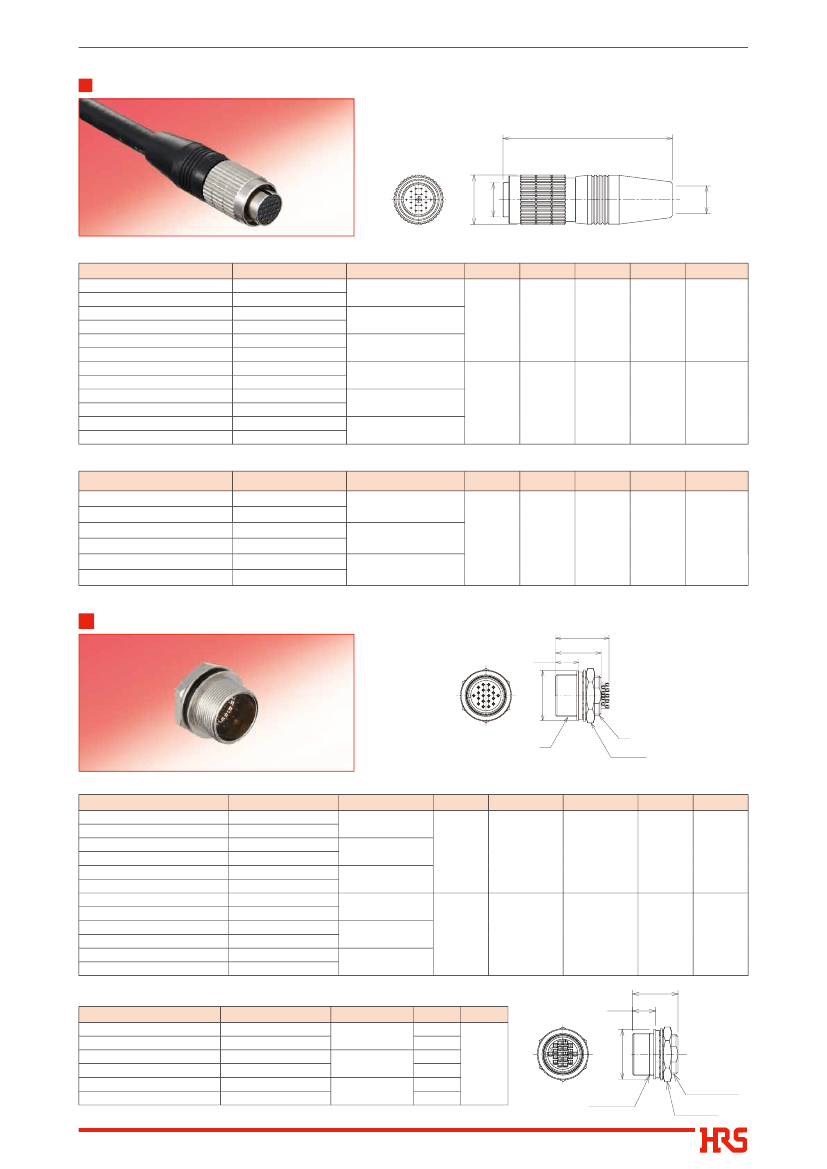

Jack
Ｂ
２
２０
D
●
Solder type
Part No.
HR25-7TJ-4S(72)
HR25-7TJ-4P(72)
HR25-7TJ-6S(72)
HR25-7TJ-6P(72)
HR25-7TJ-8S(72)
HR25-7TJ-8P(72)
HR25-9TJ-12S(72)
HR25-9TJ-12P(72)
HR25-9TJ-16S(72)
HR25-9TJ-16P(72)
HR25-9TJ-20S(73)
HR25-9TJ-20P(72)
HRS No.
125-0013-7 72
125-0014-0 72
125-0015-2 72
125-0016-5 72
125-0017-8 72
125-0018-0 72
125-0113-1 72
125-0114-4 72
125-0115-7 72
125-0116-0 72
125-0117-2 73
125-0118-5 72
No. of contacts
4
6
8
12
16
20
12.6
43
7
M10.5×0.5
10.6
35
5
M8.5×0.5
Ø
A
B
Ø
C
D
Unit: mm
Weight
8g
12g
●
Crimp type
Part No.
HR25-9TJ-12SC(72)
HR25-9TJ-12PC(72)
HR25-9TJ-16SC(72)
HR25-9TJ-16PC(72)
HR25-9TJ-20SC(72)
HR25-9TJ-20PC(72)
HRS No.
125-0413-5 72
125-0414-8 72
125-0415-0 72
125-0416-3 72
125-0417-6 72
125-0418-9 72
No. of contacts
12
16
20
12.6
43
7
M10.5×0.5
Unit: mm
Ø
A
B
Ø
C
D
Weight
12g
4
Ø
Ｃ
Ø
Ａ
１５
HR25 Series●High Performance, Microminiature Circular Connectors
Crimp-style contacts
●
Male Contacts
●
Female Contacts
0.88
13.4
0.7
0.7
9.4
4
0.88
13.4
9.4
4
Nov.1.2018 Copyright 2018 HIROSE ELECTRIC CO., LTD. All Rights Reserved.
Type
Loose
contacts
Reel
contacts
Part No.
HR25-PC-111
HR25-PC-211
HRS No.
125-0419-1
Suitable Wire
AWG#30
125-0420-0
Type
Loose
contacts
Reel
contacts
Part No.
HR25-SC-111
HR25-SC-211
HRS No.
125-0421-3
Suitable Wire
AWG#30
125-0422-6
Note: 1. Please use wire with a outer jacket diameter of 0.71mm
or less.
2. Loose contacts come in packages of 100 pcs.
Reel contacts come in reels of 10,000 pcs.
Note: 1. Please use wire with a outer jacket diameter of 0.71mm
or less.
2. Loose contacts come in packages of 100 pcs.
Reel contacts come in reels of 10,000 pcs.
Applicable Tools
Type
Item
Part No.
HRS No.
Applicable Contacts
HR25-PC-111
HR25-SC-111
−
HR25-PC-211
HR25-SC-211
−
−
Applicable Wire and
Applicable Cable
Diameter
AWG#30
−
AWG#30
Manual
Manual crimping tool
Auto crimping
machine body
HR25-TA3032HC
CM-105
AP105-HR25-1
HR10A-TC-02
HR25-TP
150-0207-3
901-0005-4
901-2040-6
150-0041-2
150-0091-0
Auto
Applicator
Cable crimping tool
Extractor
Ø
5、
Ø
7
−
Assembly Tools
Use of the following assembly tools will simplify the process of disassembling and assembling the connectors for the cable
assembly.
Part No.
HR25-7TP-T01
HR25-9TP-T01
HR25-7TJ-T01
HR25-9TJ-T01
HRS No.
150-0082-0
150-0080-4
150-0089-9
150-0090-8
Suitable Connectors and Uses
For HR25-7TP wiring and P shell unit tightening
For HR25-9TP wiring and P shell unit tightening
For HR25-7TJ wiring and J shell unit tightening
For HR25-9TJ wiring and J shell unit tightening
5
