MSS1278-333MTB datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Passive components> inductor> MSS1278-333MTB

MSS1278-333MTB: DescriptionGeneral Purpose Inductor, 33uH, 20%, 1 Element, Ferrite-Core, SMD, 4848, ROHS COMPLIANT; CategoryPassive components inductor; File Size233KB，2 Pages; ManufacturerCOILCRAFT; Websitehttp://www.coilcraft.com/; Environmental Compliance

Download Datasheet Parametric View All

MSS1278-333MTB Overview

General Purpose Inductor, 33uH, 20%, 1 Element, Ferrite-Core, SMD, 4848, ROHS COMPLIANT

MSS1278-333MTB Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	COILCRAFT
package instruction	4747
Reach Compliance Code	compliant
ECCN code	EAR99
uppercase and lowercase codes	4747
structure	Rectangular
core material	FERRITE
DC Resistance	0.0688 Ω
Nominal inductance(L)	33 µH
Inductor Applications	POWER INDUCTOR
Inductor type	GENERAL PURPOSE INDUCTOR
JESD-609 code	e1
Number of functions	1
Number of terminals	2
Maximum operating temperature	85 °C
Minimum operating temperature	-40 °C
Package height	7.8 mm
Package length	12 mm
Package form	SMT
Package width	12 mm
method of packing	TR
Maximum rated current	3.1 A
Guideline	AEC-Q200
self resonant frequency	9.5 MHz
Shape/Size Description	RECTANGULAR PACKAGE
shield	YES
surface mount	YES
Terminal surface	Tin/Silver/Copper (Sn95.5Ag4.0Cu0.5)
Terminal location	DUAL ENDED
Terminal shape	WRAPAROUND
Test frequency	0.1 MHz
Tolerance	20%

Preview

Download Datasheet

View All

Document 322-1

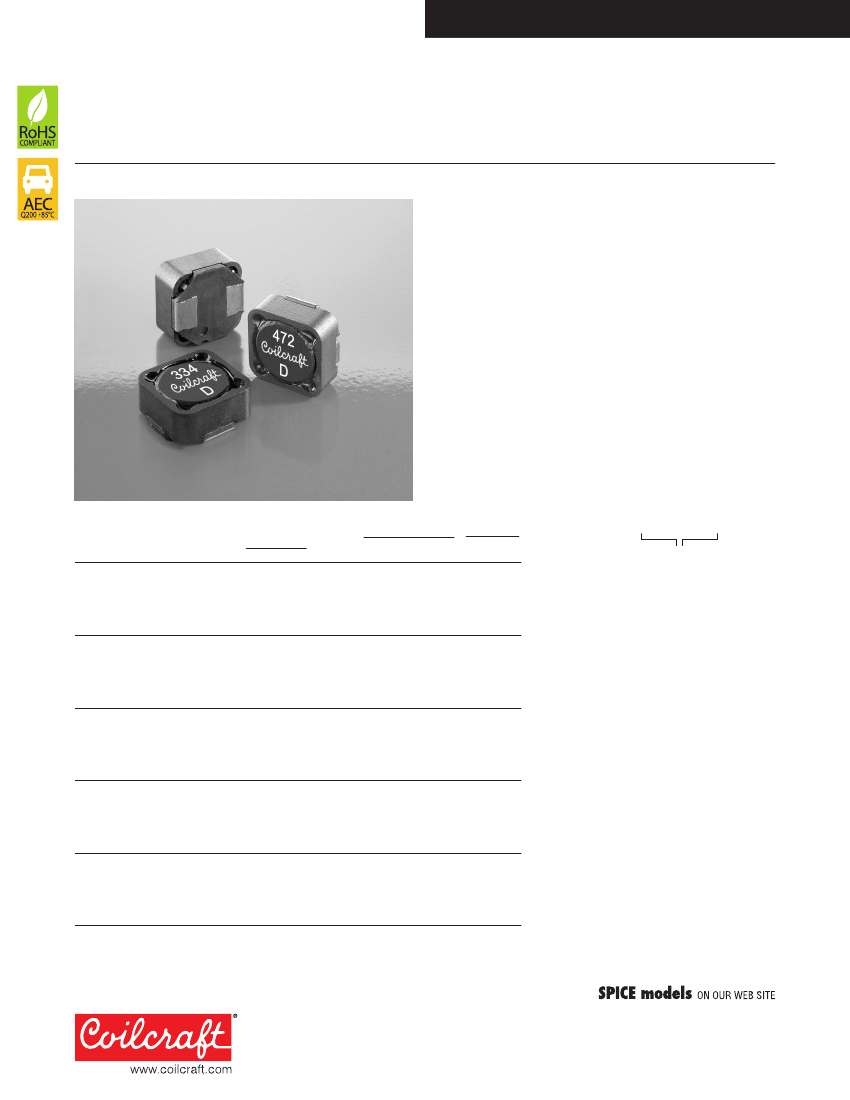

SMT Power Inductors – MSS1278

• 12.3 × 12.3 mm footprint; 8 mm high shielded inductors

• Low DCR and excellent current handling

Designer’s Kit C380

contains 3 each of all values.

Core material

Ferrite

Core and winding loss

See www.coilcraft.com/coreloss

Terminations

RoHS compliant matte tin over nickel over phos

bronze. Other terminations available at additional cost.

Weight:

3.8 – 4.6 g

Ambient temperature

–40°C to +85°C with

Irms

current, +85°C to

+125°C with derated current

Storage temperature

Component: –40°C to +125°C.

Tape and reel packaging: –40°C to +80°C

Resistance to soldering heat

Max three 40 second reflows at

+260°C, parts cooled to room temperature between cycles

Moisture Sensitivity Level (MSL)

1 (unlimited floor life at <30°C /

85% relative humidity)

Failures in Time (FIT) / Mean Time Between Failures (MTBF)

38 per billion hours / 26,315,789 hours, calculated per Telcordia SR-332

Packaging

500/13″ reel; Plastic tape: 24 mm wide, 0.5 mm thick,

16 mm pocket spacing, 8.7 mm pocket depth

PCB washing

Tested with pure water or alcohol only. For other

solvents, see Doc787_PCB_Washing.pdf.

DCR

(mOhms)

typ

max

8.8

13.9

15.7

19.1

20.3

21.8

23.2

27.9

30.8

35.5

45.0

61.9

69.1

72.3

80.2

91.3

125.9

135.1

182.3

216.5

229.0

323.6

415.6

487.3

533.6

9.8

15.5

17.5

21.3

22.6

24.3

25.8

31.0

34.3

39.5

50.0

68.8

76.8

80.4

89.2

101.5

139.9

150.2

202.6

240.6

254.5

359.6

461.8

541.5

592.9

Isat

(A)

Irms

(A)

SRF

typ

10% 20% 30% 20°C 40°C

(MHz) drop drop drop rise rise

80.0

30.0

24.0

21.0

20.0

17.0

15.0

13.0

12.0

11.0

10.0

9.5

8.5

7.5

7.0

6.5

5.0

4.5

4.3

4.1

4.0

3.4

3.1

2.9

2.7

2.2

2.0

1.7

1.4

1.3

25.2

13.7

12.2

11.3

10.1

28.6

15.2

13.7

12.7

11.5

30.6

15.9

14.6

13.7

12.3

7.00

4.30

4.20

4.10

4.00

3.70

3.50

3.00

2.90

2.60

2.30

2.10

2.00

1.90

1.80

1.60

1.50

1.40

1.30

1.20

1.00

0.90

0.80

0.75

0.66

0.60

0.55

0.50

0.48

10.00

6.20

6.00

5.90

5.70

5.20

4.90

4.50

4.00

3.60

3.10

3.00

2.90

2.70

2.60

2.30

2.20

1.90

1.80

1.70

1.60

1.20

1.00

0.90

0.80

0.75

0.70

0.68

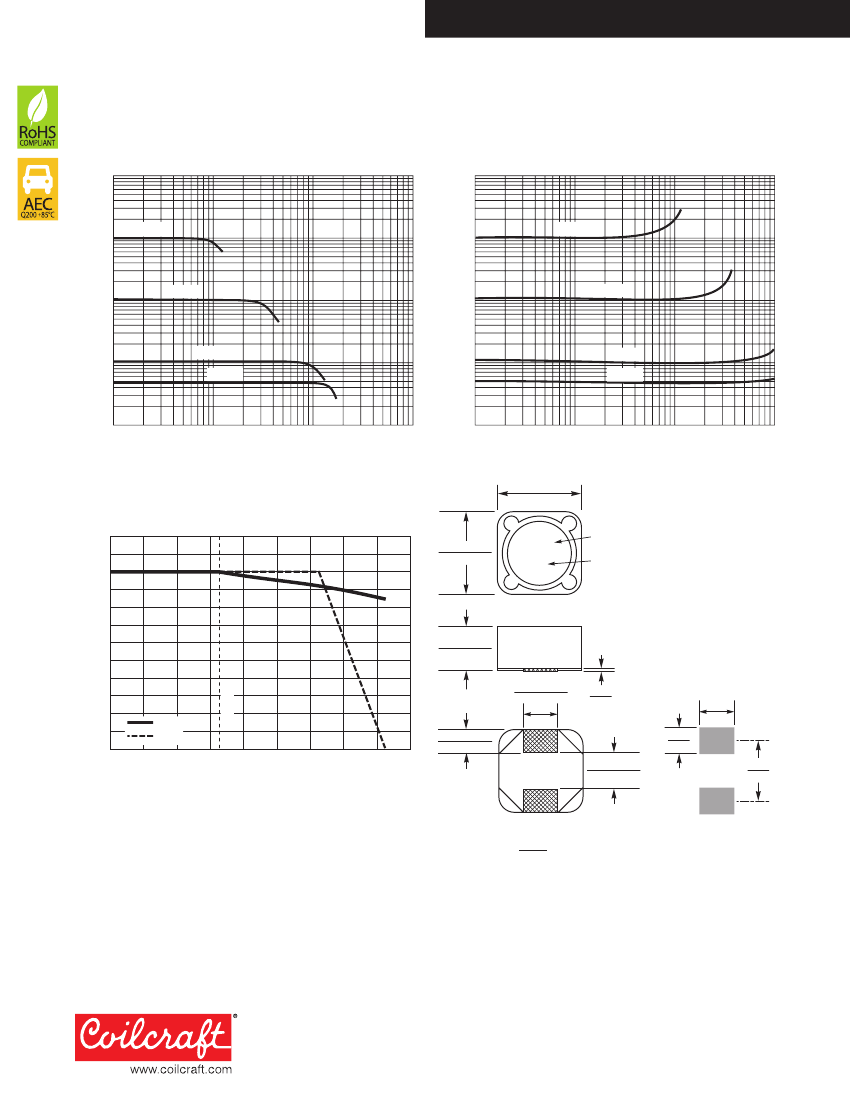

Document 322-1

Revised 04/04/13

1. Please specify

termination

and

packaging

codes:

MSS1278-105KLD

Termination:L

=RoHS compliant matte tin over

nickel over phos bronze.

Special order:

= RoHS tin-silver-copper

(95.5/4/0.5) or

= non-RoHS

tin-lead (63/37).

Packaging: D

=13″ machine-ready reel. EIA-

481 embossed plastic tape

(500 parts per full reel).

=Less than full reel. In tape, but

not machine ready. To have a

leader and trailer added ($25

charge), use code letter D

instead.

2. Inductance tested at 100 kHz, 0.1 Vrms, 0 Adc us-

ing an Agilent/HP 4263B LCR meter or equivalent.

3. DCR measured on a micro-ohmmeter and a

Coilcraft CCF858 test fixture.

4. SRF measured using an Agilent/HP 4191A or

equivalent.

5. DC current at which the inductance drops the

specified amount from its value without current.

6. Current that causes the specified temperature rise

from 25°C ambient.

7. Electrical specifications at 25°C.

Refer to Doc 362 “Soldering Surface Mount

Components” before soldering.

Part number

MSS1278-142ML_

MSS1278-472ML_

MSS1278-562ML_

MSS1278-682ML_

MSS1278-822ML_

MSS1278-103ML_

MSS1278-123ML_

MSS1278-153ML_

MSS1278-183ML_

MSS1278-223ML_

MSS1278-273ML_

MSS1278-333ML_

MSS1278-393ML_

MSS1278-473ML_

MSS1278-563ML_

MSS1278-683ML_

MSS1278-823ML_

MSS1278-104ML_

MSS1278-124KL_

MSS1278-154KL_

MSS1278-184KL_

MSS1278-224KL_

MSS1278-274KL_

MSS1278-334KL_

MSS1278-394KL_

Inductance

(µH)

1.4 ±20%

4.7 ±20%

5.6 ±20%

6.8 ±20%

8.2 ±20%

10 ±20%

12 ±20%

15 ±20%

18 ±20%

22 ±20%

27 ±20%

33 ±20%

39 ±20%

47 ±20%

56 ±20%

68 ±20%

82 ±20%

100 ±20%

120 ±10%

150 ±10%

180 ±10%

220 ±10%

270 ±10%

330 ±10%

390 ±10%

9.36 10.6 11.2

8.84 10.0 10.7

7.30 8.36 9.00

6.10 7.10 7.74

6.04 6.78 7.24

5.80

5.22

4.68

4.40

4.02

3.40

3.12

2.88

2.62

2.48

2.26

1.96

1.74

1.66

1.52

1.34

1.24

1.16

1.04

0.97

6.56

5.90

5.42

5.02

4.60

3.86

3.58

3.28

3.00

2.86

2.58

2.22

2.04

1.86

1.72

1.54

1.42

1.28

1.16

1.10

7.02

6.30

5.80

5.32

4.90

4.26

3.80

3.52

3.24

3.02

2.74

2.36

2.18

2.00

1.88

1.64

1.50

1.38

1.26

1.14

MSS1278-474KL_ 470 ±10%

MSS1278-564KL_ 560 ±10%

MSS1278-684KL_ 680 ±10%

MSS1278-824KL_ 820 ±10%

MSS1278-105KL_ 1000 ±10%

707.5 786.2

777.4 863.8

1045 1162

1166 1296

1334 1483

+1-847-639-6400 sales@coilcraft.com

+44-1236-730595 sales@coilcraft-europe.com

Taiwan

+886-2-2264 3646 sales@coilcraft.com.tw

China

+86-21-6218 8074 sales@coilcraft.com.cn

Singapore

+ 65-6484 8412 sales@coilcraft.com.sg

This product may not be used in medical or high

risk applications without prior Coilcraft approval.

Specification subject to change without notice.

Please check web site for latest information.
