301CMQ SERIES
Technical Data
Data Sheet N1211, Rev. C
301CMQ035/301CMQ040/301CMQ045/301CMQ050
SCHOTTKY RECTIFIER

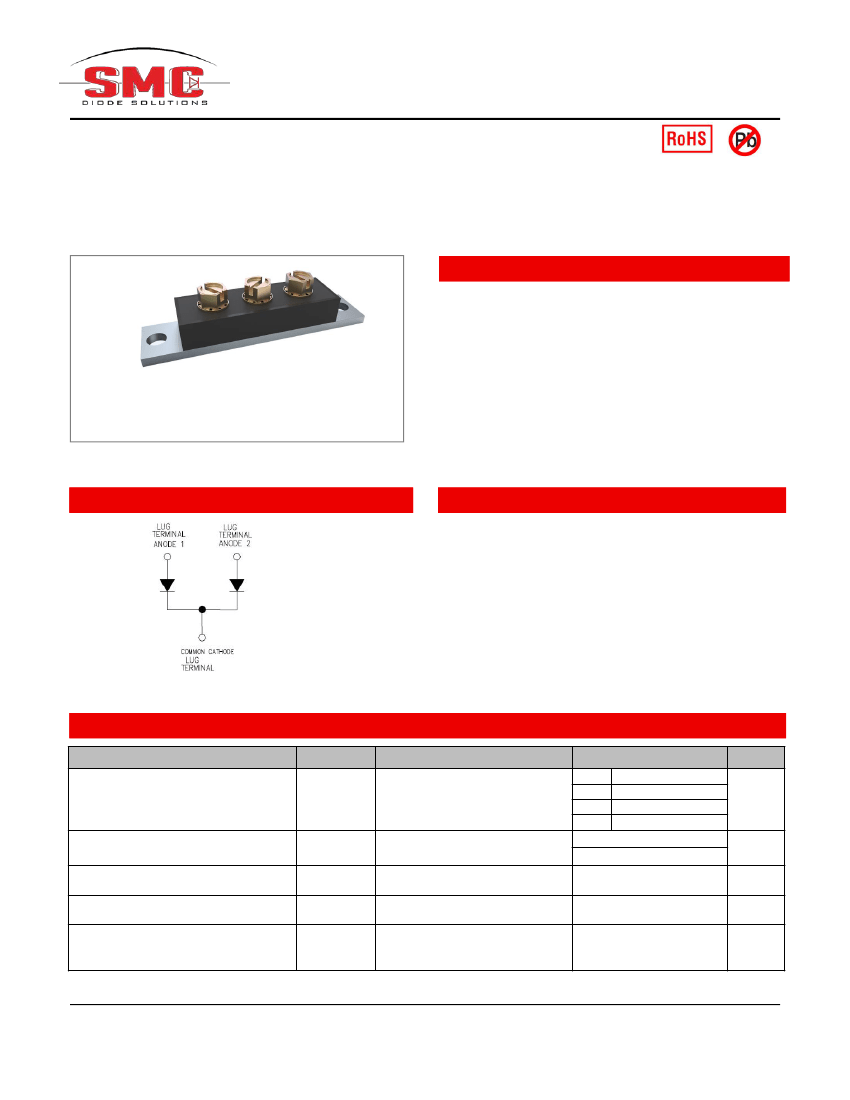

Features
175℃ T
J
operation
Center tap module
High purity, high temperature epoxy encapsulation for
enhanced mechanical strength and moisture resistance
Low forward voltage drop
High frequency operation
Guard ring for enhanced ruggedness and long term
reliability
This is a Pb − Free Device
All SMC parts are traceable to the wafer lot
PRM4 (Isolated)
Additional testing can be offered upon request
Circuit Diagram
Applications
High current switching power supply
Plating power supply
Free-Wheeling diodes
Reverse battery protection
Converters
UPS System
Welding
Maximum Ratings:
Characteristics
Peak Repetitive Reverse Voltage
Working Peak Reverse Voltage
DC Blocking Voltage
Average Rectified Forward Current
Peak One Cycle Non-Repetitive
Surge Current (Per Leg)
Non-Repetitive Avalanche
Energy(Peg Leg)
Repetitive Avalanche Current
(Peg Leg)
Symbol
V
RRM
V
RWM
V
R
I
F(AV)
I
FSM
E
AS
I
AR
Condition
-
35
40
45
50
Max.
301CMQ035
300CMQ040
300CMQ045
300CMQ050
150(Per Leg)
300(Per Device)
3840
202
30
Units
V
50% duty cycle @T
C
=81°C,
rectangular wave form
8.3 ms, half Sine pulse
T
J
=25℃,I
AS
=40A,L=0.34mH
Current decaying linearly to zero
in 1 μsec Frequency limited by
T
J
max. V
A
=1.5×V
R
typical
A
A
mJ
A
China - Germany - Korea - Singapore - United States
http://www.smc-diodes.com - sales@ smc-diodes.com
301CMQ SERIES
Technical Data
Data Sheet N1211, Rev. C
Electrical Characteristics:
Characteristics
Forward Voltage Drop(Per Leg)*
Symbol
V
F1
V
F2
Condition
@ 150A, Pulse, T
J
= 25
C
@ 300A, Pulse, T
J
= 25
C
@ 150A, Pulse, T
J
= 125
C
@ 300A, Pulse, T
J
= 125
C
@V
R
= rated V
R,
T
J
= 25
C
@V
R
= rated V
R,
T
J
= 125
C
@V
R
= 5V, T
C
= 25
C
f
SIG
= 1MHz
-
Typ.
0.56
0.67
0.49
0.60
0.2
100
6500
-
Max.
0.69
0.90
0.59
0.76
10
135
7800
10,000
Units
V
V
Reverse Current(Per Leg)*
Junction Capacitance(Per leg)
Voltage Rate of Change
* Pulse width < 300 µs, duty cycle < 2%
I
R1
I
R2
C
T
dv/dt
mA
mA
pF
V/s
Thermal-Mechanical Specifications:
Characteristics
Junction Temperature
Storage Temperature
Typical Thermal Resistance Junction to
Case(Per leg)
Typical Thermal Resistance Junction to
Case(Per package)
Typical Thermal Resistance, case to
Heat Sink
Mounting Torque
Approximate Weight
Case Style
Symbol
T
J
T
stg
R
JC
R
JC
R
cs
Condition
-
-
DC operation
DC operation
Mounting surface, smooth
and greased
-
-
Specification
-55 to +175
-55 to +175
0.50
0.25
0.10
Mounting
Torque
Terminal
Torque
24(min)
35(max)
35(min)
46(max)
Units
C
C
C/W
C/W
C/W
T
M
wt
Kg-cm
g
PRM4 Isolated
79
China - Germany - Korea - Singapore - United States
http://www.smc-diodes.com - sales@ smc-diodes.com
301CMQ SERIES
Technical Data
Data Sheet N1211, Rev. C

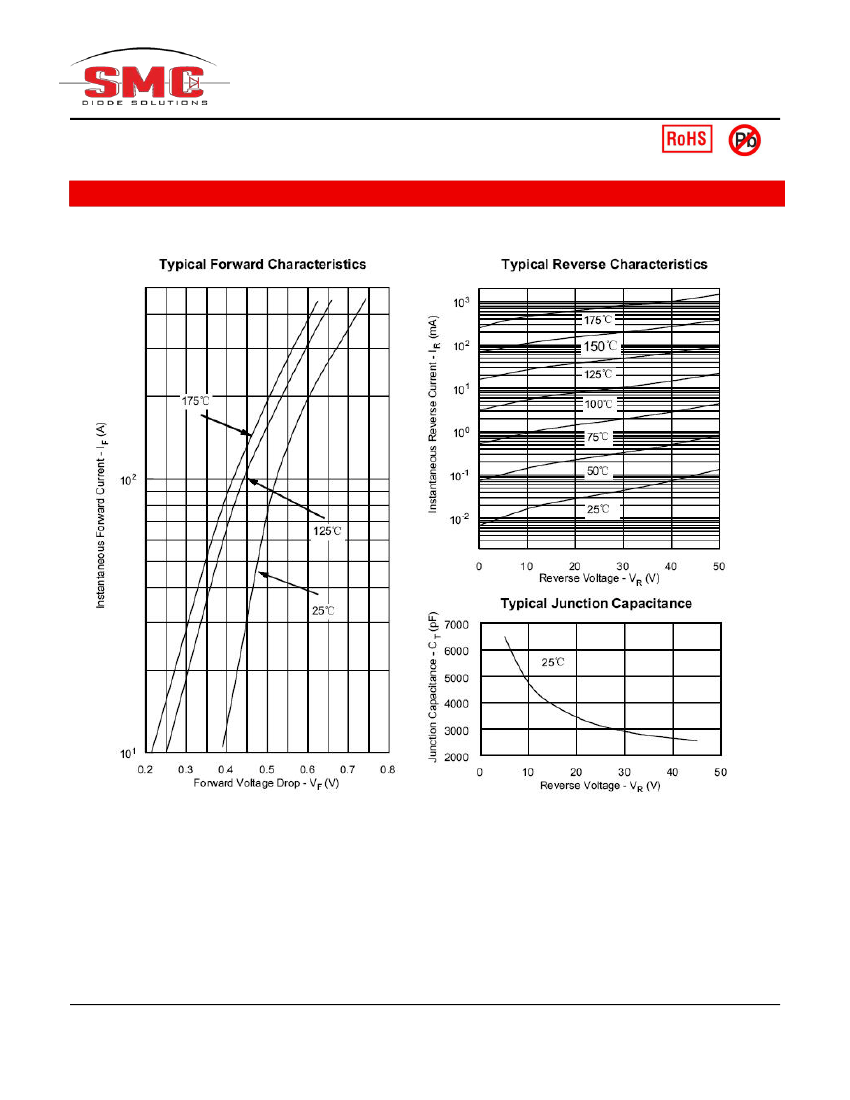

Ratings and Characteristics Curves
China - Germany - Korea - Singapore - United States
http://www.smc-diodes.com - sales@ smc-diodes.com
301CMQ SERIES
Technical Data
Data Sheet N1211, Rev. C

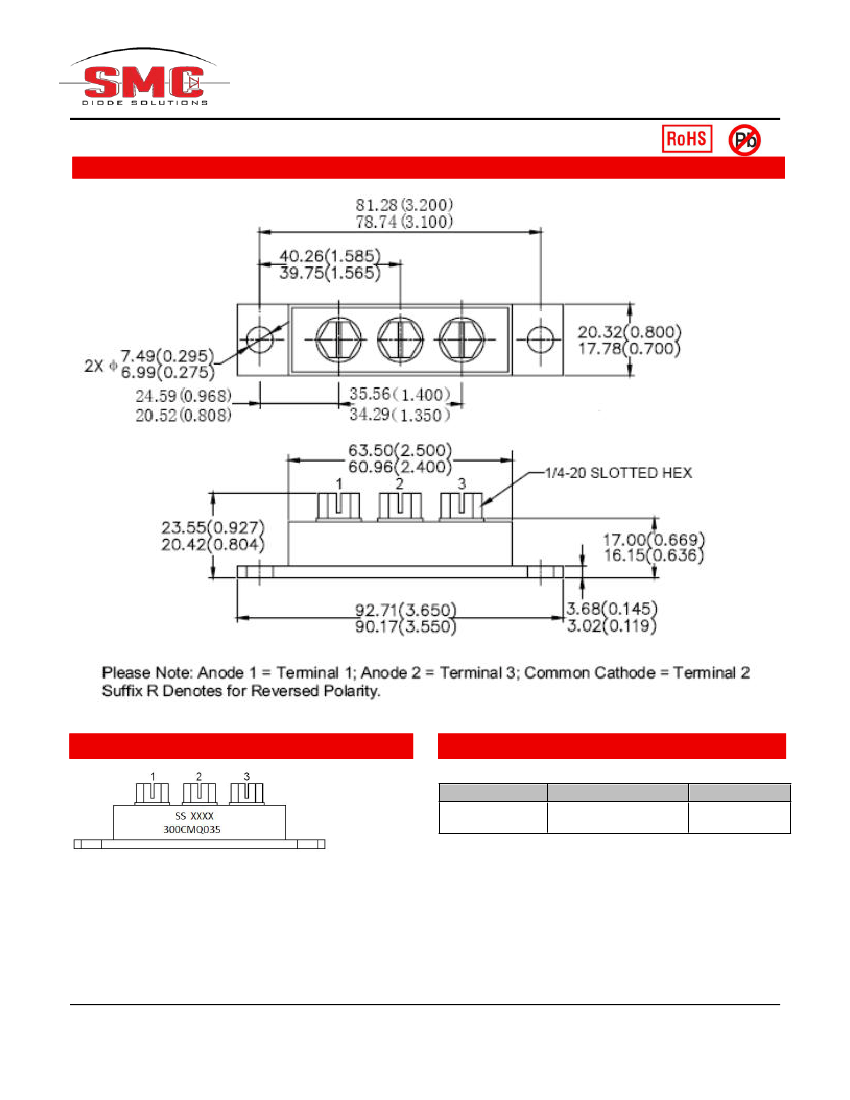

Mechanical Dimensions PRM4 Isolated(Millimeters/Inches)
Marking Diagram
Ordering Information
Device
300CMQ SERIES
PRM4 Isolated
(Pb-Free)
Package
Shipping
9 pcs/box
Where XXXX is YYWW
300CMQ035
SS
YY
WW
= Part name
= SS
= Year
= Week
For information on tape and reel specifications, including part
orientation and tape sizes, please refer to our tape and reel
packaging specification.
Cautions：Molding
resin
Epoxy resin UL:94V-0
China - Germany - Korea - Singapore - United States
http://www.smc-diodes.com - sales@ smc-diodes.com
301CMQ SERIES
Technical Data
Data Sheet N1211, Rev. C
DISCLAIMER:
1- The information given herein, including the specifications and dimensions, is subject to change without prior notice to improve product
characteristics. Before ordering, purchasers are advised to contact the SMC - Sangdest Microelectronics (Nanjing) Co., Ltd sales
department for the latest version of the datasheet(s).
2- In cases where extremely high reliability is required (such as use in nuclear power control, aerospace and aviation, traffic equipment,
medical equipment , and safety equipment) , safety should be ensured by using semiconductor devices that feature assured safety or by
means of users’ fail-safe precautions or other arrangement .
3- In no event shall SMC - Sangdest Microelectronics (Nanjing) Co., Ltd be liable for any damages that may result from an accident or
any other cause during operation of the user’s units according to the datasheet(s). SMC - Sangdest Microelectronics (Nanjing) Co., Ltd
assumes no responsibility for any intellectual property claims or any other problems that may result from applications of information,
products or circuits described in the datasheets.
4- In no event shall SMC - Sangdest Microelectronics (Nanjing) Co., Ltd be liable for any failure in a semiconductor device or any
secondary damage resulting from use at a value exceeding the absolute maximum rating.
