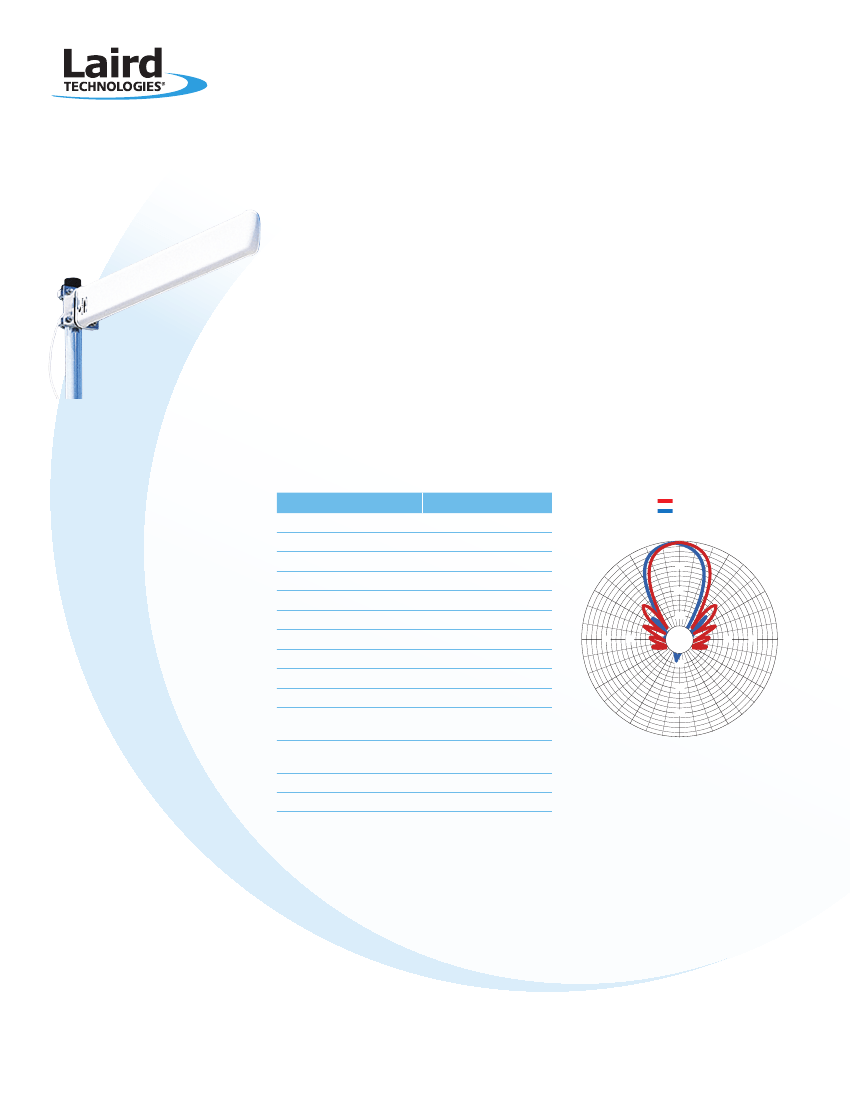

2.4 GHz Directional Yagi Antenna
PC2415N
2.4 GHz DATA TRANSMISSION YAGI
The PC2415N provides users with a rugged, easy to install, high-gain directional antenna for
deploying 2.4 GHz point-to-point bridges, and can also be used as an access point antenna in
long, narrow coverage environments like a tunnel. The antenna offers 13.9 dBi of gain and a
very symmetrical and uniform pattern characteristic. The antenna comes equipped with 12”
of coax and N female connector. The PC2415N can be installed in either horizontal or vertical
polarization and the design incorporates weep holes that are positioned to function regardless
of polarization (a sealing system is provided for unused holes).
FEATURES
• UV stable housing
• One-piece brass radiating element
• Advanced microwave substrate
• Stainless steel hardware
• UltraLink
®
pigtail
MARKETS
• WiMAX
MODEL
Frequency (MHz)
Gain
Number Elements
Front-to-Back Ratio
E-Plane (3 dB beamwidth)
H-Plane (3 dB beamwidth)
Radiating Element
Impededance (Ohms)
RF Connector (f)
Weight lb. (kg)
Mounting
Dimensions in.(cm)
Enclosure
Mast Diameter Max. in (cm)
Ultralink Cable in (cm)
PC2415N
2400-2500
13.9 dBi
15
18 dB
30º
34º
Brass
50
N
1.25 (.56)
Mast mounted with
U-Bolts & Brackets
26.5 x 3.75 x 1.5
(67.3 x 9.5 x 3.8)
UV Stable Polycarbonate
2.125 (5.4)
12 (30.5)
240
º
º
H-Plane
E-Plane
0
º
330
º
30
º
10
300
º
º
20
30
60°
270
º
10
20
30
º
90
30
20
10
90°
30
20
10
210
º
180
º
150
º
120
PC2415N
global
solutions:
local
support
Americas: +1.847 839.6907
IAS-AmericasEastSales@lairdtech.com
Europe: +1.32.80.7866.12
IAS-EUSales@lairdtech.com
Asia: +1.65.6.243.8022
IAS-AsiaSales@lairdtech.com
TM
ANT-DS-PC2415N 0611
