74HC4067; 74HCT4067
16-channel analog multiplexer/demultiplexer
Rev. 6 — 22 May 2015
Product data sheet
1. General description
The 74HC4067; 74HCT4067 is a single-pole 16-throw analog switch (SP16T) suitable for
use in analog or digital 16:1 multiplexer/demultiplexer applications. The switch features
four digital select inputs (S0, S1, S2 and S3), sixteen independent inputs/outputs (Yn), a
common input/output (Z) and a digital enable input (E). When E is HIGH, the switches are
turned off. Inputs include clamp diodes. This enables the use of current limiting resistors
to interface inputs to voltages in excess of V
CC
.
2. Features and benefits
Input levels S0, S1, S2, S3 and E inputs:
For 74HC4067: CMOS level
For 74HCT4067: TTL level
Low ON resistance:
80
(typical) at V
CC
= 4.5 V
70
(typical) at V
CC
= 6.0 V
60
(typical) at V
CC
= 9.0 V
Specified in compliance with JEDEC standard no. 7A
ESD protection:
HBM JESD22-A114F exceeds 2000 V
MM JESD22-A115-A exceeds 200 V
CDM JESD22-C101E exceeds 1000 V
Multiple package options
Specified from
40 C
to +85
C
and
40 C
to +125
C
Typical ‘break before make’ built-in
3. Applications
Analog multiplexing and demultiplexing
Digital multiplexing and demultiplexing
Signal gating
NXP Semiconductors
74HC4067; 74HCT4067
16-channel analog multiplexer/demultiplexer
4. Ordering information
Table 1.
Ordering information
Package
Temperature range
74HC4067D
74HCT4067D
74HC4067DB
74HCT4067DB
74HC4067PW
74HCT4067PW
74HC4067BQ
74HCT4067BQ
40 C
to +125
C
40 C
to +125
C
TSSOP24
40 C
to +125
C
SSOP24
40 C
to +125
C
Name
SO24
Description
plastic small outline package; 24 leads;
body width 7.5 mm
plastic shrink small outline package; 24 leads;
body width 5.3 mm
plastic thin shrink small outline package; 24 leads;
body width 4.4 mm
Version
SOT137-1
SOT340-1
SOT355-1
SOT815-1
Type number
DHVQFN24 plastic dual in-line compatible thermal enhanced very
thin quad flat package; no leads; 24 terminals;
body 3.5
5.5
0.85 mm
5. Functional diagram
Fig 1.
Logic symbol
Fig 2.
IEC logic symbol
74HC_HCT4067
All information provided in this document is subject to legal disclaimers.
© NXP Semiconductors N.V. 2015. All rights reserved.
Product data sheet
Rev. 6 — 22 May 2015
2 of 28
NXP Semiconductors
74HC4067; 74HCT4067
16-channel analog multiplexer/demultiplexer
Fig 3.
Schematic diagram (one switch)
Fig 4.
Functional diagram
74HC_HCT4067
All information provided in this document is subject to legal disclaimers.
© NXP Semiconductors N.V. 2015. All rights reserved.
Product data sheet
Rev. 6 — 22 May 2015
3 of 28
NXP Semiconductors
74HC4067; 74HCT4067
16-channel analog multiplexer/demultiplexer

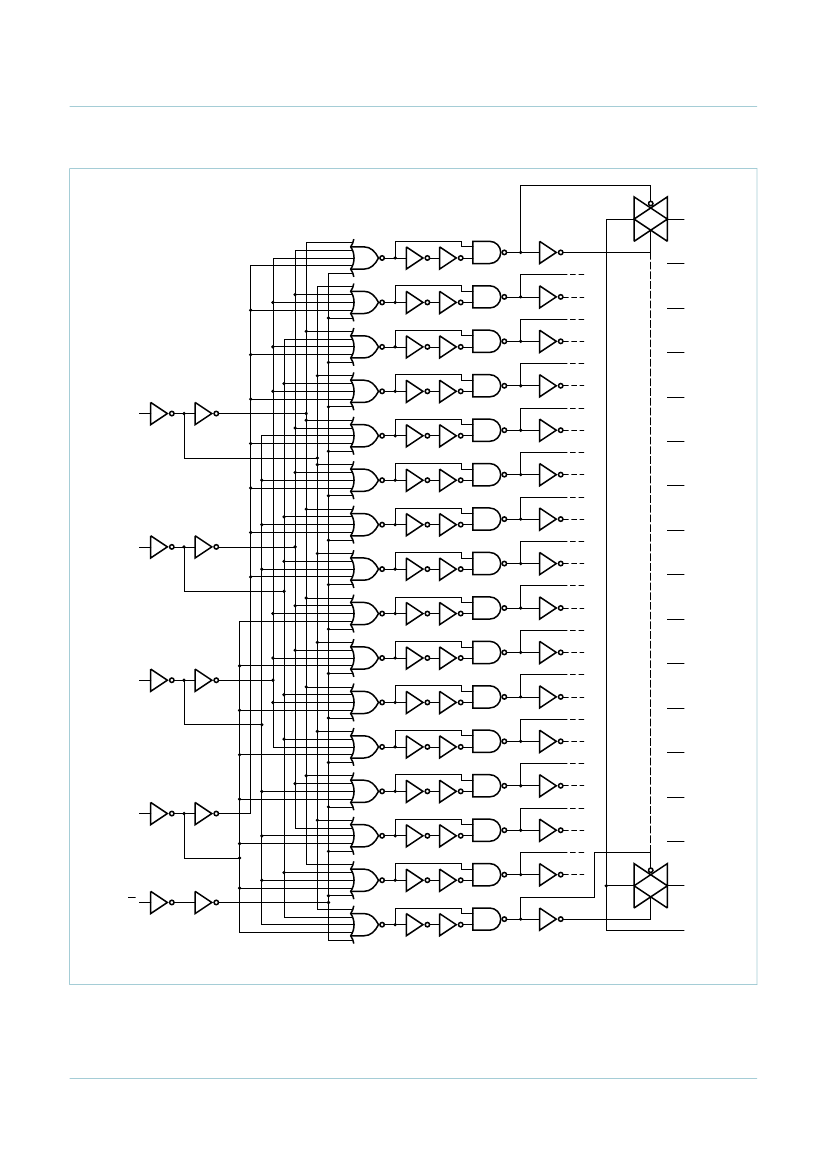

Fig 5.
Logic diagram
74HC_HCT4067
All information provided in this document is subject to legal disclaimers.
© NXP Semiconductors N.V. 2015. All rights reserved.
Product data sheet
Rev. 6 — 22 May 2015
4 of 28
