AS04008PO-R datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Tools and equipment> AS04008PO-R

AS04008PO-R: DescriptionSPEAKER 8OHM 2W TOP PORT 84DB; CategoryTools and equipment; File Size244KB，1 Pages; ManufacturerPUI Audio; Environmental Compliance

Download Datasheet Parametric View All

AS04008PO-R Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	AS04008PO-R	-	-	View	Buy Now

AS04008PO-R Overview

SPEAKER 8OHM 2W TOP PORT 84DB

AS04008PO-R Parametric

Parameter Name	Attribute value
technology	magnetic
type	Universal
Frequency Range	380Hz ~ 20kHz
Frequency - Self-resonance	380Hz
impedance	8 Ohms
Efficiency - dBA	84
Efficiency - Test	1W/1M
Efficiency - type	Sound pressure level (SPL)
Power - Rating	2W
Power - Max	4W
port location	top
shape	Elliptical, rectangular frame
Material - Cone	Paper
Material - Magnet	Nd-Fe-B
Intrusion protection	-
grade	-
Termination	welding eyelet
size/dimensions	1.575" long x 1.114" wide (40.00mm x 28.30mm)
Height - Installation (maximum)	0.453"（11.50mm）

Preview

Download Datasheet

View All

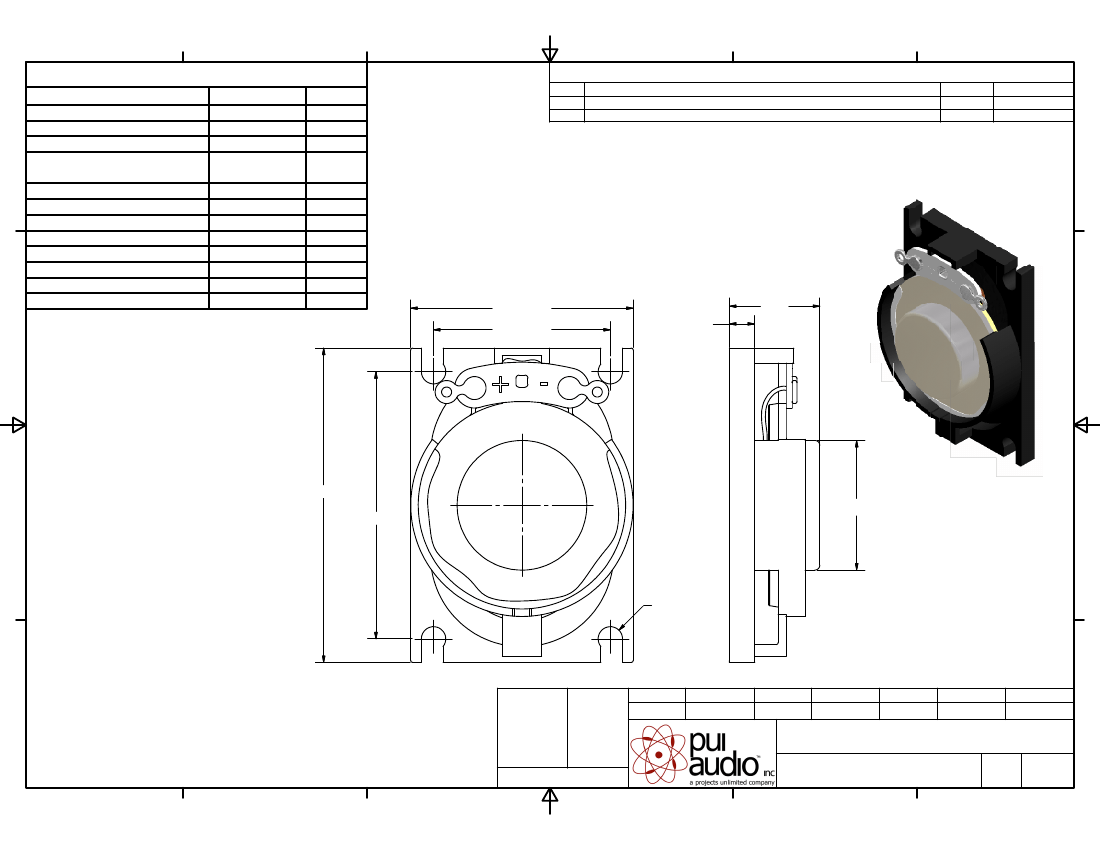

SPECIFICATIONS

PARAMETERS

RATED INPUT POWER

MAX INPUT POWER

IMPEDANCE

OUTPUT SPL @ 1W/1M

(AT 1.0, 1.2, 1.5, 2.0 kHz)

DISTORTION (MAX.)

RESONANT FREQUENCY

FREQUENCY RANGE

HOUSING MATERIAL

CONE MATERIAL

MAGNET MATERIAL

OPERATING TEMPERATURE

WEIGHT

VALUES

8 ± 15%

84 ± 3

380 ± 20%

380 ~ 20000

ABS

PAPER

Nd-Fe-B

-20 ~ +60

11.5

UNITS

OHM

dBA

°C

grams

THIS DOCUMENT CONTAINS DATA PROPRIETARY TO

PROJECTS UNLIMITED, INC. ANY USE OR

REPRODUCTION, IN ANY FORM, WITHOUT PRIOR

WRITTEN PERMISSION OF PROJECTS UNLIMITED,

INC. IS PROHIBITED.

REVISION HISTORY

LTR

DESCRIPTION

RELEASED FROM ENGINEERING

REVISED TO INVENTOR 3-D DRAWING TEMPLATE

DATE

5/15/2006

10/7/2008

APPROVED

B.R.

28.3

0.2

22.5

0.1

11.5

3.2

0.2

0.1

16.5

3.1 (4)

NOTES:

1. ALL DIMENSIONS ARE IN MILLIMETERS.

2. SPECIFICATIONS SUBJECT TO CHANGE OR WITHDRAWL

WITHOUT NOTICE.

3. THIS PART IS RoHS 2002/95/EC COMPLIANT.

UNLESS OTHERWISE

SPECIFIED:

DIMENSIONS ARE IN

MILLIMETERS,

TOLERANCES

ARE ±0.5 AND

ANGLES ARE ±3°.

Date

Checked by

Date

Approved by

Date

Drawn Date

SIZE

J.D.

5/15/2006

E.P.

5/15/2006

B.R.

5/15/2006 10/7/2008

AS04008PO-R

Speaker

Edition

Sheet

AS04008PO-R.idw

1/1
