DELTA6C/X/SMAM/S/RP/11 datasheet, PDF

Datasheet> All Categories > Topical application> Wireless rf/communication> DELTA6C/X/SMAM/S/RP/11

DELTA6C/X/SMAM/S/RP/11: DescriptionANT WHIP RP-SMA MALE CONNCT MNT; CategoryTopical application Wireless rf/communication; File Size486KB，2 Pages; ManufacturerTrompeter (Cinch Connectivity Solutions); Environmental Compliance

Download Datasheet Parametric Compare View All

DELTA6C/X/SMAM/S/RP/11 Overview

ANT WHIP RP-SMA MALE CONNCT MNT

DELTA6C/X/SMAM/S/RP/11 Parametric

Parameter Name	Attribute value
frequency group	UHF（2 GHz ~ 3 GHz），SHF（f > 4 GHz）
Frequency (center/band)	2.4GHz，5.8GHz
Frequency Range	-
Antenna type	Whip-shaped, sloping
Number of frequency bands	2
VSWR	2
Return loss	-
Gain	4.3dBi
characteristic	-
Termination	Connector, RP-SMA male
Intrusion protection	-
Installation type	Connector installation
Height (maximum value)	7.717"（196.00mm）
application	Bluetooth, WLAN, Zigbee™

Preview

Download Datasheet

View All

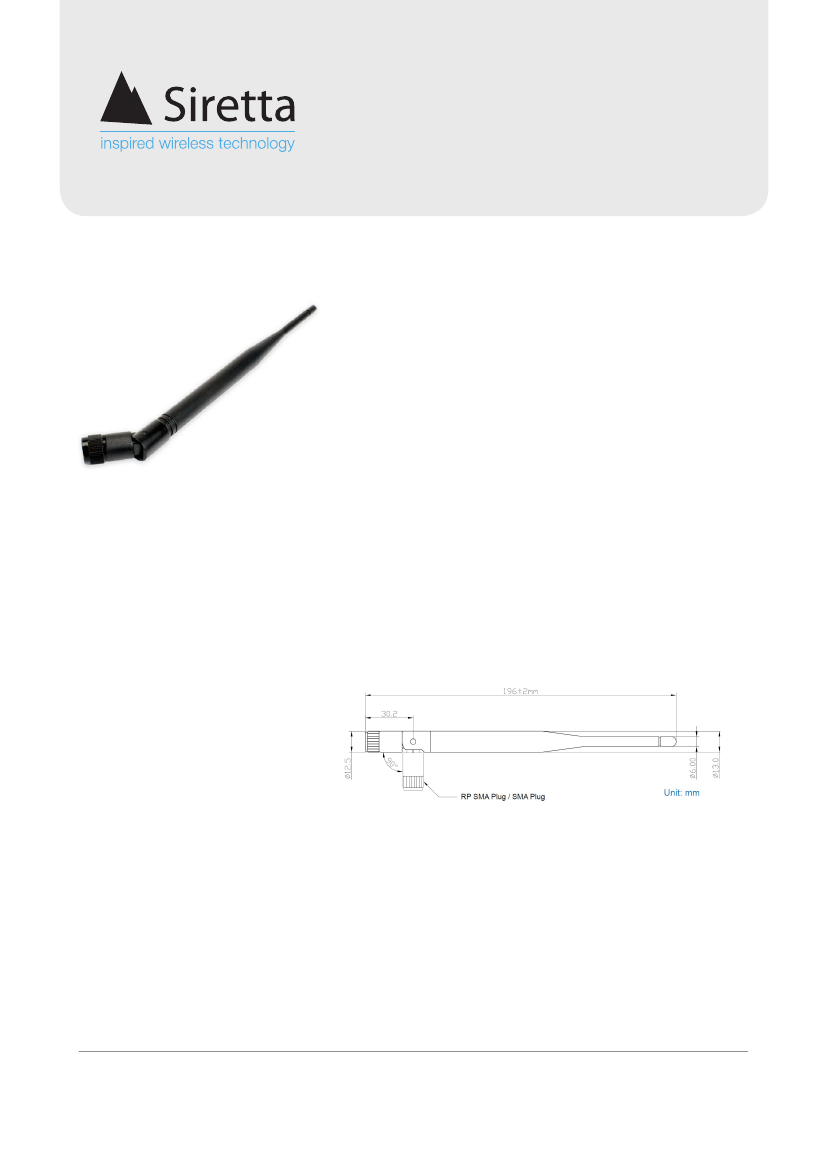

Delta 6C

2.4/5.8GHz Swivel Type Antenna

Key Features

•

Adjustable mount

SMA/SMA-RP male connector

Compact size

5dBi gain

2.4/5.8GHz frequency range

General Description

The Siretta Delta 6C antenna is based

on a 2008 redesign giving excellent

performance in the 2.4GHz/5.8GHz

WLAN bands.

Terminated with an SMA/SMA-RP male

connector, the unique knuckle adjusts

through a 0 / 45 & 90 degree angle

and swivels to ensure a vertical polarity

when fitted to the radio module.

The radiating element consists of a

two part design and is over moulded

in black, high grade rubber giving a

rugged, stylish finish.

The Delta 6C is a popular antenna for

customers requiring a straightforward

to fit, reliable product and is qualified

and used with all of today’s 802.11a,

802.11b, 802.11g, 802.11n WLAN

requirements. The Delta 6C can be

used for a wide range of point to point,

point to multipoint architecture.

Additional Considerations

• Antenna can be flexibly installed with equipment

•

Fits to many popular terminal equipment

•

The antenna does not rely on mounting on a metallic surface

•

Meets EU compliance criteria for electronic goods

Rev 1.0

Siretta Ltd

Basingstoke Road

Spencers Wood

Reading

Berkshire RG7 1PW

sales

fax

web

+44(0)118 976 9014

+44(0)118 976 9020

sales@siretta.co.uk

www.siretta.co.uk

A member of the Olancha Group Ltd

Registered in England No. 08405712

VAT Registration No. GB163 04 0349

DELTA6C/X/SMAM/S/RP/11 Related Products

	DELTA6C/X/SMAM/S/RP/11	DELTA6C/X/SMAM/S/S/11
Description	ANT WHIP RP-SMA MALE CONNCT MNT	ANT WHIP SMA MALE CONNCT MNT
frequency group	UHF（2 GHz ~ 3 GHz），SHF（f > 4 GHz）	UHF（2 GHz ~ 3 GHz），SHF（f > 4 GHz）
Frequency (center/band)	2.4GHz，5.8GHz	2.4GHz，5.8GHz
Antenna type	Whip-shaped, sloping	Whip-shaped, sloping
Number of frequency bands	2	2
VSWR	2	2
Gain	4.3dBi	4.3dBi
Termination	Connector, RP-SMA male	Connector, SMA male
Installation type	Connector installation	Connector installation
Height (maximum value)	7.717"（196.00mm）	7.717"（196.00mm）
application	Bluetooth, WLAN, Zigbee™	Bluetooth, WLAN, Zigbee™
