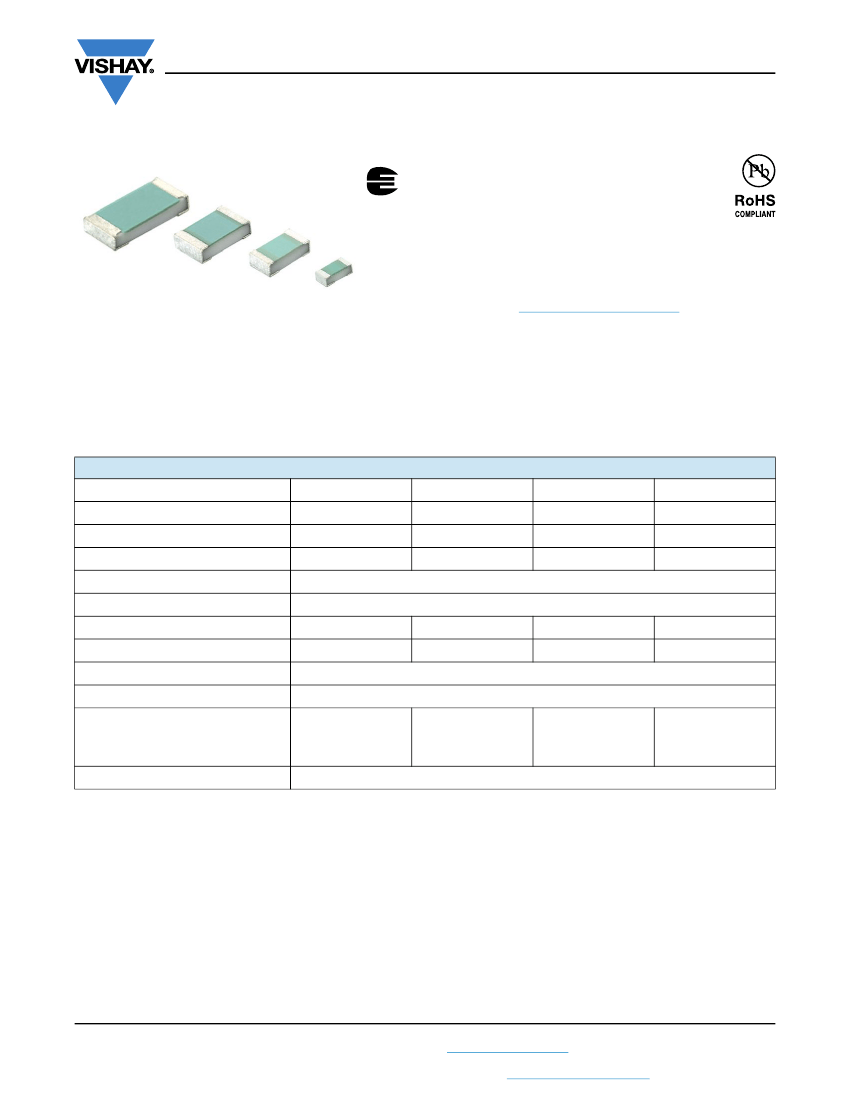

MCS 0402, MCT 0603, MCU 0805, MCA 1206 - Professional
www.vishay.com
Vishay Beyschlag
Professional Thin Film Chip Resistors
FEATURES
• Approved to EN 140401-801
• Excellent overall stability: class 0.5
• Professional tolerance of resistance: ± 0.5 %
and ± 1 %
• Rated dissipation
P
70
up to 0.4 W for size 1206
• Sulfur resistance verified according to ASTM B 809
MCS 0402, MCT 0603, MCU 0805, and MCA 1206
professional thin film flat chip resistors are the perfect
choice for most fields of modern professional electronics
where reliability and stability are of major concern. Typical
applications
include
telecommunication,
medical
equipment, high-end computer and audio / video
electronics.
• Material categorization: for definitions of compliance
please see
www.vishay.com/doc?99912
APPLICATIONS
• Automotive
• Telecommunication
• Medical equipment
• Industrial equipment
TECHNICAL SPECIFICATIONS
DESCRIPTION
Imperial size
Metric size code
Resistance range
Resistance tolerance
Temperature coefficient
Rated dissipation,
P
70 (1)
Operating voltage,
U
max.
AC
RMS
/DC
Permissible film temperature,
F max. (1)
Operating temperature range
Permissible voltage against ambient
(insulation):
1 min;
U
ins
Failure rate: FIT
observed
Note
(1)
Please refer to APPLICATION INFORMATION below.
75 V
100 V
0.1 x 10
-9
/h
200 V
300 V
0.100 W
50 V
MCS 0402
0402
RR1005M
10
to 4.99 M; 0
MCT 0603
0603
RR1608M
1
to 10 M; 0
MCU 0805
0805
RR2012M
1
to 10 M; 0
MCA 1206
1206
RR3216M
1
to 2 M; 0
± 1 %; ± 0.5 %
± 50 ppm/K; ± 25 ppm/K
0.125 W
75 V
155 °C
-55 °C to 155 °C
0.200 W
150 V
0.400 W
200 V
APPLICATION INFORMATION
When the resistor dissipates power, a temperature rise above the ambient temperature occurs, dependent on the thermal
resistance of the assembled resistor together with the printed circuit board. The rated dissipation applies only if the permitted
film temperature is not exceeded.
These resistors do not feature a limited lifetime when operated within the permissible limits. However, resistance value drift
increasing over operating time may result in exceeding a limit acceptable to the specific application, thereby establishing a
functional lifetime.
Revision: 16-Aug-16
Document Number: 28705
1
For technical questions, contact:
thinfilmchip@vishay.com
THIS DOCUMENT IS SUBJECT TO CHANGE WITHOUT NOTICE. THE PRODUCTS DESCRIBED HEREIN AND THIS DOCUMENT
ARE SUBJECT TO SPECIFIC DISCLAIMERS, SET FORTH AT
www.vishay.com/doc?91000
MCS 0402, MCT 0603, MCU 0805, MCA 1206 - Professional
www.vishay.com
Vishay Beyschlag
STANDARD
MCS 0402
0.063 W
0.100 W
0.125 W
0.250 W
-55 °C to 125 °C
125 °C
MCS 0402
MCT 0603
MCU 0805
10
to 4.99 M
1
to 10 M
1
to 10 M
1
to 2 M
0.25 %
0.5 %
1.5 %
MCT 0603
MCU 0805
MCA 1206
POWER
0.100 W
0.125 W
0.200 W
0.400 W
-55 °C to 155 °C
155 °C
10
to 4.99 M
1
to 10 M
1
to 10 M
1
to 2 M
0.5 %
1.0 %
-
MAXIMUM RESISTANCE CHANGE AT RATED DISSIPATION
OPERATION MODE
Rated dissipation,
P
70
Operating temperature range
Permissible film temperature,
F max.
Max. resistance change at
P
70
for resistance range,
|R/R| after:
MCA 1206
1000 h
8000 h
225 000 h
Note
• The presented operation modes do not refer to different types of resistors, but actually show examples of different loads, that lead to
different film temperatures and different achievable load-life stability (drift) of the resistance value. A suitable low thermal resistance of the
circuit board assembly must be safeguarded in order to maintain the film temperature of the resistors within the specified limits. Please
consider the application note “Thermal Management in Surface-Mounted Resistor Applications” (www.vishay.com/doc?28844) for
information on the general nature of thermal resistance.
TEMPERATURE COEFFICIENT AND RESISTANCE RANGE
TYPE / SIZE
TCR
± 50 ppm/K
MCS 0402
± 25 ppm/K
Jumper,
I
max.
= 0.63 A
± 50 ppm/K
MCT 0603
± 25 ppm/K
Jumper,
I
max.
= 1 A
± 50 ppm/K
MCU 0805
± 25 ppm/K
Jumper,
I
max.
= 1.5 A
± 50 ppm/K
MCA 1206
± 25 ppm/K
Jumper,
I
max.
= 2 A
TOLERANCE
±1%
± 0.5 %
± 0.5 %
20 m
±1%
± 0.5 %
± 0.5 %
20 m
±1%
± 0.5 %
± 0.5 %
20 m
±1%
± 0.5 %
± 0.5 %
20 m
RESISTANCE
10
to 4.99 M
10
to 221 k
10
to 221 k
0
1
to 10 M
10
to 511 k
10
to 511 k
0
1
to 10 M
10
to 1.5 M
10
to 1.5 M
0
1
to 2 M
10
to 2 M
10
to 2 M
0
E-SERIES
E24; E96
E24; E192
E24; E192
-
E24; E96
E24; E192
E24; E192
-
E24; E96
E24; E192
E24; E192
-
E24; E96
E24; E192
E24; E192
-
Note
• Resistance ranges printed in bold are preferred TCR / tolerance combinations with optimized availability.
PACKAGING
TYPE / SIZE
MCS 0402
MCT 0603
MCU 0805
MCA 1206
Revision: 16-Aug-16
CODE
E5
E0
P5
PW
P5
PW
P5
QUANTITY
5000
10 000
5000
20 000
5000
20 000
5000
Paper tape acc.
IEC 60286-3, Type 1a
8 mm
4 mm
PACKAGING STYLE
WIDTH
PITCH
2 mm
PACKAGING
DIMENSIONS
Ø 180 mm/7"
Ø 180 mm/7"
Ø 330 mm/13"
Ø 180 mm/7"
Ø 330 mm/13"
Ø 180 mm/7"
Document Number: 28705
2
For technical questions, contact:
thinfilmchip@vishay.com
THIS DOCUMENT IS SUBJECT TO CHANGE WITHOUT NOTICE. THE PRODUCTS DESCRIBED HEREIN AND THIS DOCUMENT
ARE SUBJECT TO SPECIFIC DISCLAIMERS, SET FORTH AT
www.vishay.com/doc?91000
MCS 0402, MCT 0603, MCU 0805, MCA 1206 - Professional
www.vishay.com
DESCRIPTION
Production is strictly controlled and follows an extensive
set of instructions established for reproducibility. A
homogeneous film of metal alloy is deposited on a high
grade ceramic substrate (Al
2
O
3
) and conditioned to achieve
the desired temperature coefficient. Specially designed
inner contacts are deposited on both sides. A special laser
is used to achieve the target value by smoothly cutting a
meander groove in the resistive layer without damaging the
ceramics. For the high and low ohmic range, optimized
Cermet products provide comparable properties. The
resistor elements are covered by a protective coating
designed for electrical, mechanical and climatic protection.
The terminations receive a final pure tin on nickel plating.
The result of the determined production is verified by an
extensive testing procedure and optical inspection
performed on 100 % of the individual chip resistors. This
includes full screening for the elimination of products with
potential risk of early field failures (feasible for
R
10
).
Only accepted products are laid directly into the paper tape
in accordance with
IEC 60286-3 Type 1a
(1)
.
Vishay Beyschlag
The products do not contain any of the banned substances
as per IEC 62474, GADSL, or the SVHC list, see
www.vishay.com/how/leadfree.
Hence the products fully comply with the following
directives:
• 2000/53/EC End-of-Life Vehicle Directive (ELV) and
Annex II (ELV II)
• 2011/65/EU Restriction of the Use of Hazardous
Substances
Directive
(RoHS)
with
amendment
2015/863/EU
• 2012/19/EU Waste Electrical and Electronic Equipment
Directive (WEEE)
Vishay pursues the elimination of conflict minerals from its
supply chain, see the Conflict Minerals Policy at
www.vishay.com/doc?49037.
APPROVALS
The resistors are approved within the IECQ-CECC Quality
Assessment System for Electronic Components to the detail
specification
EN 140401-801
which refers to
EN 60115-1,
EN 60115-8
and the variety of environmental test
procedures of the
IEC 60068
(1)
series. The detail
specification refers to the climatic category 55/125/56,
which relates to the “standard operation mode” of this
datasheet.
Conformity is attested by the use of the
CECC
logo (
the mark of conformity on the package label.
) as
ASSEMBLY
The resistors are suitable for processing on automatic SMD
assembly systems. They are suitable for automatic
soldering using wave, reflow or vapor phase as shown in
IEC 61760-1.
The encapsulation is resistant to all cleaning
solvents commonly used in the electronics industry,
including alcohols, esters and aqueous solutions. The
suitability of conformal coatings, potting compounds and
their processes, if applied, shall be qualified by appropriate
means to ensure the long-term stability of the whole system.
The resistors are RoHS-compliant, the pure tin plating
provides
compatibility
with
lead
(Pb)-free
and
lead-containing soldering processes. Solderability is
specified for 2 years after production or requalification. The
permitted storage time is 20 years. The immunity of the
plating against tin whisker growth has been proven under
extensive testing.
Vishay
Beyschlag
has
achieved
“Approval
of
Manufacturer”
in accordance with
IECQ 03-1.
The release
certificate for
“Technology Approval Schedule”
in
accordance with
CECC 240001
based on
IECQ 03-3-1
is
granted for the Vishay BEYSCHLAG manufacturing
process.
RELATED PRODUCTS
For more information about products with better TCR and
tighter tolerance please refer to the Precision Thin Film Chip
Resistors datasheet (www.vishay.com/doc?28700).
Resistors are available with established reliability in
accordance with EN 140401-801 version E. Please refer to
the special datasheet (www.vishay.com/doc?28744) for
information on failure rate level, available resistance ranges
and order codes.
Precision chip resistor arrays may be used in voltage divider
applications or precision amplifiers where close matching
between multiple resistors is necessary. ACAS 0612 chip
arrays are specified by the following datasheets:
• Professional type (www.vishay.com/doc?28754)
• Precision type (www.vishay.com/doc?28751)
MATERIALS
Vishay acknowledges the following systems for the
regulation of hazardous substances:
• IEC 62474, Material Declaration for Products of and for the
Electrotechnical Industry, with the list of declarable
substances given therein
(2)
• The Global Automotive Declarable Substance List
(GADSL)
(3)
• The REACH regulation (1907/2006/EC) and the related list
of substances with very high concern (SVHC)
(4)
for its
supply chain
Notes
(1)
The quoted IEC standards are also released as EN standards with the same number and identical contents.
(2)
The IEC 62474 list of declarable substances is maintained in a dedicated database, which is available at
http://std.iec.ch/iec62474.
(3)
The Global Automotive Declarable Substance List (GADSL) is maintained by the American Chemistry Council and available at
www.gadsl.org.
(4)
The SVHC list is maintained by the European Chemical Agency (ECHA) and available at
http://echa.europa.eu/candidate-list-table.
Revision: 16-Aug-16
Document Number: 28705
4
For technical questions, contact:
thinfilmchip@vishay.com
THIS DOCUMENT IS SUBJECT TO CHANGE WITHOUT NOTICE. THE PRODUCTS DESCRIBED HEREIN AND THIS DOCUMENT
ARE SUBJECT TO SPECIFIC DISCLAIMERS, SET FORTH AT
www.vishay.com/doc?91000
