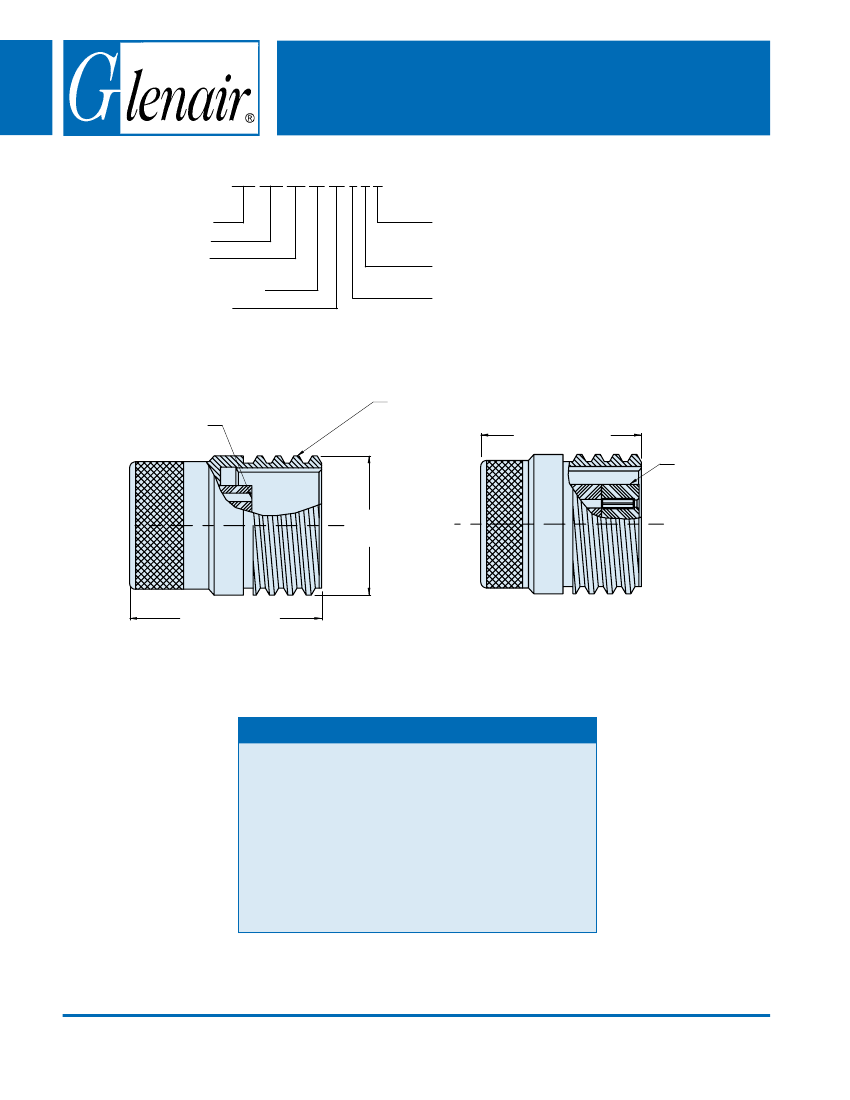

Test Probes
and Adapters
Product Series
Basic Number
Finish Symbol
(See Table II)
07 = Receptacle Adapter
Shell Size (Table I)
Pin Insert
1.750 (44.5) Max.

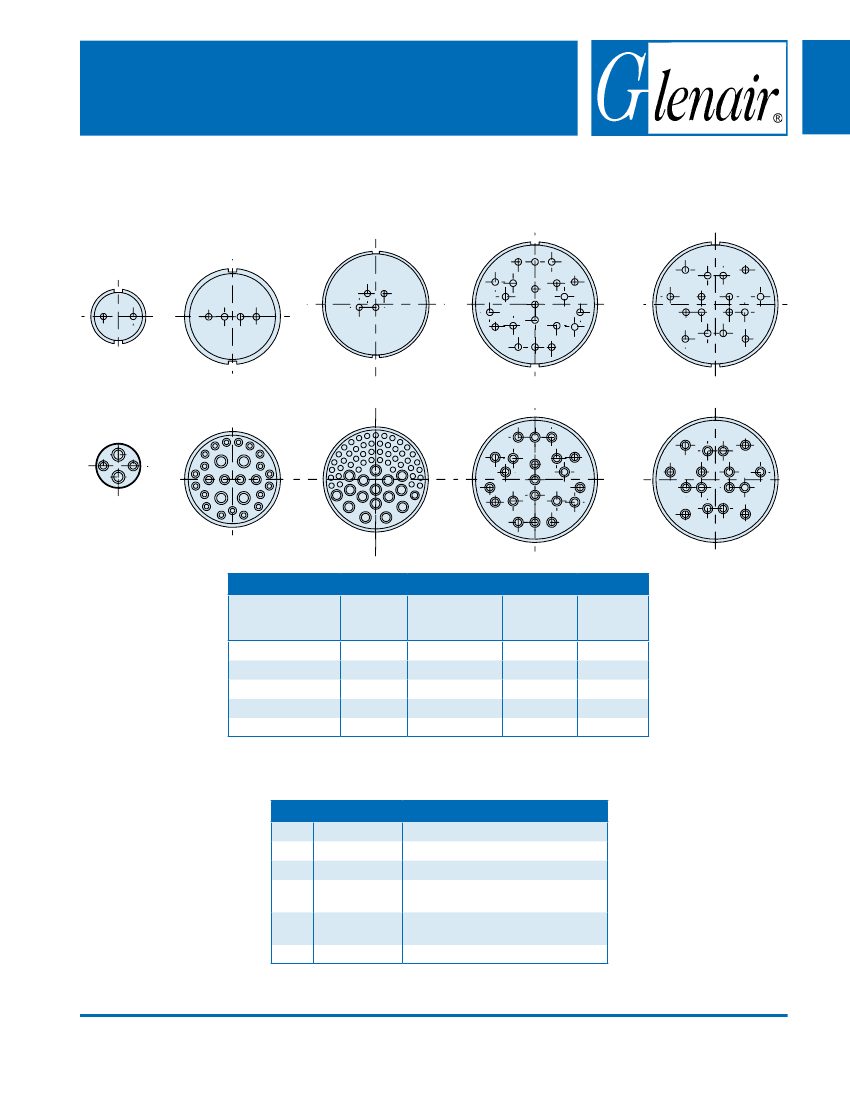

With Special Insert Arrangement MIL-DTL-38999 Series III
180-073 (07 Receptacle)
Fiber Optic Test Adapter
180-073 NF 07-17-8 P A
Alternate Keying Position A,B,C,D & E
Per MIL-DTL-38999, Series III (Omit for Normal)
Plug Adapter (Omit, Universal)
P = Pin Insert
S = Socket Insert (With Alignment Sleeves)
Insert Arrangement
Per MIL-STD-1560, Table I
A Thread
Table I
1.500 (38.1) Max.
Socket Insert
C
Dia.
Typ.
07
RECEPTACLE ASSEMBLY
APPLICATION NOTES
1. Assembly identified with manufacturer’s name and P/N,
Space Permitting.
2. For Fiber Optic Test Probe Assembly
See Glenair Drawing ABC54705
3. Material/ Finish:
- Barrel/ Shell- Al Alloy/ See Table II
- Insert, Coupling Nut- Hi- Grade Engineering Thermoplastic/ N.A.
- Alignment Sleeve- Zirconia Ceramic/ N.A.
- Retaining Ring- Stainless Steel/ N.A.
- Retaining Clips- Beryllium Copper/ N.A.
- Lock Nut- Al Alloy/ Black Anodize.
4. Metric dimensions (mm) are indicated in parentheses.
© 2006 Glenair, Inc.
CAGE Code 06324
Printed in U.S.A.
GLENAIR, INC.
•
1211 AIR WAY
•
GLENDALE, CA 91201-2497
•
818-247-6000
•
FAX 818-500-9912
E-Mail: sales@glenair.com
www.glenair.com
L-18
With Special Insert Arrangement MIL-DTL-38999 Series III
180-073 (07 Receptacle)
Fiber Optic Test Adapter
FRONT FACE OF PIN AND SOCKET INSULATORS SHOWN, REAR SURFACE OPPOSITE
13-13
PIN INSERT
21-27
PIN INSERT
23-66
PIN INSERT
25-37A
PIN INSERT
A
f
e
c
N
L
h
r
n
K
W
X
Z
J
F
G
25-37B
PIN INSERT
U
66
B
A
24 27
26 21
64
P
S
B
D
R
T
q
d
M
p
g
v
k
m
C
E
Y
H
59
65
b
a
13-13
SOCKET INSERT
21-27
SOCKET INSERT
23-66
SOCKET INSERT
25-37A
SOCKET INSERT
B
D
F
G
J
W
X
Z
K
A
h
r
n
L
c
N
U
f
e
S
P
E
25-37B
SOCKET INSERT
C
k
p
b
A
2
1
20
19
25
18
17
16
15
14
B
5
6
3
4
21
7
8
22
26
27
23
24
13
12
1 25 24 23
22
27 26 46 45
4
21
44
28
47 56
43 20
5 29
48
55
49
54
57 62
42 19
6 30
61
58
53
50
41 18
60
59
7 31
A
52 40 17
8 32 51
B
D
39 16
9 33
34
C
38
15
35
10
37
3
2
11
12
36
13
14
v
g
q
T
R
d
M
Y m
H
a
9 10
11
TABLE I: SHELL SIZE AND INSERT ARRANGEMENTS
Shell Size & Insert
Arrangement
Dash No.
13-13
21-27
23-66*
25-37A**
25-37B**
Shell
Size
Code Ref.
C
G
H
J
J
A Thread
0.1P-0.3L-TS-2
.875 (22.2)
1.375 (34.9)
1.500 (38.1)
1.625 (41.3)
1.625 (41.3)
B Dia
Max
1.141 (29.0)
1.625 (41.3)
1.750 (44.5)
1.875 (47.6)
1.875 (47.6)
C Dia
Max
.875 (22.2)
1.375 (34.9)
1.500 (38.1)
1.625 (41.3)
1.625 (41.3)
*Shell Size 23 is made of 300 Series Stainless Steel.
**25-37 Insert Cavity spacing too close to Probe using one Adapter, two Adapters (25-37A and 25-37B) are
therefore required to probe this Special Connector Insert Pattern.
TABLE II: FINISH
SYM
B
M
NF
N
Z1
MATERIAL
Aluminum
Aluminum
Aluminum
Aluminum
Stainless Steel
FINISH
Cadmium Plate/Olive Drab
Electroless Nickel
Cadmium/Olive Drab over
Electroless Nickel (500-Hr. Salt Spray)
Cadmium Plate/Olive Drab over
Nickel Plate
Passivate
© 2006 Glenair, Inc.
CAGE Code 06324
Printed in U.S.A.
GLENAIR, INC.
•
1211 AIR WAY
•
GLENDALE, CA 91201-2497
•
818-247-6000
•
FAX 818-500-9912
E-Mail: sales@glenair.com
www.glenair.com
L-19
