133687 datasheet, PDF - EEWORLD Datasheet

EEWORLDEEWORLD

Datasheet

Datasheet> All Categories > The connector> The connector> 133687

Preview

133687: DescriptionTelecom and Datacom Connector, 64 Contact(s), Female, Right Angle, Solder Terminal, Detent, Jack; CategoryThe connector The connector; File Size49KB，2 Pages; ManufacturerERNI; Websitehttp://www.erni.com

Download Datasheet Parametric View All

133687 Overview

Telecom and Datacom Connector, 64 Contact(s), Female, Right Angle, Solder Terminal, Detent, Jack

133687 Parametric

Parameter Name	Attribute value
Reach Compliance Code	compli
ECCN code	EAR99
Other features	8 PORTS, 8-POSITIONS EACH, PANEL MOUNTABLE, SHIELDED
Board mount options	LOCATING POSTS
body width	0.543 inch
subject depth	0.85 inch
body length	4.525 inch
Body/casing type	JACK
Connector type	TELECOM AND DATACOM CONNECTOR
Contact to complete cooperation	AU ON NI
Contact point gender	FEMALE
Contact material	PHOSPHOR BRONZE
Contact resistance	30 mΩ
Contact style	TELCOM, MODULAR
DIN compliance	NO
Dielectric withstand voltage	1000VAC V
Durability	1000 Cycles
empty shell	NO
Filter function	NO
IEC compliance	NO
Insulation resistance	500000000 Ω
Insulator color	BLACK
insulator material	GLASS FILLED POLYESTER
MIL compliance	NO
Manufacturer's serial number	133687
Mixed contacts	NO
Installation option 1	DETENT
Installation option 2	LOCKING
Installation method	RIGHT ANGLE
Installation type	BOARD
Number of ports	8
Options	GENERAL PURPOSE
PCB contact pattern	STAGGERED
Plating thickness	30u inch
Rated current (signal)	1.5 A
Guideline	UL
reliability	COMMERCIAL
Shell surface	NICKEL
Shell material	COPPER ALLOY
Terminal length	0.126 inch
Terminal pitch	2.54 mm
Termination type	SOLDER
Total number of contacts	64
UL Flammability Code	94V-0
Base Number Matches	1

Preview

Download Datasheet

View All

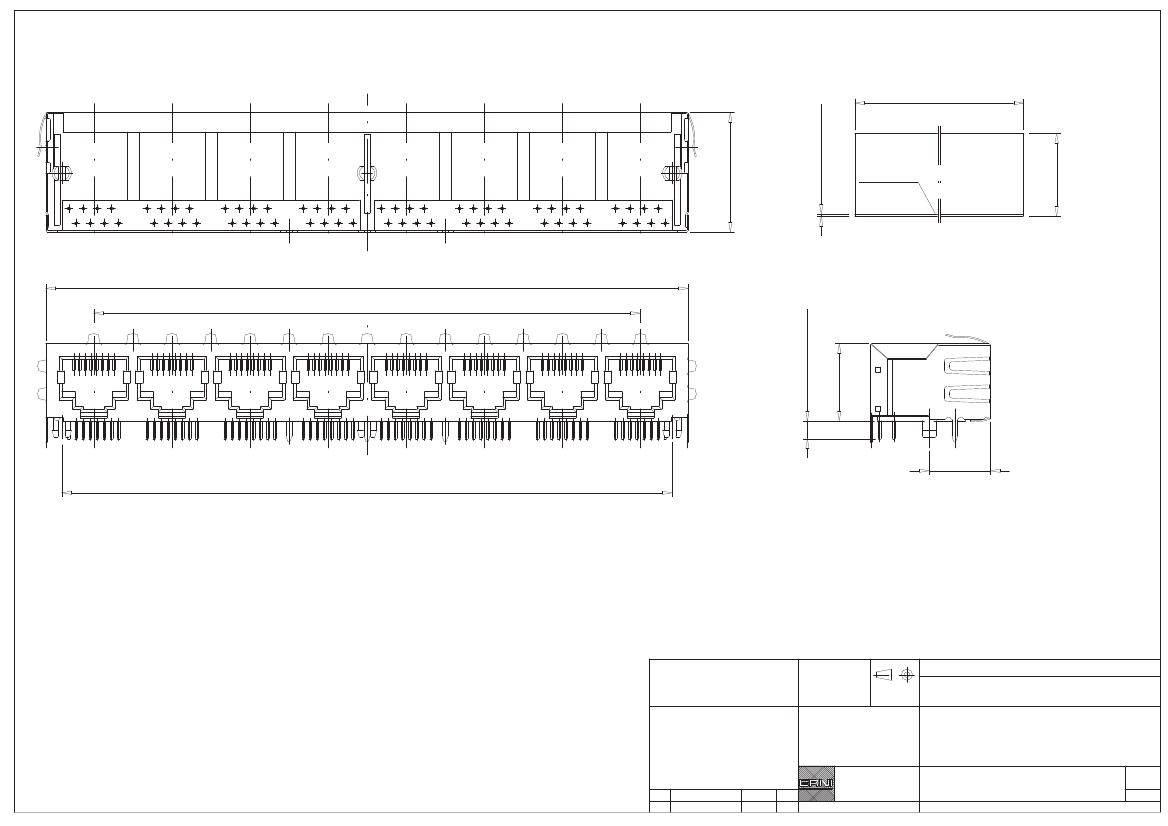

RECOMMENDED PANEL

CUTOUT

EMPFOHLENER FRONTPLATTEN AUSSCHNITT

115.95±0.20 [2.370

±.008]

21.59 [.850] MAX

0.38±0.10 [.015±.004]

TOP OF PCB

LP

114.94 [4.525]

3.20±0.30 [.126±.012]

7 x 13.97 = (97.79 [3.850])

1

8

1

8

1

8

1

8

1

8

1

8

1

8

1

8

13.80 [.543]

10.89 [.429]

109.22±0.13 [4.300±.005]

MATERIALS AND FINISH

HOUSING: GLASS FILLED POLYESTER UL 94 V-0 BLACK

SHIELDING: Cu ALLOY, PLATED WITH Ni

CONTACTS: PHOSPHOR BRONZE

CONTACT FINISH: Au, 0.8µm [30µin], OVER Ni

TERMINAL FINISH: Sn

MECHANICAL CHARACTERISTICS

Consider protection memo from DIN 34

NOTE 1: THREE GROUND PINS CENTERED (C)

NOTE 2: PANEL GROUND FLANGES BOTH SIDES AND TOP (GF5)

NOTE 3: SIDE GROUND TABS IN FRONT OF PEG 4.57mm (F1)

Information:

Tolerances

All Dimensions

Scale

2:1

-

MAXCONN No.:

MJHS-G-88-8A-GF5C-30

Only for information.

To insure that this is the latest

version of this drawing, please

contact one of the ERNI companies

before using.

in mm [in]

Subject to modification without

prior notice.

Drawing will not be updated.

Designation

DURABILITY: 1000 MATING CYCLES

ELECTRICAL CHARACTERISTICS

CURRENT/VOLTAGE: 150 Vac AT 1.5 AMPS MAX AT 25˚C

DIELECTRIC WITHSTANDING VOLTAGE: 1000 Vrms MIN, 60Hz

INSULATION RESISTANCE: 500 MEGAOHMS MIN

CONTACT RESISTANCE: 30 MILLIOHMS MAX

MOD JACK - MJR

8P8C, 1X8

14.89 [.586]

ERNI Components

-

Rev.

-

Date

CHESTER, VA U.S.A.

Group/Type

133687

MAXMJ

I
