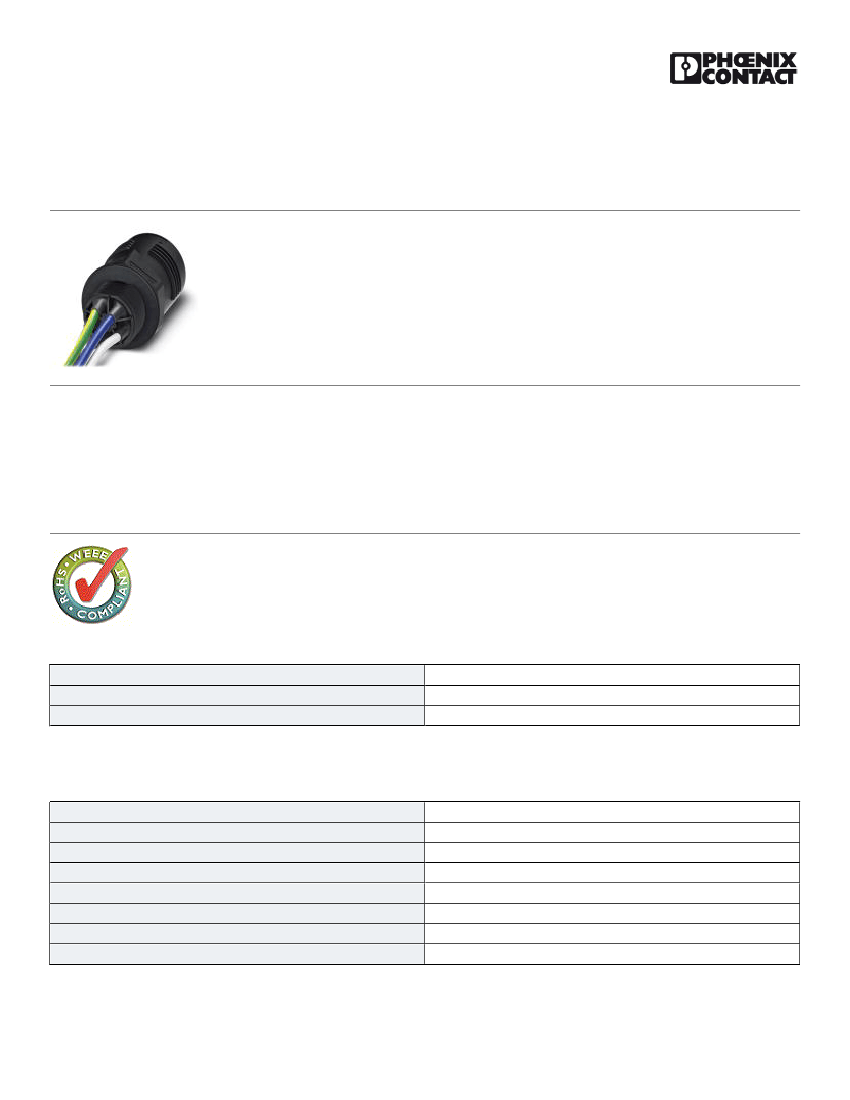

Panel feed-through - QPD W 4PE6,0 M25 1,0 BK - 1410397
Please be informed that the data shown in this PDF Document is generated from our Online Catalog. Please find the complete data in the user's
documentation. Our General Terms of Use for Downloads are valid
(http://phoenixcontact.com/download)
QUICKON panel feed-through, 4+PE-pos., 2.5 mm² ... 6.0 mm²/690 V/40 A, without QUICKON nut, black, M25
connection thread with 5 welded-on 6.0 mm² cable wires, 1.0 m long, cut flat at the end.
Why buy this product
■
■
■
■
■
Innovative and time saving - QUICKON fast connection for time saving of up to 80 % for on-site connection
Convenient: quick and easy assembly without special tools
Robust throughout: housing with IP68/IP69K and IK07 protection for a wide range of applications
Safer connection thanks to polarization against mismatching and touch-proof protection according to DIN EN 0105
Efficient - by using panel feed-throughs, devices no longer need to be opened in order to connect cables
Key Commercial Data
Packing unit
Custom tariff number
Country of origin
1 STK
85444290
Poland
Technical data
General
Type
Length of cable
Color
Locking type
Connection method
Number of positions
Note number of positions
QPD 5x6,0
1m
black
Screw locking
QUICKON connection
IDC connection
5
4+PE
08/02/2016 Page 1 / 4
https://www.phoenixcontact.com/us/products/1410397
Panel feed-through - QPD W 4PE6,0 M25 1,0 BK - 1410397
Technical data
General
Wrench size, union nut
Number of connections
Conductor cross section flexible min.
Conductor cross section flexible max.
Conductor cross section solid min.
Conductor cross section solid max.
Conductor cross section AWG min.
Conductor cross section AWG max.
30 mm
10
2.5 mm²
6 mm²
2.5 mm²
6 mm²
14
10
Cabel
Structure of individual litz in acc. with VDE 0295 / smallest wire diameter
Wire insulation material
VDE 0295 class 1 to 6/min. 0.15 mm
PVC/PE/TPE/rubber
Ambient conditions
Degree of protection
Ambient temperature (operation)
Ambient temperature (storage/transport)
Temperature when conductor connected
IP68 ()
IP69K
-40 °C ... 80 °C
-40 °C ... 80 °C
-5 °C ... 50 °C
Electrical characteristics
Nominal current I
N
Rated current
Rated voltage (III/3)
Rated voltage (III/2)
Rated voltage (II/2)
Rated surge voltage (III/3)
Rated surge voltage (III/2)
Rated surge voltage (II/2)
40 A
40 A
690 V
1000 V
1000 V
6 kV
8 kV
8 kV
Mechanical characteristics
QUICKON connectability
max. 10
Material data
Contact material
Contact surface material
Contact carrier material
Insulating material
Flammability rating according to UL 94
Overvoltage category
Cu
silver-plated
PA
PA
V0
III
08/02/2016 Page 2 / 4
https://www.phoenixcontact.com/us/products/1410397
Panel feed-through - QPD W 4PE6,0 M25 1,0 BK - 1410397
Technical data
Material data
Degree of pollution
3
Standards and Regulations
Flammability rating according to UL 94
V0
Drawings
Dimensional drawing
Ø36
42,4
19,2
N
2
32
Dimensional drawing of QPD W 4PE6,0 M25
Classifications
eCl@ss
eCl@ss 5.1
eCl@ss 6.0
eCl@ss 8.0
eCl@ss 9.0
27143424
27143424
27440602
27440602
ETIM
ETIM 4.0
ETIM 5.0
EC002635
EC002566
Approvals
Approvals
Approvals
GL / EAC
Ex Approvals
22,5
N
M25
1
3
2
08/02/2016 Page 3 / 4
https://www.phoenixcontact.com/us/products/1410397
Panel feed-through - QPD W 4PE6,0 M25 1,0 BK - 1410397
Approvals
Approvals submitted
Approval details
GL
EAC
