To order, simply select desired option from each category and place in the appropriate box. Available options are shown and
described on pages G-49 thru G-53. For additional options not shown in catalog, consult Customer Service Center.
Switch Function
9201
DPDT, On-On, 6 Amps
9221
DPDT, On-On, 10 Amps
Actuator
S
Antirotation, .410" high
K
Locking lever, .650" high
K1
Locking lever, .680" high
L43
Lever handle with cap
P3
Flatted, anti-rotation, .450" high
T
.687" high, 15/32 bushing
T1
.460" high, 15/32 bushing
Bushing
H3
.296" high, keyway
CW
Splashproof
H
.296" high, flat
Terminations
Solder lug
Z
Z4
Quick connect
(9221 only)
AV2
Vert. right angle, PC thru-hole
(9201 only)
C
PC Thru-hole
Contact Material
Q
Silver
Seal
E
Epoxy
D
No epoxy
Actuator Color/Finish
NONE
Bright chrome
2
Black
G
Toggle
Bushing Finish
NONE
Nickel
2
Black
KXX Actuator Color/Finish
NONE
Natural aluminum
2
Black anodized aluminum
Dimensions are shown: Inch (mm)
Specifications and dimensions subject to change
G–48
www.ittcannon.com

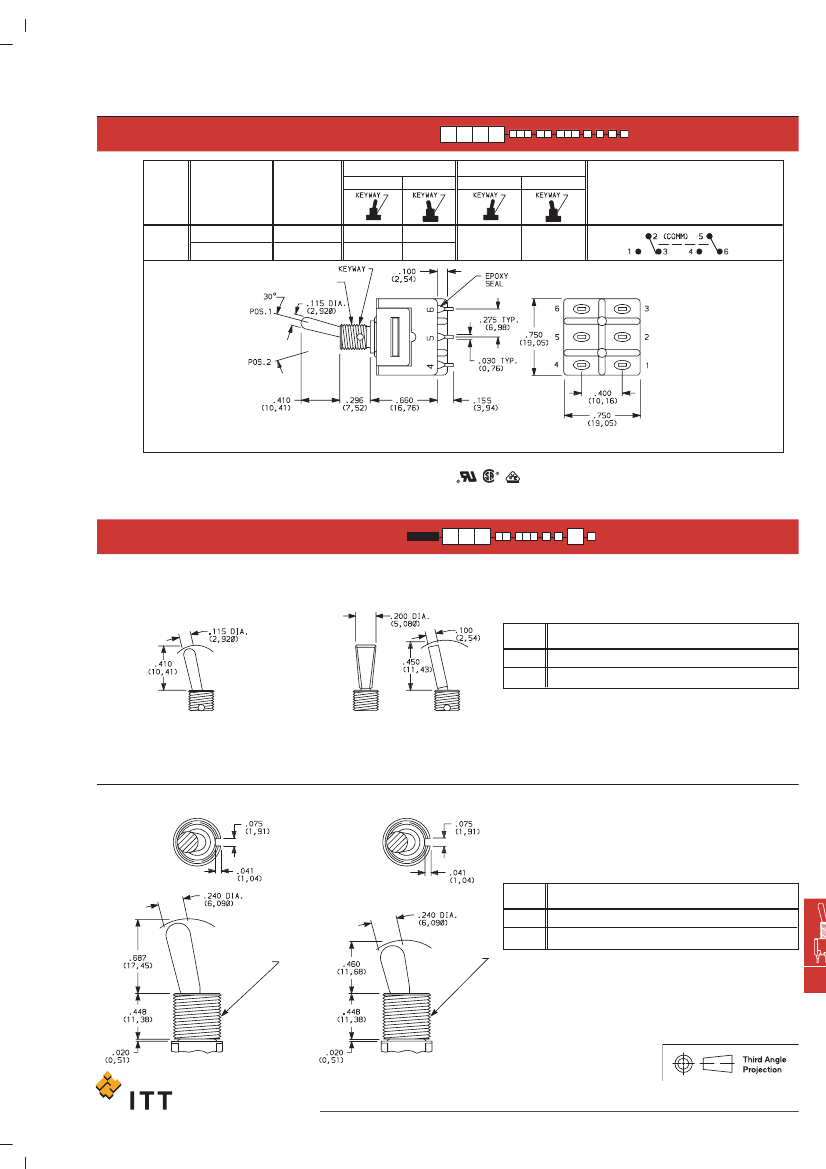

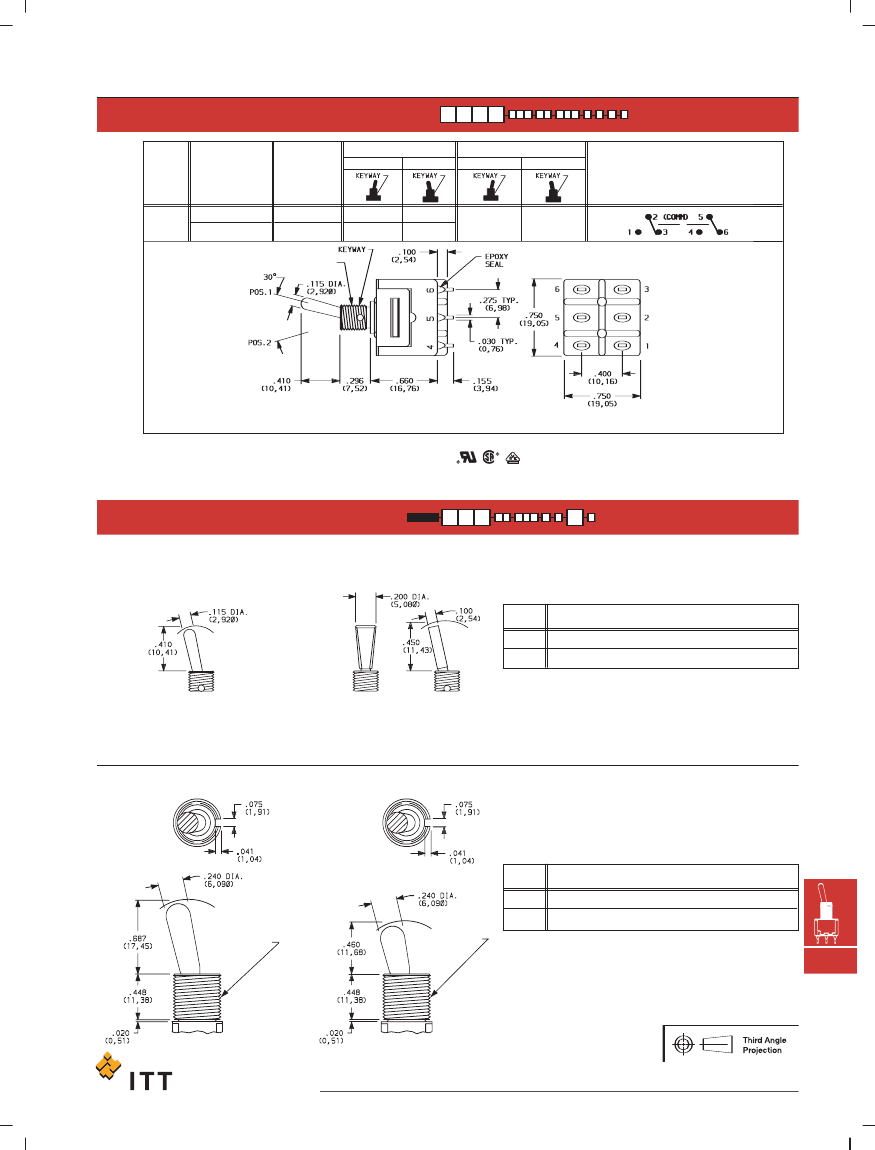

C&K 9000 Series
Power Toggle Switches
SWITCH FUNCTION
SWITCH FUNCTION
POS. 1
POS. 2
NO.
POLES
DP
CONNECTED TERMINALS
POS. 1
POS. 2
MODEL NO.
RATING*
6 AMPS
10 AMPS
ON
ON
ON
2-3,5-6
ON
2-1,5-4
DPDT
SCHEMATIC
9201
9221
DPDT
1/4 40 UNS-2A
Part number shown: 9201SH3ZQE
Terminal Nos.
Molded On Side Of Case
* See CONTACT MATERIAL, page G-52, for complete ratings.
All 9000 Series models meet international dimensional and electrical requirements.
9221 model must be ordered with Z4 terminations and D seal option.
ACTUATOR FINISH
ACTUATOR
ACTUATOR
S
ANTIROTATION, .410" HIGH
P3
FLATTED, ANTIROTATION, .450" HIGH
OPTION
CODE
ACTUATOR FINISH
NATURAL ALUMINUM—With Nickel Plated Bushing
BLACK
NONE
2
NOTE:
Black hardware is supplied when either black actuators or bushings
are specified. All hardware is available separately, see Section O.
Antirotation is standard on all actuators, provides ‘anti-push-in’ feature
on actuator.
Dress nut part number: 709901201 supplied standard with P3 actuator.
T
.687" HIGH, 15/32 BUSHING
T1
.460" HIGH, 15/32 BUSHING
OPTION
CODE
ACTUATOR FINISH
BRIGHT CHROME—With Nickel Plated Bushing
BLACK
NONE
2
15/32-32 UNS-2A
15/32-32 UNS-2A
NOTE:
Bushing option code not required for T & T1 actuators unless CW
splashproof bushing ordered.
Black hardware is supplied when either black actuators or bushings are
specified. All hardware is available separately, see Section O.
Antirotation is standard on all actuators except T & T1, provides ‘anti-push-in’
feature on actuator.
G
Toggle
Dimensions are shown: Inch (mm)
Specifications and dimensions subject to change
G–49
www.ittcannon.com
C&K 9000 Series
Power Toggle Switches
ACTUATOR FINISH
ACTUATOR
ACTUATOR

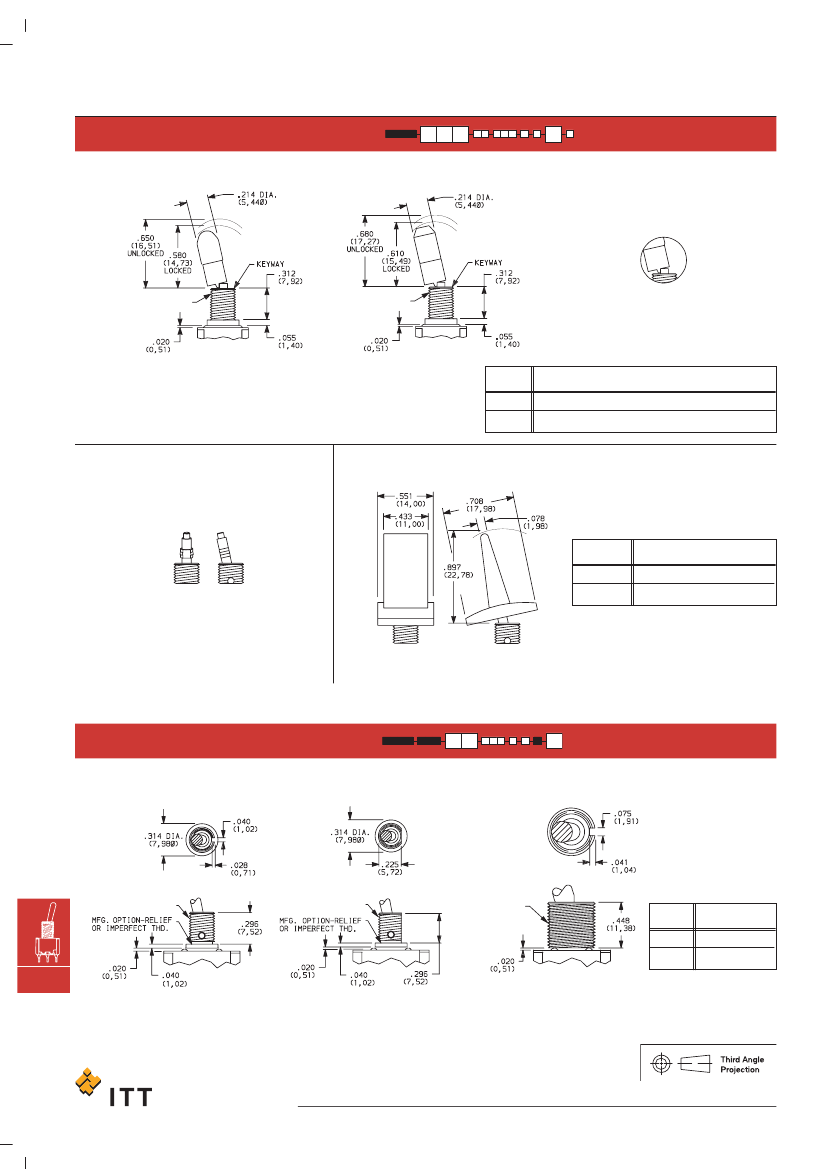

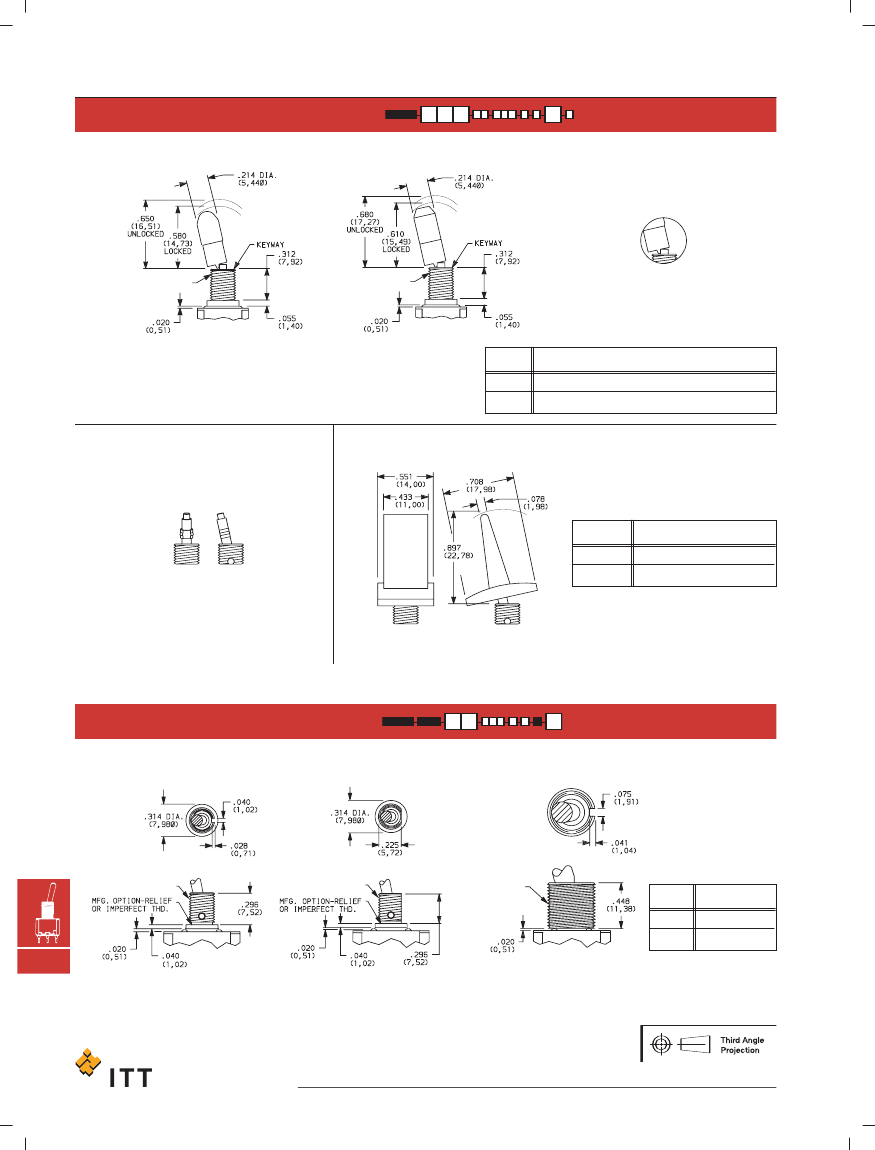

K
LOCKING LEVER, .650" HIGH, THREADED
K1
LOCKING LEVER, .680" HIGH, THREADED
Locking Positions
1/4-40 UNS-2A
1/4-40 UNS-2A
2 Position Lock
NOTE:
To prevent accidental actuation, toggles must be lifted before being
actuated. When released, toggles again lock in place. Bushing option code
not required. Overtightening mounting nut may cause actuator to bind.
.
OPTION
CODE
ACTUATOR CAP FINISH
NATURAL ALUMINUM–With Nickle Plated Bushing
BLACK ANODIZED ALUMINUM
NONE
2
L40
LEVER HANDLE
WITHOUT CAP
L43
PLASTIC LEVER HANDLE WITH
ANTIROTATION AND CAP, P/N 4812
OPTION
CODE
ACTUATOR CAP COLOR
BLACK
No Actuator Color (L40 option)
2
NONE
Other colors available, consult Customer
Service Center.
No color choice required.
Finish: Matte
NOTE:
Lever handle actuator L43 supplied, but not installed. For interchangeability, order L40 actuator option and order lever handles separately, see page G-53.
Antirotation is standard on all actuators, provides ‘anti-push-in’ feature.
BUSHING FINISH
BUSHING
BUSHING
H3
.296" HIGH, THREADED, KEYWAY
H
.296" HIGH, THREADED, FLAT
CW
SPLASHPROOF, 15/32 BUSHING
1/4-40 UNS-2A
1/4-40 UNS-2A
15/32-32 UNS-2A
OPTION
CODE
BUSHING
FINISH
NICKEL
BLACK
NONE
2
G
Toggle
Will withstand 12 in./lbs. of torque with no distortion.
NOTE:
Two mounting nuts, locking ring and lockwasher supplied standard with threaded bushings.
Black hardware is supplied when either black bushings or actuators are specified. Optional mounting
nut and locking ring styles and finishes available, see Section O.
For T & T1 actuators only.
Internal actuator seal standard. External
bushing seal washer available separately,
order from: Multi-Flex Seals, Inc.,
Hackensack, NJ. Part number: MFS-60064.
Dimensions are shown: Inch (mm)
Specifications and dimensions subject to change
G–50
www.ittcannon.com
C&K 9000 Series
Power Toggle Switches
BUSHING FINISH
BUSHING
BUSHING
PANEL MOUNTING
1/4 INCH BUSHING
15/32 INCH BUSHING
Without locking ring.
With standard locking ring.
With small locking ring.
Without locking ring.
With standard locking ring.

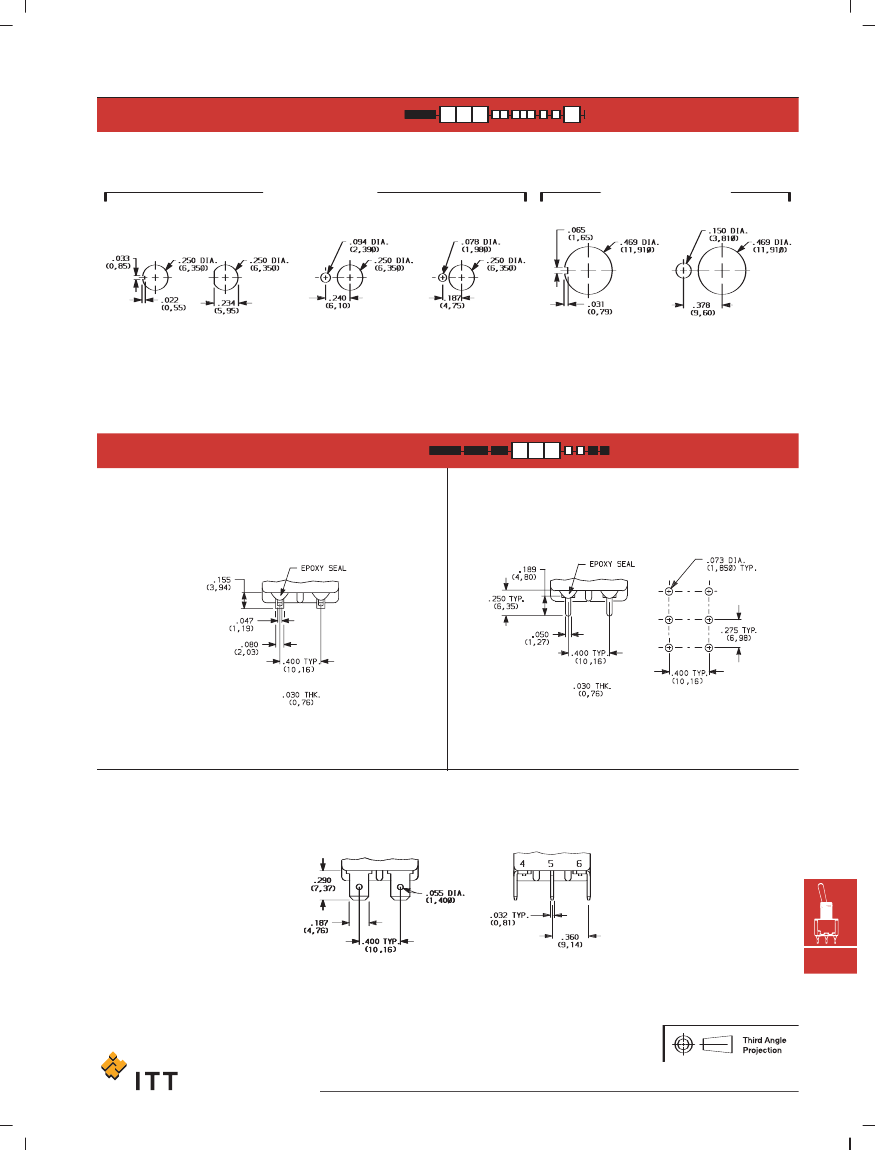

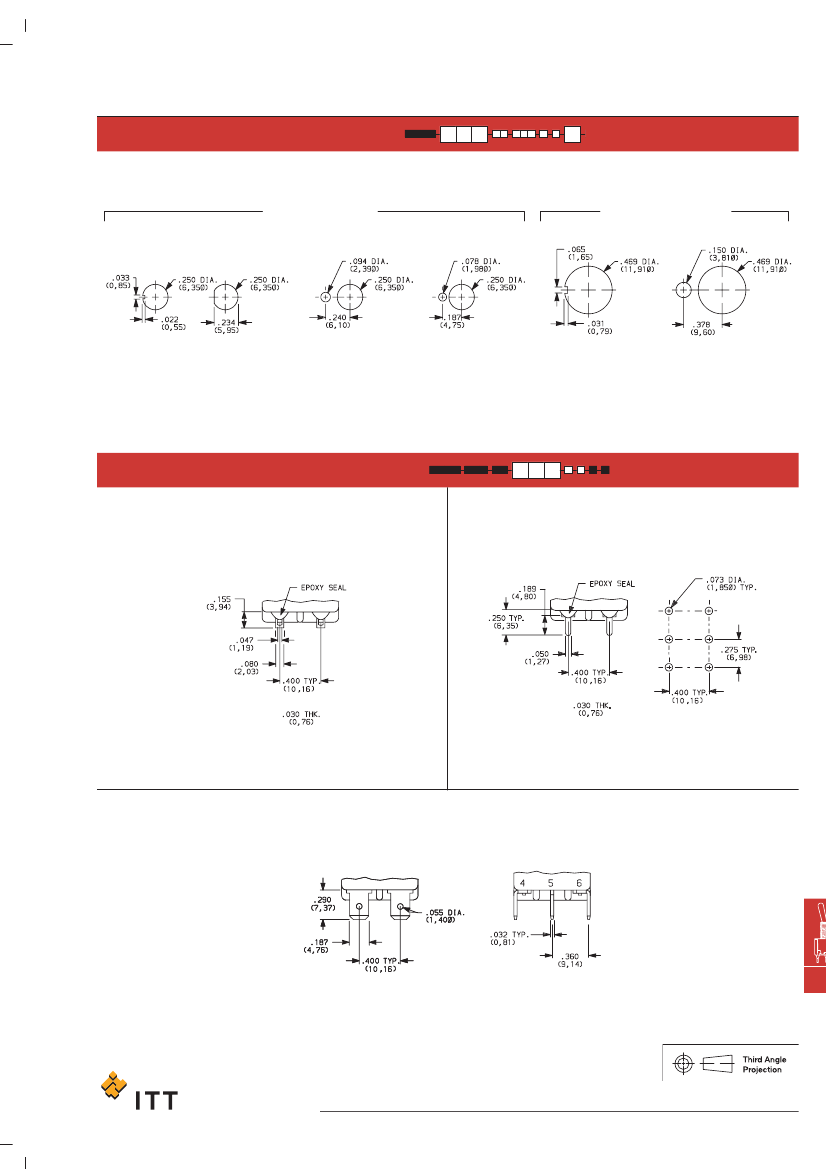

TERMINATIONS
Z
SOLDER LUG
C
PC THRU-HOLE
PC MOUNTING
9201 Only
9201 Only
Z4
.187" QUICK CONNECT
9221 Only
NOTE:
Only termination available with 9221 model. Must be ordered with D seal option.
Mates with standard .187 Nema female connector.
G
Toggle
Dimensions are shown: Inch (mm)
Specifications and dimensions subject to change
G–51
www.ittcannon.com
C&K 9000 Series
Power Toggle Switches
TERMINATIONS

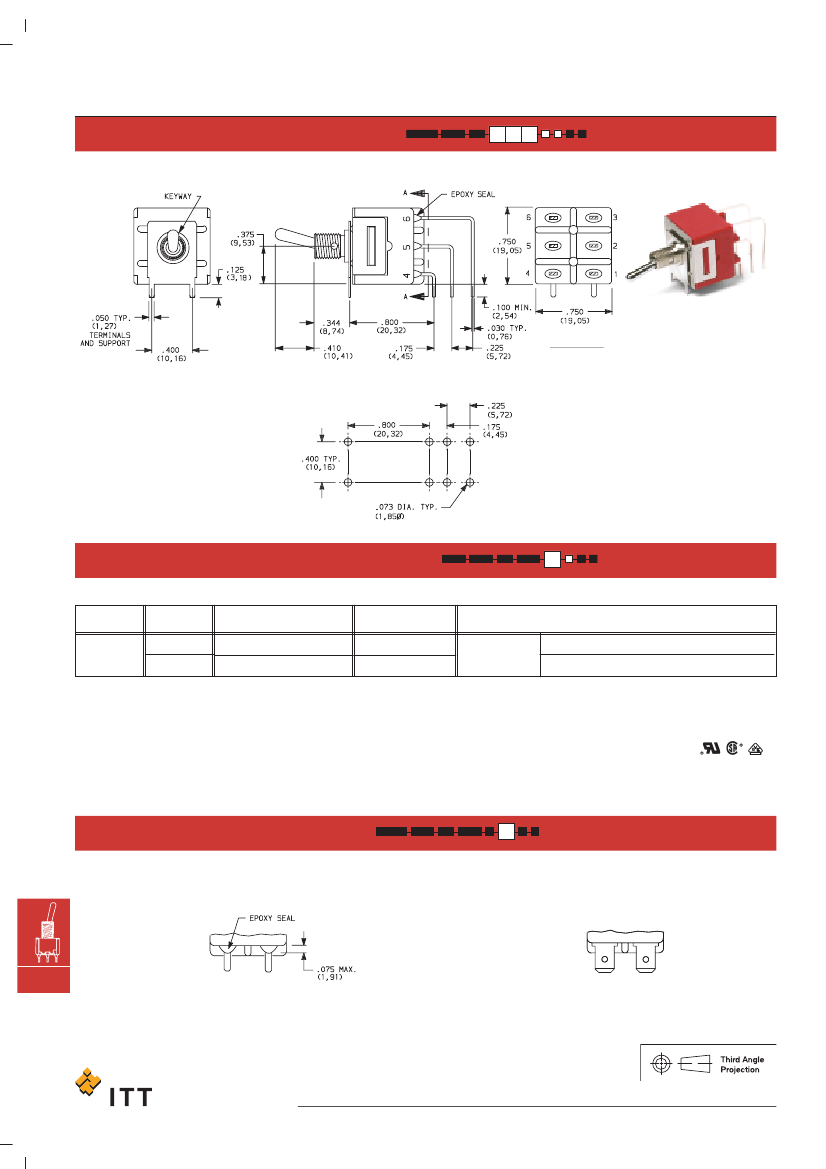

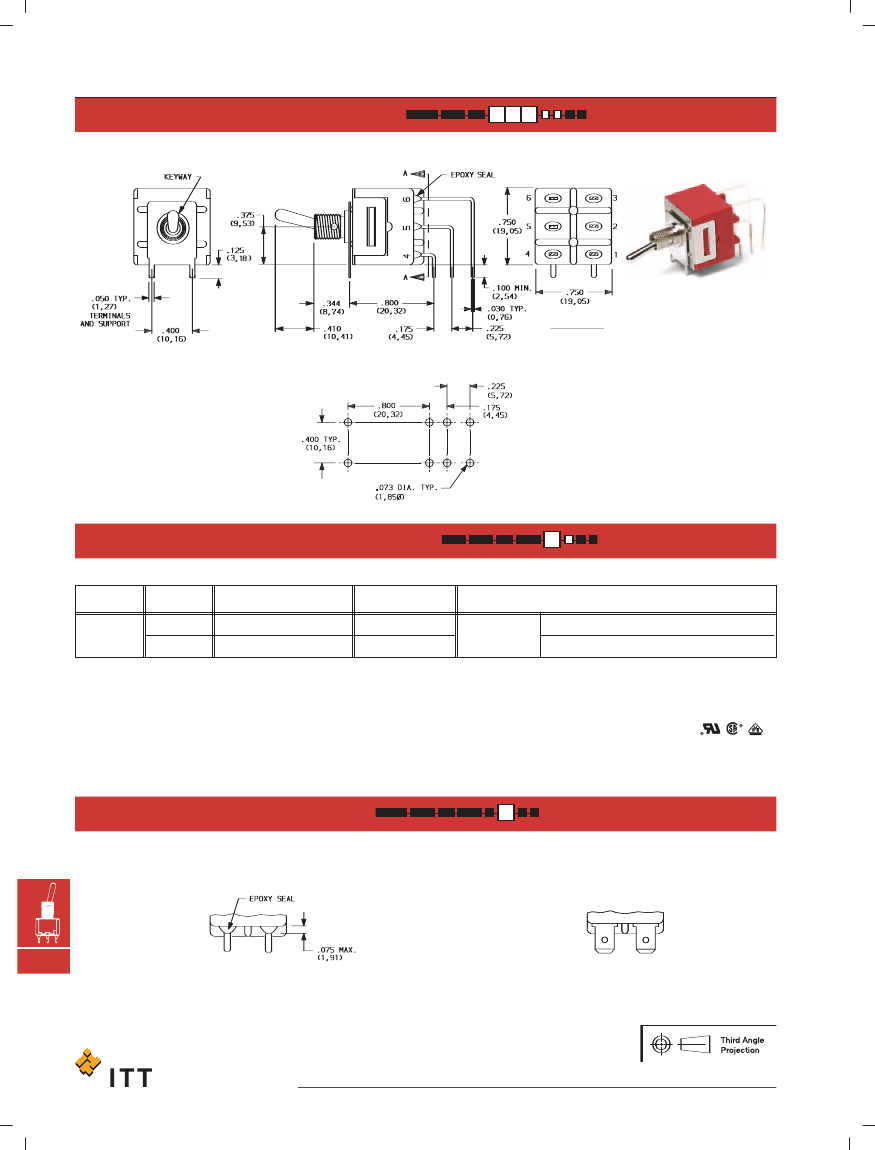

AV2
VERTICAL RIGHT ANGLE, PC THRU-HOLE
9201SH3AV2QE
Vertical Actuation
SECTION A-A
Terminal Nos.
For Reference Only
PC MOUNTING
DPDT
Actuator Shown in Pos. 1
9201 Only
NOTE:
Terminal bend radii and lead-in manufacturing option.
Terminal spacing greater than 3mm at all points.
CONTACT MATERIAL
OPTION
CODE
TERMINAL
PLATING
SILVER OR TIN
2,5
TIN
5
POWER
10 AMPS @125 V AC OR 28 V DC; 5 AMPS @ 250 V AC.
MODEL
9201
CONTACT MATERIAL
SILVER
1,2
SILVER CADMIUM OXIDE
3,4,6
RATINGS
6 AMPS @120 V AC OR 28 V DC; 3 AMPS @ 250 V AC.
Q
9221
* Note: See Technical Data section of this catalog for RoHS compliant and compatible definitions and specifications.
1
END CONTACTS: Coin silver, silver plated.
2
CENTER CONTACTS & ALL TERMINALS: Copper alloy, silver plated.
