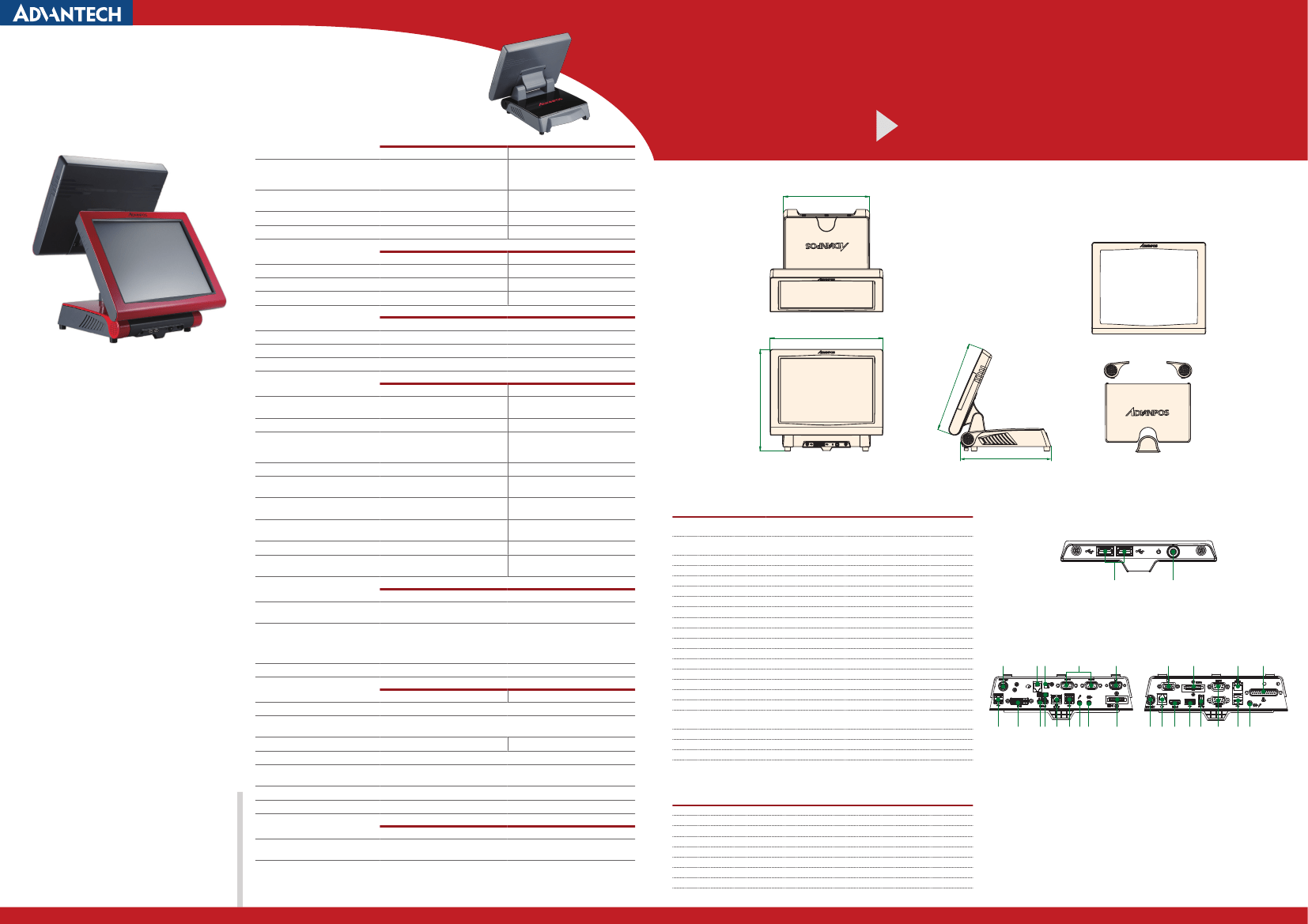

Chameleon
Series
CM-5500-AR70/AR80
System
CPU
Cache Memory
System Chipset
System Memory
15” Chameleon POS Terminal With Intel Haswell/ Baytrail Series Processor
CM-5500-AR70
Intel
®
Haswell Core i7 / i5 / i3 /
Pentium processor with LGA1150
CPU socket
Smart cache memory (base on
CPU)
Intel H81 (Haswell)
Maximum up to 16GB DDR3
CM-5500-AR70
1 x 2.5" SATA HDD/SSD bay
SATA3 (6.0Gb/S)
1 x Full-sized mSATA slot
CM-5500-AR80
Intel
®
Celeron
®
J1900 quad-core
processor 2.0 GHz
2MB 2nd level cache memory
Intel
®
Bay Trail quad-core SoC
Maximum up to 8GB DDR3
CM-5500-AR80
1x2.5" SATA HDD/SSD Bay
SATA2 (3.0Gb/S)
1 x Full-Sized mSATA
Chameleon
Series
CM-5500-AR70/AR80
Dimensions
285.87
Unit: mm
Color Kit Package (Black/ White/ Red/ Yellow)
Storage
HDD Drive
SATA speed
SSD
Main Display
Resolution
15" TFT LCD (LED backlight) / 1024 x 768
250 cd/ m
2
5-wire resistive touch
337.93
374.95
•
Intel Haswell Core i7 / i5 / i3 / Pentium Processor
®
CM-5500-AR70
External: COM1, COM2
(all Pin 9with +5V/12V)
5 x USB 2.0, 1 x USB 3.0
1 x VGA port (D-Sub15)
1 x HDMI 1.4a port
1 x DVI-I port
1 x Line-out, 1 x Mic-in
1 x RJ-45 Gigabit Ethernet
(10/100/1000)
1 x 8-pin (Only provided 12V
power for 2nd display)
RJ11 (12V/24V by external
switch)
Power Switch (LED inside)
N/A
CM-5500-AR80
COM1, COM2
(all Pin 9with +5V/12V)
4 x USB 2.0, 2 x USB 3.0
1 x VGA port (D-Sub15)
1 x HDMI 1.4a port
1 x Line-out & Mic-in
1 x RJ-45 Gigabit Ethernet
(10/100/1000)
1 x 8-pin (Only provided 12V
power for 2nd display)
RJ11 (12V/24V by internal switch
jumper)
Power Switch (LED inside)
1 x bi-directional parallel
(D-Sub25)
•
Support System Memory Up to 16GB DDRIII SDRAM
•
Excellent 3D Graphic Performance
•
Plastic Housing
•
Versatile 2nd Display Options
•
2 COM, 6 USB, 1 Gigabit LAN and 1 Full-sized mSATA Slot
•
Device Options: MSR, i-Button, Finger-print, IC card reader
•
Communications Options: RFID, WiFi or Bluetooth
•
RoHS Compliance
Serial Port
USB Port
Output
Audio
Ethernet
VFD connector
Cash Drawer
Power Button
Parallel Port
301
•
15" TFT LCD with Resistive Touch
I/O
.58
Features
Brightness
Touch Screen
300
Ordering Information
Part No.
ADP-CM-5500-AR70Y
ADP-CM-5500-AR80X
96AP165122454000
96AP165122464000
96AP165122554000
96AP165122564000
96ND500G-ST-SG5K4
ADP-MR-5001-06003
ADP-MR-5030-06003
ADP-MR-5051-06003
ADP-MR-5061-06003
ADP-MR-5071-06003
ADP-MR-5081-06003
ADP-MR-50A1-06003
ADP-MR-50B1-06003
ADP-VD-3010-32074
ADP-VD-3010-34074
ADP-VD-3260-43074
ADP-2D-0127-42006
ADP-2D-0127-53004
ADP-2D-0727-12004
Fully-Integrated I/O
Front I/O
Description
15" Haswell i5-4570T, Resistive T/S, 4G DDR3, ADP Logo,
Black ODM, w/o OS & HDD
15" Baytrail, Resistive T/S, 2G DDR3L, ADP Logo, Black
ODM, w/o OS & HDD
RAM DDR3 2G/204/1333 (For CM5500-AR70)
RAM DDR3 2G/204/1600 LV (For CM5500-AR80)
RAM DDR3 4G/204/1333 (For CM5500-AR70)
RAM DDR3 4G/204/1600 LV (For CM5500-AR80)
SG 500G 2.5" SATAIII 5KRPM 16MB 7MM 4K
MSR PS2 CM55 Grey
Finger Printer CM55 Grey
MSR+ Finger Printer PS2 Grey
MSR+ iButton PS2 Grey
MSR+ RFID PS2 Grey
MSR+ IC Card Reader PS2 Grey
MSR+ iButton+ IC Card Reader PS2 Grey
MSR+ Finger Printer+ IC Card Reader PS2 Grey
Pole mount_VFD WP2029C Aluminum Pole 15CM Black
Pole mount_VFD WP2029C Aluminum Pole 30CM Black
Pole mount_VFD WD-304 Plastic Pole 22CM Black
(Alphanumeric and Compound Words)
10.1" Pole VGA Aluminum Pole 15CM Black
10.1 Pole VGA Plastic 22CM Glass Black
15" Pole VGA Aluminum Pole Glass Grey
Modular Option
Second Display
MSR (3-in-1)
Wi-Fi/ Bluetooth
• 15"/ 10.1" TFT LCD (Touch/Non-Touch)
• Embedded VFD Display (2 x 20, 5 or 9 mm Dot Character)
• MSR
• MSR + IC card reader
• MSR + iButton/ Fingerprint/ RFID (13.56KHz) (optional)
• MSR + iButton/ Fingerprint/ RFID (13.56KHz) + IC card reader
WiFi (802.11b/g/n) or Bluetooth
CM-5500-AR70
Plastic housing
Default Yellow/Gray, Red/Gray, Black/Gray, White/Gray
Customization pattern can be made by request
150W 12V power Adaptor
60W 12V power Adaptor
0 ~ 40° C operating with 2.5" SATA HDD
Metric: 352 (D) x 375 (W) x 350 (H)mm / 9 Kg
US: 13.86 (D) x 14.76 (W) x 13.78 (H) / 19.84 lbs
IP65 sealed front panel with touch screen
CE, FCC, RoHS, CCC (optional )
CM-5500-AR80
B
A
Rear I/O
CM5500-AR70
O
NM
L
K
CM5500-AR80
K
J
G
Q
Mechanical & Environmental
Case Material
Case Color
Power Supply
Operation Temperature
Dimensions & Weight
IP Certification
EMI / Safety
C
D
EF G
B H I
J
O N
E
B C
L
B P
Color Kit Ordering Information
Part No.
ADP-CM5-0000000000
ADP-CM5-0000000002
ADP-CM5-0000000004
ADP-CM5-0000000006
ADP-CM5-0000000010
ADP-CM5-0000000012
ADP-CM5-0000000014
ADP-CM5-0000000016
Description
COLOR KIT_ Black
COLOR KIT_ Red
COLOR KIT_ White
COLOR KIT_ Yellow
COLOR KIT_ Black w/ AdvanPOS Logo
COLOR KIT_ Red w/ AdvanPOS Logo
COLOR KIT_ White w/ AdvanPOS Logo
COLOR KIT_ Yellow w/ AdvanPOS Logo
Software
OS Support
Windows 7 Pro Embedded, POSReady 7, Windows 8 Pro Embedded,
Linux Kernel 3.13 or above
A. Power Button
B. USB 2.0
C. USB 3.0
D. DVI
E. HDMI
F. eSATA
G. LAN
H. Mic-in
I. Line-out
J. COM/12V
K. VGA
L. COM
M. Cash Drawer 12V/24V Switch
N. RJ11- Cash Drawer
O. 12V Input
P. Mic-in & Line-out
Q. Parallel Port
• Note: all features and specifications are subject to change without notice; all information are subject to mistakes and alteration.
Last updated : 17-Feb-2016
