Interference Suppression Film Capacitors
MKP Radial Potted Type
FEATURES
•
AEC-Q200 qualified
• Material categorization:
for definitions of compliance please see
www.vishay.com/doc?99912
APPLICATIONS
For standard line bypass (between line and ground) Y2
applications
See also application note:
www.vishay.com/doc?28153
QUICK REFERENCE DATA
Capacitance range (E12 series)
Capacitance tolerance
Rated voltage
Permissible DC voltage
Climatic testing class (according to EN 60068-1)
Maximum application temperature
Reference standards
Dielectric
Electrodes
0.001 μF to 0.1 μF (preferred values acc. to E6)
± 20 %
300 V
AC
; 50 Hz to 60 Hz
1000 V
DC
55/105/56/C for product volumes
1750 mm
3
55/105/56/B for product volumes > 1750 mm
3
105 °C
IEC 60384-14 ed-4 (2013) and EN 60384-14
IEC 60065 requires pass. flamm. class B for volumes > 1750 mm
3
UL 60384-14 2
nd
edition; CSA E60384-1:14 3
rd
edition; CQC
Polypropylene film
Metallized film
Series construction
Construction
Triple construction
Encapsulation
Terminals
Marking
Plastic case, epoxy resin sealed, flame retardant class UL 94 V-0
Tinned wire
C-value; tolerance; rated voltage; sub-class; manufacturer’s type designation;
code for dielectric material, manufacturer location; manufacturer’s logo,
year and week; safety approvals
Note
• For more detailed data and test requirements, contact
rfi@vishay.com
Revision: 08-Aug-2018
Document Number: 26545
1
For technical questions, contact:
rfi@vishay.com
THIS DOCUMENT IS SUBJECT TO CHANGE WITHOUT NOTICE. THE PRODUCTS DESCRIBED HEREIN AND THIS DOCUMENT
ARE SUBJECT TO SPECIFIC DISCLAIMERS, SET FORTH AT
www.vishay.com/doc?91000
Not for New Design - Alternative Device: MKP338 6 Y2
F1710 300V Y2
www.vishay.com
Vishay Roederstein
DIMENSIONS
l
w
h
l
t
P
¯d
t
COMPOSITION OF CATALOG NUMBER
CAPACITANCE
(numerically)
MULTIPLIER
(nF)
0.1
1
10
100
2
3
4
5
Example:
310
= 10 nF
F
1710
TYPE
X
XX
XXXX
PACKAGING
(1)
Note
(1)
For detailed tape specification refer to “Packaging Information”
www.vishay.com/doc?28139
SPECIFIC REFERENCE DATA
DESCRIPTION
Rated AC voltage (U
RAC
)
Permissible DC voltage (U
RDC
)
Tangent of loss angle
C
100 nF
Rated voltage pulse slope (dU/dt)
R
at 420 V
DC
R between leads at 100 V; 1 min
R between leads and case; 100 V; 1 min
Withstanding (DC) voltage (cut off current 10 mA)
Maximum application temperature
Note
(1)
See “Voltage Proof Test for Metalized Film Capacitors”:
www.vishay.com/doc?28169
(1)
;
VALUE
300 V
1000 V
At 1 kHz
10 x 10
-4
100 V/μs
> 15 000 M
> 30 000 M
rise time
1000 V/s
3400 V; 1 min
2100 V; 1 min
105 °C
At 10 kHz
20 x 10
-4
Withstanding (AC) voltage between leads and case
Revision: 08-Aug-2018
Document Number: 26545
2
For technical questions, contact:
rfi@vishay.com
THIS DOCUMENT IS SUBJECT TO CHANGE WITHOUT NOTICE. THE PRODUCTS DESCRIBED HEREIN AND THIS DOCUMENT
ARE SUBJECT TO SPECIFIC DISCLAIMERS, SET FORTH AT
www.vishay.com/doc?91000
Not for New Design - Alternative Device: MKP338 6 Y2
F1710 300V Y2
www.vishay.com
Vishay Roederstein
CATALOG NUMBER F1710... AND PACKAGING
LOOSE IN BOX
ELECTRICAL DATA AND ORDERING INFORMATION
TAPED
REEL:
Ø = 500 mm
(1)(2)
H = 18.5 mm;
P
0
= 12.7 mm
U
RDC
(V)
CAP.
(μF)
DIMENSIONS
wxhxl
(mm)
MASS
(g)
(3)
SHORT LEADS
l
t
= 4 mm
- 1 mm
l
t
= 6.0 mm
- 1.0 mm
SPQ
LONG LEADS
l
t
=
30.0 mm
+ 5.0 mm
SPQ
SPQ
PITCH = 15 mm ± 0.4 mm; d
t
= 0.60 mm ± 0.06 mm; C-TOL. = ± 20 %
0.0010
0.0012
0.0015
0.0018
0.0022
0.0027
0.0033
5.0 x 11.0 x 17.5
0.0039
0.0047
0.0056
0.0068
0.0082
0.010
1000
0.012
0.015
6.0 x 12.0 x 17.5
0.018
1.4
3181004
3181000
300
3181030
500
3181901
700
PITCH = 15 mm ± 0.4 mm; d
t
= 0.80 mm ± 0.08 mm; C-TOL. = ± 20 %
0.022
7.0 x 13.5 x 17.5
1.8
3221004
3221000
300
3221030
500
3221901
700
1
2391004
2471004
2561004
2681004
2821004
3101004
3121004
3151004
2391000
2471000
2561000
2681000
2821000
500
3101000
3121000
450
3151000
3151030
3101030
3121030
500
3151901
2391030
2471030
2561030
2681030
2821030
750
3101901
3121901
800
2391901
2471901
2561901
2681901
2821901
1000
2101004
2121004
2151004
2181004
2221004
2271004
2331004
2101000
2121000
2151000
2181000
2221000
2271000
2331000
750
2101030
2121030
2151030
2181030
2221030
2271030
2331030
900
2101901
2121901
2151901
2181901
2221901
2271901
2331901
1000
PITCH = 22.5 mm ± 0.4 mm; d
t
= 0.80 mm ± 0.08 mm; C-TOL. = ± 20 %
0.027
6.0 x 15.5 x 26.0
0.033
0.039
0.047
0.056
0.068
8.5 x 18.0 x 26.0
3.8
7.0 x 16.5 x 26.0
2.9
2.4
3331004
3391004
3471004
3561004
3681004
3331000
3391000
3471000
3561000
170
3681000
3681030
235
200
3271004
3271000
260
3331030
3391030
3471030
3561030
500
3681901
750
750
3271030
750
3331901
3391901
3471901
3561901
400
500
450
3271901
600
PITCH = 27.5 mm ± 0.4 mm; d
t
= 0.80 mm ± 0.08 mm; C-TOL. = ± 20 %
0.082
9.0 x 19.0 x 31.0
0.100
5.5
4101004
4101000
3821004
3821000
125
4101030
3821030
400
4101901
3821901
250
Notes
• SPQ = Standard Packing Quantity
(1)
Reel diameter = 365 mm is available on request
(2)
H = In-tape height; P = Sprocket hole distance; for detailed specifications refer to “Packaging Information”
0
(3)
Weight for short lead product only
Revision: 08-Aug-2018
Document Number: 26545
3
For technical questions, contact:
rfi@vishay.com
THIS DOCUMENT IS SUBJECT TO CHANGE WITHOUT NOTICE. THE PRODUCTS DESCRIBED HEREIN AND THIS DOCUMENT
ARE SUBJECT TO SPECIFIC DISCLAIMERS, SET FORTH AT
www.vishay.com/doc?91000
Not for New Design - Alternative Device: MKP338 6 Y2
F1710 300V Y2
www.vishay.com
Vishay Roederstein
VALUE
0.001 μF to 0.1 μF
0.001 μF to 0.1 μF
0.001 μF to 0.1 μF
0.001 μF to 0.1 μF
FILE NUMBERS
FI 2016035
E354331
E354331
FI 9216
LINKS
www.vishay.com/doc?28212
www.vishay.com/doc?28189
www.vishay.com/doc?28213
APPROVALS
SAFETY APPROVALS Y2
EN 60384-14 (ENEC)
(= IEC 60384-14 ed-4 (2013))
UL 60384-14 2
nd
edition
CSA E60384-1:14 3
rd
edition
CB-test certificate
VOLTAGE
300 V
AC
300 V
AC
300 V
AC
300 V
AC
The ENEC-approval together with the CB-certificate replace all national marks of the following countries (they have already signed the
ENEC-agreement): Austria; Belgium; Czech. Republic; Denmark; Finland; France; Germany; Greece; Hungary; Ireland; Italy; Luxembourg;
Netherlands; Norway; Portugal; Slovenian; Spain; Sweden, Switzerland and United Kingdom.
MOUNTING
Normal Use
The capacitors are designed for mounting on printed-circuit boards. The capacitors packed in bandoliers are designed for
mounting in printed circuit boards by means of automatic insertion machines.
For detailed tape specifications refer to packaging information:
www.vishay.com/doc?28139
Specific Method of Mounting to Withstand Vibration and Shock
In order to withstand vibration and shock tests, it must be ensured that the stand-off pips are in good contact with the
printed-circuit board:
• For pitches
15 mm capacitors shall be mechanically fixed by the leads
• For larger pitches the capacitors shall be mounted in the same way and the body clamped
Space Requirements on Printed-Circuit Board
The maximum space for length (I
max.
), width (w
max.
), and height (h
max.
) of film capacitors to take in account on the printed-circuit
board is shown in the drawings:
• For products with pitch
15 mm,
w
=
l
= 0.3 mm;
h
= 0.1 mm
• For products with 15 mm < pitch,
27.5 mm,
w
=
l
= 0.5 mm;
h
= 0.1 mm
Eccentricity defined as in drawing. The maximum eccentricity is smaller than or equal to the lead diameter of the product
concerned.
w
max.
= W +
Δ
Eccentricity
I
max.
= I +
Δ
CBA116
h
max.
= h +
Δ
Seating plane
SOLDERING CONDITIONS
For general soldering conditions and wave soldering profile, we refer to the application note:
“Soldering Guidelines for Film Capacitors”:
www.vishay.com/doc?28171
Storage Temperature
T
stg
= -25 °C to +35 °C with RH maximum 75 % without condensation
Ratings and Characteristics Reference Conditions
Unless otherwise specified, all electrical values apply to an ambient temperature of 23 °C ± 1 °C, an atmospheric pressure of
86 kPa to 106 kPa and a relative humidity of 50 % ± 2 %.
For reference testing, a conditioning period shall be applied over 96 h ± 4 h by heating the products in a circulating air oven at
the rated temperature and a relative humidity not exceeding 20 %.
Revision: 08-Aug-2018
Document Number: 26545
4
For technical questions, contact:
rfi@vishay.com
THIS DOCUMENT IS SUBJECT TO CHANGE WITHOUT NOTICE. THE PRODUCTS DESCRIBED HEREIN AND THIS DOCUMENT
ARE SUBJECT TO SPECIFIC DISCLAIMERS, SET FORTH AT
www.vishay.com/doc?91000
Not for New Design - Alternative Device: MKP338 6 Y2
F1710 300V Y2
www.vishay.com

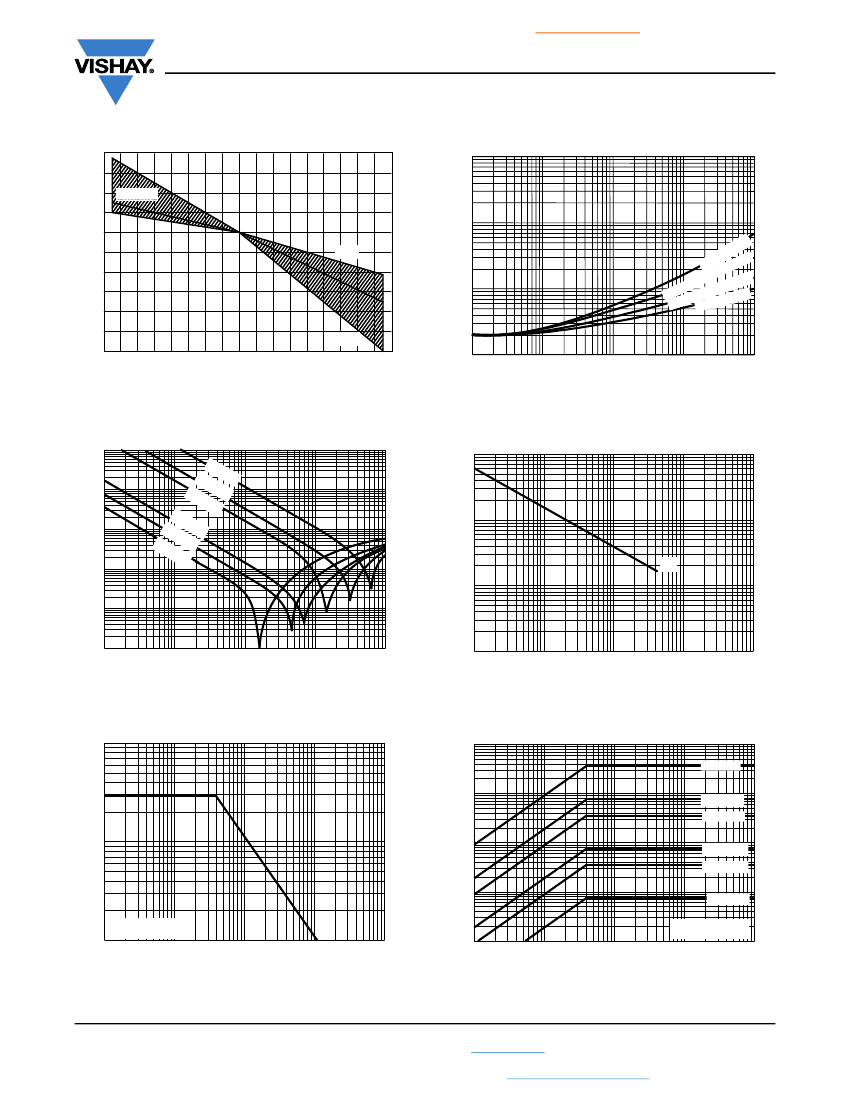

CHARACTERISTICS
4
ΔC/C
(%)
10
3
Dissipation
factor (x 10
-4
)
Vishay Roederstein
2
typical
0
max.
-2
10
2
10
1
-4
min.
-6
- 50
0
50
100
T
amb
(°C)
10
0 1
10
10
2
10
3
nF
20
>2
C
20 nF
≤
2
F
<C
47 n
F
7 n
< C
≤
nF
4
nF
10
10
C
≤
10
4
f (Hz)
10
5
Capacitance as a function of ambient temperature
(typical curve)
Tangent of loss angle as a function of frequency
(typical curve)
10
3
10
2
Impedance
(Ω)
10
2
1n
4.7
F
nF
10
nF
47
nF
10
0n
F
47
0n
F
10
1
10
1
f (MHz)
10
0
10
0
10
-1
Y2
10
-2
10
4
10
5
10
6
10
7
f (Hz)
10
8
10
-1
1
10
100
1000 C (nF) 10 000
Impedance as a function of frequency
(typical curve)
Resonant frequency as a function of capacitance
(typical curve)
10
3
AC voltage
(V)
10
3
AC current
(mA)
470 nF
10
2
100 nF
47 nF
10
2
10
1
10 nF
4.7 nF
10
0
1nF
T
amb
≤
105 °C
10
2
10
3
10
4
f (Hz)
10
5
T
amb
≤
105 °C
10
1
10
1
10
2
10
3
10
4
f (Hz)
10
5
10
10
1
-1
Max. RMS voltage as a function of frequency
Max. RMS current as a function of frequency
Revision: 08-Aug-2018
Document Number: 26545
5
For technical questions, contact:
rfi@vishay.com
THIS DOCUMENT IS SUBJECT TO CHANGE WITHOUT NOTICE. THE PRODUCTS DESCRIBED HEREIN AND THIS DOCUMENT
ARE SUBJECT TO SPECIFIC DISCLAIMERS, SET FORTH AT
www.vishay.com/doc?91000
