Datasheet> All Categories > The connector> 5452590

Preview

5452590: DescriptionTERM BLOCK PLUG 5POS 3.5MM; CategoryThe connector; File Size88KB，3 Pages; ManufacturerPHOENIX CONTACT; Websitehttps://www.phoenixcontact.com; Environmental Compliance

Download Datasheet Parametric View All

5452590 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	5452590	-	-	View	Buy Now

5452590 Overview

TERM BLOCK PLUG 5POS 3.5MM

5452590 Parametric

Parameter Name	Attribute value
type	plug, female socket
Number of pins	5
Number of pins per level	5
Number of levels	1
spacing	0.138"（3.50mm）
Needle seat direction	-
Plug entrance	270°
Terminal type	screws
Installation type	free hanging
Current - IEC	8A
Voltage - IEC	160V
Current - UL	8A
Voltage - UL	300V
Wire Gauge or Range - AWG	14-30 AWG
Wire gauge or range - mm²	0.2-1.5mm²
color	black
Operating temperature	-
Contact mating surface treatment	tin
characteristic	-
Material flammability rating	-
Intrusion protection	-
Screw size	M2
Torque - Screws	-
Wire stripping length	-
Contact material	-
Shell material	-
Contact tail length	-
Insulation height	0.752"（19.10mm）

Preview

Download Datasheet

View All

https://www.phoenixcontact.com/us/products/5452590

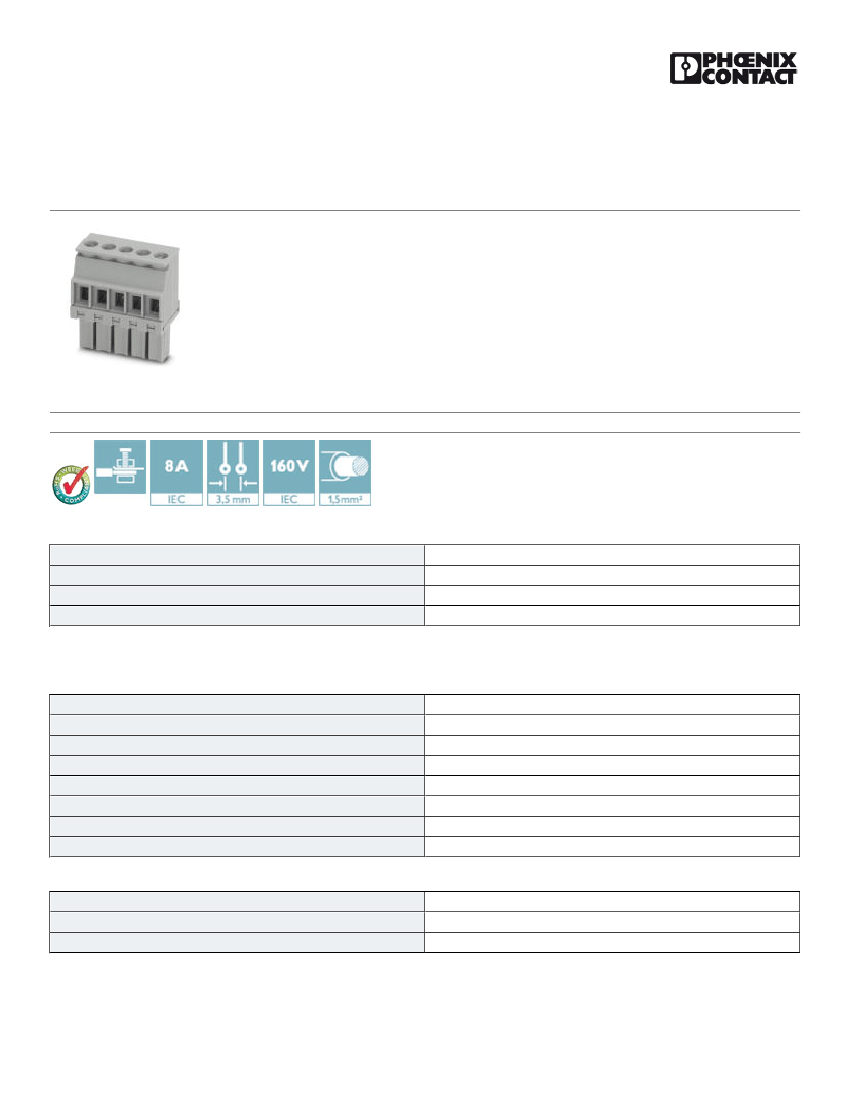

Printed-circuit board connector - BCVP-350W- 5 BK - 5452590

Please be informed that the data shown in this PDF Document is generated from our Online Catalog. Please find the complete data in the user's

documentation. Our General Terms of Use for Downloads are valid

(http://phoenixcontact.com/download)

Plug component, Nominal current: 8 A, Rated voltage (III/2): 160 V, Number of positions: 5, Pitch: 3.5 mm,

Connection method: Screw connection with tension sleeve, Color: black, Contact surface: Tin

The figure shows a 5-pos. version of

the product in gray

Key Commercial Data

Packing unit

Minimum order quantity

Custom tariff number

Country of origin

1 pc

100 pc

85366990

Germany

Classifications

eCl@ss

eCl@ss 4.0

eCl@ss 4.1

eCl@ss 5.0

eCl@ss 5.1

eCl@ss 6.0

eCl@ss 7.0

eCl@ss 8.0

eCl@ss 9.0

272607xx

27260701

27261101

27141110

27440309

ETIM

ETIM 3.0

ETIM 4.0

ETIM 5.0

EC001121

EC002637

EC002638

05/06/2016 Page 1 / 3
