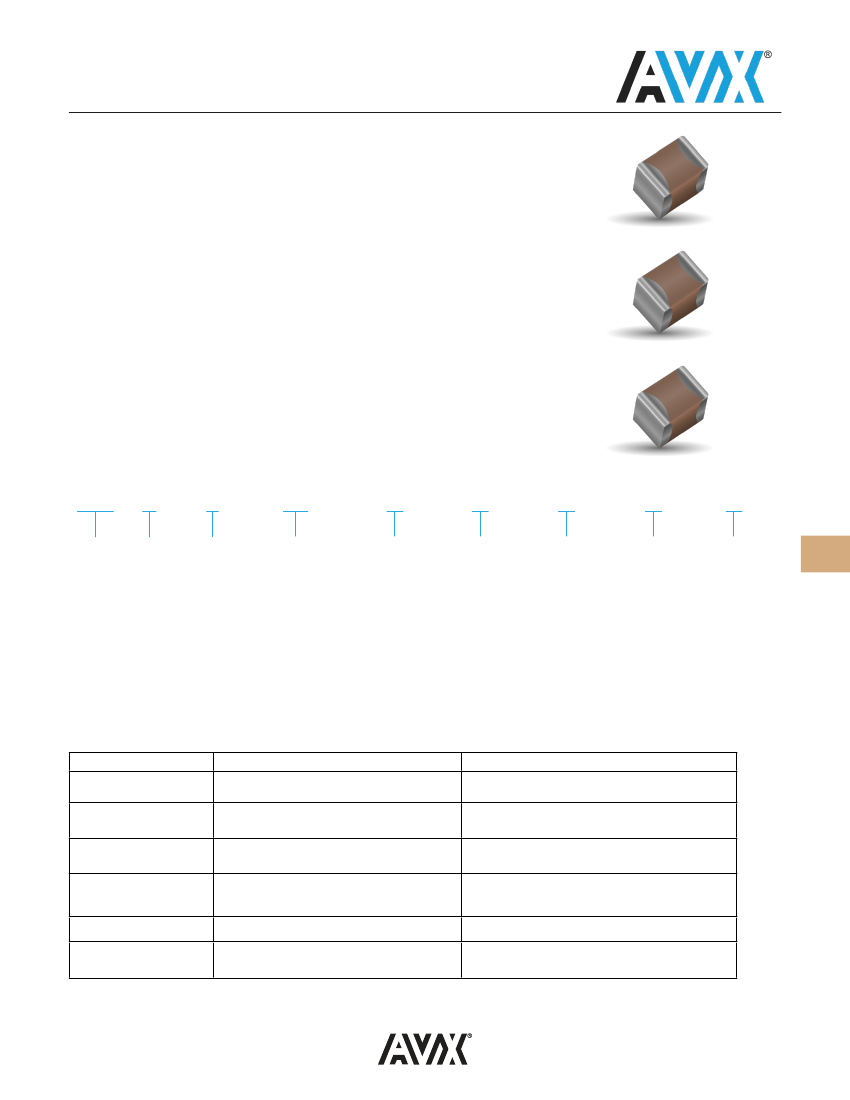

Automotive MLCC
Automotive
GENERAL DESCRIPTON
AVX Corporation has supported the Automotive Industry requirments for
Multilayer Ceramic Capacitors consistently for more than 10 years. Products
have been developed and tested specifically for automotive applications and all
manufacturing facilities are QS9000 and VDA 6.4 approved.
As part of our sustained investment in capacity and state of the art technology,
we are now transitioning from the established Pd/Ag electrode system to a Base
Metal Electrode system (BME).
AVX is using AECQ200 as the qualification vehicle for this transition. A detailed
qualification package is available on request and contains results on a range of
part numbers including:
• X7R dielectric components containing BME electrode and copper
terminations with a Ni/Sn plated overcoat
• X7R dielectric components, BME electrode with epoxy finish for conductive
glue mounting
HOW TO ORDE
0805
Size
0402
0603
0805
1206
1210
1812
5
Voltage
10V = Z
16V = Y
25V = 3
50V = 5
100V = 1
200V = 2
250V = V
500V = 7
A
Dielectric
NP0 = A
X7R = C
X8R = F
104
Capacitance
Code (in pF)
2 Sig. Digits +
Number of Zeros
e.g. 10 F = 106
K
Capacitance
Tolerance
F = ±1% (≥10pF)*
G = ±2% (≥10pF)*
J = ±5% (≤1μF)
K = ±10%
M = ±20%
*NPO only
4
Failure
Rate
4=Automotive
T
T = Plated Ni and Sn
Z = FLEXITERM
®
**
U = Conductive Epo
**X7R
X8R only
2
2 = 7” Reel
4 = 13” Reel
A
A = Std. Product
Terminations
Packaging Special Code
Contact factory for availability of Tolerance Options for Specific Part Numbers.
NOTE: Contact factory for non-specified capacitance values
0402 case size available in T termination only.
COMMERCIAL VS AUTOMOTIVE MLCC PROCESS COMPARISON
Commercial
Administrative
Design
Dicing
Lot Qualification
(Destructive Physical
Analysis - DPA)
Visual/Cosmetic Quality
Application Robustness
Standard Part Numbers.
No restriction on who purchases these parts.
Minimum ceramic thickness of 0.020”
Side & End Margins = 0.003” min
As per EIA RS469
Standard process and inspection
Standard sampling for accelerated
wave solder on X7R dielectrics
Automotive
Specific Automotive Part Number. sed to control
supply of product to Automotive customers.
Minimum Ceramic thickness of 0.029” (0.74mm)
on all X7R product.
Side & End Margins = 0.004” min
Cover Layers = 0.003” min
Increased sample plan
stricter criteria.
100% inspection
Increased sampling for accelerated wave solder on
X7R and NP0 followed by lot by lot reliability testing.
All Tests have Accept/Reject Criteria 0/1
080818
55
