MWSEA2-3-19 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Wire/cable> MWSEA2-3-19

MWSEA2-3-19: DescriptionCBL CLIP WIRE SADDLE NAT ARROW; CategoryWire/cable; File Size16KB，1 Pages; ManufacturerEssentra Components; Environmental Compliance

Download Datasheet Parametric View All

MWSEA2-3-19 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	MWSEA2-3-19	-	-	View	Buy Now

MWSEA2-3-19 Overview

CBL CLIP WIRE SADDLE NAT ARROW

MWSEA2-3-19 Parametric

Parameter Name	Attribute value
type	Clips, buckle sets
type attribute	miniature
Size of the opening	0.360" long x 0.240" high (9.14mm x 6.10mm)
Installation type	arrow
Material	Polyamide (PS66), Nylon 6/6
color	natural
length	0.470"（11.94mm）
width	0.160"（4.06mm）
high	0.440"（11.18mm）
Panel hole size	0.138"（3.51mm）
Material thickness	-
Material flammability rating	UL94 V-0
Adhesive	-
characteristic	flame retardant
Screw size	-
Bundling center to installation center	-
Panel thickness	0.063"（1.60mm）

Preview

Download Datasheet

View All

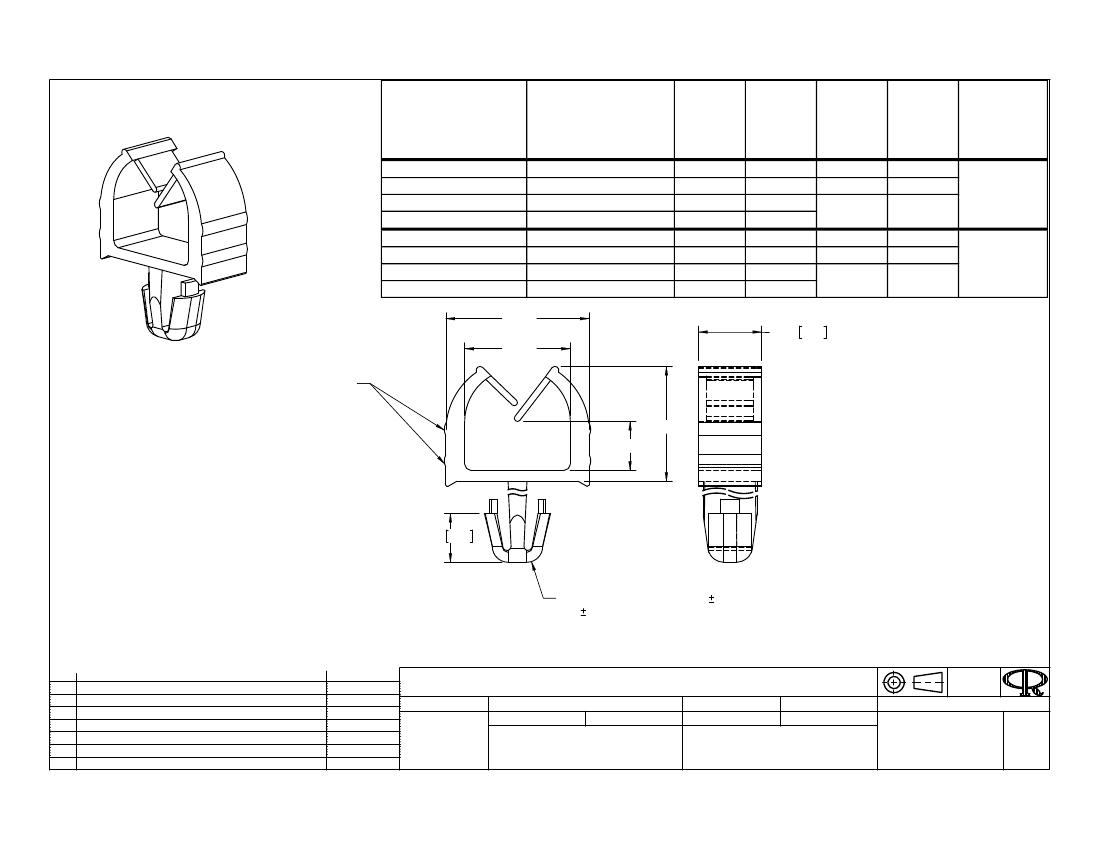

FLAME RETARDANT

NYLON 6/6 (RMS-01)

NOMINAL

NYLON 6/6 (RMS-19)

COLOR: NATURAL

"A" REF. "B" REF. "C" REF. "D" REF.

PANEL

COLOR: NATURAL

PART NO.

THICKNESS

PART NO.

*MWSEA2-1-01

MWSEA2-2-01

MWSEA2-3-01

MWSEA2-4-01

*MWSEA2-1-1-01

MWSEA2-1-2-01

MWSEA2-1-3-01

MWSEA2-1-4-01

"C"

.16 4.0

"D"

*SLIGHT PROTRUSIONS

MAY APPEAR ON PARTS

"A"

"B"

*MWSEA2-1-19

MWSEA2-2-19

MWSEA2-3-19

MWSEA2-4-19

*MWSEA2-1-1-19

MWSEA2-1-2-19

MWSEA2-1-3-19

MWSEA2-1-4-19

.29 [7.3]

.36 [9.1]

.44 [11.2]

.51 [13.0]

.29 [7.3]

.36 [9.1]

.44 [11.2]

.51 [13.0]

.12

.16

.24

.30

.12

.16

.24

.30

[3.0]

[3.9]

[6.0]

[7.7]

[3.0]

[3.9]

[6.0]

[7.7]

.36 [9.1]

.42 [10.8]

.47 [12.0]

.36 [9.1]

.42 [10.8]

.47 [12.0]

.26 [6.7]

.32 [8.1]

.36 [9.1]

.26 [6.7]

.32 [8.1]

.36 [9.1]

.063 [1.6]

.093 [2.36]

.12 3.1

TO SNAP-LOCK IN A .138 .002

[3.5 0.05] HOLE DIA. IN A

PANEL THICKNESS INDICATED

TITLE:

REV.

SEE CO 200190 FOR CHANGES

COMPLETELY REDRAWN, SEE ECN #709

UPDATED TABLE AND ADDED .093 [2.36] PANEL THK.

P/N FOR RMS-19 ADDED TO TABLE

FR-NYLON (RMS-19) ADDED

DIM .16 [4.0] WAS .17 [4.3]

DESCRIPTION

S.K. 05/22/08

10.06.03

05.01.02

J.L.

08.08.00

J.L.

09.22.98

J.L.

03.06.98

ENGR. DATE

CREATED USING

SOLIDWORKS

MICRO WIRE SADDLE

FILE #: MWSEA2

SHEET: 1 OF 1

RE:

SHEET SIZE: A

DWN: SM

DT: 10/02/03

APP: -

CHKD: -

PART #

DWG IN

IN [MM]

FINAL

TYPE

TOLERANCES

UNLESS NOTED

.XX=±.010

.XXX=±.005

FRAC.=±1/64

ANG.=±1°

RICHCO, INC.

ENG@RICHCO-INC.COM

(773) 539-4060

SEE TABLE
