0524352633 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> 0524352633

0524352633: DescriptionCONN FFC TOP 26POS 0.50MM R/A; CategoryThe connector; File Size537KB，5 Pages; ManufacturerMolex Premise Network; Environmental Compliance

Download Datasheet Parametric Compare View All

0524352633 Overview

CONN FFC TOP 26POS 0.50MM R/A

0524352633 Parametric

Parameter Name	Attribute value
Flat flexible type	FFC，FPC
Installation type	Surface mount, right angle
Connector/contact type	contacts, top
Number of pins	26
spacing	0.020"（0.50mm）
Termination	welding
FFC, FCB thickness	0.30mm
board height	0.079"（2.00mm）
Lock function	slide lock
Cable end type	tapered
Contact material	Phosphor bronze
Contact plating	tin bismuth
Shell material	Polyamide (PA), nylon, glass fiber reinforced
Actuator material	Polyphenylene sulfide (PPS), glass fiber reinforced
characteristic	Fixed solder tail, zero insertion force (ZIF)
Rated voltage	50V
Operating temperature	-20°C ~ 85°C
Material flammability rating	UL94 V-0
Rated current	0.5A
Contact plating thickness	39.4µin（1.00µm）
Shell color	White
Actuator color	black
Number of patches	20

Preview

Download Datasheet

View All

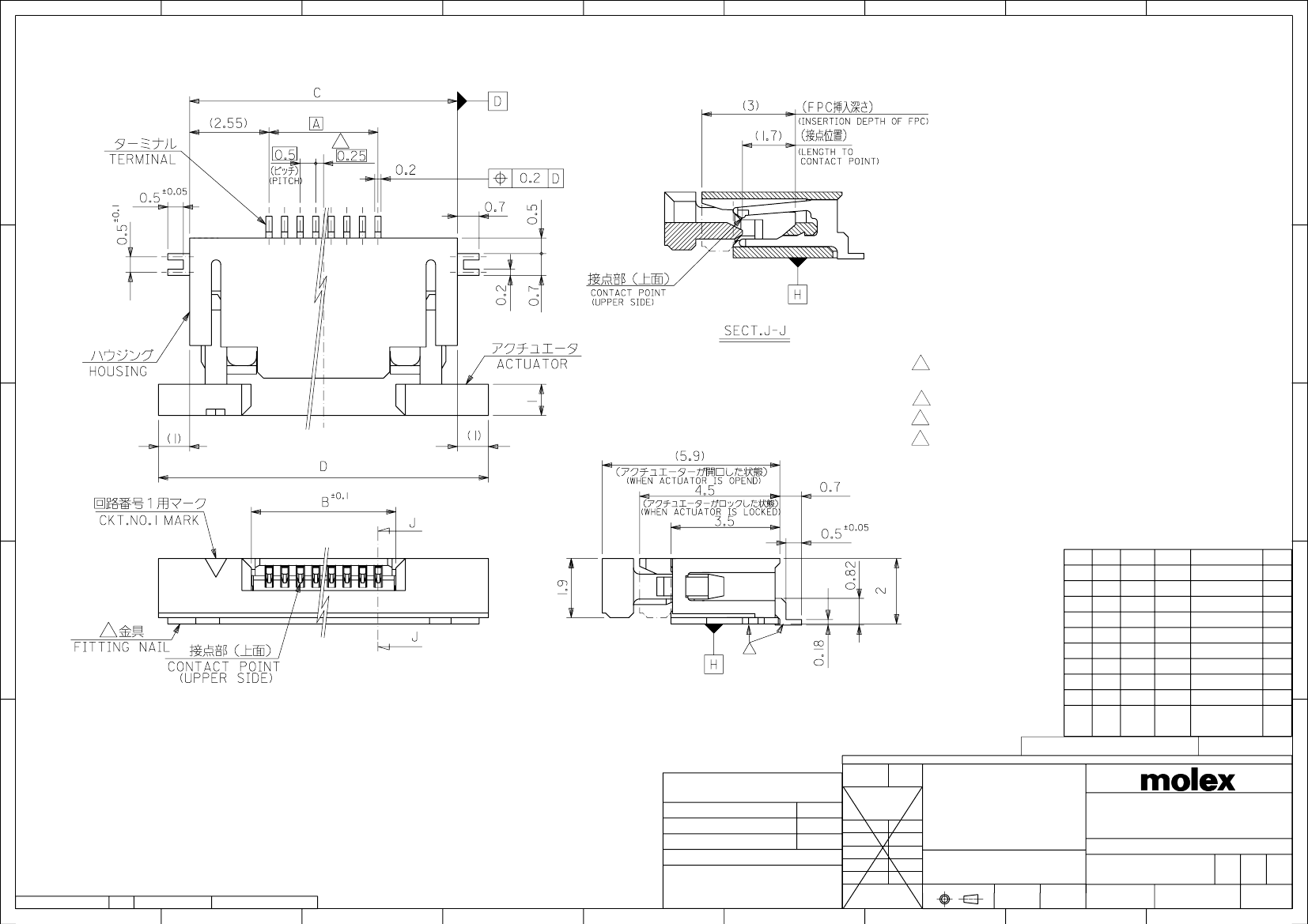

注記NOTES

　1.½用材料

MATERIAL

ハウジング：ポリアミド(PA)、ガラス充填、UL94V-0、ナチュラル(½)

HOUSING:POLYAMIDE,GLASS FILLED,UL94V-0,NATURAL（WHITE）

アクチュエータ：ポリフェニレンサルファイド（PPS）、ガラス充填、UL94V-0、黒

ACTUATOR:POLYPHENYLENE SULFIDE,GLASS FILLED,UL94V-0,BLACK

ターミナル：リン青銅、(t=0.2)

TERMINAL:PHOSPHOR BRONZE

金具：リン青銅、（t=0.2）

FITTING NAIL:PHOSPHOR BRONZE

2.めっき仕様

PLATING

ターミナル TERMINAL

錫銀ビスマスめっき(1.0μ½以上)

下地：ニッケルめっき(1.0μ½以上)

TIN SILVER BISMUTH PLATING (1.0 MICROMETER MINIMUM)

UNDER PLATE:NICKEL PLATING (1.0 MICROMETER MINIMUM)

金具 FITTING NAIL

錫めっき(1.0μ½以上)

下地：ニッケルめっき(1.0μ½以上)

TIN PLATING (1.0 MICROMETER MINIMUM)

UNDER PLATE:NICKEL PLATING (1.0 MICROMETER MINIMUM)

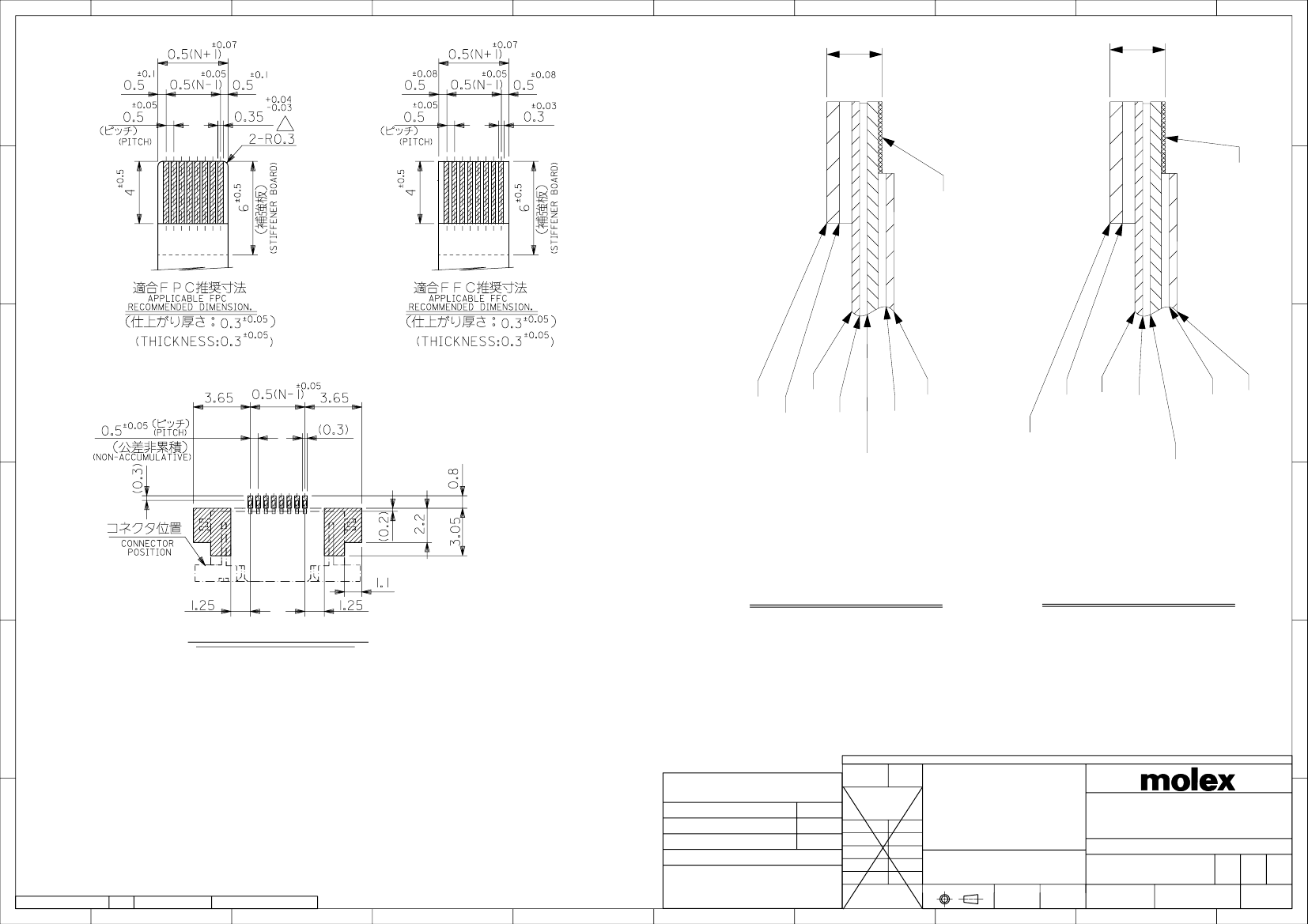

R0.3は、FPCの導½部にかからないこと

R0.3 MUST NOT BE OVERLAPED TO PATTERN OF FPC.

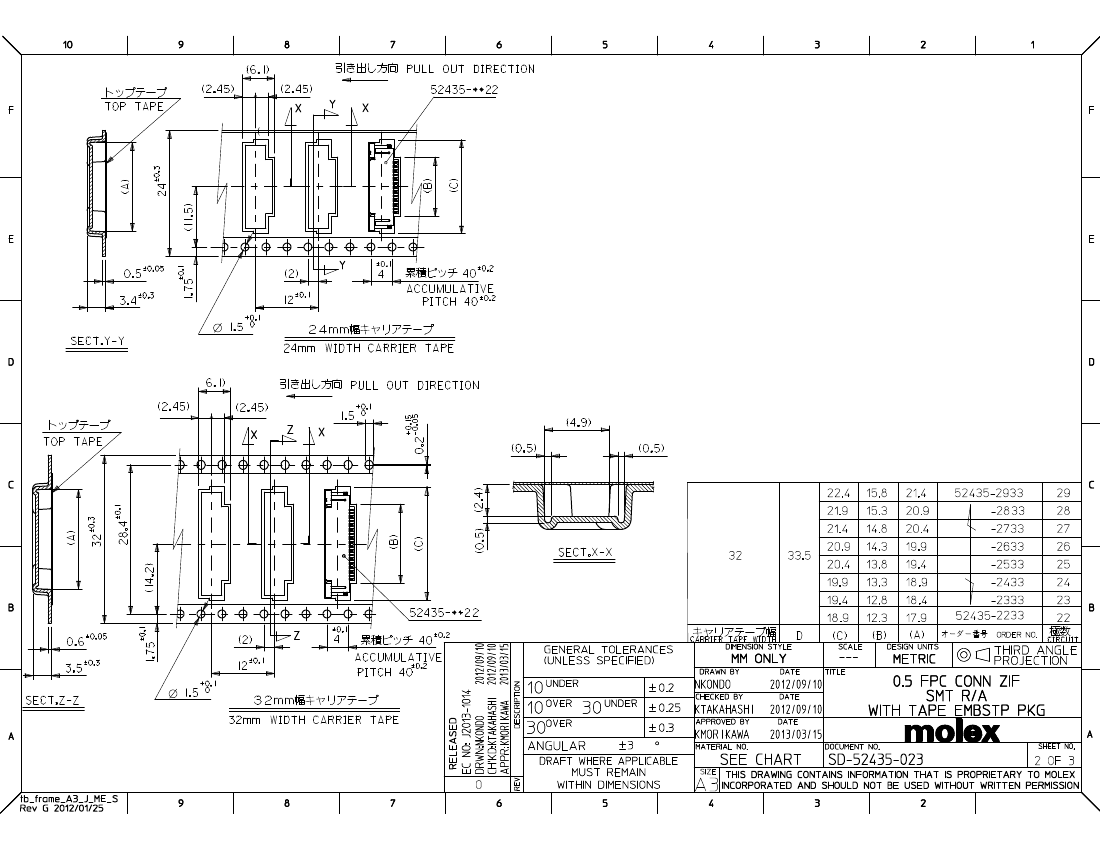

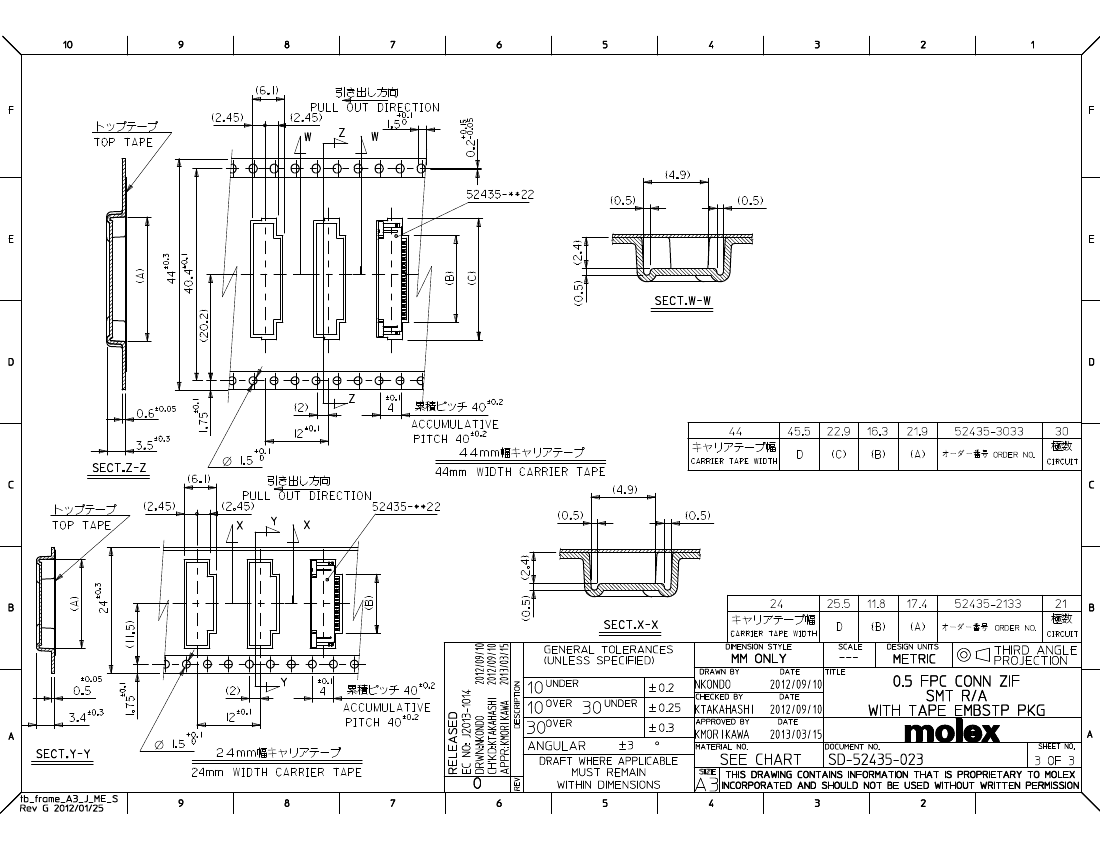

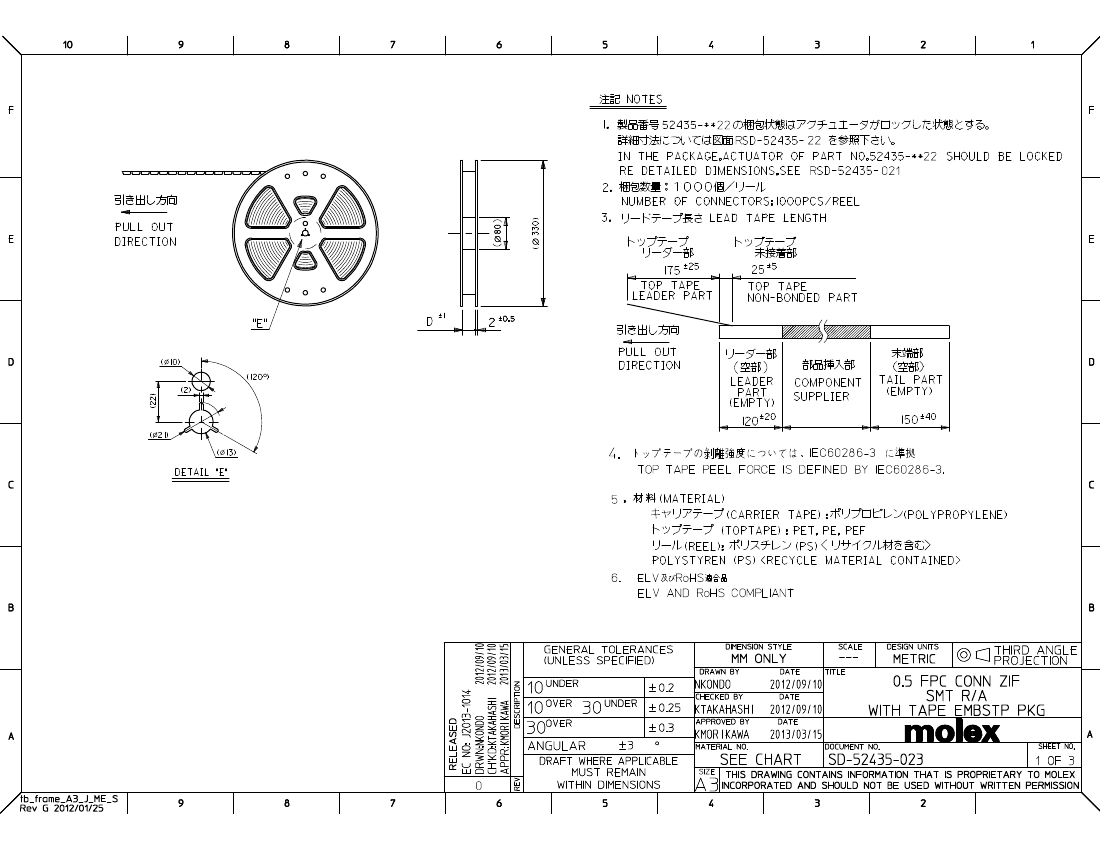

　4.エンボステープ梱包時は、アクチュエータがロックした状態になります。

IN THE PACKAGE,ACTUATOR SHOULD BE LOCKED.

偶数極に適用

APPLY FOR EVEN CIRCUIT.

ﾊﾟﾀ½ﾝ剥離止め金具

FITTING NAIL FOR PREVENTION OF PEELING OF P.W.B. PATTERN.

½ルダーテール半田付け面のズレ量、および金具半田付け面のズレ量は、

基準面Hに対し上方向 0.1MAXIMUM　、下方向 0.15MAXIMUM とし、

相互のばらつきは0.1MAXIMUMとする。

MISALIGNMENT OF SOLDER TAILS AND FITTING NAILS FROM DATUM H

UPPER DIRECTION : 0.1MAXIMUM, LOWER DIRECTION :

　　0.15MAXIMUM OFFSET BETWEEN UPPER AND LOWER : 0.1MAXIMUM.

8.ELV及びRoHS適合品

ELV AND RoHS COMPLIANT.

21.6

21.1

20.6

20.1

19.6

19.1

18.6

18.1

17.6

17.1

19.6

19.1

18.6

18.1

17.6

17.1

16.6

16.1

15.6

15.1

15.65

15.15

14.65

14.15

13.65

13.15

12.65

12.15

11.65

11.15

14.5

14.0

13.5

13.0

12.5

12.0

11.5

11.0

10.5

10.0

（A）

52435-3033

52435-2933

52435-2833

25435-2733

52435-2633

52435-2533

52435-2433

52435-2333

52435-2233

52435-2133

オーダー番号極数

ORDER NO. CKT

CONNECTOR SERIES NO.

DIMENSION UNITS

52435-**22

THIS DRAWING CONTAINS INFORMATION THAT IS PROPRIETARY TO MOLEX ELECTRONIC TECHNOLOGIES, LLC AND SHOULD NOT BE USED WITHOUT WRITTEN PERMISSION

SCALE

DOCUMENT STATUS

FORMAT: master-tb-prod-A3

REVISION: H

DATE: 2018/01/18

RELEASE DATE

2018/04/13

03:51:00

GENERAL TOLERANCES

(UNLESS SPECIFIED)

10 UNDER

±　0.2

10 OVER 30 UNDER

±　0.25

±　0.3

30 OVER

ANGULAR 　　±　3　°

DRAFT WHERE APPLICABLE

MUST REMAIN

WITHIN DIMENSIONS

ANGULAR TOL

1:1

3.0 °

CURRENT REV DESC: REVISED

GENERAL TOLERANCES

(UNLESS SPECIFIED)

4 PLACES

3 PLACES

2 PLACES

1 PLACE

0 PLACES

0.2

0.25

0.3

DRWN:

YCHEN128

CHK'D: KTAKAHASHI

APPR: NUKITA

INITIAL REVISION:

DRWN:

NASANUMA

APPR:

KMORIKAWA

THIRD ANGLE PROJECTION

DRAWING

EC NO:

600129

2018/04/09

2018/04/12

2018/04/13

2012/09/13

2013/03/15

SERIES

0.5 FPC CONN ZIF R/A

HOUSING ASSY (UPPER CONTAT)

PRODUCT CUSTOMER DRAWING

DOCUMENT NUMBER

DOC TYPE

DOC PART

REVISION

SD-52435-022

MATERIAL NUMBER

CUSTOMER

PSD

001

DRAFT WHERE APPLICABLE

MUST REMAIN

WITHIN DIMENSIONS

SHEET NUMBER

A3-SIZE

52435

GENERAL MARKET

1 OF 2
