8W-24.576MBB-T datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Passive components> 8W-24.576MBB-T

8W-24.576MBB-T: DescriptionOSC XO 24.576MHZ CMOS SMD; CategoryPassive components; File Size929KB，1 Pages; ManufacturerTXC Corporation; Websitehttp://www.txccrystal.com/; Environmental Compliance

Download Datasheet Parametric View All

8W-24.576MBB-T Overview

OSC XO 24.576MHZ CMOS SMD

8W-24.576MBB-T Parametric

Parameter Name	Attribute value
type	XO (Standard)
frequency	24.576MHz
Function	enable/disable
output	CMOS
Voltage - Power	3.3V
frequency stability	±50ppm
Operating temperature	-10°C ~ 70°C
Current - Power (maximum)	15mA
grade	-
Installation type	surface mount
Package/casing	4-SMD, no leads
size/dimensions	0.098" long x 0.079" wide (2.50mm x 2.00mm)
Height - Installation (maximum)	0.035"（0.90mm）
Current - Power (disabled) (maximum)	-

Preview

Download Datasheet

View All

Think of Frequency Think of

come visit our site http://www.txccorp.com

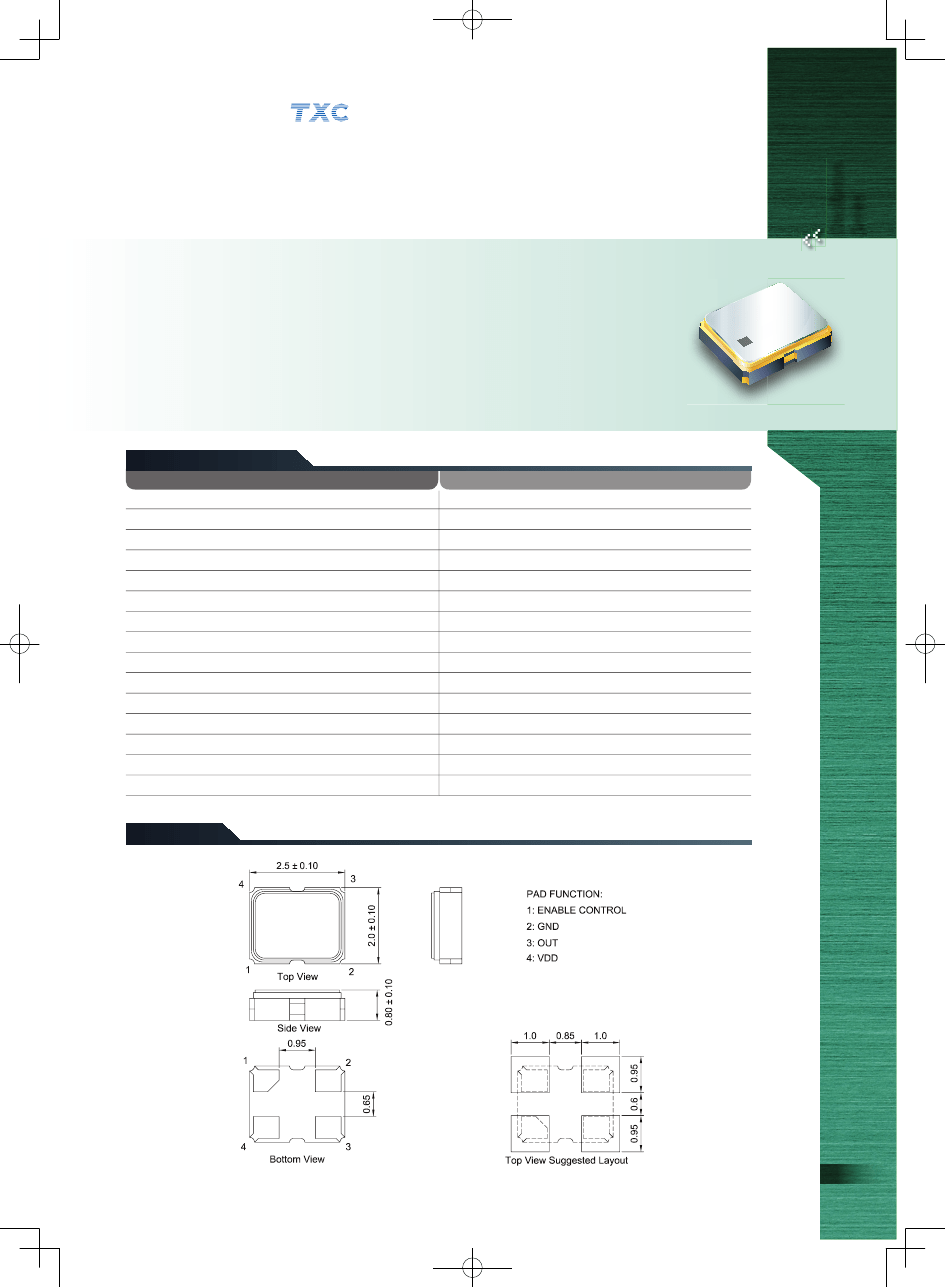

Features

．

Ultra Small SMD seam sealed clock crystal oscillator units.

．

For applications in WLAN, Bluetooth, DSC, DSL and other IT product.

．

Tri-state function available.

．

RoHS Compliant / Pb Free.

Electrical Speciﬁcations

Item / Type

Output Type

Output Load

Oscillation Mode

Supply Voltage

Frequency Range

Frequency Stability

Operating Temperature Range

Storage Temperature Range

Voltage Vol ( Max. ) / Voh ( Min. )

Rise ( Tr ) / Fall ( Tf ) Time

Supply Current

Symmetry

Start-up Time

Phase Jitter ( 12 KHz ~ 20 MHz )

Aging ( at 25

℃

)

CMOS

15 pF , or specify

Fundamental

3.3 V ( 1.8 V , 2.5 V available )

4 ~ 75 MHz

25 ppm ,

50 ppm

- 20 ~ + 70

℃

, - 40 ~ + 85

℃

- 55 ~ + 125

℃

0.1 VDD / 0.9 VDD

5 ns Max.

10 mA Max.

45 ~ 55 %

5 ms Max.

1 ps Max.

3 ppm / year Max.

Dimensions

Units: mm

Remark : Speciﬁcation subject to change without prior notice. Please conﬁrm with our sales. http://www.txccorp.com

Oscillators

Series

SMD Crystal Oscillators-

CMOS Output

2.5 x 2.0 x 0.8 mm 8W Series
