Part Number

Search

0526101534

Description
CONN FPC VERT 15POS 1.00MM SMD
CategoryThe connector
File Size2MB,14 Pages
ManufacturerMolex Premise Network
Environmental Compliance
Download Datasheet Parametric View All

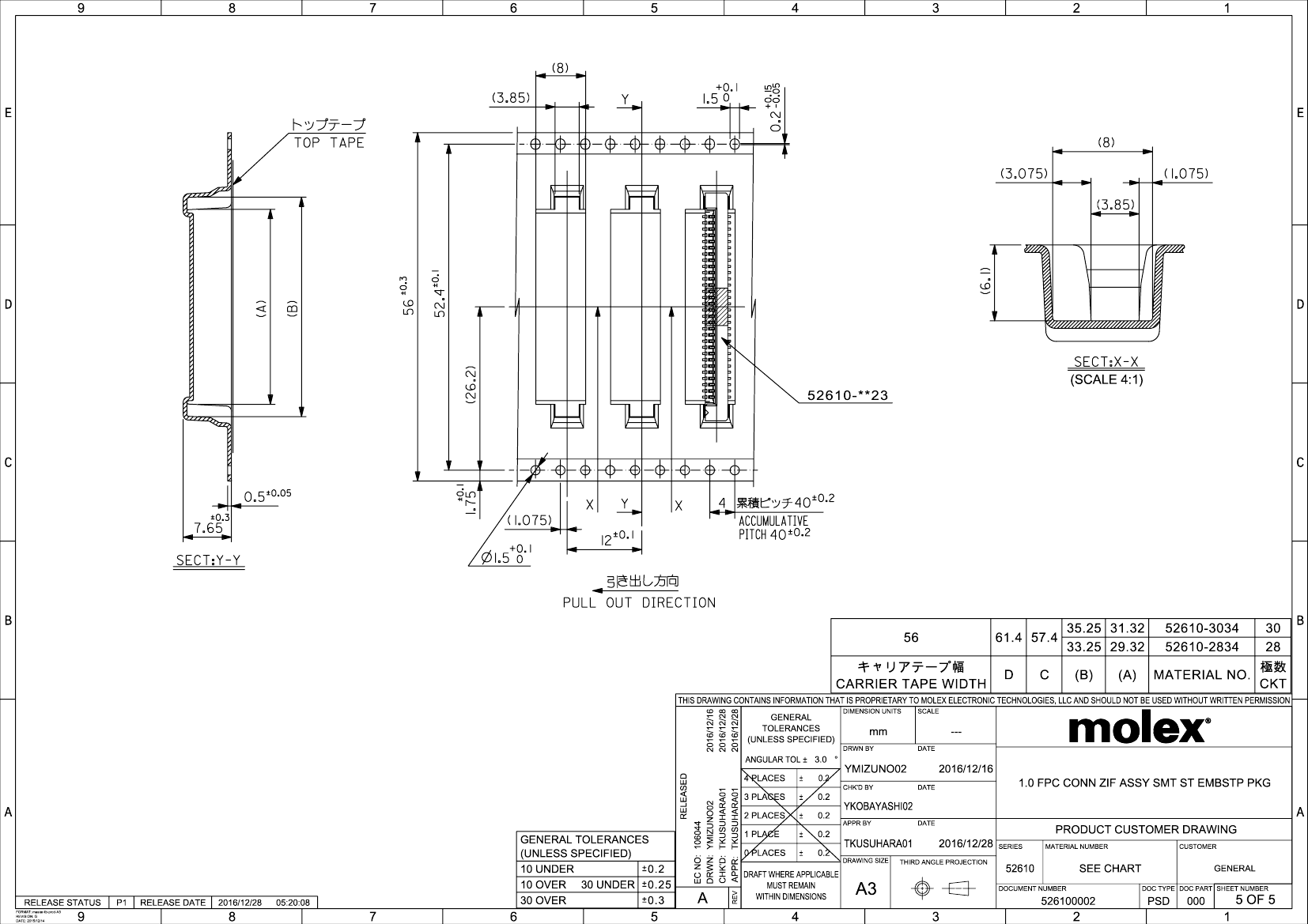

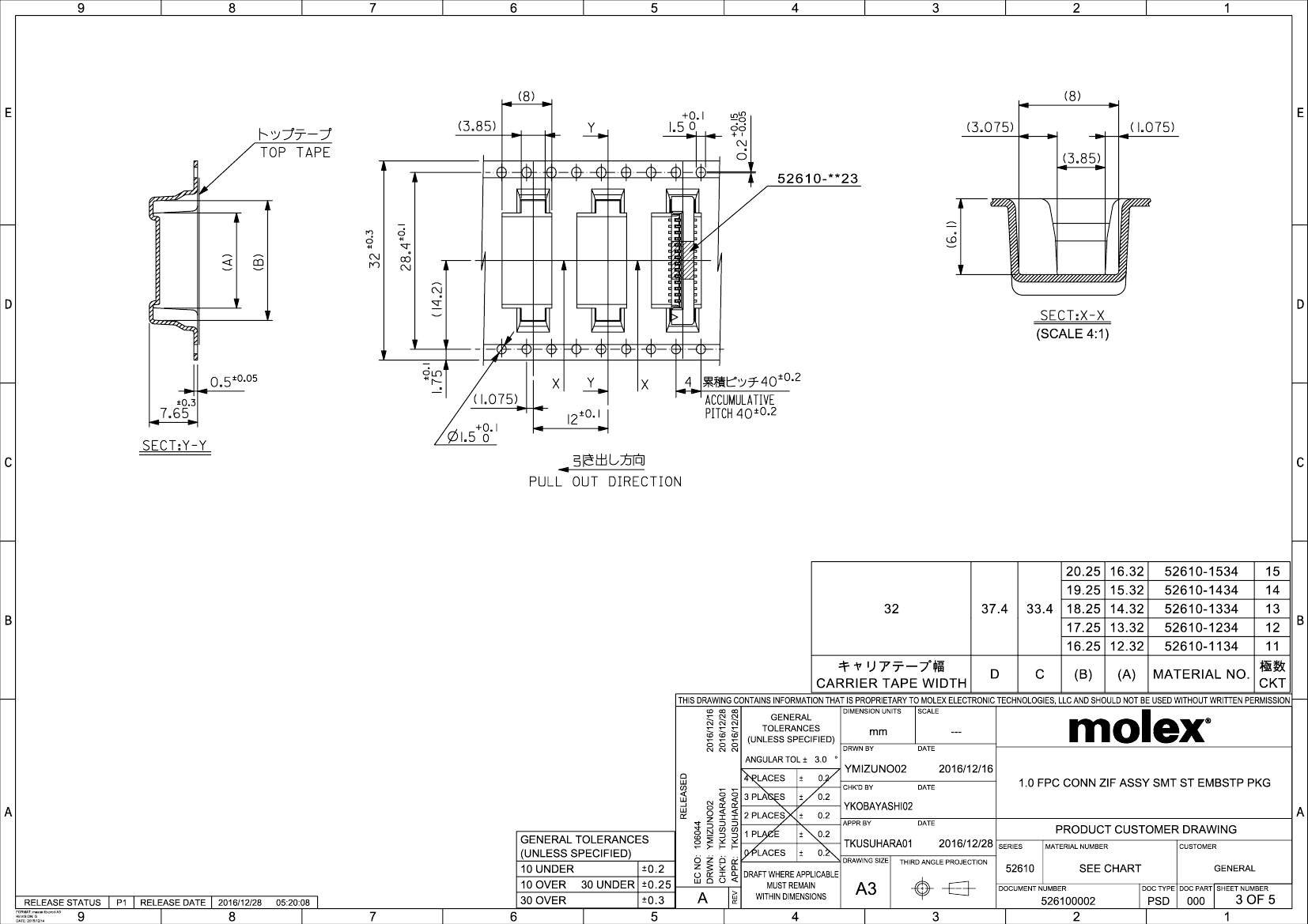

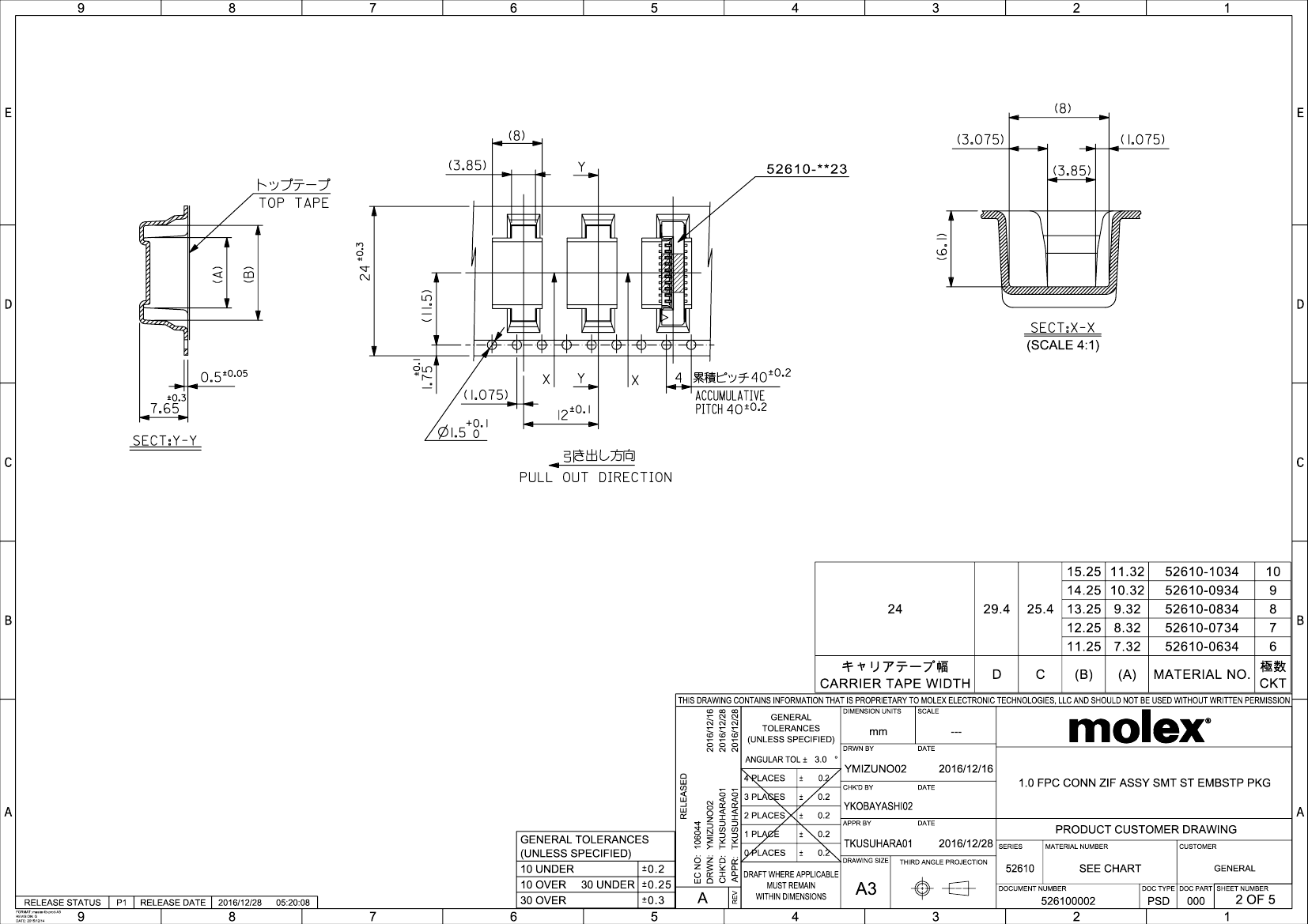

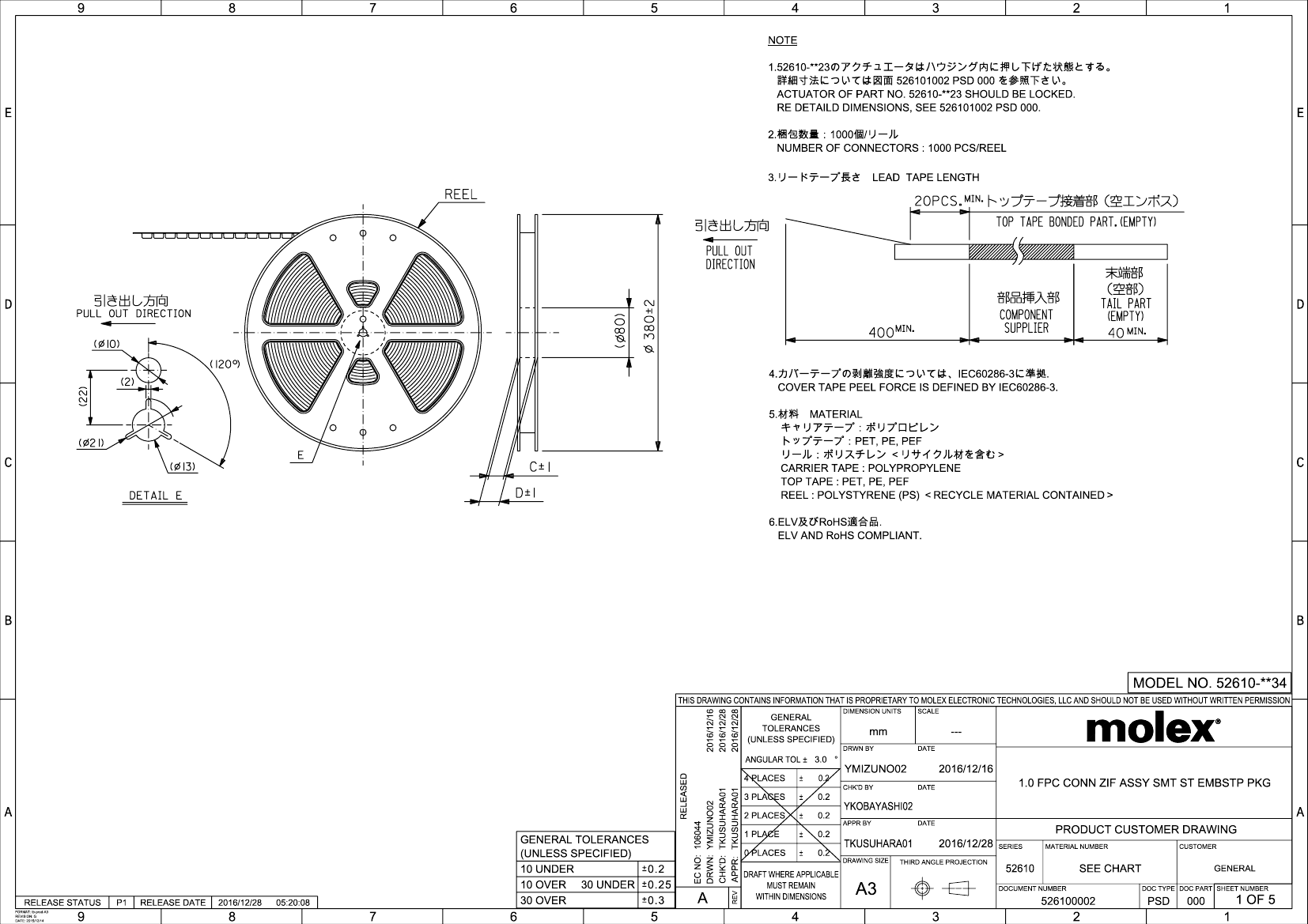

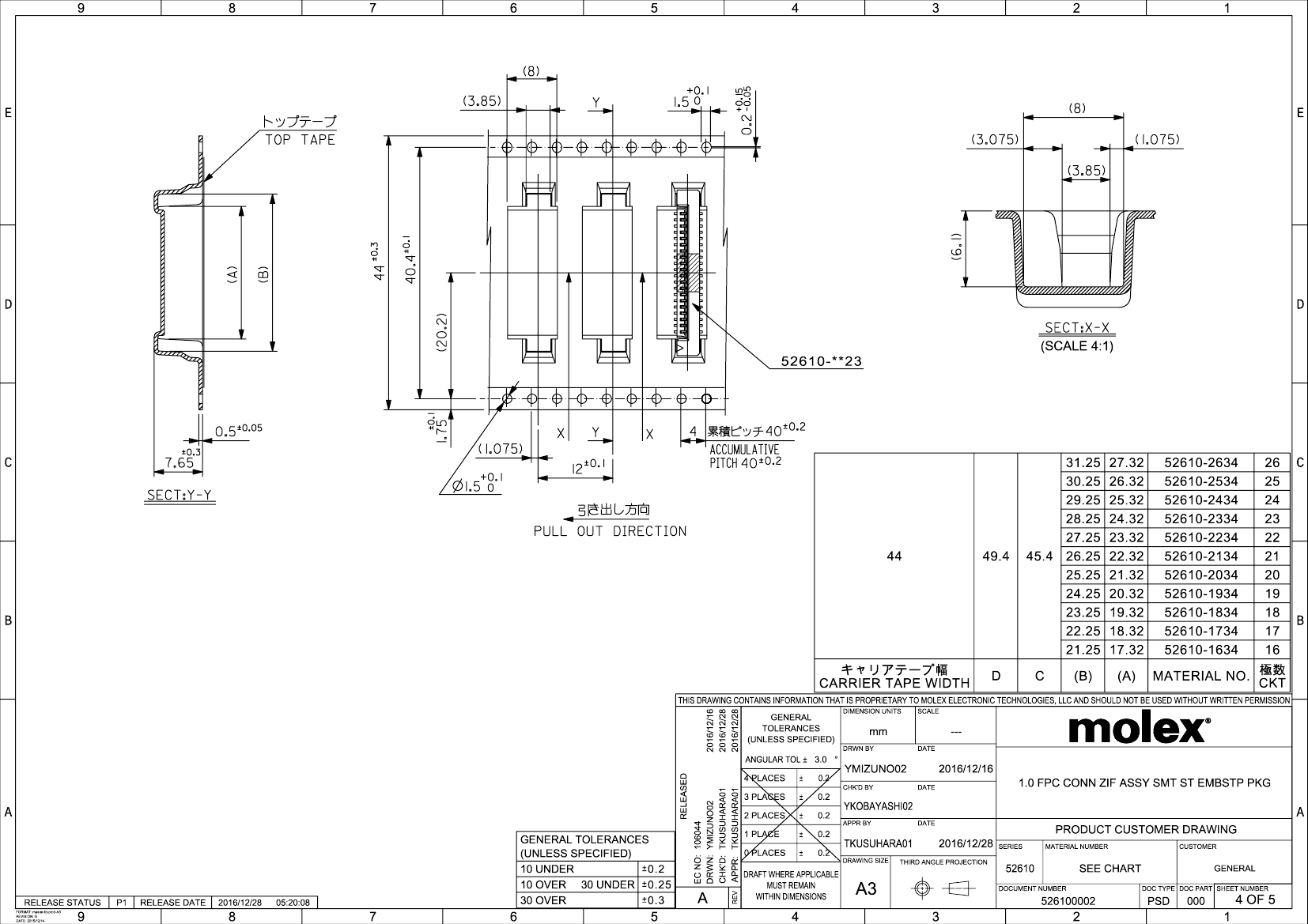

0526101534 Overview

CONN FPC VERT 15POS 1.00MM SMD

0526101534 Parametric

Parameter NameAttribute value
Flat flexible typeFPC
Installation typesurface mount
Connector/contact typeContact, vertical, 1 side
Number of pins15
spacing0.039"(1.00mm)
Terminationwelding
FFC, FCB thickness0.30mm
board height0.226"(5.74mm)
Lock functionslide lock
Cable end typetapered
Contact materialPhosphor bronze
Contact platingtin bismuth
Shell materialPolyamide (PA), nylon, glass fiber reinforced
Actuator materialPolyphenylene sulfide (PPS), glass fiber reinforced
characteristicZero insertion force (ZIF)
Rated voltage-
Operating temperature-
Material flammability ratingUL94 V-0
Rated current-
Contact plating thickness39.4µin(1.00µm)
Shell colorWhite
Actuator colorbrown
Number of patches-
