ETD44/22/15-3C97-G1000 datasheet, PDF

Datasheet> All Categories > Passive components> ETD44/22/15-3C97-G1000

ETD44/22/15-3C97-G1000: DescriptionER AND ETD CORES; CategoryPassive components; File Size68KB，2 Pages; ManufacturerFerroxcube; Websitehttp://www.ferroxcube.com/; Environmental Compliance

Download Datasheet Parametric View All

ETD44/22/15-3C97-G1000 Overview

ER AND ETD CORES

ETD44/22/15-3C97-G1000 Parametric

Parameter Name	Attribute value
Kernel type	ETD
Tolerance	-
gap	-
Material	3C97
surface	Uncoated
Supplier device packaging	ETD 44 x 22 x 15
high	22.30mm
length	45.00mm
width	15.20mm
diameter	-

Preview

Download Datasheet

View All

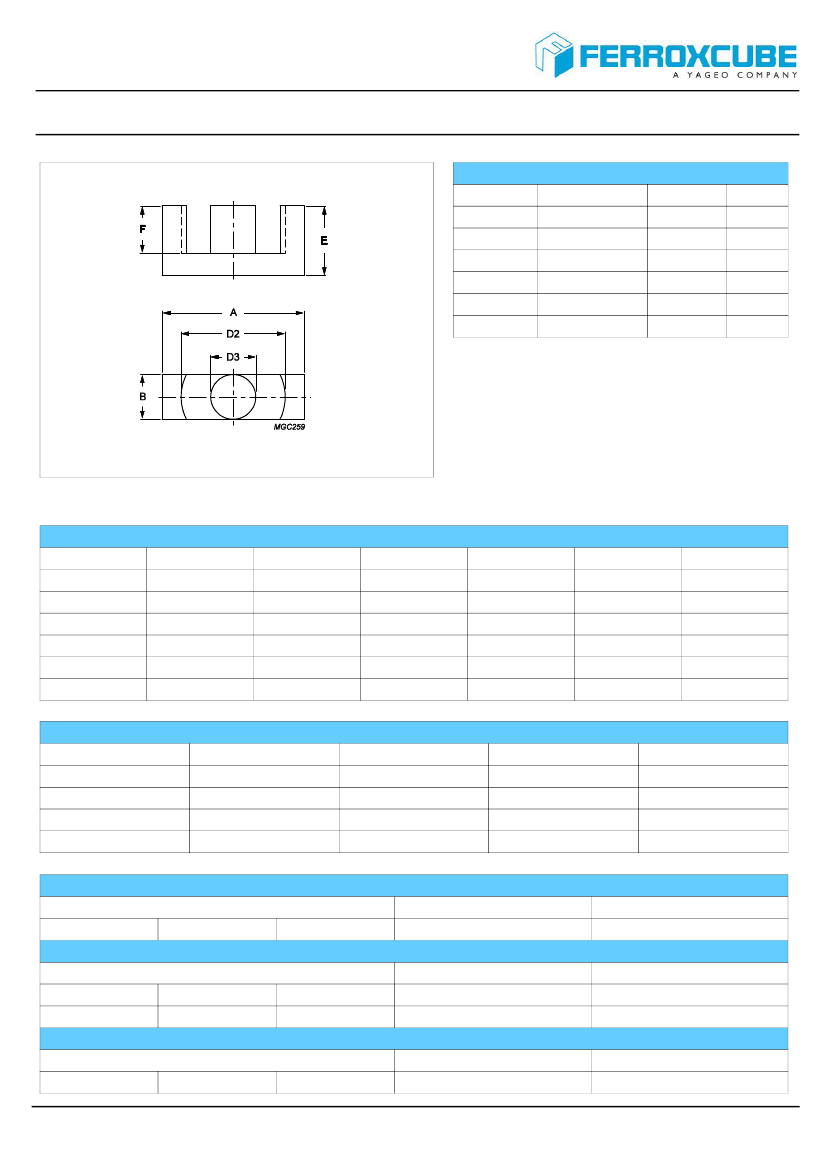

Product specifications

Core

ETD44/22/15

Effective parameters

Symbol

∑(I/A)

Amin

Parameter

core factor (C1)

effective volume

effective length

effective area

minimum area

ETD44/22/15

Value

0.589

17800

103

173

172

≈ 47

Unit

mm⁻¹

mm³

mm²

g/pcs

Dimensions for product: ETD44/22/15

Symbol

Nom

45.00

15.20

32.50

15.20

22.30

16.10

Tol +

0.00

1.60

0.00

0.20

0.80

Tol -

2.00

0.60

0.00

0.60

0.20

0.00

Max

45.00

15.20

34.10

15.20

22.50

16.90

Min

43.00

14.60

32.50

14.60

22.10

16.10

Unit

Inductance factor

Material

3C94

3C95

3C97

3F36

Value

3700

4640

2500

Tol +

25%

Tol -

25%

Unit

nH/turns²

Power loss: 3C94

Measuring conditions

100 kHz

200 mT

100 ºC

Power loss: 3C95

Measuring conditions

100 kHz

200 mT

100 ºC

25 ºC

Power loss: 3C97

Measuring conditions

100 kHz

200 mT

60 ºC

Max

8.900

Unit

W/set

Max

8.500

9.300

Unit

W/set

Max

8.900

Unit

W/set

2016
