https://www.phoenixcontact.com/in/products/1706574
Printed-circuit board connector - ZEC 1,0/ 6-
ST-3,5C1R1,6NZX12.2 - 1706574
Please be informed that the data shown in this PDF Document is generated from our Online Catalog. Please find the complete data in the user's
documentation. Our General Terms of Use for Downloads are valid
(http://phoenixcontact.com/download)
PCB direct plug, nominal current: 8 A, number of positions: 6, pitch: 3.5 mm, connection method: Spring-cage
connection, color: green, contact surface: Tin, mounting: Direct plug-in method

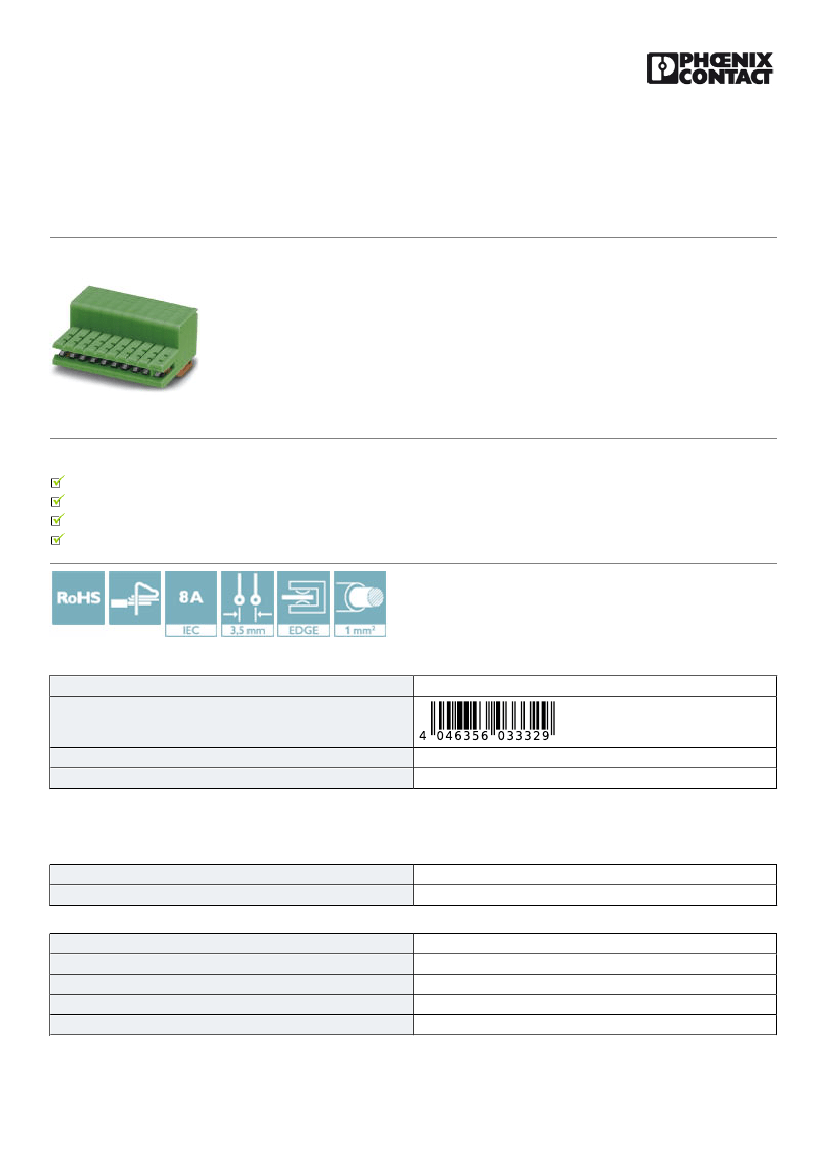

The figure shows a 10-position
version of the product
Your advantages
Defined contact force ensures that contact remains stable over the long term
Inexpensive direct plug-in connection with just one component
Clamping space opened by means of fixed screwdriver enables convenient conductor connection
Plug-in direction parallel to the PCB
Key Commercial Data
Packing unit
GTIN
GTIN
Custom tariff number
4046356033329
85366930
1
Technical data
Dimensions
Pitch
Dimension a
3.5 mm
17.5 mm
General
Range of articles
Number of positions
Connection method
Rated voltage (III/3)
Connection in acc. with standard
ZEC 1,0/..-ST
6
Spring-cage connection
160 V
EN-VDE
01/13/2019 Page 1 / 4
https://www.phoenixcontact.com/in/products/1706574
Printed-circuit board connector - ZEC 1,0/ 6-
ST-3,5C1R1,6NZX12.2 - 1706574
Technical data
General
Nominal current I
N
Nominal cross section
8A
1 mm²
Connection data
Conductor cross section solid min.
Conductor cross section solid max.
Conductor cross section flexible min.
Conductor cross section flexible max.
Conductor cross section flexible, with ferrule without plastic sleeve min.
Conductor cross section flexible, with ferrule with plastic sleeve min.
Conductor cross section flexible, with ferrule with plastic sleeve max.
Conductor cross section AWG min.
Conductor cross section AWG max.
2 conductors with same cross section, stranded, TWIN ferrules with
plastic sleeve, min.
2 conductors with same cross section, stranded, TWIN ferrules with
plastic sleeve, max.
Minimum AWG according to UL/CUL
Maximum AWG according to UL/CUL
0.2 mm²
1 mm²
0.2 mm²
1 mm²
0.25 mm²
0.25 mm²
0.75 mm²
24
16
0.5 mm²
0.5 mm²
26
16
Conductor cross section flexible, with ferrule without plastic sleeve max. 1 mm²
Standards and Regulations
Connection in acc. with standard
EN-VDE
CUL
Environmental Product Compliance
China RoHS
Environmentally friendly use period: unlimited = EFUP-e
No hazardous substances above threshold values
Classifications
eCl@ss
eCl@ss 4.0
eCl@ss 4.1
eCl@ss 5.0
eCl@ss 5.1
eCl@ss 6.0
eCl@ss 7.0
eCl@ss 8.0
eCl@ss 9.0
272607xx
27260701
27260701
27260700
27260700
27440309
27440309
27440309
01/13/2019 Page 2 / 4
https://www.phoenixcontact.com/in/products/1706574
Printed-circuit board connector - ZEC 1,0/ 6-
ST-3,5C1R1,6NZX12.2 - 1706574
Classifications
ETIM
ETIM 3.0
ETIM 4.0
ETIM 5.0
ETIM 6.0
EC001121
EC002637
EC002638
EC002638
UNSPSC
UNSPSC 6.01
UNSPSC 7.0901
UNSPSC 11
UNSPSC 12.01
UNSPSC 13.2
30211810
39121409
39121409
39121409
39121409
Approvals
Approvals
Approvals
CCA / IECEE CB Scheme / VDE Gutachten mit Fertigungsüberwachung / EAC / cULus Recognized
Ex Approvals
Approval details
CCA
Nominal voltage UN
Nominal current IN
1000 V
10 A
DE1 34215
IECEE CB Scheme
Nominal voltage UN
Nominal current IN
http://www.iecee.org/
DE1-51128
1000 V
10 A
01/13/2019 Page 3 / 4
https://www.phoenixcontact.com/in/products/1706574
Printed-circuit board connector - ZEC 1,0/ 6-
ST-3,5C1R1,6NZX12.2 - 1706574
Approvals
VDE Gutachten mit
Fertigungsüberwachung
Nominal voltage UN
Nominal current IN
mm²/AWG/kcmil
http://www2.vde.com/de/Institut/Online-Service/
VDE-gepruefteProdukte/Seiten/Online-Suche.aspx
160 V
8A
0.2-1
40020343
EAC
B
150 V
8A
26-16
B.01742
cULus Recognized
Nominal voltage UN
Nominal current IN
mm²/AWG/kcmil
http://database.ul.com/cgi-bin/XYV/template/LISEXT/1FRAME/index.htm E60425-19941110
Phoenix Contact 2019 © - all rights reserved
http://www.phoenixcontact.com
01/13/2019 Page 4 / 4
