V8P20
www.vishay.com
Vishay General Semiconductor
High Current Density Surface Mount
Trench MOS Barrier Schottky Rectifier
Ultra Low V
F
= 0.60 V at I
F
= 4 A
TMBS® eSMP®
Series
K
FEATURES
• Very low profile - typical height of 1.1 mm
• Ideal for automated placement
• Trench MOS Schottky technology
• Low forward voltage drop, low power losses
1
2
• High efficiency operation
• Meets MSL level 1, per J-STD-020, LF maximum peak
of 260 °C
• Material categorization: for definitions of compliance
please see
www.vishay.com/doc?99912
SMPC
(TO-277A)
K
Cathode
Anode 1
Anode 2
TYPICAL APPLICATIONS
For use in low voltage high frequency inverters,
freewheeling, DC/DC converters and polarity protection
applications.
DESIGN SUPPORT TOOLS
Models
Available
click logo to get started
MECHANICAL DATA
Case:
SMPC (TO-277A)
Molding compound meets UL 94 V-0 flammability rating
Base P/N-M3 - halogen-free, RoHS compliant, and
commercial grade
Terminals:
matte tin plated leads, solderable
J-STD-002 and JESD 22-B102
M3 suffix meets JESD 201 class 1A whisker test
per
PRIMARY CHARACTERISTICS
I
F(AV)
V
RRM
I
FSM
V
F
at I
F
= 8.0 A
T
J
max.
Package
Circuit configuration
8.0 A
200 V
150 A
0.68 V
150 °C
SMPC (TO-277A)
Single
MAXIMUM RATINGS
(T
A
= 25 °C unless otherwise noted)
PARAMETER
Device marking code
Maximum repetitive peak reverse voltage
Maximum average forward rectified current (fig. 1)
Peak forward surge current 10 ms single half sine-wave
superimposed on rated load
Voltage rate of change (rated V
R
)
Operating junction and storage temperature range
Notes
(1)
Mounted on 30 mm x 30 mm pad areas aluminum PCB
(2)
Free air, mounted on recommended copper pad area
V
RRM
I
F (1)
I
F
(2)
SYMBOL
V8P20
V820
200
8.0
2.2
150
10 000
-40 to +150
UNIT
V
A
A
V/μs
°C
I
FSM
dV/dt
T
J
, T
STG
Revision: 27-Jun-2018
Document Number: 89315
1
For technical questions within your region:
DiodesAmericas@vishay.com, DiodesAsia@vishay.com, DiodesEurope@vishay.com
THIS DOCUMENT IS SUBJECT TO CHANGE WITHOUT NOTICE. THE PRODUCTS DESCRIBED HEREIN AND THIS DOCUMENT
ARE SUBJECT TO SPECIFIC DISCLAIMERS, SET FORTH AT
www.vishay.com/doc?91000
V8P20
www.vishay.com
Vishay General Semiconductor
TEST CONDITIONS
SYMBOL
TYP.
0.80
V
F (1)
T
A
= 125 °C
T
A
= 25 °C
T
A
= 125 °C
T
A
= 25 °C
T
A
= 125 °C
I
R (2)
0.95
0.60
0.68
2.0
2.1
6.4
3.4
MAX.
-
1.40
-
0.76
-
-
250
20
μA
mA
μA
mA
V
UNIT
ELECTRICAL CHARACTERISTICS
(T
A
= 25 °C unless otherwise noted)
PARAMETER
I
F
= 4 A
Instantaneous forward voltage
I
F
= 8 A
I
F
= 4 A
I
F
= 8 A
V
R
= 180 V
Reverse current
V
R
= 200 V
Notes
(1)
Pulse test: 300 μs pulse width, 1 % duty cycle
(2)
Pulse test: Pulse width
40 ms
T
A
= 25 °C
THERMAL CHARACTERISTICS
(T
A
= 25 °C unless otherwise noted)
PARAMETER
Typical thermal resistance
SYMBOL
R
JA
(1)
R
JM
(2)
V8P20
80
4
UNIT
°C/W
Notes
(1)
Free air, mounted on recommended copper pad area; thermal resistance R
JA
- junction to ambient
(2)
Mounted on 30 mm x 30 mm Al PCB; thermal resistance R
- junction to mount
JM
ORDERING INFORMATION
(Example)
PREFERRED P/N
V8P20-M3/86A
V8P20-M3/87A
UNIT WEIGHT (g)
0.10
0.10
PREFERRED PACKAGE CODE
86A
87A
BASE QUANTITY
1500
6500
DELIVERY MODE
7" diameter plastic tape and reel
13" diameter plastic tape and reel
Revision: 27-Jun-2018
Document Number: 89315
2
For technical questions within your region:
DiodesAmericas@vishay.com, DiodesAsia@vishay.com, DiodesEurope@vishay.com
THIS DOCUMENT IS SUBJECT TO CHANGE WITHOUT NOTICE. THE PRODUCTS DESCRIBED HEREIN AND THIS DOCUMENT
ARE SUBJECT TO SPECIFIC DISCLAIMERS, SET FORTH AT
www.vishay.com/doc?91000
V8P20
www.vishay.com
Vishay General Semiconductor

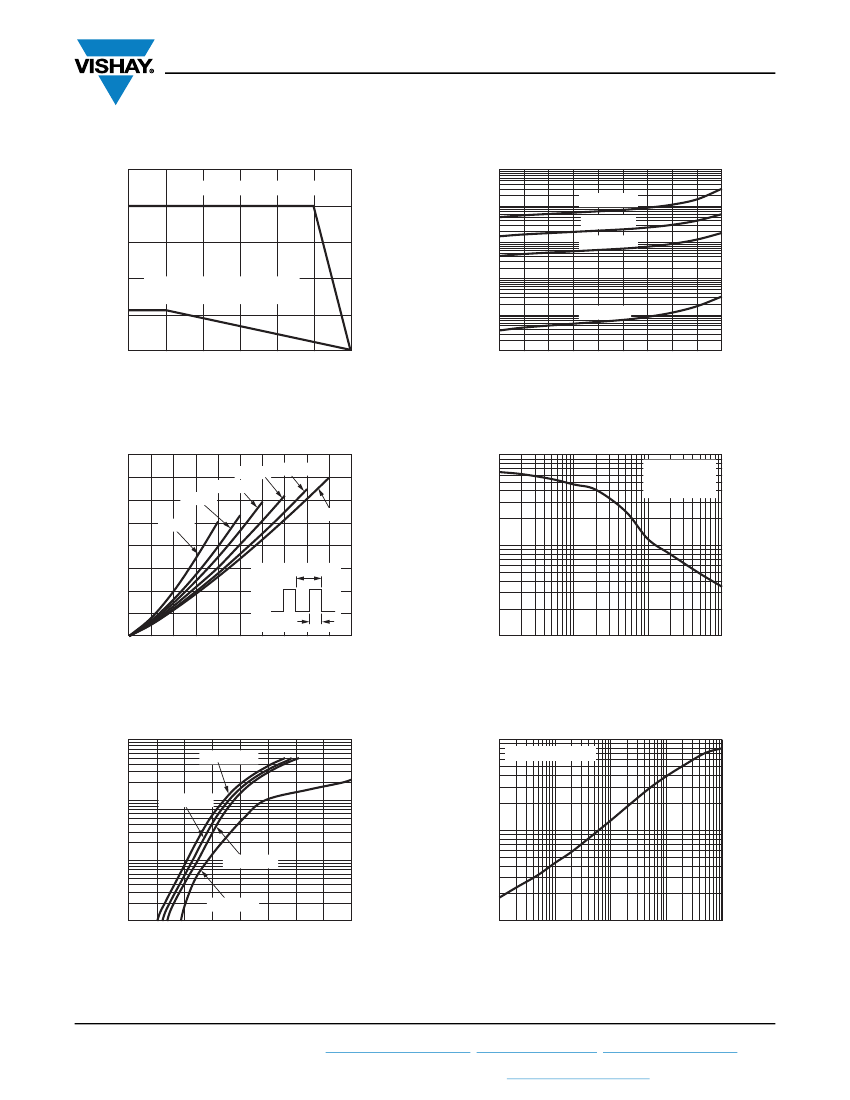

RATINGS AND CHARACTERISTICS CURVES
(T
A
= 25 °C unless otherwise noted)
10
100
T
A
= 150 °C
T
A
= 125 °C
1
T
A
= 100 °C
Average Forward Current (A)
Mounted on Al PCB, T
M
= 125 °C
8
Instantaneous Reverse Current (mA)
10
6
4
Mounted on Recommended
Copper Pad Area (R
θJA
= 80 °C/W)
0.1
T
A
= 25 °C
2
0.01
0
0
25
50
75
100
125
150
0.001
10
20
30
40
50
60
70
80
90
100
Ambient Temperature (°C)
Fig. 1 - Maximum Forward Current Derating Curve
Percent of Rated Peak Reverse Voltage (%)
Fig. 4 - Typical Reverse Characteristics
8
1000
6
5
4
3
2
1
0
0
1
2
D = 0.2
D = 1.0
D = 0.1
Junction Capacitance (pF)
7
Average Power Loss (W)
D = 0.5 D = 0.8
D = 0.3
T
J
= 25 °C
f = 1.0 MHz
V
sig
= 50 mV
p-p
100
T
D = t
p
/T
3
4
5
6
7
8
t
p
9
10
10
0.1
1
10
100
Average Forward Current (A)
Fig. 2 - Forward Power Loss Characteristics
Reverse Voltage (V)
Fig. 5 - Typical Junction Capacitance
Transient Thermal Impedance (°C/W)
100
100
Junction to Ambient
Instantaneous Forward Current (A)
T
A
= 150 °C
10
T
A
= 125 °C
10
1
T
A
= 100 °C
T
A
= 25 °C
0.1
0
0.2
0.4
0.8
0.8
1.0
1.2
1.4
1.6
1
0.01
0.1
1
10
100
Instantaneous Forward Voltage (V)
Fig. 3 - Typical Instantaneous Forward Characteristics
t - Pulse Duration (s)
Fig. 6 - Typical Transient Thermal Impedance
Revision: 27-Jun-2018
Document Number: 89315
3
For technical questions within your region:
DiodesAmericas@vishay.com, DiodesAsia@vishay.com, DiodesEurope@vishay.com
THIS DOCUMENT IS SUBJECT TO CHANGE WITHOUT NOTICE. THE PRODUCTS DESCRIBED HEREIN AND THIS DOCUMENT
ARE SUBJECT TO SPECIFIC DISCLAIMERS, SET FORTH AT
www.vishay.com/doc?91000
V8P20
www.vishay.com
PACKAGE OUTLINE DIMENSIONS
in inches (millimeters)
SMPC
(TO-277A)
0.187 (4.75)
0.175 (4.45)
K
0.016 (0.40)
0.006 (0.15)
Vishay General Semiconductor
0.262 (6.65)
0.250 (6.35)
0.242 (6.15)
0.238 (6.05)
2
1
0.171 (4.35)
0.167 (4.25)
0.146 (3.70)
0.134 (3.40)
0.087 (2.20)
0.075 (1.90)
0.047 (1.20)
0.039 (1.00)
Mounting Pad Layout
0.189 (4.80)
MIN.
0.189 (4.80)
0.173 (4.40)
0.155 (3.94)
NOM.
0.030 (0.75) NOM.
0.268
(6.80)
0.186 (4.72)
MIN.
0.049 (1.24)
0.037 (0.94)
0.084 (2.13) NOM.
0.053 (1.35)
0.041 (1.05)
Conform to JEDEC
®
TO-277A
0.050 (1.27)
MIN.
0.041
(1.04)
0.055 (1.40)
MIN.
Revision: 27-Jun-2018
Document Number: 89315
4
For technical questions within your region:
DiodesAmericas@vishay.com, DiodesAsia@vishay.com, DiodesEurope@vishay.com
THIS DOCUMENT IS SUBJECT TO CHANGE WITHOUT NOTICE. THE PRODUCTS DESCRIBED HEREIN AND THIS DOCUMENT
ARE SUBJECT TO SPECIFIC DISCLAIMERS, SET FORTH AT
www.vishay.com/doc?91000
Legal Disclaimer Notice
www.vishay.com
Vishay
Disclaimer
ALL PRODUCT, PRODUCT SPECIFICATIONS AND DATA ARE SUBJECT TO CHANGE WITHOUT NOTICE TO IMPROVE
RELIABILITY, FUNCTION OR DESIGN OR OTHERWISE.
Vishay Intertechnology, Inc., its affiliates, agents, and employees, and all persons acting on its or their behalf (collectively,
“Vishay”), disclaim any and all liability for any errors, inaccuracies or incompleteness contained in any datasheet or in any other
disclosure relating to any product.
Vishay makes no warranty, representation or guarantee regarding the suitability of the products for any particular purpose or
the continuing production of any product. To the maximum extent permitted by applicable law, Vishay disclaims (i) any and all
liability arising out of the application or use of any product, (ii) any and all liability, including without limitation special,
consequential or incidental damages, and (iii) any and all implied warranties, including warranties of fitness for particular
purpose, non-infringement and merchantability.
Statements regarding the suitability of products for certain types of applications are based on Vishay’s knowledge of
typical requirements that are often placed on Vishay products in generic applications. Such statements are not binding
statements about the suitability of products for a particular application. It is the customer’s responsibility to validate that a
particular product with the properties described in the product specification is suitable for use in a particular application.
Parameters provided in datasheets and / or specifications may vary in different applications and performance may vary over
time. All operating parameters, including typical parameters, must be validated for each customer application by the customer’s
technical experts. Product specifications do not expand or otherwise modify Vishay’s terms and conditions of purchase,
including but not limited to the warranty expressed therein.
Except as expressly indicated in writing, Vishay products are not designed for use in medical, life-saving, or life-sustaining
applications or for any other application in which the failure of the Vishay product could result in personal injury or death.
Customers using or selling Vishay products not expressly indicated for use in such applications do so at their own risk.
Please contact authorized Vishay personnel to obtain written terms and conditions regarding products designed for
such applications.
No license, express or implied, by estoppel or otherwise, to any intellectual property rights is granted by this document
or by any conduct of Vishay. Product names and markings noted herein may be trademarks of their respective owners.
© 2017 VISHAY INTERTECHNOLOGY, INC. ALL RIGHTS RESERVED
Revision: 08-Feb-17
1
Document Number: 91000
