909-37-2-33-2-B-0 datasheet, PDF

Datasheet> All Categories > Thermal management products> 909-37-2-33-2-B-0

909-37-2-33-2-B-0: DescriptionHEAT SINK PIN FIN 37X37MM CLIP; CategoryThermal management products; File Size295KB，3 Pages; ManufacturerWakefield-Vette; Websitehttp://www.wakefield-vette.com/; Environmental Compliance

Download Datasheet View All

909-37-2-33-2-B-0 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	909-37-2-33-2-B-0	-	-	View	Buy Now

909-37-2-33-2-B-0 Overview

HEAT SINK PIN FIN 37X37MM CLIP

Preview

Download Datasheet

View All

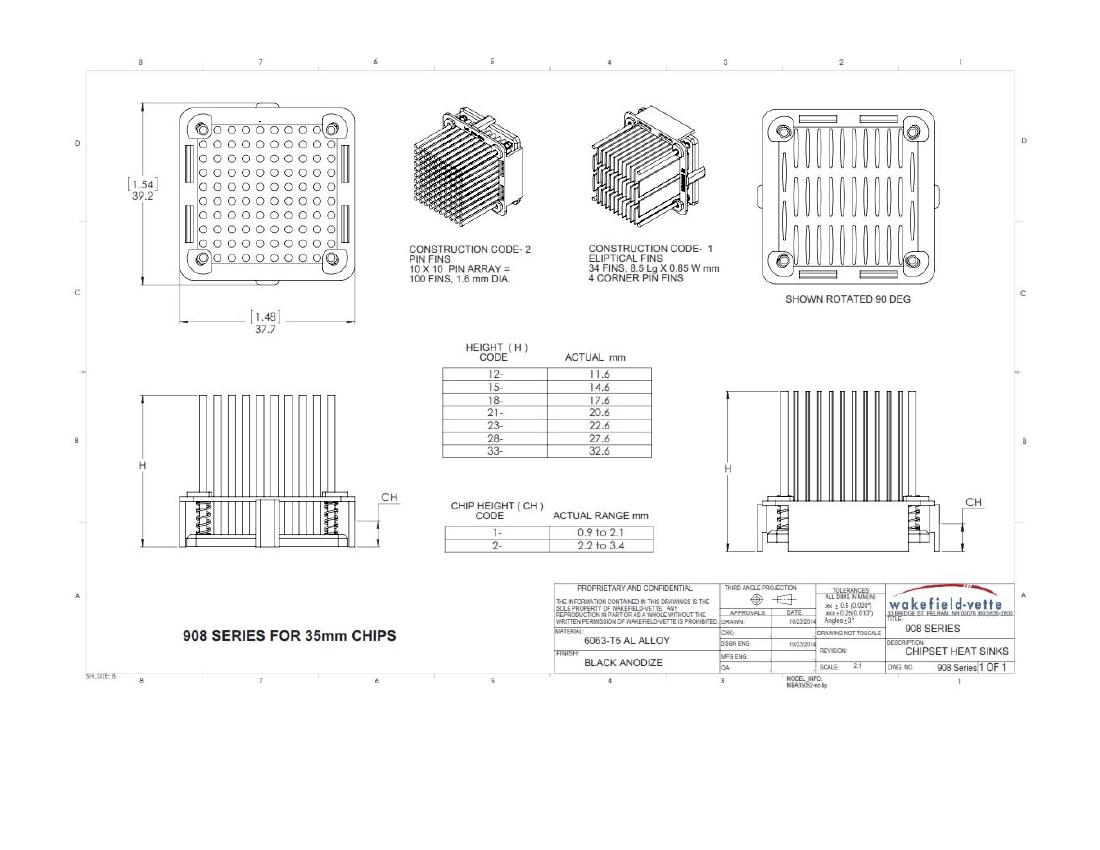

ELLIPTICAL FIN HEAT SINK

908 Series

Wakefield-Vette’s 900 Series Heat Sinks for Chipset can match up

to devices from

Intel, Broadcom, Xilinx, TI, Motorola, ATI, AMD, Nvidia, Vishay, Pow

erex, Infineon, Microsemi, and many more.

These heat sinks are designed for air flow applications in the

Telecom, Data Center, Networking, Cloud Computing, and many

more Industries.

Material:

AL 6063

Finish:

Black Anodize

PART #

908-35-1-12-2-B-0

908-35-1-15-2-B-0

908-35-1-18-2-B-0

908-35-1-21-2-B-0

908-35-1-23-2-B-0

908-35-1-28-2-B-0

908-35-1-33-2-B-0

HEIGHT

(mm)

CHIP SIZE

(mm)

NATURAL

CONVECTION

11.1 C/W

10.58 C/W

10.06 C/W

9.53 C/W

8.75 C/W

7.93 C/W

7.11 C/W

FORCED CONVECTION (C/W)

200 LFM 400 LFM

600 LFM

3.07 C/W

2.79 C/W

2.54 C/W

2.35 C/W

2.13 C/W

1.94 C/W

1.69 C/W

2.07 C/W

1.87 C/W

1.69 C/W

1.52 C/W

1.35 C/W

1.19 C/W

1.02 C/W

1.64 C/W

1.46 C/W

1.27 C/W

1.15 C/W

1.01 C/W

.86 C/W

.72 C/W

THERMAL PERFORMANCE:

908-35-1-12-2-B-0

3.5

908-35-1-15-2-B-0

C/ Watt

908-35-1-18-2-B-0

2.5

908-35-1-21-2-B-0

908-35-1-23-2-B-0

1.5

0.5

200 LFM

400 LFM

Forced Convection

Series

Chip Size

Construction

Height

Chip Height

Finish

Interface

908-35-1-28-2-B-0

908-35-1-33-2-B-0

600 LFM

19-

908-

37.5

12-

12 = 11.6

15 = 14.6

18 = 17.6

21 = 20.6

1 = .9-2.1

2 = 2.2-3.4

B-

0 = None

1 = T725

1= Eliptical

Fin

23 = 22.6

28 = 27.6

33 = 32.6

B = BLK

ANO

T h e r m a l

C o o l i n g

S o l u t i o n s

f r o m

S m a r t

t o

F i n i s h

www.wakefield-vette.com
