1mm Pitch Connectors for Vertical Connection
FX5 Series
Connecting Height: Low profile
FX5_*S2A_DSA
FX5_*P_SH
Nov.1.2018 Copyright 2018 HIROSE ELECTRIC CO., LTD. All Rights Reserved.
( 3.6 )
PCB
Fig.1

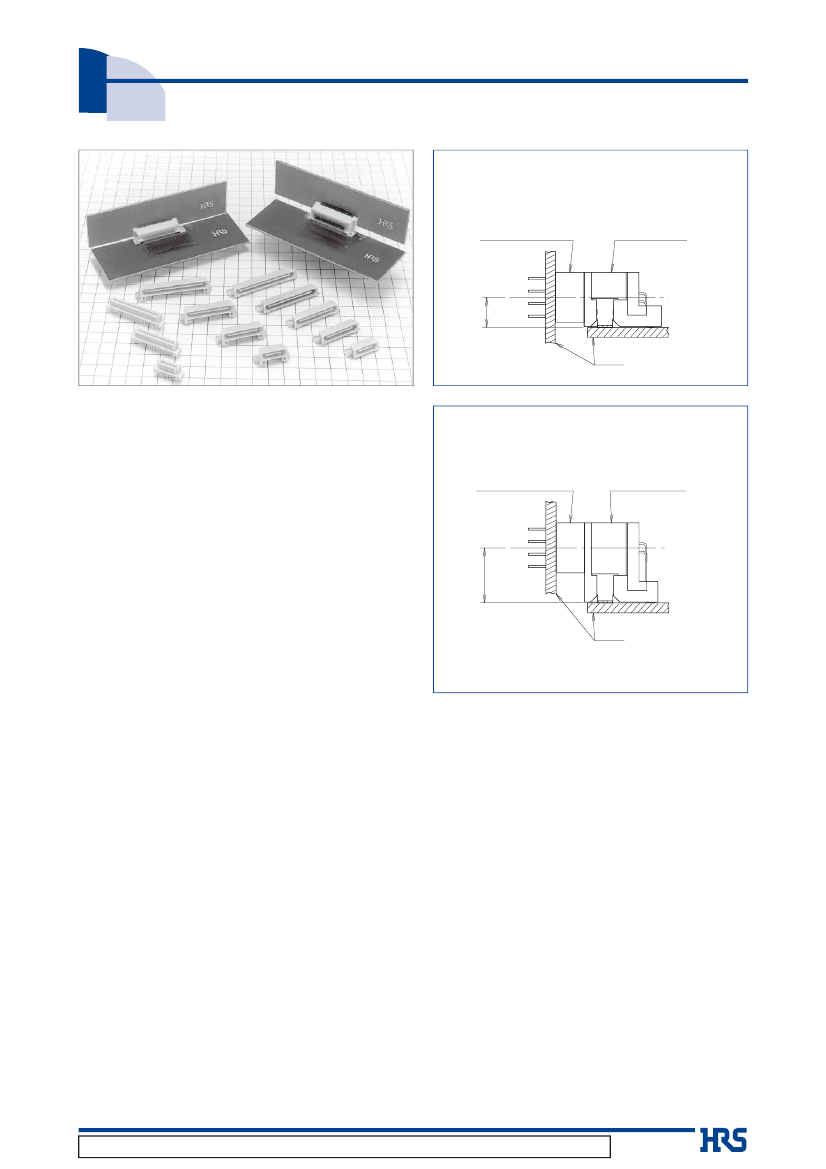

■Features
1. Header Side : 2 Types Available
Two header types are available, low and high profiles.
Combined with various contact positions, the FX5 is
versatile to work in many application. (See Fig.1 and 2)
Connecting Height: High profile
FX5_*S2A_DSA
FX5_*P_SH3
2. Two-step, Sequential Mating
The mating sequence features a 2-step, "first mate-last
break" condition that helps to protect the circuit.
A guide rib is provided along with a self-alignment
range of ± 1mm to allow for easy mating operations.
( 6.6 )
3. Mating Guide
4. SMT Coplanarity
The coplanarity of SMT soldered area has a high accuracy
of 0.1mm.
PCB
5. Miniaturization
The FX5 uses about 30% less mounting area on the
board compared with a 1.27mm pitch connector.
Fig.2
In cases where the application will demand a high level of reliability, such as automotive,
please contact a company representative for further information.
2015.4w
1
FX5 Series
●
1mm Pitch Connectors for Vertical Connection
■Product
Specifications
Current rating 0.5A
Ratings
Voltage rating 100V AC
Items
1. Insulation Resistance
2. Withstanding voltage
3. Contact Resistance
4. Vibration Resistance
Operating Humidity Range 40% to 80%
Specifications
100M
ohms
min.
No flashover or insulation breakdown.
50m
ohms
max.
No electrical discontinuity of 1μs or more
Contact resistance: 60m
ohms
max.
Insulation resistance: 100M
ohms
min.
Contact resistance: 60m
ohms
max.
Insulation resistance: 100M
ohms
min.
Contact resistance: 60m
ohms
max.
No deformation of components affecting
performance.
250V DC
300V AC/1 minute
100mA
Frequency: 10 to 55 Hz, single amplitude of 0.75 mm,
2 hours in each of the 3 directions.
96 hours at temperature of 40ç and humidity of
90% to 95%
(-55ç: 30 minutes, 15 to 35ç: 2 to 3 minutes
(-85ç:
30 minutes, 15 to 35ç: 2 to 3minutes) 5 cycles
500 cycles
SMT
DIP
Reflow: At the recommended temperature profile
Manual soldering: 360°C for 5 seconds
Solder Bath: 260ç for 10 seconds
Manual soldering: 360ç for 5 seconds
Storage Humidity Range
Conditions
40% to 70%
Operating Temperature Range -55ç to +85ç (Note 1)
Storage Temperature Range -10ç to +60ç (Note 2)
Nov.1.2018 Copyright 2018 HIROSE ELECTRIC CO., LTD. All Rights Reserved.
5. Moisture Resistance
6. Temperature Cycle
7. Mating Cycles
8. Resistance to Soldering
heat
Note 1: Includes temperature rise caused by current flow.
Note 2: The term "storage" refers to products stored for a long time prior to use. Operating temperature and humidity range includes a
non-conducting state of installed connectors in storage, shipment, or during transportation.
■Material
Part
Insulator
Header Contact
Receptacle Contact
Material
Polyamide
Brass
Phosphor bronze
Finish
Beige
Contact area : Gold plated
Lead area : Tin plated
Remarks
UL94V-0
–––––––
–––––––
Note : The black dots on the insulater will not affect performance
■Product
Number Structure
●Header
q
Series Name
e
Connector Type
r
Contact type
SH
: Right angle SMT type
Note: The 56 contact header is for SH 3 type only.
FX5 –
*
P – SH 3
q
w
e
r
t
: FX5
P: Header
t
Connector Height
Blank
3
: 6.5mm
: 9.5mm
w
Number of Contacts : 20, 40, 52, 56, 68, 80
●Receptacle
FX5 –
*
S 2 A – DSA L
q
w
e
r
t
y
u
q
Series Name
e
Connector Type
r
Contact Sequence
2
t
Serial No. : A
: FX5
S: Receptacle
: 2 Stages Sequence
y
Contact type
DSA
Blank
L
: Straight through hole type
: Without board prefixed pin
: With board Prefixed pin
u
Board prefixed pin
w
Number of Contacts : 20, 40, 52, 56, 68, 80
2
FX5 Series
●
1mm Pitch Connectors for Vertical Connection

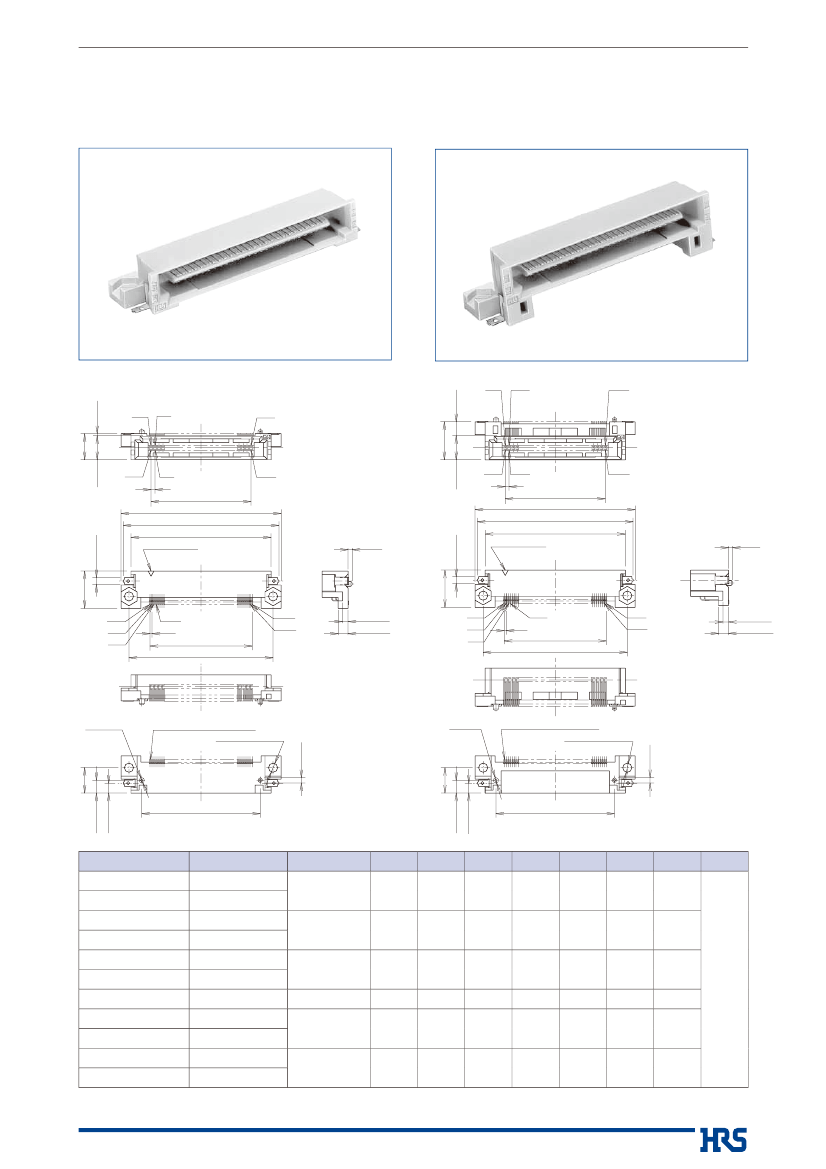

■Header
●Low
profile
●High
profile
Nov.1.2018 Copyright 2018 HIROSE ELECTRIC CO., LTD. All Rights Reserved.
*
= (number of contacts)/2
=
Unit: mm
Part No.
FX5-20P-SH(71)
FX5-20P-SH3(71)
FX5-40P-SH(71)
FX5-40P-SH3(71)
FX5-52P-SH(71)
FX5-52P-SH3(71)
FX5-56P-SH3(71)
FX5-68P-SH(71)
FX5-68P-SH3(71)
FX5-80P-SH(71)
FX5-80P-SH3(71)
HRS No.
575-0001-7 71
575-0041-1 71
575-0005-8 71
575-0045-2 71
575-0006-0 71
575-0046-5 71
575-1001-2 71
575-0008-6 71
575-0048-0 71
575-0009-9 71
575-0049-3 71
No. of contacts
20
40
52
56
68
80
A
9
19
25
27
33
39
B
24
34
40
42
48
54
C
22.9
32.9
38.9
40.9
46.9
52.9
D
19
29
35
37
43
49
E
9.5
19.5
25.5
27.5
33.5
39.5
F
20
30
36
38
44
50
G
13.6
23.6
29.6
31.6
37.6
43.6
RoHS
Yes
3
FX5 Series
●
1mm Pitch Connectors for Vertical Connection

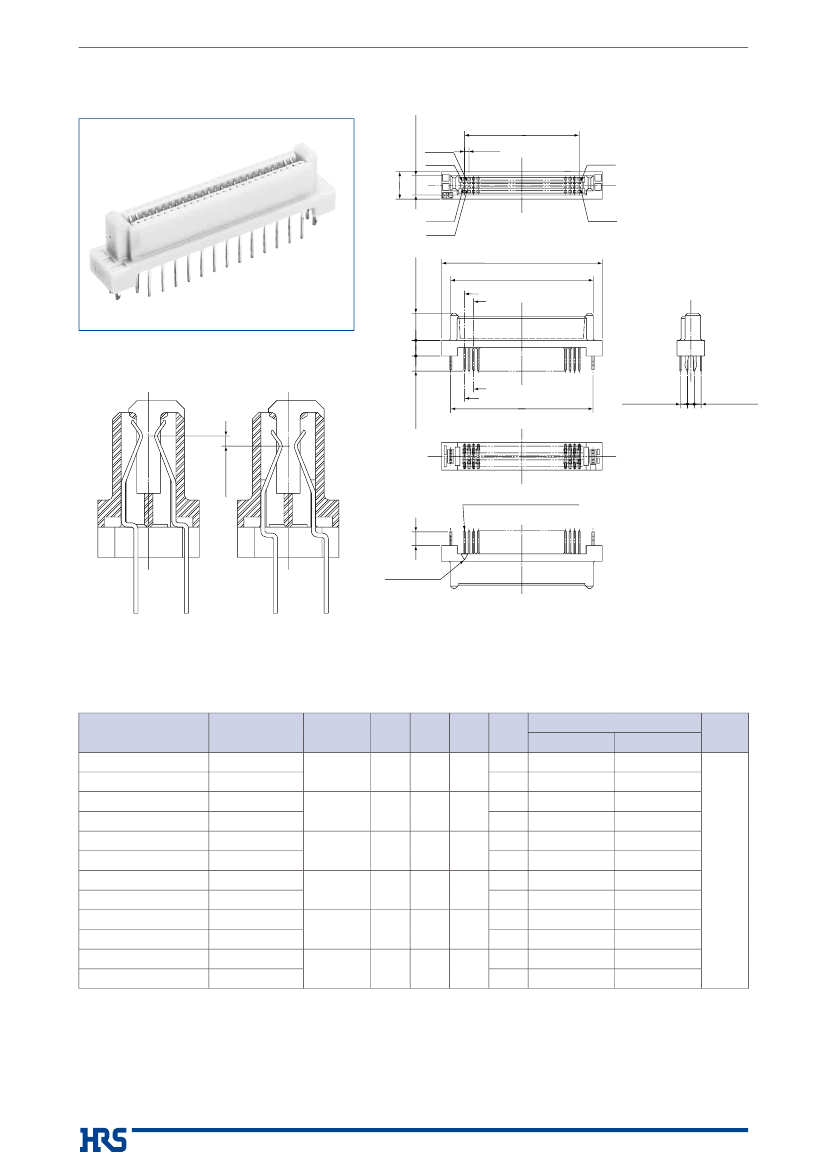

■Receptacle
4.25±0.2
A ±0.2
a2
a1
b1 a1
1
a*
* *
6±0.3
* = (number of contacts)/2
b1
b2
B ±0.3
5.9±0.2
C
E
F
+0.1
–0.2
b*
Nov.1.2018 Copyright 2018 HIROSE ELECTRIC CO., LTD. All Rights Reserved.
E–E
F–F
3.3±0.3
3.4±0.3
F
E
D ±0.3
1.5±0.2
1.5±0.2
1.5±0.2
0.6±0.3
t0.25±0.03xw0.4±0.05
3±0.3
Polarity Mark
Unit: mm
Part No.
FX5-20S2A-DSA(71)
FX5-20S2A-DSAL(71)
FX5-40S2A-DSA(71)
FX5-40S2A-DSAL(71)
FX5-52S2A-DSA(71)
FX5-52S2A-DSAL(71)
FX5-56S2A-DSA(71)
FX5-56S2A-DSAL(71)
FX5-68S2A-DSA(71)
FX5-68S2A-DSAL(71)
FX5-80S2A-DSA(71)
FX5-80S2A-DSAL(71)
HRS No.
575-0101-1 71
575-0121-9 71
575-0105-2 71
575-0125-0 71
575-0106-5 71
575-0126-2 71
575-0107-8 71
575-0127-5 71
575-0108-0 71
575-0128-8 71
575-0109-3 71
575-0129-0 71
No. of
contacts
20
40
52
56
68
80
A
9
19
25
27
33
39
B
19
29
35
37
43
49
C
15.08
25.08
31.08
33.08
39.08
45.08
D
–––
15
–––
25
–––
31
–––
33
–––
39
–––
45
Order of Contact Sequence(Contact No.)
1
a1,a2,a9,a10
b1,b2,b9,b10
a1,a2,a19,a20
b1,b2,b19,b20
a1,a2,a25,a26
b1,b2,b25,b26
a1,a2,a27,a28
b1,b2,b27,b28
a1,a2,a33,a34
b1,b2,b33,b34
a1,a2,a39,a40
b1,b2,b39,b40
2
a3
to
a8
b3
to
b8
a3
to
a18
b3
to
b18
a3
to
a24
b3
to
b24
a3
to
a26
b3
to
b26
a3
to
a32
b3
to
b32
a3
to
a38
b3
to
b38
Yes
RoHS
4
FX5 Series
●
1mm Pitch Connectors for Vertical Connection
B

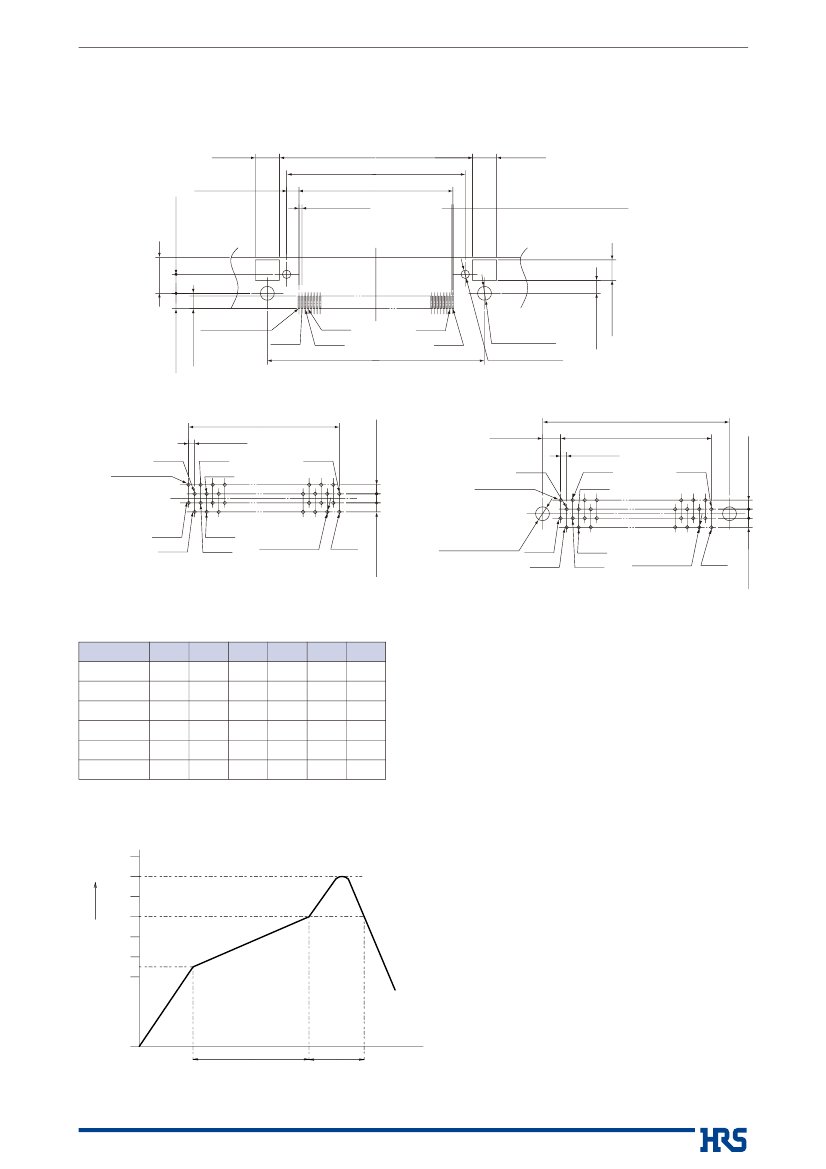

PCB mounting pattern
●Header
FX5-*-SH, FX5-*-SH3
Nov.1.2018 Copyright 2018 HIROSE ELECTRIC CO., LTD. All Rights Reserved.
●Receptacle
FX5-*S2A-DSA
FX5-*S2A-DSAL
Unit: mm
No. of contacts
20
40
52
56
68
80
A
16
26
32
34
40
46
B
13.6
23.6
29.6
31.6
37.6
43.6
C
9.5
19.5
25.5
27.5
33.5
39.5
D
20
30
36
38
44
50
E
9
19
25
27
33
39
F
15
25
31
33
39
45
Note: If the connector uses a mounting area over the recommended
size, it could cause defects in mounting and soldering.
For best results, mount the connector using the recommended
PCB mounting pattern.
B
Recommended Temperature Profile
260
240
220
200
Temperature (ç)
180
160
140
150ç
200ç
(MAX240ç)
HRS test conditions
Test boardGlass epoxy 110mm∞40mm∞1.6mm
thick
Solder method
:Reflow
Solder composition
:Paste,
96.5%Sn/3%Ag/0.5%Cu
Metal mask
: 0.15mm thick
Reflow cycles
: 1 cycles
The temperature profile is based on the above
conditions.
In individual applications the actual temperature
may vary, depending on solder paste type,
volume/thickness and board size/thickness.
Consult your solder paste and equipment
manufacturer for specific recommendations.
0
(90 to 120s)
Pre-heating time
(150 to 200ç)
(MAX 60s)
Soldering Time
(220ç min.)
Time (s)
5
