FA5B036HP1 datasheet, PDF - EEWORLD Datasheet

EEWORLDEEWORLD

Datasheet

Datasheet> All Categories > The connector> FA5B036HP1

Preview

FA5B036HP1: DescriptionCONN FPC BOTTOM 36POS 0.50MM SMD; CategoryThe connector; File Size99KB，2 Pages; ManufacturerJAE Electronics; Environmental Compliance

Download Datasheet Parametric View All

FA5B036HP1 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	FA5B036HP1	-	-	View	Buy Now

FA5B036HP1 Overview

CONN FPC BOTTOM 36POS 0.50MM SMD

FA5B036HP1 Parametric

Parameter Name	Attribute value
Flat flexible type	FPC
Installation type	board edge, cutout
Connector/contact type	contact, bottom
Number of pins	36
spacing	0.020"（0.50mm）
Termination	welding
FFC, FCB thickness	0.30mm
board height	-
Lock function	trigger lock
Cable end type	tapered
Contact material	copper alloy
Contact plating	gold
Shell material	Liquid crystal polymer (LCP), glass fiber reinforced
Actuator material	Polyamide (PA), nylon, glass fiber reinforced
characteristic	Fixed solder tail, zero insertion force (ZIF)
Rated voltage	50V
Operating temperature	-40°C ~ 85°C
Material flammability rating	UL94 V-0
Rated current	0.8A/contact
Contact plating thickness	-
Shell color	black
Actuator color	White
Number of patches	20

Preview

Download Datasheet

View All

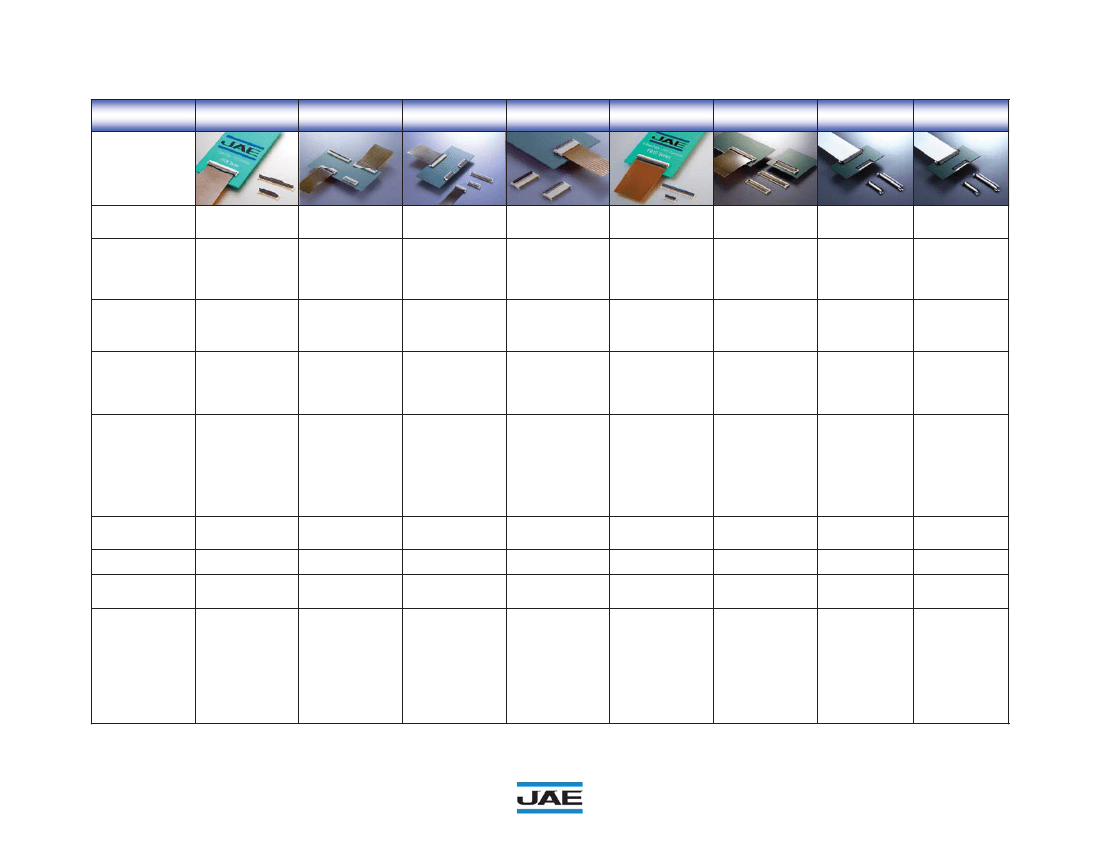

v2.2

Board-to-Flex Connectors

Loose pcs:

FB8S###JA1

Reel:

FB8S###JA1R2000

Loose pcs:

Reel:

FA5S0##HP1

FA5S0##HP1R3000

Loose pcs:

FF02S##SV1

Reel:

FF02S##SV1-R3000

Loose pcs:

FB6S###JA1

Reel:

FB6S###JA1R3000

Loose pcs:

Reel:

FA5B0##HP1

FA5B0##HP1 R3000

1: t0.3mm FPC/FFC

3: t0.14mm FPC/FFC

Reel:

FF08##SA1-R3000

Reel:

FB10S###JA2R6000

Loose pcs:

FF03##SA1

Reel:

FF03##SA1 - R2000
