SPN30-24S datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Power/power management> SPN30-24S

SPN30-24S: DescriptionAC/DC CONVERTER 24V 30W; CategoryPower/power management; File Size314KB，2 Pages; ManufacturerKAGA ELECTRONICS CO.,LTD; Websitehttp://www.volgen.com/; Environmental Compliance

Download Datasheet Parametric Compare View All

SPN30-24S Overview

AC/DC CONVERTER 24V 30W

SPN30-24S Parametric

Parameter Name	Attribute value
type	closed
Number of outputs	1
Voltage - input	85 ~ 264 VAC
Voltage - Output 1	24V
Voltage - Output 2	-
Voltage - Output 3	-
Voltage - Output 4	-
Current - Output (maximum)	1.4A
Power (W)	30W
application	ITE (Business)
Voltage - Isolation	3kV
efficiency	80%
Operating temperature	0°C ~ 60°C
characteristic	Adjustable output, universal input
Installation type	Base installation
size/dimensions	4.39" long x 2.95" wide x 1.26" high (111.5mm x 75.0mm x 32.0mm)
Minimum load required	none
Approval	CB，CE

Preview

Download Datasheet

View All

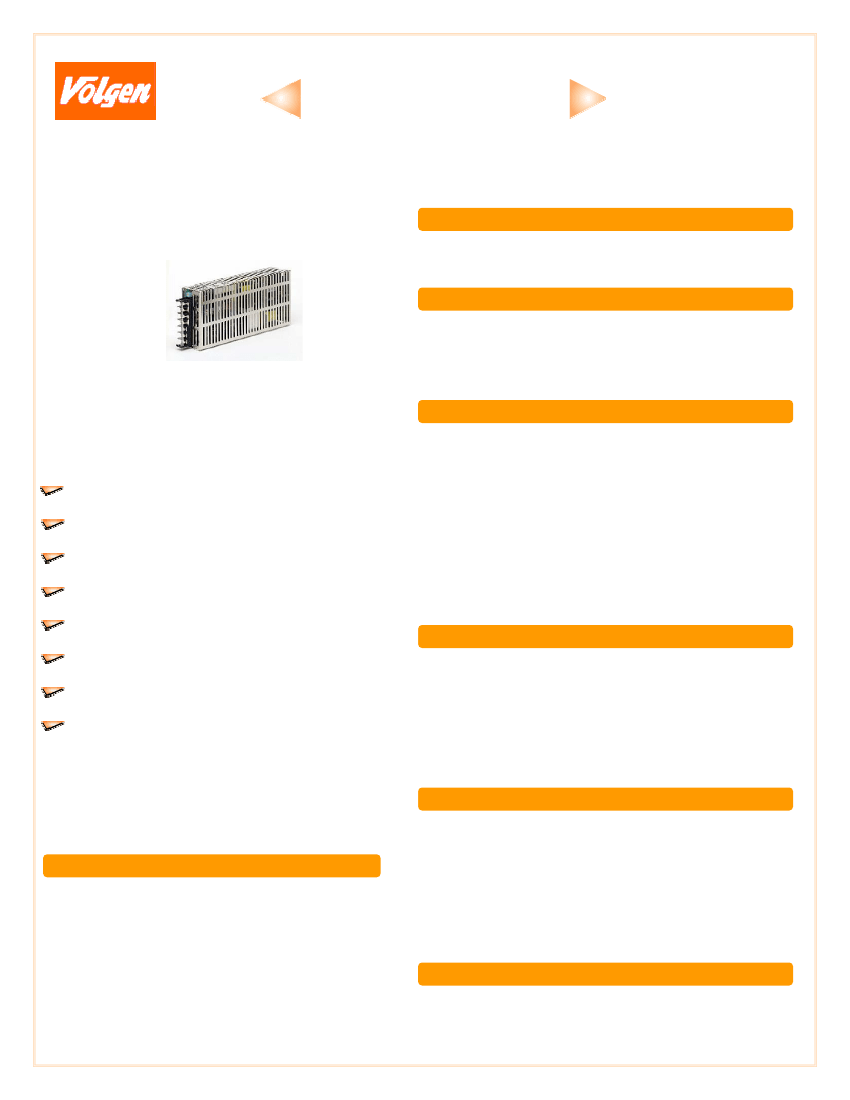

PN30 Series

30 WATT, Universal Input

Fully Enclosed Switching Power Supply

LECTRICAL SPECIFICATIONS

All specifications are typical at nominal input, full load

INPUT SPECIFICATIONS

Input Voltage………..........................85 ~ 264VAC

Input Frequency............................... 47 ~ 63Hz

Input Current………………………….0.55 ~ 1.0A Typ.

Inrush Current

16A ~ 39A Typ

OUTPUT SPECIFICATIONS

FEATURES

30 WATT OUTPUT POWER

UNIVERSAL INPUT

OVERVOLTAGE PROTECTION

OVERCURRENT PROTECTION

Output Voltage ……………………….See Chart

Voltage Adjustment.………………….±10%

Minimum Load……………………….. 0A

Efficiency..................................……..75 ~ 80%

Over-Voltage Protection...…………..115 ~ 150% Manual Reset

Over-Current Protection………….....Automatic Recovery

(105% min)

Ripple and Noise…………………….100mVp-p max.

Hold-Up Time.......................…….....40 ~ 50 mS

Line/Load Regulation...............…… See Chart

Rise Time...…...……………………...800 ~ 1700 mS

Leakage Current

(100/230VAC)………….

0.75mA

LIGHTWEIGHT CONSTRUCTION

GENERAL SPECIFICATIONS

MTBF.............................…………….>160,000 Hours

Isolation Voltage

Primary to Secondary……………3000VAC

Primary to Case………………….1500VAC

Secondary to Case………………500VAC

Isolation Resistance………………….100 M-Ohms min.

METAL CHASSIS WITH COVER

COMPACT, LOW-PROFILE PACKAGES

3 YEAR WARRANTY

ENVIRONMENTAL SPECIFICATIONS

Operating Temperature ............…….0°C ~ +60°C

Cooling………………….....................Convection

Temperature Coefficient................... 0.02% / °C

Humidity………………......................20 ~ 85%Rh

(non-condensing)

Storage Temperature………………..-20°C ~ +85°C

Shock Vibration………………………Shock: 20G

(3 Directions each 3 times)

Vibration: 10 ~ 55Hz

SAFETIES/APPROVALS

UL/cUL

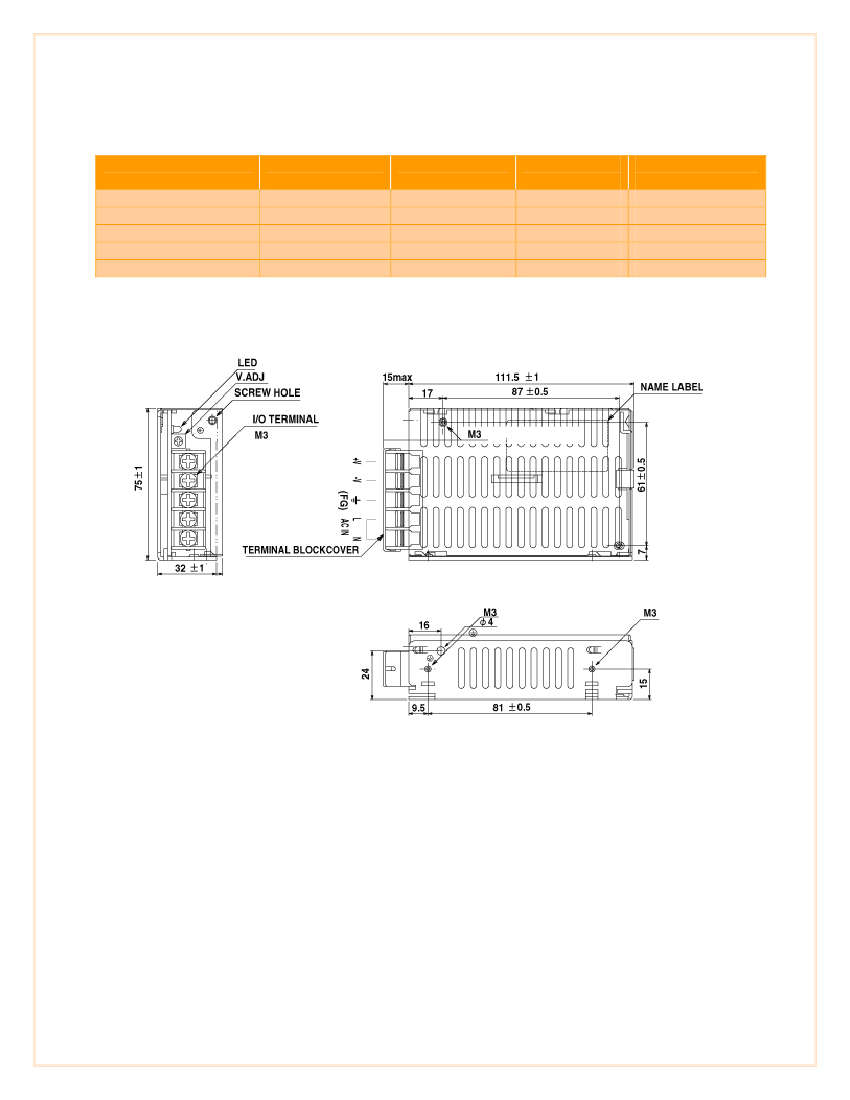

PHYSICAL SPECIFICATIONS

Metal Enclosed – Terminal Block

SPN30-24S Related Products

	SPN30-24S	SPN30-05S	SPN30-15S	SPN30-12S	SPN30-48S
Description	AC/DC CONVERTER 24V 30W	AC/DC CONVERTER 5V 30W	AC/DC CONVERTER 15V 30W	AC/DC CONVERTER 12V 30W	AC/DC CONVERTER 48V 30W
type	closed	closed	closed	closed	closed
Number of outputs	1	1	1	1	1
Voltage - input	85 ~ 264 VAC	85 ~ 264 VAC	85 ~ 264 VAC	85 ~ 264 VAC	85 ~ 264 VAC
Voltage - Output 1	24V	5V	15V	12V	48V
Current - Output (maximum)	1.4A	6A	2.1A	3A	700mA
Power (W)	30W	30W	30W	30W	30W
application	ITE (Business)	ITE (Business)	ITE (Business)	ITE (Business)	ITE (Business)
Voltage - Isolation	3kV	3kV	3kV	3kV	3kV
efficiency	80%	75%	79%	78%	80%
Operating temperature	0°C ~ 60°C	0°C ~ 60°C	0°C ~ 60°C	0°C ~ 60°C	0°C ~ 60°C
characteristic	Adjustable output, universal input	Adjustable output, universal input	Adjustable output, universal input	Adjustable output, universal input	Adjustable output, universal input
Installation type	Base installation	Base installation	Base installation	Base installation	Base installation
size/dimensions	4.39" long x 2.95" wide x 1.26" high (111.5mm x 75.0mm x 32.0mm)	4.39" long x 2.95" wide x 1.26" high (111.5mm x 75.0mm x 32.0mm)	4.39" long x 2.95" wide x 1.26" high (111.5mm x 75.0mm x 32.0mm)	4.39" long x 2.95" wide x 1.26" high (111.5mm x 75.0mm x 32.0mm)	4.39" long x 2.95" wide x 1.26" high (111.5mm x 75.0mm x 32.0mm)
Minimum load required	none	none	none	none	none
Approval	CB，CE	CB，CE	CB，CE	CB，CE	CB，CE
